LOVOL TS8A1254-018K Tractor Parts Catalogue 15
Lovol TS8A1254-018K Wheeled Tractor

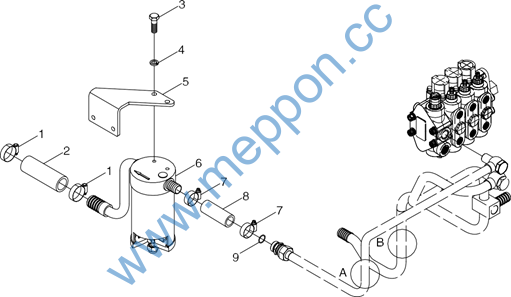

TG1454.582J Hydraulic Device Assembly 2-3
No. |
Part No. and Specifications |
Part name |
Qty. |
Remarks |
TG1454.582J |
Hydraulic device assembly 2 |
1 |
||
1 |
GBT5783-M10X25-8.8-A3L |
Hex bolt |
4 |
|
2 |
GBT93-10-A0P |
Standard spring washer |
4 |
|
3 |
TG1204.582A.2 |
Multi-way valve bracket assembly |
1 |
|
4 |
GBT5783-M12X30-8.8-A3L |
Hex bolt |
4 |
|
5 |
GBT93-12-A0P |
Standard spring washer |
4 |
|
6 |
JBT982-22 |
Compound seal washer |
12 |
|
7 |
TG1204.582A-05 |
Multi-way valve joint |
6 |
|
8 |
FT354.58A.030 |
Quick-change adaptor |
6 |
|
9 |
JBT982-27 |
Compound seal washer |
2 |
|
10 |
TG1454.582D.1a |
Multi-way valve oil return pipe weldment |
1 |
|
11 |
TG1204.552-05 |
Hollow bolt M27X1.5 |
1 |
|
12 |
TG1204.552-06 |
Hollow bolt M24X1.5 |
1 |
|
13 |
JBT982-24 |
Compound seal washer |
2 |
|
14 |
TG1454.582H.1 |
Multi-way valve oil inlet pipe assembly |
1 |
|
15 |
GBT3737-L22 |
Sleeve type straight pipe joint |
1 |
161
Lovol TS8A1254-018K Wheeled Tractor
TG1454.582J Hydraulic Device Assembly 2-4
162
Lovol TS8A1254-018K Wheeled Tractor
TG1454.582J Hydraulic Device Assembly 2-4
No. |
Part No. and Specifications |
Part name |
Qty. |
Remarks |
TG1454.582J |
Hydraulic device assembly 2 |
1 |
||
1 |
Q67645 |
B worm drive type hose hoop |
2 |
|
2 |
TG1854.582A-06 |
Oil return hose |
1 |
|
3 |
GBT5783-M10X20-8.8-A3L |
Hex bolt |
6 |
|
4 |
GBT93-10-A0P |
Standard spring washer |
6 |
|
5 |
TG1454.582D.5 |
Oil return filter assembly bracket weldment |
1 |
|
6 |
TG1454.582D.6 |
Oil return filter assembly |
1 |
|
7 |
Q67638 |
B worm drive type hose hoop |
2 |
|
8 |
TG1454.582D-03 |
Rubber pipe |
1 |
|
9 |
TS09580020008 |
O-ring 20X2-L22 |
1 |
|
10 |
GBT5783-M6X50-8.8-A1L |
Hex bolt |
1 |
|
11 |
TG1854.581-11 |
Pipe clip |
2 |
|
12 |
TG1454.582B-01 |
Oil pipe bracket |
1 |
|
13 |
GBT93-6-A0P |
Standard spring washer |
1 |
|
14 |
GBT6170-M6-8-A2L |
Type 1 hex nut |
1 |
|
15 |
TG1454.582D.7 |
Oil pipe bracket weldment |
1 |
|
16 |
GBT5783-M8X50-8.8-A2L |
Hex bolt |
1 |
|
17 |
GBT93-8-A0P |
Standard spring washer |
1 |
|
18 |
TG1204.581F-11 |
Pipe clip |
2 |
163
Lovol TS8A1254-018K Wheeled Tractor

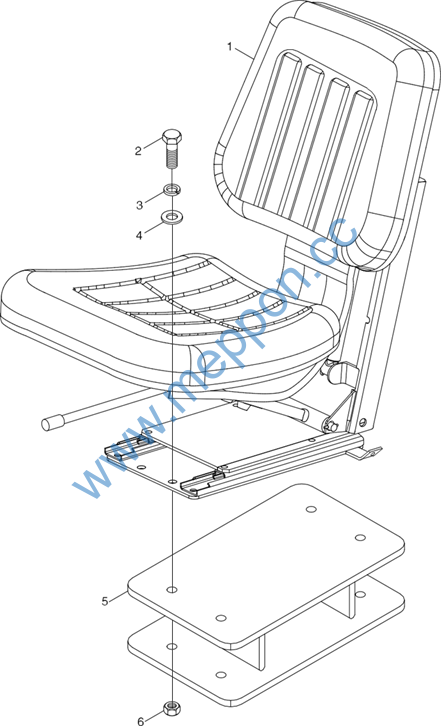

TS08441010000K Seat Installation Assembly
164
Lovol TS8A1254-018K Wheeled Tractor
TS08441010000K Seat Installation Assembly
No. |
Part No. and Specifications |
Part name |
Qty. |
Remarks |
TS08441010000K |
Seat installation assembly |
1 |
||
1 |
TD800.44B.1 |
Seat assembly |
1 |
|
2 |
GBT5783-M12X35-8.8-A3L |
Hex bolt |
8 |
Bolt |
3 |
GBT93-12-A0P |
Standard spring washer |
8 |
Washer |
4 |
GBT96.1-12-A0P |
Big washer |
8 |
Washer |
Nut |
||||
5 |
TS08441010001K |
Bracket weldment |
1 |
|
6 |
GBT6170-M12-8-A3L |
Hexagon nut , Style 1 |
4 |
165
Lovol TS8A1254-018K Wheeled Tractor

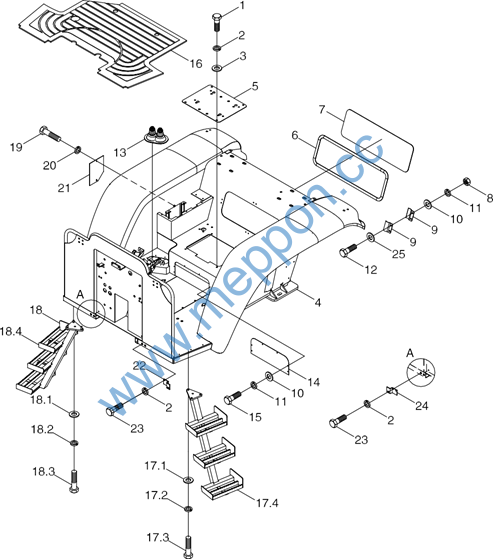

TS08452040000K Floor Assembly-1(001)
166
Lovol TS8A1254-018K Wheeled Tractor
TS08452040000K Floor Assembly-1(001)
No. |
Part No. and Specifications |
Part name |
Qty. |
Remarks |
TS08452040000K |
Floor Assembly |
1 |
||
1 |
GBT5783-M8X20-8.8-A2L |
Hexagon Bolt |
4 |
|
2 |
GBT93-8-A0P |
Standard Spring Washer |
10 |
|
3 |
GBT97.1-8-A0P |
Flat Washer |
4 |
|
4 |
TS08452040001K |
Floor Weldment |
1 |
|
5 |
TS08452030073K |
Cover Plate Weldment |
1 |
|
6 |
TG1254.452-12 |
Rear Lower Window Glass Seal Strip |
1 |
|
7 |
TG1254.452-11 |
Rear Lower Window Glass |
1 |
|
8 |
GBT6170-M5-8-A2L |
Hexagon Nut, Type-1 |
8 |
|
9 |
TD800.452-07 |
Glass Clamp |
8 |
|
10 |
GBT97.1-5-A0P |
Flat Washer |
14 |
|
11 |
GBT93-5-A0P |
Standard Spring Washer |
14 |
|
12 |
GBT5783-M5X20-8.8-A2L |
Hexagon Bolt |
8 |
|
13 |
FT800A.45.130 |
Dustproof Sleeve |
1 |
|
14 |
TG1254.452-19 |
Retainer Plate |
1 |
|
15 |
GBT5783-M5X10-8.8-A2L |
Hexagon Bolt |
6 |
|
16 |
TS08452030029K |
Front Floor Mat |
1 |
|
17 |
TG1654.452E.5 |
Pedal Installation Assembly |
1 |
|
17.1 |
GBT97.1-10-A0P |
Flat Washer |
3 |
|
17.2 |
GBT93-10-A0P |
Standard Spring Washer |
3 |
|
17.3 |
TG1654.452E.5.1 |
Pedal Weldment |
1 |
|
17.4 |
GBT5783-M10X35-8.8-A3L |
Hexagon Bolt |
3 |
|
18 |
TG1654.452E.6 |
Pedal Installation Assembly (Right) |
1 |
|
18.1 |
GBT97.1-10-A0P |
Flat Washer |
3 |
|
18.2 |
GBT93-10-A0P |
Standard Spring Washer |
3 |
|
18.3 |
GBT5783-M10X35-8.8-A3L |
Hexagon Bolt |
3 |
|
18.4 |
TG1654.452E.6.1 |
Pedal Weldment (Right) |
1 |
|
19 |
GBT5783-M8X16-8.8-A2L |
Hexagon Bolt |
2 |
|
20 |
GBT95-8-A0P |
Flat Washer |
2 |
|
21 |
TG1554.452C.1.2-01 |
Plug Plate |
1 |
|
22 |
TG1554.452-01 |
Bonnet Bracket(Left) |
1 |
|
23 |
GBT5783-M8X25-8.8-A2L |
Hexagon Bolt |
4 |
|
24 |
TG1554.452-02 |
Bonnet Bracket(Right) |
1 |
|
25 |
GBT96.1-5-A0P |
Big Washer |
8 |
167
Lovol TS8A1254-018K Wheeled Tractor

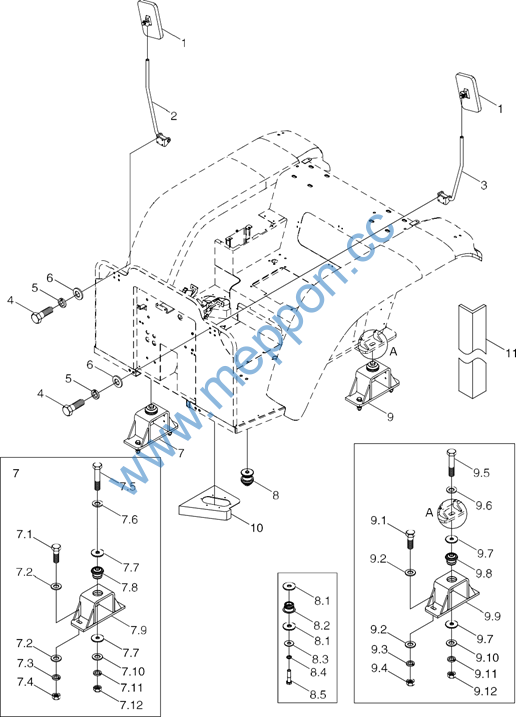

TS08452040000K Floor Assembly-2
168
Lovol TS8A1254-018K Wheeled Tractor
TS08452040000K Floor Assembly-2
No. |
Part No. and Specifications |
Part name |
Qty. |
Remarks |
TS08452040000K |
Floor Assembly |
1 |
||
1 |
TD904.452.4 |
Rearview Mirror Assembly |
2 |
|
2 |
TD800.452Y.2 |
Right Rear View Mirror Bracket Weldment |
1 |
|
3 |
TD800.452Y.1 |
Bracket Weldment Of Left Rearview Mirror |
1 |
|
4 |
GBT5783-M8X30-8.8-A2L |
Hexagon Bolt |
8 |
|
5 |
GBT93-8-A0P |
Standard Spring Washer |
8 |
|
6 |
GBT97.1-8-A0P |
Flat Washer |
8 |
|
7 |
TS08452030079K |
Right Rear Connecting Installation |
1 |
|
7.1 |
GBT5783-M16X80-8.8-A3L |
Hexagon Bolt |
2 |
|
7.2 |
GBT97.1-16-A0P |
Flat Washer |
4 |
|
7.3 |
GBT93-16-A0P |
Standard Spring Washer |
2 |
|
7.4 |
GBT6170-M16-8-A3L |
Hexagon Nut, Type-1 |
2 |
|
7.5 |
GBT5782-M20X110-A3L |
Hexagon Bolt |
1 |
|
7.6 |
GBT96.1-20-A0P |
Big Washer |
1 |
|
7.7 |
TD800.457B.1-01 |
Retainer Ring |
2 |
|
7.8 |
TD800.457B.1.2 |
Shock Absorber |
1 |
|
7.9 |
TG1654.452E.3.1 |
Right Rear Connecting Weldment |
1 |
|
7.10 |
GBT95-20-A0P |
Flat Washer |
1 |
|
7.11 |
GBT93-20-A0P |
Standard Spring Washer |
1 |
|
7.12 |
GBT6170-M20-A9L |
Hexagon Nut, Type-1 |
1 |
|
8 |
TG1654.452E.4 |
Front Connecting Assembly |
2 |
|
8.2 |
TD800.457B.1.2 |
Shock Absorber |
1 |
|
8.1 |
TD800.457B.1-01 |
Retainer Ring |
2 |
|
8.3 |
GBT96.1-20-A0P |
Big Washer |
1 |
|
8.4 |
GBT93-20-A0P |
Standard Spring Washer |
1 |
|
8.5 |
GBT5782-M20X90-8.8-A9L |
Hexagon Bolt |
1 |
|
9 |
TS08452030078K |
Left Rear Connecting Installaion |
1 |
|
9.1 |
GBT5783-M16X80-8.8-A3L |
Hexagon Bolt |
2 |
|
9.2 |
GBT97.1-16-A0P |
Flat Washer |
4 |
|
9.3 |
GBT93-16-A0P |
Standard Spring Washer |
2 |
|
#N/A |
||||
9.4 |
GBT6170-M16-8-A3L |
Hexagon Nut, Type-1 |
2 |
|
9.5 |
GBT5782-M20X120-10.9-A3L |
Hexagon Bolt |
1 |
|
9.6 |
GBT96.1-20-A0P |
Big Washer |
1 |
|
9.7 |
TS08452030080K |
Retainer Ring |
2 |
|
9.8 |
TD800.457B.1.2 |
Shock Absorber |
1 |
169
Lovol TS8A1254-018K Wheeled Tractor
TS08452040000K Floor Assembly-2(extension)
170
Lovol TS8A1254-018K Wheeled Tractor
TS08452040000K Floor Assembly-2(extension)
No. |
Part No. and Specifications |
Part name |
Qty. |
Remarks |
9.9 |
TG1654.452E.2.1 |
Left Rear Connecting Weldment |
1 |
|
9.10 |
GBT95-20-A0P |
Flat Washer |
1 |
|
9.11 |
GBT93-20-A0P |
Standard Spring Washer |
1 |
|
9.12 |
GBT6170-M20-8-A9L |
Hexagon Nut, Type-1 |
1 |
|
10 |
TG1254.452-13 |
Gearshift Cover Plate |
1 |
|
11 |
FT300.45.809 |
Upper Cover Press Strip |
1 |

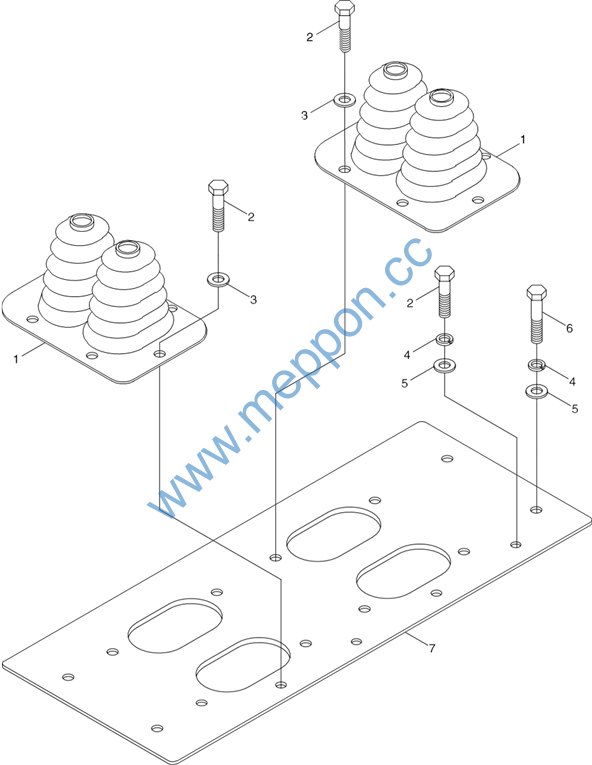

171
