LOVOL TS4A504-024K Tractor Parts Catalogue 16
Foton TS4A504-024K Wheeled Tractor
TB550.483 Harness Installation Assembly, Front Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.483 |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TB550.483.1 |
Front lamp harness assembly |
1 |
|
2 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
3 |
|
3 |
GB/T 93-6-A0P |
Standard spring washer |
3 |
|
4 |
GB/T 97.1-6-A0P |
Flat washer |
3 |
|
5 |
FT65.48.340 |
Horn assembly |
1 |
|
6 |
GB/T 5783-M6×16-8.8-A2L |
Hex bolt |
1 |
|
7 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
8 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
9 |
GB/T 5783-M8×16-8.8-A2L |
Hex bolt |
2 |
|
10 |
GB/T 818-M5×14-4.8-A2L |
Cross recessed pan head screw |
1 |
|
11 |
TB400.483-01 |
Harness buckle |
1 |
|
12 |
GB/T 97.1-5-A0P |
Flat washer |
1 |
|
13 |
GB/T 93-5-A0P |
Standard spring washer |
1 |
|
14 |
GB/T 6170-M5-8-A2L |
Type 1 hex nut |
1 |
|
15 |
FT65.48.097 |
Harness fixing clip (2) |
6 |
|
16 |
TB550.483.2 |
1 |
145
Foton TS4A504-024K Wheeled Tractor
TC02484100000K Rear Lamp Harness Assembly
146
Foton TS4A504-024K Wheeled Tractor
TC02484100000K Rear Lamp Harness Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02484100000K |
Rear lamp harness assembly |
1 |
||
1 |
TC02484010001 |
Rebound stroke switch |
2 |
|
2 |
TC02484010002 |
Rebound stroke switch bracket assembly |
1 |
|
3 |
FT800A.48L.106 |
Harness clip |
1 |
|
4 |
TC02484100002K |
Rear lamp harness assembly |
1 |
|
5 |
TA600.486-01 |
Harness fastener |
2 |
|
6 |
FT65.48.093 |
Wire through ring (1) |
2 |
|
7 |
TC02484020003 |
Rear work lamp assembly |
2 |
|
8 |
TB550.484.4 |
Rear taillamp assembly |
2 |
|
9 |
GBT6170-M5-8-A2L |
Hexagon nut, style 1 |
3 |
|
10 |
GBT93-5-A0P |
Standard spring washer |
3 |
|
11 |
GBT97.1-5-A0P |
Plain washer |
3 |
|
12 |
TD900.484.2 |
Rear trailer socket |
1 |
|
13 |
GBT818-M5X35-4.8-A1L |
Cross recessed pan head screw |
3 |
|
14 |
FT65.48.094 |
Wire through ring (2) |
2 |
|
15 |
GBT818-M4X16-4.8-A2L |
Cross recessed pan head screw |
4 |
|
16 |
GBT97.1-4-A0P |
Plain washer |
2 |
|
17 |
GBT93-4-A0P |
Standard spring washer |
4 |
|
18 |
GBT6170-M4-8-A2L |
Hexagon nut, style 1 |
2 |
147
Foton TS4A504-024K Wheeled Tractor

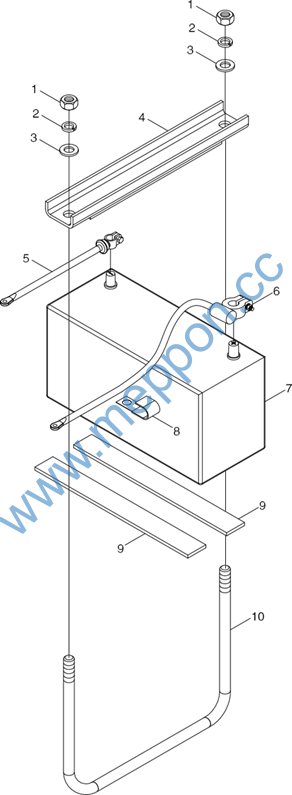

TB450.485A Battery Installation Assembly
148
Foton TS4A504-024K Wheeled Tractor
TB450.485A Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
2 |
GB/T 93-8-A0P |
Washer |
2 |
|
3 |
GB/T 97.1-8-A0P |
Washer |
2 |
|
4 |
TG1204.485-02 |
Battery press plate |
1 |
|
5 |
TB400.485A.2 |
Battery bonding |
1 |
|
6 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
7 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
8 |
FT65.48.095 |
Harness fixing clamp (1) |
1 |
|
9 |
TB450.485.1 |
Battery shock absorbing mat |
2 |
|
10 |
TG1204.485-01 |
Battery U-shape pull rod |
1 |
149
Foton TS4A504-024K Wheeled Tractor

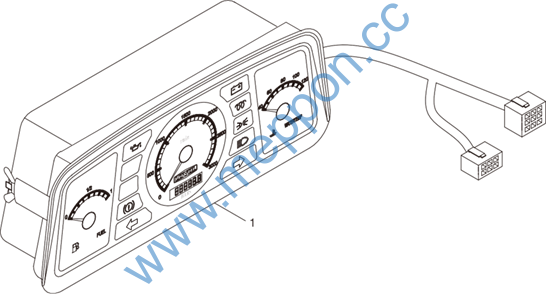

TC02487010000K Compound Instrument Assembly
150
Foton TS4A504-024K Wheeled Tractor
TC02487010000K Compound Instrument Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
TC02487010000K TC02487010000K |
Compound instrument assembly Compound instrument assembly |
1 1 |
