LOVOL TS4A504-024K Tractor Parts Catalogue 15
Foton TS4A504-024K Wheeled Tractor
FT300.74B.001 Front Ballast Frame Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.74B.001 |
Front ballast frame assembly |
1 |
||
1 |
GB/T 899-AM16-M16×90-8.8-A3L |
Double-headed stud |
4 |
|
2 |
GB/T 93-16-AOP |
Washer |
6 |
|
3 |
GB/T 6170-M16-AOP |
Nut |
6 |
|
4 |
GB/T 899-AM16-M16×110-8.8-A3L |
Double-headed stud |
2 |
|
5 |
FT300.74B.101 |
Ballast frame |
1 |
135
Foton TS4A504-024K Wheeled Tractor
FT300.91.001 Rear Ballast Assembly
136
Foton TS4A504-024K Wheeled Tractor
FT300.91.001 Rear Ballast Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.91.001 |
Rear ballast assembly |
2 |
||
1 |
GB/T 5783-M16×45-A3L |
Bolt |
3 |
|
2 |
GB/T 93-16-AOP |
Washer |
6 |
|
3 |
FT650.34.104 |
Washer |
3 |
|
4 |
FT300.91.101 |
Rear ballast |
3 |
|
5 |
FT650.34.103 |
Rear ballast screw Ⅱ |
6 |
|
6 |
FT400.91.102 |
Rear ballast screw Ⅰ |
3 |
|
7 |
GB/T 6170-M16-A3L |
Nut |
3 |
137
Foton TS4A504-024K Wheeled Tractor
FT404.74A.002 Front Ballast Assembly(005)
138
Foton TS4A504-024K Wheeled Tractor
FT404.74A.002 Front Ballast Assembly(005)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT404.74A.002 |
Front Ballast Assembly |
1 |
||
1 |
GBT5783-M16X35-8.8-A3L |
Hexagon Head Bolt |
4 |
|
2 |
GBT93-16-A0P |
Standard Spring Washer |
4 |
|
3 |
GBT97.1-16-A0P |
Flat Washer |
4 |
|
4 |
FT300.74A.107 |
Fixing Frame |
1 |
|
5 |
FT404.74A.010 |
Front Ballast Subassembly |
1 |
|
5.1 |
GBT6170-M16-8-A3L |
Hexagon Nut, Style 1 |
2 |
|
5.2 |
GBT93-16-A0P |
Standard Spring Washer |
2 |
|
5.3 |
GBT97.1-16-A3L |
Flat Washer |
2 |
|
5.4 |
FT404.74A.108 |
Connecting Bolt |
1 |
|
5.5 |
FT300.74A.105 |
Ballast Block |
2 |
|
5.6 |
FT300.74A.106 |
Ballast Block |
6 |
|
6 |
FT650.74.108 |
Traction Nut |
2 |
|
7 |
GBT5785-M20X1.5X80-8.8-A3L |
Hexagon Head Bolt |
2 |
|
8 |
GBT97.1-20-A0P |
Flat Washer |
2 |
|
9 |
FT300.74A.110 |
Traction Lug |
1 |
139
Foton TS4A504-024K Wheeled Tractor

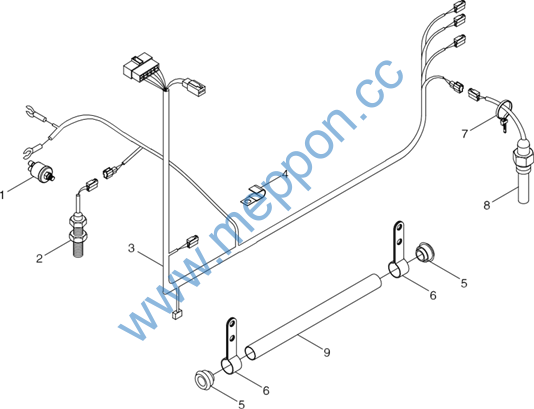

TC02481200000K Harness Installation Assembly, Engine
140
Foton TS4A504-024K Wheeled Tractor
TC02481200000K Harness Installation Assembly, Engine
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02481200000K |
Harness installation assembly, engine |
1 |
||
1 |
FT300.48.073a |
Oil pressure alarm |
1 |
|
2 |
TS10481010002 |
Rotating speed sensor |
1 |
|
3 |
TC02481200001K |
Engine harness assembly |
1 |
|
4 |
FT304.48L.203 |
Harness fastener |
2 |
|
5 |
FT800.48L.107 |
Grommet |
2 |
|
6 |
FT800.48L.108a |
Fastener |
2 |
|
7 |
Q67405100 |
Plastic fastening belt |
2 |
|
8 |
FT65.48.072 |
Water temperature sensor |
1 |
|
9 |
FT300.48P.102 |
Sleeve |
1 |
141
Foton TS4A504-024K Wheeled Tractor

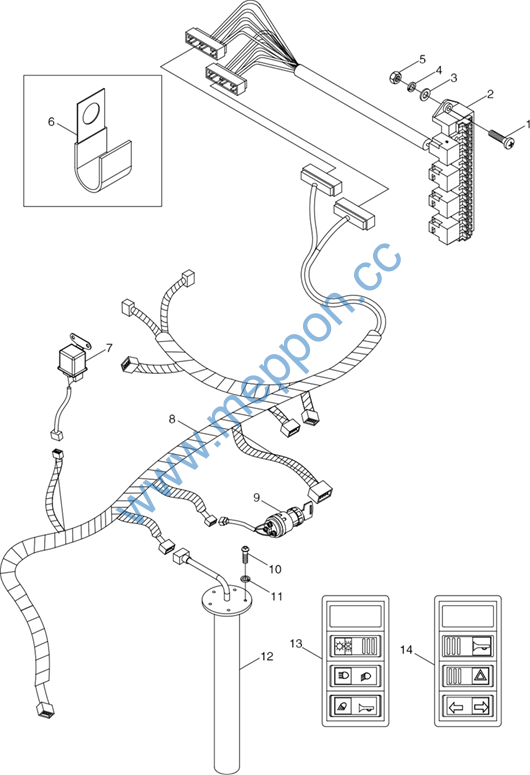

TC02482220000K Harness Installation Assembly, Body
142
Foton TS4A504-024K Wheeled Tractor
TC02482220000K Harness Installation Assembly, Body
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02482220000K |
Harness installation assembly, body |
1 |
||
1 |
GB/T 818-M6×25-4.8-A2L |
Cross recessed pan head screw |
2 |
|
2 |
TC02482220002K |
Central electric box assembly |
1 |
|
FT300.48.512 |
Master power source relay |
1 |
||
FT300.48.513 |
Electronic flasher |
1 |
||
FT300.48D.2.2.2 |
Preheating relay |
1 |
||
TC02482010003K |
Warning type fuse (10A) |
7 |
||
TC02482010004K |
Warning type fuse (15A) |
6 |
||
TC02482010005K |
Warning type fuse (20A) |
2 |
||
TC02482010006K |
Warning type fuse (30A) |
2 |
||
TC02482010007K |
Warning type fuse (7.5A) |
2 |
||
3 |
GB/T 97.1-6-A0P |
Plain washer |
2 |
|
4 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
6 |
FT65.48.095 |
Harness fastener (1) |
1 |
|
7 |
TB450.482.2 |
Starting relay |
1 |
|
8 |
TC02482220001K |
Body harness assembly |
1 |
|
9 |
TB550.482.3 |
Ignition lock |
1 |
|
10 |
GB/T 818-M4×10-4.8-A2L |
Cross recessed pan head screw |
5 |
|
11 |
GB/T 93-4-A0P |
Standard spring washer |
5 |
|
12 |
TB450.482.6 |
Oil amount sensor |
1 |
|
13 |
TB450.482.4 |
Left rocker switch |
1 |
|
14 |
TB450.482N.4 |
Right rocker switch assembly |
1 |
143
Foton TS4A504-024K Wheeled Tractor
TB550.483 Harness Installation Assembly, Front Lamp
