LOVOL TS4A504-015C Tractor Parts Catalogue 16
Lovol TS4A504-015C Wheeled Tractor

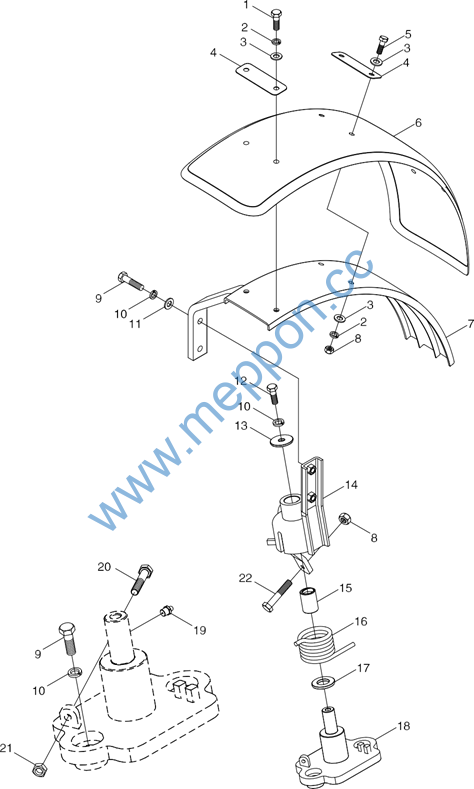

TB400.475A Left Front Mudguard Assembly
160
Lovol TS4A504-015C Wheeled Tractor
TB400.475A Left Front Mudguard Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.475A |
Left Front Mudguard Assembly |
1 |
||
1 |
GBT5783-M10X35-8.8-A3L |
Hex Bolt |
2 |
|
2 |
GBT93-10-A0P |
Standard Spring Washer |
6 |
|
3 |
GBT97.1-10-A0P |
Flat Washer |
10 |
|
4 |
TB400.475A-04 |
Strenghtening Plate |
3 |
|
5 |
GBT5783-M10X30-8.8-A3L |
Hex Bolt |
4 |
|
6 |
TB400.475A-03 |
Left Front Mudguard |
1 |
|
7 |
TB400.475A.2 |
Left Upper Bracket Weldment |
1 |
|
8 |
GBT6170-M10-8-A3L |
Type 1 Hex Nut |
5 |
|
9 |
GBT5783-M12X40-8.8-A3L |
Hex Bolt |
4 |
|
10 |
GBT93-12-A0P |
Standard Spring Washer |
5 |
|
11 |
GBT97.1-12-A0P |
Flat Washer |
2 |
|
12 |
GBT5783-M12X30-10.9-A3L |
Hex Bolt |
1 |
|
13 |
TB400.475-07 |
Washer 2 |
1 |
|
14 |
TB400.475A.3 |
Left Lower Bracket Weldment |
1 |
|
15 |
TB400.475A-01 |
Bushing |
1 |
|
16 |
TB400.475A-02 |
Left Torsion Spring |
1 |
|
17 |
TB400.475-06 |
Washer |
1 |
|
18 |
TB400.475A.1 |
Left Installation Plate Weldment |
1 |
|
19 |
JBT7940.1-M10X1 |
Press Filling Oil Cup |
1 |
|
20 |
GBT5783-M8X45-8.8-A2L |
Hex Bolt |
1 |
|
21 |
GBT6170-M8-8-A2L |
Type 1 Hex Nut |
1 |
|
22 |
GBT5783-M10X55-8.8-A2L |
Hex Bolt |
1 |
161
Lovol TS4A504-015C Wheeled Tractor
TB400.476A Right Front Mudguard Assembly
162
Lovol TS4A504-015C Wheeled Tractor
TB400.476A Right Front Mudguard Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.476A |
Right Front Mudguard Assembly |
1 |
||
1 |
GBT5783-M10X35-8.8-A2L |
Hex Bolt |
2 |
|
2 |
GBT93-10-AOP |
Standard Spring Washer |
6 |
|
3 |
GBT96.1-10-A2 |
Flat Washer |
10 |
|
4 |
TB400.475A-04 |
Strenghtening Plate |
3 |
|
5 |
GBT5782-M10X30-8.8-A3L |
Hex Bolt |
4 |
|
6 |
TB400.475A-03 |
Left Front Mudguard |
1 |
|
7 |
TB400.476A.2 |
Right Upper Bracket Weldment |
1 |
|
8 |
GBT6170-M10-8-A3L |
Type 1 Hex Nut |
5 |
|
9 |
GBT5783-M12X40-8.8-A3L |
Hex Bolt |
4 |
|
10 |
GBT93-12-AOP |
Standard Spring Washer |
5 |
|
11 |
GBT97.1-12-AOP |
Flat Washer |
2 |
|
12 |
TB400.476A.3 |
Right Lower Bracket Weldment |
1 |
|
13 |
JBT7940.1-M10X1 |
Press Filling Oil Cup |
1 |
|
14 |
GBT5783-M12X30-10.9-A3L |
Hex Bolt |
1 |
|
15 |
TB400.475-07 |
Washer 2 |
1 |
|
16 |
TB400.475A-01 |
Bushing |
1 |
|
17 |
TB400.475-06 |
Washer |
1 |
|
18 |
TB400.476A-01 |
Right Torsion Spring |
1 |
|
19 |
GBT6170-M8-8-A2L |
Type 1 Hex Nut |
1 |
|
20 |
TB400.476A.1 |
Right Installation Plate Weldment |
1 |
|
21 |
GBT5783-M8X45-8.8-A2L |
Hex Bolt |
1 |
|
22 |
GBT5783-M10X55-8.8-A3L |
Hex Bolt |
1 |
163
Lovol TS4A504-015C Wheeled Tractor

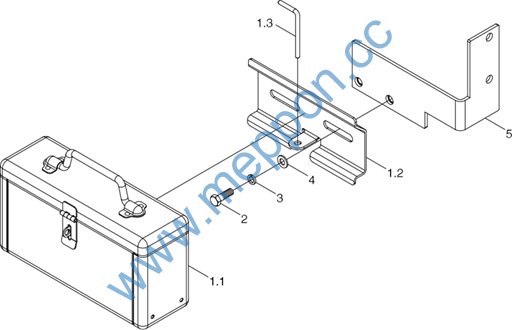

TS04490010000 Tool Kit Assembly
164
Lovol TS4A504-015C Wheeled Tractor
TS04490010000 Tool Kit Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04490010000 |
Tool Kit Assembly |
1 |
||
1 |
TB400.49.1 |
Tool Kit Supply Assembly |
1 |
|
1.1 |
TB400.49.1.1 |
Tool Kit Welding And Riveting Assembly |
1 |
|
1.2 |
FT65.49.103 |
Fixing Plate |
1 |
|
1.3 |
FT65.49.102 |
Latch |
1 |
|
2 |
GBT5783-M12X25-8.8-A3L |
Hexagon Head Bolt |
2 |
|
3 |
GBT93-12-A0P |
Standard Spring Washer |
2 |
|
4 |
GBT97.1-12-A0P |
Plain Washer |
2 |
|
5 |
TS04490010003 |
Installation Bracket Weldment |
1 |
165
Lovol TS4A504-015C Wheeled Tractor

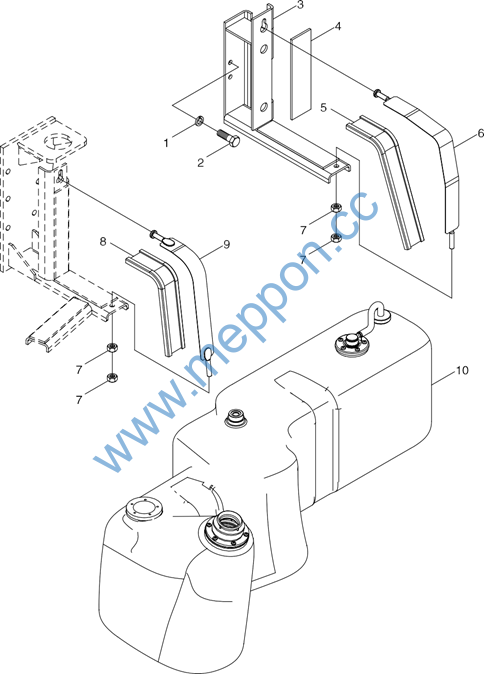

TS04501010000K Oil Tank Installation Assembly-1(001)
166
Lovol TS4A504-015C Wheeled Tractor
TS04501010000K Oil Tank Installation Assembly-1(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04501010000K |
Oil Tank Installation Assembly |
1 |
||
1 |
GBT93-10-A3L |
Standard Spring Washer |
2 |
|
2 |
GBT5783-M10X20-8.8-A3L |
Hexagon Bolt |
2 |
|
3 |
TB604.501.2 |
Rear Bracket Weldment |
1 |
|
4 |
TB604.501-01 |
Rubber Washer |
1 |
|
5 |
TB604.501-02 |
Tie Rubber Strip |
1 |
|
6 |
TS04501010008 |
Rear Fastening Tie Weldment |
1 |
|
7 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
4 |
|
8 |
TS04501010009 |
Tie Rubber Strip |
1 |
|
9 |
TS04501010003 |
Front Band Weldment |
1 |
|
10 |
TS04501010001 |
Oil Tank Assembly |
1 |
167
Lovol TS4A504-015C Wheeled Tractor

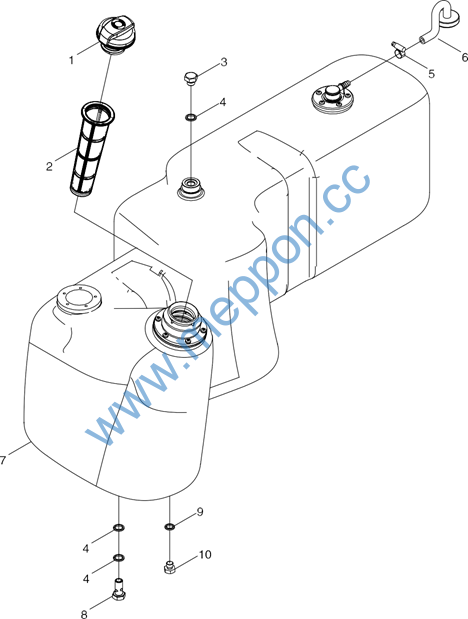

TS04501010000K Oil Tank Installation Assembly-2(001)
168
Lovol TS4A504-015C Wheeled Tractor
TS04501010000K Oil Tank Installation Assembly-2(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04501010000K |
Oil Tank Installation Assembly |
1 |
||
1 |
TS04501010001 |
Oil Tank Assembly |
1 |
|
1.1 |
Q67516 |
A-Type Worm Transmission Hose Clamp |
2 |
|
1.2 |
TS04501010006 |
Breath Assembly |
1 |
|
1.3 |
TS04501010011 |
Oil Outlet Assembly |
1 |
|
1.4 |
TS04501010005 |
Oil Tank Cover |
1 |
|
1.5 |
TS04501010010 |
Filling Cap Assembly |
1 |
|
1.6 |
TF1004.501.1-02 |
Filter Mesh |
1 |
|
1.7 |
TS04501010002 |
Oil Tank Housing |
1 |
|
1.8 |
JBT982-12 |
Combined Seal Gasket |
1 |
|
1.9 |
Q617B12 |
Hexagon Plug |
1 |
|
2 |
TS04501010001K |
Weldment Tank Protection |
1 |
|
3 |
GBT96.1-10-A0P |
Big Washer |
2 |
|
4 |
GBT93-10-A0P |
Standard Spring Washer |
2 |
|
5 |
GBT5782-M10X55-8.8-A2L |
Hexagon Bolt |
2 |
169
Lovol TS4A504-015C Wheeled Tractor

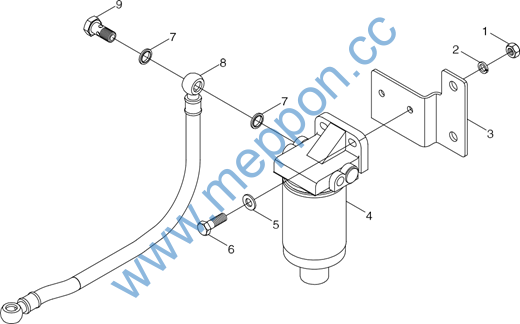

TS04503010000 Delivery Pipeline Assembly
