LOVOL TS4A504-015C Tractor Parts Catalogue 15
Lovol TS4A504-015C Wheeled Tractor
TS04461010000K Safety Frame Assembly (002)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04461010000K |
Safety Frame Assembly |
1 |
||
1 |
TB400.46C.3 |
Sunshade Assembly |
1 |
|
1.1 |
GBT5783-M6X25-8.8-A2L |
Hexagon Head Bolt |
12 |
|
1.2 |
GBT93-6-A0P |
Standard Spring Washer |
12 |
|
1.3 |
GBT97.1-6-A0P |
Plain Washer |
12 |
|
1.4 |
TE254.46.2.1-02 |
Rubber Washer |
12 |
|
1.5 |
TB400.46C.3.1 |
Sunshade |
1 |
|
1.6 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type 1 |
4 |
|
1.7 |
GBT93-10-A0P |
Standard Spring Washer |
4 |
|
1.8 |
FT400.46.021 |
Washer Subassembly |
4 |
|
1.9 |
TB400.46C.3.3 |
Sunshade Fixing Frame Weldment |
1 |
|
1.10 |
GBT818-M10X30-4.8-A3L |
Cross Recessed Pan Head Screw |
4 |
|
1.11 |
TB400.46C.3-01 |
Fixing Frame |
2 |
|
1.12 |
GBT6170-M12-10-A3L |
Hexagon Nut, Type 1 |
4 |
|
1.13 |
GBT93-12-A0P |
Standard Spring Washer |
4 |
|
1.14 |
GBT96.1-12-A3L |
Large Washer |
4 |
|
1.15 |
GBT97.1-12-A0P |
Plain Washer |
4 |
|
1.16 |
GBT5782-M12X110-10.9-A2L |
Hexagon Head Bolt |
4 |
|
1.17 |
GBT96.1-8-A3L |
Large Washer |
4 |
|
1.18 |
GBT93-8-A0P |
Standard Spring Washer |
4 |
|
1.19 |
GBT5783-M8X20-10.9-A2L |
Hexagon Head Bolt |
4 |
|
2 |
TB400.46C-01 |
Plug Cover |
4 |
|
3 |
GBT5783-M16X90-8.8-A2L |
Hexagon Head Bolt |
6 |
|
4 |
GBT97.1-16-A0P |
Plain Washer |
6 |
|
5 |
GBT93-16-A0P |
Standard Spring Washer |
6 |
|
6 |
GBT802-M16-6 |
Compound Cap Nut |
6 |
|
7 |
TS04461012010K |
Safety Frame Weldment |
1 |
|
8 |
TS04461012012K |
Ec Identification Nameplate |
1 |
|
9 |
GBT12618-3X15 |
Mushroom Head Break Mandrel Blind Rivet |
2 |
149
Lovol TS4A504-015C Wheeled Tractor

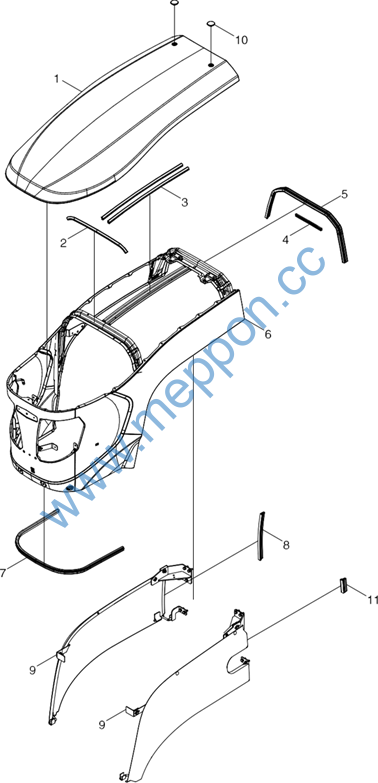

TC02471040000K Bonnet Assembly-1
150
Lovol TS4A504-015C Wheeled Tractor
TC02471040000K Bonnet Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04471010000K |
Bonnet Assembly |
1 |
||
1 |
TS04471012001 |
Bonnet Upper Cover Plate |
1 |
|
2 |
TS04471010007 |
Front Shock Absorbing Strip |
1 |
|
3 |
TS04471010004 |
Middle Shock Absorbing Strip |
2 |
|
4 |
TS04471010008 |
Rear Shock Absorbing Strip |
1 |
|
5 |
TS04471010001 |
Bonnet Rear Seal Strip |
1 |
|
6 |
TS04471021000 |
Bonnet Welding Assembly |
1 |
|
7 |
TS04471010002 |
Front Lower Buffer Strip |
1 |
|
8 |
TS04471010009 |
Bonnet Right Rear Seal Strip |
1 |
|
9 |
TS04471014000K |
Bonnet Lower Side Plate Assembly |
1 |
|
10 |
TS06471010005 |
Rubber Plug |
2 |
|
11 |
TS04471010006K |
Bonnet Left Rear Seal Strip |
1 |
151
Lovol TS4A504-015C Wheeled Tractor

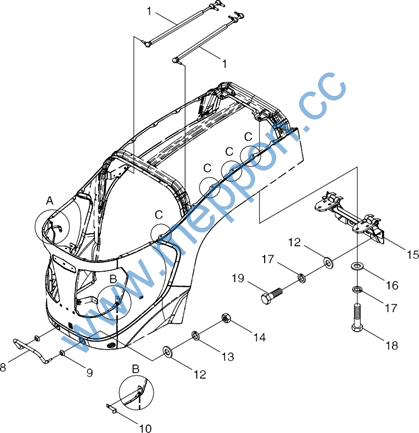

TC02471040000K Bonnet Assembly-2
152
Lovol TS4A504-015C Wheeled Tractor
TC02471040000K Bonnet Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04471010000K |
Bonnet Assembly |
1 |
||
1 |
TS04471019000 |
Bonnet Air Spring Assembly |
2 |
|
2 |
TS04471012004 |
Upper Support Plate Of Right Mesh Plate |
1 |
|
3 |
TS04471012005 |
Lower Support Plate Of Right Mesh Plate |
1 |
|
4 |
GBT5783-M6X16-8.8-A2L |
Hexagon Head Bolt |
18 |
|
5 |
GBT97.1-6-A0P |
Plain Washer |
36 |
|
6 |
GBT93-6-A0P |
Standard Spring Washer |
18 |
|
7 |
GBT6170-M6-8-A2L |
Hexagon Nut, Style 1 |
18 |
|
8 |
TS04471010003 |
Bonnet Front Handle |
1 |
|
9 |
TD800.471A-05 |
Bonnet Front Handle Washer |
2 |
|
10 |
TS04471012002 |
Upper Support Plate Of Left Mesh Plate |
1 |
|
11 |
TS04471012003 |
Lower Support Plate Of Left Mesh Plate |
1 |
|
12 |
GBT97.1-12-A0P |
Plain Washer |
5 |
|
13 |
GBT93-12-A0P |
Standard Spring Washer |
5 |
|
14 |
GBT6170-M12-8-A3L |
Hexagon Nut, Style 1 |
2 |
|
15 |
TS04471013000 |

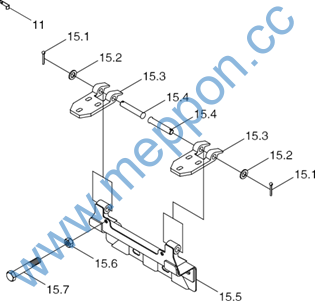

Bonnet Hinge Chain Assembly |
1 |
|
15.1 |
GBT91-5X32-A0P |
Split Pin |
2 |
|
15.2 |
GBT97.1-16-A0P |
Plain Washer |
2 |
|
15.3 |
FT800B.47B.161 |
Hinge Chain Upper Seat |
2 |
|
15.4 |
GBT882-B16X90-A0P |
Pivot |
2 |
|
15.5 |
TS04471013001 |
Bonnet Lower Bracket Weldment |
1 |
|
15.6 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
15.7 |
GBT5783-M8X50-8.8-A2L |
Hexagon Head Bolt |
2 |
|
16 |
GBT97.1-10-A0P |
Plain Washer |
6 |
|
17 |
GBT93-10-A0P |
Standard Spring Washer |
6 |
|
18 |
GBT5783-M10X35-8.8-A3L |
Hexagon Head Bolt |
6 |
|
19 |
GBT5783-M12X35-8.8-A3L |
Hexagon Head Bolt |
3 |
153
Lovol TS4A504-015C Wheeled Tractor

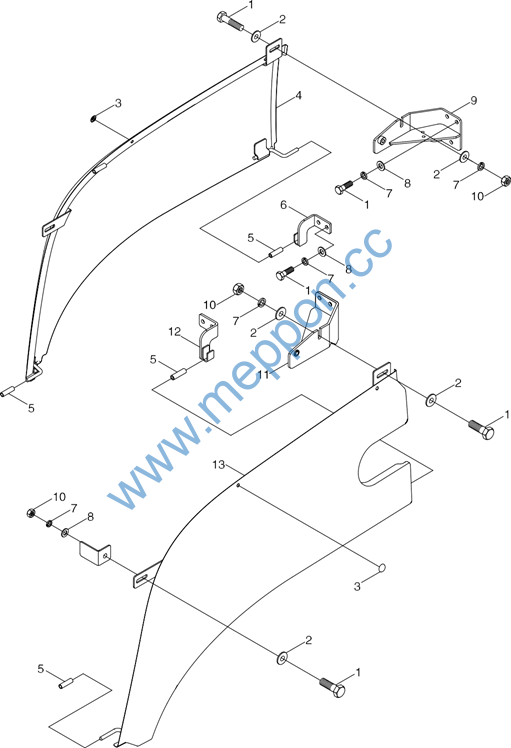

TC02471040000K Bonnet Assembly-3
154
Lovol TS4A504-015C Wheeled Tractor
TC02471040000K Bonnet Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04471010000k |
Bonnet Assembly |
1 |
||
1 |
GBT5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
14 |
|
2 |
GBT96.1-8-A0P |
Large Washer |
6 |
|
3 |
TS06471014003 |
Process Hole Plug |
4 |
|
4 |
TS04471024200 |
Right Lower Side Plate Weldment |
1 |
|
5 |
TS06471014002 |
Rubber Sleeve |
4 |
|
6 |
TS04471014004 |
Right Rear Lower Fixing Seat Weldment |
1 |
|
7 |
GBT97.1-8-A0P |
Plain Washer |
12 |
|
8 |
GBT93-8-A0P |
Standard Spring Washer |
14 |
|
9 |
TS04471014003 |
Right Rear Upper Fixing Seat Weldment |
1 |
|
10 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
4 |
|
11 |
TS04471014001 |
Left Rear Upper Fixing Seat Weldment |
1 |
|
12 |
TS04471014002 |
Left Rear Lower Fixing Seat Weldment |
1 |
|
13 |
TS04471014100K |
Left Lower Side Plate Weldment |
1 |
155
Lovol TS4A504-015C Wheeled Tractor

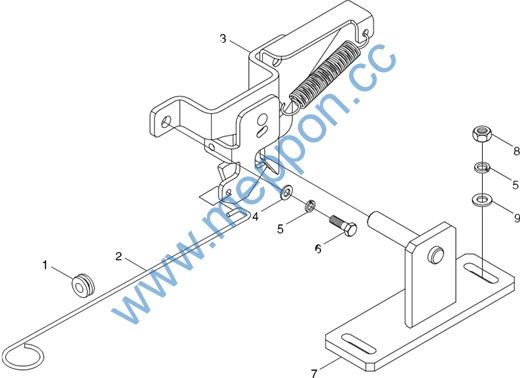

TS04473010000 Bonnet Lock Mechanism Assembly
156
Lovol TS4A504-015C Wheeled Tractor
TS04473010000 Bonnet Lock Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04473010000 |
Bonnet Lock Mechanism Assembly |
1 |
||
1 |
TB450.473-02 |
Rubber Ring |
1 |
|
2 |
TS06473010005 |
Pull Rod |
1 |
|
3 |
TS06473010002 |
Bonnet Lock |
1 |
|
4 |
GBT97.1-8-A0P |
Flat Washer |
3 |
|
5 |
GBT93-8-A0P |
Standard Spring Washer |
5 |
|
6 |
GBT5783-M8X25-8.8-A2L |
Hex Bolt |
3 |
|
7 |
TS04473010001 |
Bonnet Lock Column Weldment |
1 |
|
8 |
GBT6170-M8-8-A2L |
Type 1 Hex Nut |
2 |
|
9 |
GBT96.1-8-A0P |
Bit Washer |
2 |
157
Lovol TS4A504-015C Wheeled Tractor

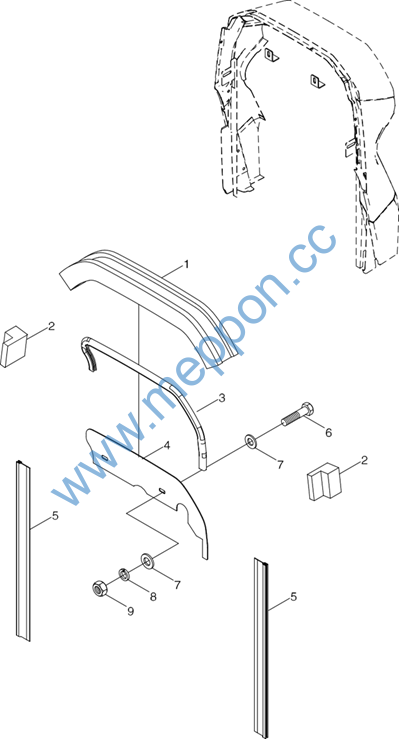

TS04475010000K Engine Hood Sealing Assembly
158
Lovol TS4A504-015C Wheeled Tractor
TS04475010000K Engine Hood Sealing Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04475010000K |
Engine Hood Sealing Assembly |
1 |
||
1 |
TS04475030002 |
Hood Upper Seal Cotton |
1 |
|
2 |
TS04475030001 |
Hood Side Seal Strip |
2 |
|
3 |
TS04475010004K |
Hood Upper Seal Strip |
1 |
|
4 |
TS04475010003K |
Seal Spacing Plate |
1 |
|
5 |
TS04475010005K |
Hood Side Seal Strip |
2 |
|
6 |
GBT5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
2 |
|
7 |
GBT97.1-8-A0P |
Plain Washer |
4 |
|
8 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
|
9 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type 1 |
2 |
