LOVOL TS4A504-015C Tractor Parts Catalogue 12
Lovol TS4A504-015C Wheeled Tractor

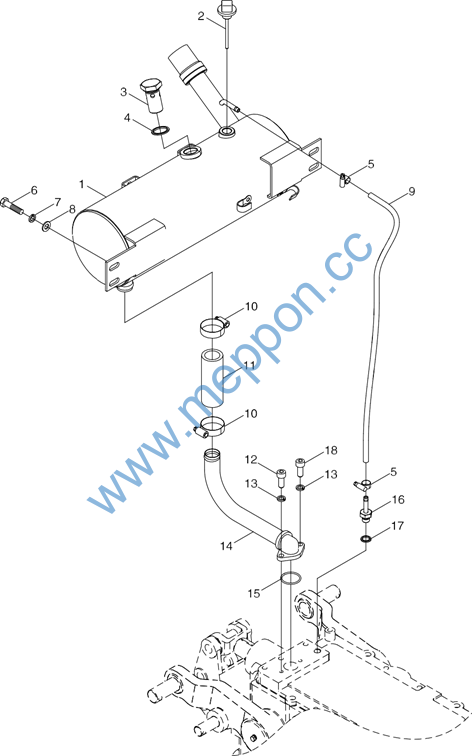

TC02553050000K Hydraulic Auxiliary Oil Tank Assembly
116
Lovol TS4A504-015C Wheeled Tractor
TC02553050000K Hydraulic Auxiliary Oil Tank Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02553050000K |
Hydraulic Auxiliary Oil Tank Assembly |
1 |
||
1 |
TC02553050001K |
Auxiliary Oil Tank Weldment |
1 |
|
2 |
TS04553010031 |
Oil Dipstick Assembly |
1 |
|
3 |
FT65.55.139 |
Hollow Bolt |
1 |
|
4 |
JBT982-27 |
Compound Seal Washer |
1 |
|
5 |
Q67512 |
A-Type Worm Drive Type Hose Clamp |
2 |
|
6 |
GBT5783-M10X20-8.8-A3L |
Hexagon Head Bolt |
4 |
|
7 |
GBT93-10-A0P |
Standard Spring Washer |
4 |
|
8 |
GBT97.1-10-A0P |
Plain Washer |
4 |
|
9 |
TC02553050004K |
Breathing Pipe |
1 |
|
10 |
Q67645 |
B-Type Worm Drive Type Hose Clamp |
2 |
|
11 |
TB504.553-01 |
Connecting Hose |
1 |
|
12 |
GBT70.1-M8X20-8.8-A2L |
Hexagon Socket Head Cap Screw |
1 |
|
13 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
|
14 |
TS04553010013 |
Oil Tank Connecting Pipe Weldment |
1 |
|
15 |
GBT3452.1-34.5X1.80G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
16 |
TB400.553.4 |
Vent Joint Weldment |
1 |
|
17 |
JBT982-14 |
Compound Seal Washer |
1 |
|
18 |
GBT70.1-M8X20-10.9 |
Hexagon Socket Head Cap Screw |
1 |
117
Lovol TS4A504-015C Wheeled Tractor

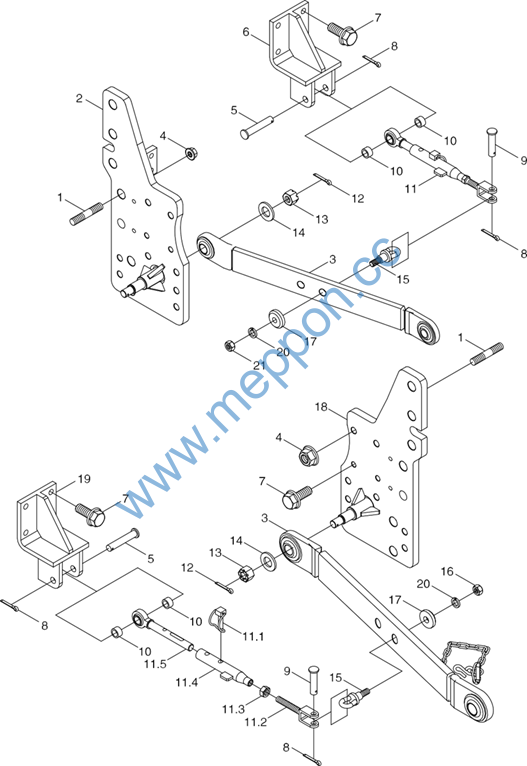

TC02561060000k Hitch Assembly-1
118
Lovol TS4A504-015C Wheeled Tractor
TC02561060000k Hitch Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02561060000k |
Hitch Assembly |
1 |
||
1 |
GBT899-AM16-M16X1.5X45-10.9-A3L |
Double-Headed Stud |
8 |
|
2 |
TC02561060004K |
Right Support Plate Weldment |
1 |
|
3 |
FT500A.56.012 |
Lower Pull Rod Assembly |
2 |
|
4 |
SPL-CO-M16X1.5-10-F3 |
Hexagon Flange Nut |
8 |
|
5 |
FT300.56A.102 |
Limit Lever Connecting Pin |
2 |
|
6 |
FT300.56A.019 |
Right Limit Lever Bracket Weldment |
1 |
|
7 |
GBT16674.1-M16X40-10.9-A3L |
Hexagon Flange Bolt |
8 |
|
8 |
GBT91-5X32-A0P |
Split Pin |
4 |
|
9 |
GBT882-B18X55-A0P |
Pin Shaft |
2 |
|
10 |
FT300.56A.103 |
Sleeve |
4 |
|
11 |
FT300.56A.016a |
Limit Lever Assembly |
2 |
|
11.1 |
FT300.56A.023 |
Limit Lever Lock Pin Combination |
1 |
|
11.2 |
FT300.56A.161 |
Limit Lever Adjusting Screw Rod |
1 |
|
11.3 |
GBT6170-M22-8-A9L |
Hexagon Nut, Style 1 |
1 |
|
11.4 |
FT300.56A.022a |
Telescopic Pipe Weldment |
1 |
|
11.5 |
FT300.56A.021a |
Telescopic Lever Ball Head Assembly |
1 |
|
12 |
GBT91-4X36-A0P |
Split Pin |
2 |
|
13 |
GBT6178-M20-8-A9L |
Hexagon Slotted Nut, Style 1 |
2 |
|
14 |
GBT97.1-20-A0P |
Plain Washer |
2 |
|
15 |
FT300.56A.110a |
Limit Lever Rear Connecting Pin |
2 |
|
16 |
GBT6170-M20-8-A3L |
Hexagon Nut, Style 1 |
2 |
|
17 |
FT300.56A.111a |
Round Plate |
2 |
|
18 |
TC02561060001K |
Left Support Plate Weldment |
1 |
|
19 |
FT300.56A.017 |
Left Limit Lever Bracket Weldment |
1 |
|
20 |
GBT93-20-A0P |
Standard Spring Washer |
2 |
119
Lovol TS4A504-015C Wheeled Tractor
TC02561060000k Hitch Assembly-2
120
Lovol TS4A504-015C Wheeled Tractor
TC02561060000k Hitch Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02561060000k |
Hitch Assembly |
1 |
||
1 |
GBT91-5X32-A0P |
Pin |
2 |
|
2 |
FT500A.56.011a |
Upper Pull Rod Assembly |
1 |
|
2.1 |
FT500A.56.026 |
Front Adjusting Lever Assembly Of Upper Pull Rod |
1 |
|
2.2 |
GBT6173-M27X2-05-A3L |
Hexagon Thin Nut |
1 |
|
2.3 |
FT500A.56.027 |
Adjusting Screw Pipe Weldment |
1 |
|
2.4 |
GBT6173-M27X2-LH-05-A3L |
Hexagon Thin Nut |
1 |
|
2.5 |
FT500A.56.024 |
Rear Adjusting Lever Assembly Of Upper Pull Rod |
1 |
|
2.6 |
FT65.56.015 |
Upper Pull Rod Lock Pin Assembly |
1 |
|
3 |
FT500A.56.101 |
Upper Connecting Pin Of Lifting Rod |
2 |
|
4 |
TB400.56E.1 |
Lifting Rod Assembly |
2 |
|
4.1 |
TB400.56E.1-01 |
Upper Connecting Fork Of Lifting Rod |
1 |
|
4.2 |
TB400.56E.1.1 |
Adjusting Screw Pipe Weldment |
1 |
|
4.3 |
TB400.56E.1.2 |
Lifting Rod Adjusting Sleeve Weldment |
1 |
|
4.4 |
TB400.56E.1.3 |
Lower Connecting Fork Weldment |
1 |
|
5 |
FT500A.56.118 |
Washer |
2 |
|
6 |
GBT91-5X40-A0P |
Split Pin |
2 |
|
7 |
FT300.56A.112 |
Lower Connecting Pin Of Lifting Rod |
2 |
|
8 |
GBT97.1-24-A0P |
Plain Washer |
2 |
|
9 |
TB500.56B.6 |
Upper Pull Rod Fixing Clamp Combination |
1 |
|
9.1 |
GBT91-2X14-A0P |
Split Pin |
1 |
|
9.2 |
GBT96.1-6-A0P |
Large Washer |
1 |
|
9.3 |
TE300.56.6-01 |
Fixing Seat |
1 |
|
9.4 |
TB500.56B.6-01 |
Upper Pull Rod Fixing Hook |
1 |
|
9.5 |
TE300.56.6-03 |
Nylon Bushing |
1 |
|
10 |
GBT5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
2 |
|
11 |
GBT97.1-8-A0P |
Plain Washer |
2 |
|
12 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
|
13 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
2 |
121
Lovol TS4A504-015C Wheeled Tractor

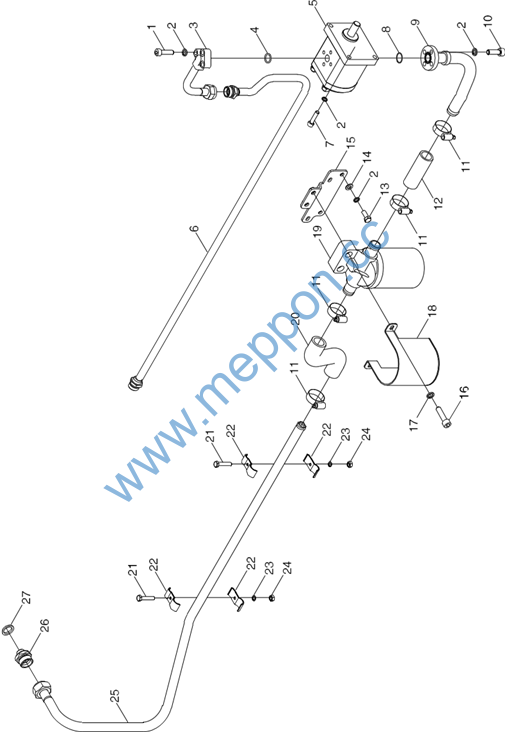

TC02581130000K Oil Pump/Pine/Filter Assembly(002)
122
Lovol TS4A504-015C Wheeled Tractor
TC02581130000K Oil Pump/Pine/Filter Assembly(002)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02581130000K |
Oil Pump/Pine/Filter Assembly |
1 |
||
1 |
GBT70.1-M8X30-8.8-A2L |
Hexagon Socket Head Cap Screw |
3 |
|
2 |
GBT93-8-A0P |
Standard Spring Washer |
15 |
|
3 |
TC04581160001 |
Pressure Oil Pipe Assembly 1 |
1 |
|
4 |
GBT3452.1-18.0X2.65G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
5 |
TC02581060001K |
Gear Pump |
1 |
|
6 |
TC02581130001K |
Oil Pump Outlet Steel Pipe Weldment |
1 |
|
7 |
GBT70.1-M8X35-8.8-A2L |
Hexagon Socket Head Cap Screw |
4 |
|
8 |
GBT3452.1-20.0X1.80G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
9 |
TB504.581E.3 |
Oil Suction Pipe Weldment |
1 |
|
10 |
GBT70.1-M8X25-8.8-A2L |
Hexagon Socket Head Cap Screw |
4 |
|
11 |
Q67638 |
B-Type Worm Drive Hose Clamp |
4 |
|
12 |
TB504.581E-02 |
Oil Suction Rubber Pipe |
1 |
|
13 |
GBT5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
4 |
|
14 |
GBT95-8-A0P |
Plain Washer |
4 |
|
15 |
TC02581130006K |
Oil Filter Bracket Weldment |
1 |
|
16 |
GBT70.1-M10X40-8.8 |
Hexagon Socket Head Cap Screw |
2 |
|
17 |
GBT93-10-A0P |
Standard Spring Washer |
2 |
|
18 |
TC02581130008K |
Oil Filter Shield Weldment |
1 |
|
19 |
TB504.581E.2 |
Rotary Oil Suction Filter |
1 |
|
20 |
TC02581130005K |
Oil Suction Bending Pipe |
1 |
|
21 |
GBT5783-M6X30-8.8-A2L |
Hexagon Head Bolt |
2 |
|
22 |
TB504.581E.1 |
Oil Pipe Clip And Rubber Pad Paste |
4 |
|
23 |
GBT93-6-A0P |
Standard Spring Washer |
2 |
|
24 |
GBT6170-M6-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
25 |
TC02581130003K |
Oil Suction Steel Pipe Assembly |
1 |
|
26 |
TC04581020005 |
Straight Thread Connector, Body M22-25 |
1 |
|
27 |
JBT982-22 |
Compound Seal Washer |
1 |
123
Lovol TS4A504-015C Wheeled Tractor

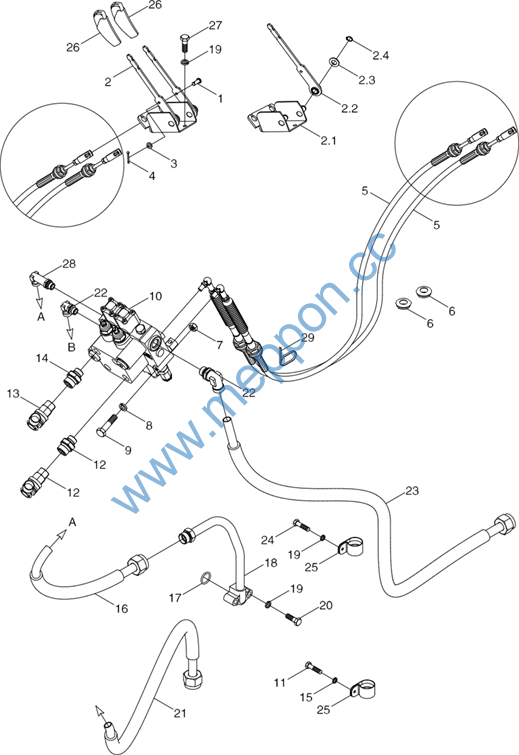

TC02582090000K Multi-way valve oil pipe assembly (001)
124
Lovol TS4A504-015C Wheeled Tractor
TC02582090000K Multi-way valve oil pipe assembly (001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02582090000K |
Multi-Way Valve Oil Pipe Assembly |
1 |
||
1 |
TG1654.583C-01 |
Pin Shaft |
2 |
|
2 |
TS04582010058 |
Multi-Way Valve Control Assembly |
1 |
|
2.1 |
TS04582010059 |
Installation Seat Weldment |
1 |
|
2.2 |
TS04582010043 |
Control Handle Press |
2 |
|
2.3 |
GBT97.1-14-A0P |
Plain Washer |
2 |
|
2.4 |
GBT894.1-14 |
Circlip For Shaft |
2 |
|
3 |
GBT97.1-6-A0P |
Plain Washer |
2 |
|
4 |
GBT91-2X14-A0P |
Split Pin |
2 |
|
5 |
TS04582020001 |
Flexible Shaft Mechanism Assembly |
2 |
|
6 |
TS04582010027 |
Rubber Ring |
2 |
|
7 |
GBT6170-M6-8-A2L |
Hexagon Nut, Style 1 |
3 |
|
8 |
GBT93-6-A0P |
Standard Spring Washer |
3 |
|
9 |
GBT5782-M6X60-8.8-A1L |
Hexagon Head Bolt |
3 |
|
10 |
TC04582140010 |
Multi-Way Valve Assembly |
1 |
|
11 |
GBT5783-M10X16-8.8-A3L |
Hexagon Head Bolt |
1 |
|
12 |
TC02580010001K |
Quick-Change Connector |
2 |
|
13 |
FT354.58A.030 |
Quick-Change Connector |
2 |
|
14 |
TC04582140009 |
Straight Thread Connector, Body M18 Assembly |
4 |
|
15 |
GBT93-10-A0P |
Standard Spring Washer |
1 |
|
16 |
TC04582300012 |
Lifter Oil Inlet Pipe Assembly |
1 |
|
17 |
GBT3452.1-20.0X2.65G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
18 |
TC04582300005 |
Lifter Oil Inlet Steel Pipe Weldment |
1 |
|
19 |
GBT93-8-A0P |
Standard Spring Washer |
6 |
|
20 |
GBT5783-M8X35-8.8-A2L |
Hexagon Head Bolt |
2 |
|
21 |
TC04582300013 |
Multi-Way Valve Oil Return Rubber Pipe Assembly |
1 |
|
22 |
TC04582140012 |
Adjustable Joint M18-15 Assembly |
2 |
|
23 |
TC04582300001 |
Multi-Way Valve Oil Inlet Rubber Pipe Assembly |
1 |
|
24 |
GBT5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
1 |
|
25 |
TD924.582-01 |
Pipe Clip |
2 |
|
26 |
TS04582010025 |
Handle Head |
2 |
|
27 |
GBT5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
3 |
|
28 |
TC04582300011 |
Adjustable Joint M18-15 Combination |
1 |
|
29 |
Q67405200 |
Plastic Fastening Strap |
1 |
125
Lovol TS4A504-015C Wheeled Tractor

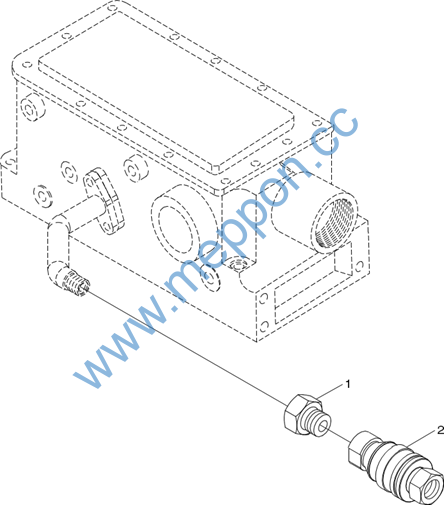

TB300.583A Single-way Hydraulic Outlet Assembly 2
126
