LOVOL TS4A504-015C Tractor Parts Catalogue 11
Lovol TS4A504-015C Wheeled Tractor
TS04802010000K Gas Holder Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04802010000K |
Gas Holder Installation Assembly |
1 |
||
1 |
GBT5783-M12X30-8.8-A3L |
Hexagon Head Bolt |
2 |
|
2 |
GBT93-12-A0P |
Standard Spring Washer |
2 |
|
3 |
GBT96.1-12-A0P |
Large Washer |
2 |
|
4 |
TS04802010001K |
Gas Holder Weldment |
1 |
|
5 |
FT300.80.034 |
Safety Valve Assembly |
1 |
|
6 |
FT300.80.033 |
Water Drainage Valve Assembly |
1 |
|
7 |
TC02484060001K |
Air Pressure Alarm |
1 |
105
Lovol TS4A504-015C Wheeled Tractor

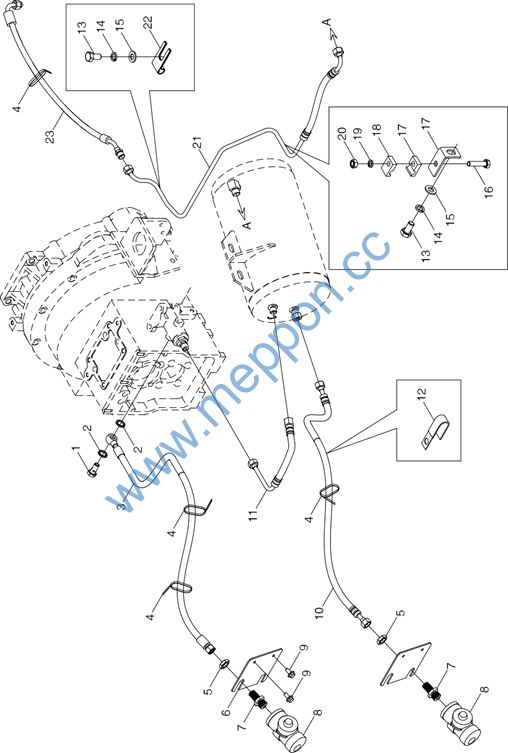

TS04803030000K Air Conveying Pipeline Assembly(001)
106
Lovol TS4A504-015C Wheeled Tractor
TS04803030000K Air Conveying Pipeline Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04803030000K |
Air Conveying Pipeline Assembly |
1 |
||
1 |
FT65.50.106 |
Hollow Bolt |
1 |
|
2 |
JBT982-14 |
Combined Seal Gasket |
2 |
|
3 |
TS04803010003K |
Air Conveying Pipe Assembly |
1 |
|
4 |
Q67405200 |
Plastic Fastening Strip |
4 |
|
5 |
GBT6173-M18X1.5-05-A3L |
Hexagon Thin Nut |
2 |
|
6 |
TS04803030001K |
Connector Mounting Plate |
1 |
|
7 |
TD800.803D-01 |
Output Joint |
2 |
|
8 |
TD800.803D.1 |
Quick Joint |
2 |
|
9 |
GBT16674.1-M6X12-8.8-A2L |
Hexagon Flange Nut |
2 |
|
10 |
TS04803010005K |
Air Conveying Pipe Assembly |
1 |
|
11 |
TS04803010006 |
Brake Valve Air Intake Pipe Subassembly |
1 |
|
12 |
TD800.803-07 |
Tighten Clip |
1 |
|
13 |
GBT5783-M10X20-8.8-A3L |
Hexagon Bolt |
2 |
|
14 |
GBT93-10-A3L |
Standard Spring Washer |
2 |
|
15 |
GBT97.1-10-A3L |
Flat Washer |
2 |
|
16 |
GBT5783-M8X35-8.8-A2L |
Hexagon Bolt |
1 |
|
17 |
TS04803010007 |
Pipe Clamp Bracket |
1 |
|
18 |
TB454.40X-01 |
Single Hole Pipe Clamp |
2 |
|
19 |
GBT93-8-A3L |
Standard Spring Washer |
1 |
|
20 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
1 |
|
21 |
TS04803010004 |
Air Reservoir Intake Pipe Subassembly |
1 |
|
22 |
TE350.80A-01 |
Pipe Clamp |
1 |
|
23 |
TS04803010001K |
Air Compressor Outlet Pipe Assembly |
1 |
107
Lovol TS4A504-015C Wheeled Tractor

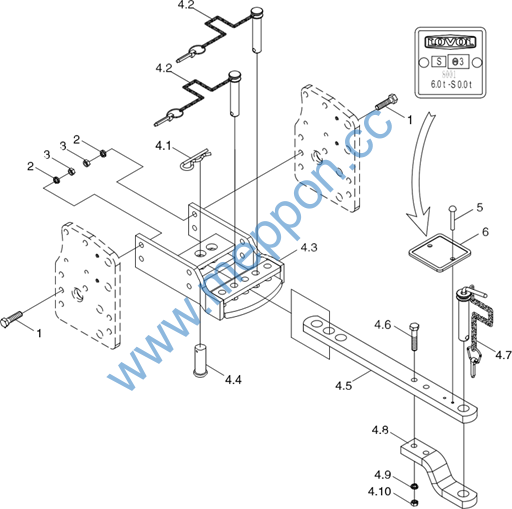

TB400.35C Towing Mechanism Installation Assembly
108
Lovol TS4A504-015C Wheeled Tractor
TB400.35C Towing Mechanism Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.35C |
Towing Mechanism Installation Assembly |
1 |
||
1 |
GBT5783-M16X60-A3L |
Bolt |
8 |
|
2 |
GBT93-16-A0P |
Washer |
8 |
|
3 |
GBT6170-M16-A3L |
Nut |
8 |
|
4 |
TB400.35C.1 |
Towing Mechanism Assembly |
1 |
|
4.1 |
FT65.53.103 |
Spring Locking Pin |
1 |
|
4.2 |
TB400.35.1.1 |
Location Pin And Lock Pin Assembly |
2 |
|
4.3 |
TB400.35C.1.1 |
Traction Frame Weldment |
1 |
|
4.4 |
FT300.35A.103 |
Connecting Pin |
1 |
|
4.5 |
TB400.35C.1-01 |
Swing Rod |
1 |
|
4.6 |
TB400.35.1-03 |
Bolt |
2 |
|
4.7 |
TB400.35.1.2 |
Traction Pin And Lock Pin Assembly |
1 |
|
4.8 |
TB400.35.1-02 |
Connecting Swing Rod |
1 |
|
4.9 |
GBT93-16-A0P |
Washer |
2 |
|
4.10 |
GBT6170-M16-A3L |
Nut |
2 |
|
5 |
GBT827-3X8 |
Rivet |
2 |
|
6 |
TB400.35-01 |
Traction Mark Plate |
1 |
109
Lovol TS4A504-015C Wheeled Tractor

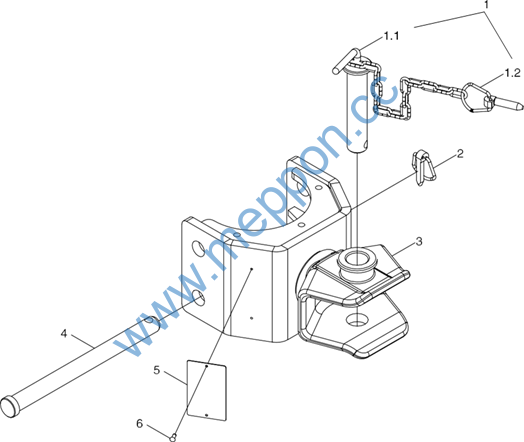

TC02530010000K Up-down Adjustable Traction Connector
110
Lovol TS4A504-015C Wheeled Tractor
TC02530010000K Up-down Adjustable Traction Connector
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02530010000K |
Up-Down Adjustable Traction Connector |
1 |
||
1 |
TA700.53C.1.3 |
Trailer Pin And Lock Pin Assembly |
2 |
|
1.1 |
TA700.53C.1.3.1 |
Trailer Pin Weldment |
1 |
|
1.2 |
TD800.35A.1.1.1 |
Lock Pin And Chain Assembly |
1 |
|
2 |
FT300.56.029 |
Lock Pin Assembly |
1 |
|
3 |
TB400.53B.1 |
Trailing Device Assembly Weldment |
1 |
|
4 |
FT300.53.101a |
Connecting Pin |
2 |
|
5 |
TC02530010001K |
Trailing Identification Label |
2 |
|
6 |
GBT827-3X8-A0P |
Label Rivet |
1 |
111
Lovol TS4A504-015C Wheeled Tractor

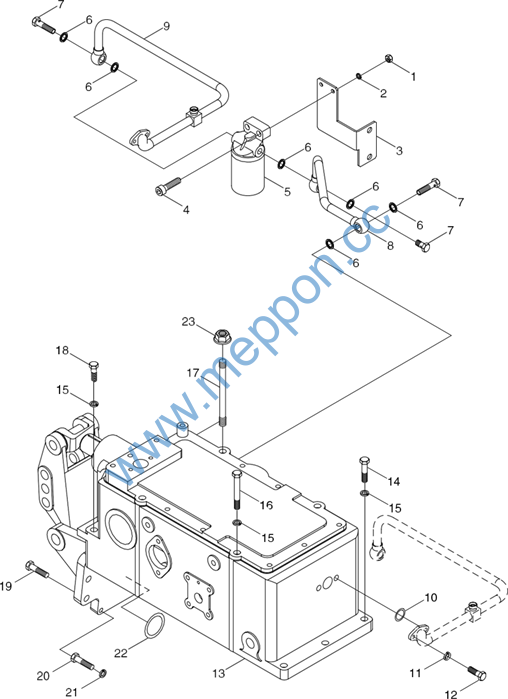

TC02551050000K Lifter Assembling Assy
112
Lovol TS4A504-015C Wheeled Tractor
TC02551050000K Lifter Assembling Assy
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02551050000K |
Lifter Assembling Assembly |
1 |
||
1 |
GBT6170-M10-8-A3L |
Hexagon Nut, Style 1 |
2 |
|
2 |
GBT93-10-A0P |
Standard Spring Washer |
2 |
|
3 |
TB504.551F.1 |
Bracket Weldment |
1 |
|
4 |
GBT70.1-M10X45-8.8 |
Hexagon Socket Button Head Screw |
2 |
|
5 |
TB504.551F.4 |
Oil Return Filter Assembly |
1 |
|
6 |
JBT982-22 |
Compound Seal Washer |
6 |
|
7 |
FT300.58.101 |
Hollow Bolt |
3 |
|
8 |
TB504.551F.3 |
Oil Filter Return Pipe Assembly |
1 |
|
9 |
TC04550090001 |
Oil Filter Inlet Pipe Assembly |
1 |
|
10 |
GBT3452.1-25.8X2.65G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
11 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
|
12 |
GBT5783-M8X30-8.8-A2L |
Hexagon Head Bolt |
2 |
|
13 |
TC02551050002K |
Lifter Assembly |
1 |
|
14 |
GBT5783-M12X40-10.9 |
Hexagon Head Bolt |
3 |
|
15 |
TB404.312B-01 |
Washer |
7 |
|
16 |
FT300.55B.136 |
Bolt M12x235 |
2 |
|
17 |
TB300.55-01 |
Double-Headed Stud M12x250 |
2 |
|
18 |
GBT5783-M12X100-10.9-A3L |
Hexagon Head Bolt |
2 |
|
19 |
GBT16674.1-M12X50-10.9-A2L |
Hexagon Flange Bolt |
4 |
|
20 |
GBT5783-M8X30-10.9-A2L |
Hexagon Head Bolt |
2 |
|
21 |
TB300.55-02 |
Washer |
2 |
|
22 |
GBT3452.1-103X2.65G |
O-Ring |
1 |
|
23 |
SPL-CO-M12-10-F3 |
Hexagon Flange Nut |
2 |
113
Lovol TS4A504-015C Wheeled Tractor

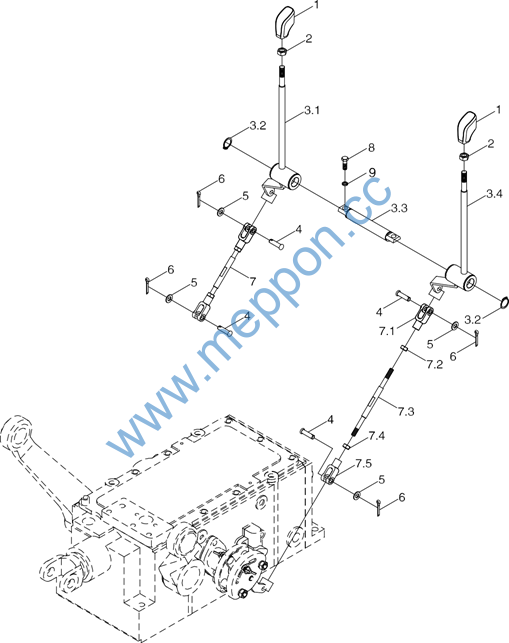

TS04552010000 Raiser Control Assembly
114
Lovol TS4A504-015C Wheeled Tractor
TS04552010000 Raiser Control Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04552010000 |
Raiser Control Assembly |
1 |
||
1 |
TS04552010011 |
Raiser Control Handle Head |
2 |
|
2 |
GBT6170-M10-8-A3L |
Hexagon Nut, Style 1 |
2 |
|
3 |
TS04552010010 |
Raiser Control Assembly |
1 |
|
3.1 |
TS04552010002 |
Raiser Control Press 1 |
1 |
|
3.2 |
GBT894.1-20 |
Circlip For Shaft |
2 |
|
3.3 |
TS04552010001 |
Fixing Shaft |
1 |
|
3.4 |
TS04552010007 |
Raiser Control Press 2 |
1 |
|
4 |
GBT882-B8X30-A0P |
Pin Shaft |
4 |
|
5 |
GBT97.1-8-A0P |
Plain Washer |
4 |
|
6 |
GBT91-3.2X16-A0P |
Cotter Pin |
4 |
|
7 |
TS04552010012 |
Adjusting Lever Assembly |
2 |
|
7.1 |
TB504.552D.3-03 |
Righthand Connecting Fork |
1 |
|
7.2 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
7.3 |
TS04552010013 |
Control Pull Rod |
1 |
|
7.4 |
GBT6170-M8-LH-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
7.5 |
TB504.552D.3-02 |
Lefthand Connecting Fork |
1 |
|
8 |
GBT5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
2 |
|
9 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
115
