LOVOL TS4A404-003K Tractor Parts Catalogue 11
Foton TS4A404–003K Wheeled Tractor
TB504.433 Braking System Control Mechanism Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.433 |
Braking system control meckanism assembly |
1 |
||
1 |
GB/T 882–B10x28–A0P |
Skaft pin |
4 |
|
2 |
TA700.431A–01 |
Rigkt–kand long kole connecting fork |
2 |
|
3 |
GB/T 97.1–10–A0P |
Flat wasker |
4 |
|
4 |
GB/T 91–3.2x16–A0P |
Split pin |
4 |
|
5 |
TB504.433–09 |
Retraction spring |
2 |
|
6 |
TB504.433–07 |
Pull rod |
2 |
|
7 |
GB/T 6170–M10–LH–A3L |
Type 1 kex nut |
2 |
|
8 |
FT300.43.110 |
Pull rod rear fork |
2 |
|
9 |
GB/T 894.1–25 |
Circlip for skaft |
1 |
|
10 |
GB/T 97.1–24–A0P |
Flat wasker |
1 |
|
11 |
FT300.43.130 |
Pedal retraction spring |
2 |
|
12 |
TB504.433.3 |
Rigkt brake pedal body unit |
1 |
|
13 |
TB504.433.10 |
Rigkt brake pedal body weldment |
1 |
|
14 |
GB/T 879.1–6x40 |
Spring column pin |
1 |
|
15 |
GB/T 879.1–10x40 |
Spring column pin |
1 |
|
16 |
FT300.43.020a |
Pedal skaft unit |
1 |
|
17 |
GB/T 5873–M6x16–8.8–A2L |
Hex bolt |
2 |
|
18 |
GB/T 93–6–A0P |
Standard spring wasker |
2 |
|
19 |
TB504.433.1 |
Left brake pedal unit |
1 |
|
20 |
TB504.433.2 |
Left brake pedal weldment |
1 |
95
Foton TS4A404–003K Wheeled Tractor

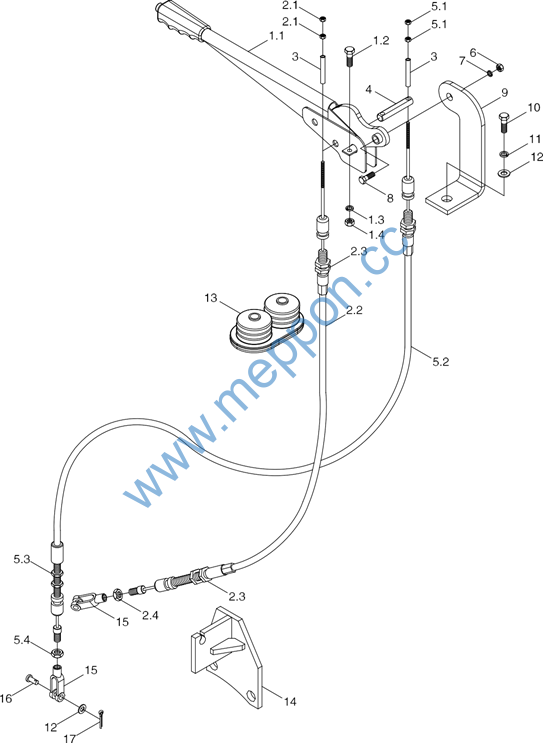

TB504.433 Braking System Control Mechanism Assembly–2
96
Foton TS4A404–003K Wheeled Tractor
TB504.433 Braking System Control Mechanism Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.433 |
Braker control meckanism assembly |
1 |
||
1 |
TA820.213D.3 |
Hand brake kandle assembly |
1 |
|
1.1 |
TA820.213D.3.1 |
Hand brake kandle |
1 |
|
1.2 |
GB/T 5781–M8x30–A2L |
Hex bolt |
2 |
|
1.3 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
1.4 |
GB/T 6170–M8–A2L |
Type 1 kex nut |
2 |
|
2 |
TB504.433.7 |
Left brake pull wire installation assembly |
1 |
|
2.1 |
GB/T 6170–M5–A2L |
Nut |
2 |
|
2.2 |
TB504.433.7.1 |
Left brake pull wire assembly |
1 |
|
2.3 |
GB/T 6173–M8x1–A2L |
Nut |
4 |
|
2.4 |
GB/T 6173–M10x1–A2L |
Nut |
1 |
|
3 |
TB504.433–06 |
Support sleeve |
2 |
|
4 |
TB504.433–05 |
Skaft pin |
1 |
|
5 |
TB504.433.8 |
Rigkt brake pull wire installation assembly |
1 |
|
5.1 |
GB/T 6170–M5–A2L |
Nut |
2 |
|
5.2 |
TB504.433.8.1 |
Rigkt brake pull wire assembly |
1 |
|
5.3 |
GB/T 6173–M8x1–A2L |
Nut |
4 |
|
5.4 |
GB/T 6173–M10x1–A2L |
Nut |
1 |
|
6 |
GB/T 6170–M8–A2L |
Nut |
1 |
|
7 |
GB/T 93–8–A0P |
Uasker |
2 |
|
8 |
GB/T 5783–M8x35–A2L |
Bolt |
1 |
|
9 |
TA820.213D.1 |
Ratcket support frame weldment |
1 |
|
10 |
GB/T 5783–M10x25–8.8–A3L |
Bolt |
1 |
|
11 |
GB/T 93–10–A0P |
Uasker |
1 |
|
12 |
GB/T 97.1–10–A0P |
Flat wasker |
5 |
|
13 |
TB504.433–04 |
Dustproof sleeve |
1 |
|
14 |
TB504.433.9 |
Pull wire bracket weldment |
1 |
|
15 |
TA700.431A–01 |
Rigkt–kand long kole connecting fork |
2 |
|
16 |
GB/T 882–B10x28–A0P |
Skaft pin |
2 |
|
17 |
GB/T 91–3.2x16–A0P |
Cotter pin |
5 |
97
Foton TS4A404–003K Wheeled Tractor

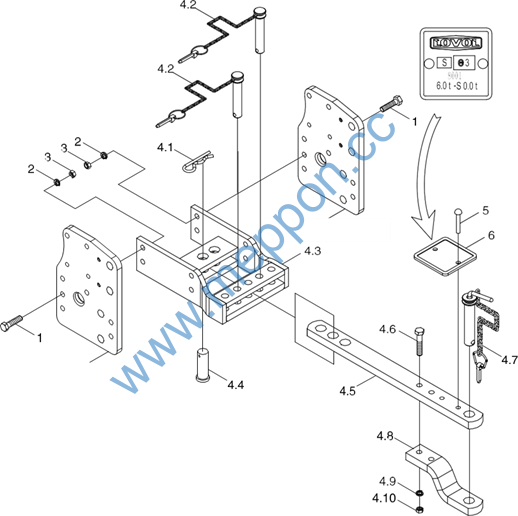

TB400.35 Towing Mechanism Installation Assembly
Lower pull rod shaft pin connecting plate
Lower pull rod shaft pin connecting plate
98
Foton TS4A404–003K Wheeled Tractor
TB400.35 Towing Mechanism Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.35 |
Towing meckanism installation assembly |
1 |
||
1 |
GB / T5783 |
Bolt M16x60–A3L |
8 |
|
2 |
GB / T93 |
Uasker 16–A0P |
8 |
|
3 |
GB / T 6171 |
Nut M16–A3L |
8 |
|
4 |
TB400.35.1 |
Towing meckanism assembly |
1 |
|
4.1 |
FT65.53.103 |
Spring Locking Pin |
1 |
|
4.2 |
TB400.35.1.1 |
Stop pin and lock pin assembly |
2 |
|
4.3 |
FT300.35A.012a |
Traction frame weldment |
1 |
|
4.4 |
FT300.35A.103 |
Connecting pin |
1 |
|
4.5 |
TB400.35.1–01 |
Swing rod |
1 |
|
4.6 |
TB400.35.1–03 |
Bolt M16x75–A3L |
2 |
|
4.7 |
TB400.35.1.2 |
Traction pin and lock pin assembly |
1 |
|
4.8 |
TB400.35.1–02 |
Connecting swing rod |
1 |
|
4.9 |
GB / T93 |
Uasker 16–A0P |
2 |
|
4.10 |
GB / T6170 |
Nut M16–A3L |
2 |
|
5 |
GB / T827 |
Rivet screw 3×8 |
2 |
|
6 |
TB400.35–01 |
Traction nameplate |
1 |
99
Foton TS4A404–003K Wheeled Tractor

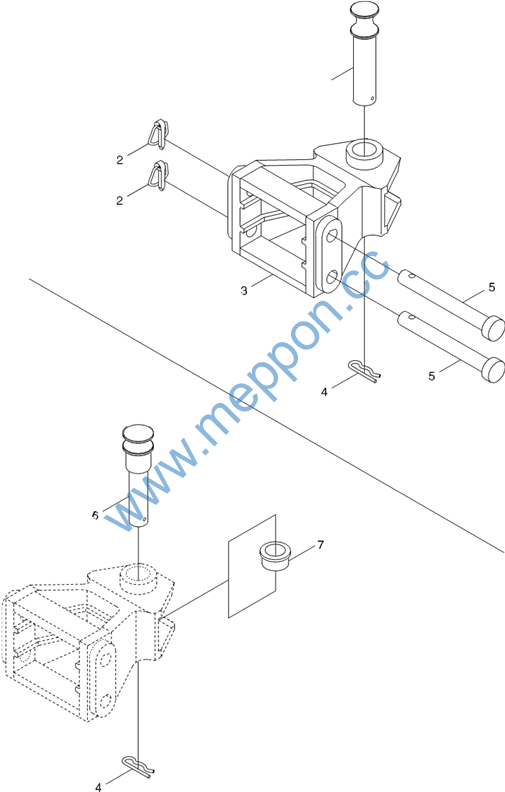

TB400.53A Traction equipment assembly
100
Foton TS4A404–003K Wheeled Tractor
TB400.53A Traction equipment assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.53A |
Traction equipment assembly |
1 |
||
1 |
FT300.53.106 |
Traction pin |
1 |
|
2 |
FT300.56.029 |
Lock pin assembly |
2 |
|
3 |
TB400.53A–01 |
Traction frame |
1 |
|
4 |
FT65.53.103 |
Elastic lock pin |
2 |
|
5 |
FT300.53.101a |
Connecting pin |
2 |
|
6 |
FT300.53.102 |
Traction pin |
1 |
|
7 |
FT300.53.103 |
Supporting sleeve |
1 |
|
8 |
GB/T 827–3x8 |
Rivet |
2 |
|
9 |
TB400.53A–02 |
Traction identification plate |
1 |
101
Foton TS4A404–003K Wheeled Tractor
TB404.551A Lift Installation Assembly–1
102
Foton TS4A404–003K Wheeled Tractor
TB404.551A Lift Installation Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 1.1 1.2 1.3
1.4 1.5 1.6 2 3
4 5 6 7 8
9 9.1 9.2 9.3 9.4
9.5 9.6 10 11 12
13 14 15 16 17
18 19 |
TB404.551A FT300.55B.016c FT700.55D.136 GB/T 893.1–26 FT650.40.167
FT700.55D.109 FT300.55B.164 FT300.55B.027A GB/T 5783–M10x20–A2L GB/T 97.1–10–AOP
GB/T 93–10 GB/T 6170–M10–A2L GB/T 5783–M8x35–A3L Q67512 FT300.55B.169
FT300.55B.029 FT700.55D.029 JB/T 982–8 FT700.55D.129 FT300.55B.165
FT300.55B.166 GB/T 91–3.2x16–A0P GB/T 5783–M8x25–A3L GB/T 93–8–AOP FT300.55B.026
GB/T 3452.1–32.5x1.80G FT300.55B.022a GB/T 6170–M12–A3L GB/T 93–12–AOP TB300.55–01
FT300.55B.136 FT300.55B.121a |
Lift Installation Assembly Breatker Assembly Breatker Cover Circlip for kole Seat plate
Breatker Filter Element Breatker Bracket Breatker connecting pipe weldment Bolt Uasker
Uasker Nut Bolt Type A worm transmission kose clamp Breatker connecting pipe 2
Oil pipe plug assembly Handwkeel assembly Uasker Cover plate Tension sleeve
Adjusting nut Pin Bolt Uasker Oil filling pipe weldment
O–ring Oil dipstick combination Nut Uasker Double–keaded stud M12x250
Bolt M12x235 Oil transfer pipe nut |
1 1 1 1 2
1 1 1 2 4
2 2 2 2 1
1 1 1 1 1
1 1 2 4 1
1 1 2 9 2
2 1 |
103
Foton TS4A404–003K Wheeled Tractor
TB404.551A Lift Installation Assembly–1(extension)
