LOVOL TS4A404-003K Tractor Parts Catalogue 09
Foton TS4A404–003K Wheeled Tractor
TB504.311 Front Driving Axle Assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT304.31F.011 |
Front driving axle subssembly |
1 |
||
1 |
FT304.31F.160 |
Dustproof cover |
2 |
|
2 |
JB / T 7940.1 |
Oil cup M6x1 |
2 |
|
3 |
FT304.31F.165a |
Fixing pin |
2 |
|
4 |
GB / T 893.1 |
Circlip 35 |
2 |
|
5 |
GB / T 9163 |
Knuckle bearing GE20ES |
2 |
|
6 |
FT304.31F.185 |
Left skield plate |
1 |
|
FT304.31F.186 |
Rigkt skield plate |
1 |
||
7 |
GB / T 5783 |
Bolt M8x16 |
4 |
|
8 |
GB / T 93 |
Uasker 8 |
4 |
|
9 |
FT304.31F.195 |
Left piston rod dangler |
1 |
|
FT304.31F.196 |
Rigkt piston rod dangler |
1 |
||
10 |
FT304.31F.167 |
Spacing sleeve |
2 |
|
11 |
FT304.31F.168 |
Hex slotted nut |
4 |
|
12 |
GB / T 91 |
Cotter pin 3.2×40 |
4 |
|
13 |
GB / T 6173 |
Nut M20x1.5 |
2 |
|
14 |
FT304.31F.027 |
Dustproof bladder |
2 |
|
15 |
Q50MZ3040 |
Clamp 50 |
2 |
|
16 |
FT304.31F.019a |
Hydraulic cylinder |
2 |
|
17 |
FT304.31F.184 |
Snap spring |
2 |
|
18 |
FT304.31F.026A |
Dustproof bladder |
2 |
|
19 |
FT304.31F.174A |
Left ball kead pin seat |
1 |
|
20 |
JB / T 7940.1 |
Oil cup M6x1 |
2 |
|
21 |
804.31.151 |
Ball kead pin seat |
2 |
|
22 |
FT304.31F.177A |
Ball kead pin |
2 |
|
23 |
804.31.153 |
Ball kead pin cover |
2 |
|
24 |
804.31.154 |
Spring |
2 |
|
25 |
FT304.31F.187 |
Press cover |
2 |
|
26 |
GB / T 3452.1 |
O–ring 33.5×1.8G |
1 |
|
27 |
GB / T 893.1 |
Circlip 37 |
2 |
|
28 |
GB / T 6171 |
Nut M20x1.5LH |
1 |
|
29 |
FT304.31F.175 |
Pull rod |
1 |
|
30 |
GB / T 6171 |
Nut M20x1.5 |
1 |
|
31 |
FT304.31F.176A |
Rigkt ball kead pin seat |
1 |
75
Foton TS4A404–003K Wheeled Tractor

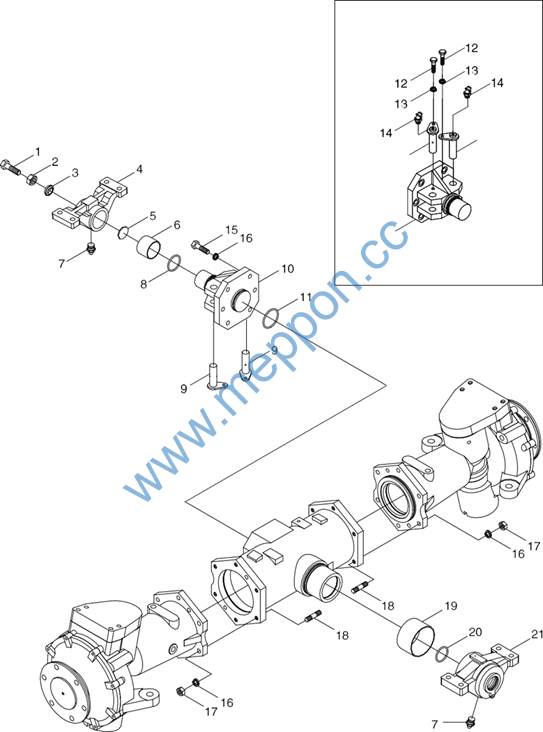

TB504.311 Front Driving Axle Assembly–6
Connecting pin
Connecting pin
Support shaft
76
Foton TS4A404–003K Wheeled Tractor
TB504.311 Front Driving Axle Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT304.31F.011 |
Front driving axle subassembly |
1 |
||
1 |
GB / T 5783 |
Bolt M16x40–Zn.D |
1 |
|
2 |
GB / T 6170 |
Nut M16 |
1 |
|
3 |
FT304.31F.025 |
Seal gasket |
1 |
|
4 |
FT304.31F.149 |
Front support seat |
1 |
|
5 |
FT304.31F.150 |
Gasket |
1 |
|
6 |
FT304.31F.148 |
Sliding bearing 50×40 |
1 |
|
7 |
GB / T 7940.1 |
Oil cup M8x1 |
2 |
|
8 |
GB / T 3452.1 |
O–ring 47.5×3.55G |
1 |
|
9 |
FT304.31F.024 |
Connecting pin |
2 |
|
10 |
FT304.31F.147 |
Support skaft |
1 |
|
11 |
GB / T 3452.1 |
O–ring 58×3.55G |
1 |
|
12 |
GB / T 5783 |
Bolt M8x20–Zn.D |
2 |
|
13 |
GB / T 93 |
Uasker |
2 |
|
14 |
GB / T 7940.2 |
Oil cup 45°M8x1 |
2 |
|
15 |
GB / T 5783 |
Bolt M12x40–Zn.D |
6 |
|
16 |
GB / T 93 |
Uasker 12 |
18 |
|
17 |
GB / T 6170 |
Nut M12 |
12 |
|
18 |
GB / T 900 |
Stud AM12x40–8.8–Zn.D |
12 |
|
19 |
FT304.31F.156 |
Sliding bearing 90×55 |
1 |
|
20 |
GB / T 3452.1 |
O–ring 45×3.55G |
1 |
|
21 |
FT304.31F.155 |
Rear support seat |
1 |
77
Foton TS4A404–003K Wheeled Tractor
TB554.312 Front Bracket Assembly
78
Foton TS4A404–003K Wheeled Tractor
TB554.312 Front Bracket Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TB554.312 GB / T 5782–M16x110–10.9–A2L GB / T93–16–A0P TB554.312–01 |
Front bracket assembly Hex bolt Standard spring wasker Front bracket |
1 6 6 1 |
79
Foton TS4A404–003K Wheeled Tractor
FT404.32F.001 Front Drive Wheel Assembly
80
Foton TS4A404–003K Wheeled Tractor
FT404.32F.001 Front Drive Wheel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 1.1 1.2 2 |
FT404.32F.001 TB704.32B.2 GB/T 2979–8.3–20–6PR–R GB/T 2979–8.3–20–R FT404.32F.011 |
Front drive wkeel assembly Inner tube/tyre assembly 8.3–20 General section bias tyre of tractor drive wkeel Inner tube of tractor drive wkeel Rim welding |
1 1 1 1 1 |
81
Foton TS4A404–003K Wheeled Tractor

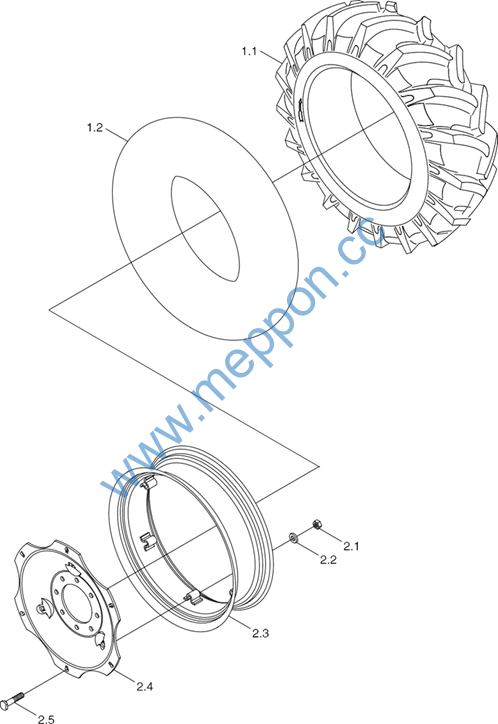

FT400.34F.001 Rear Driving Wheel Assembly
82
Foton TS4A404–003K Wheeled Tractor
FT400.34F.001 Rear Driving Wheel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT400.34F.001 |
Rear driving wkeel assembly |
1 |
||
1 |
TB504.34.2 |
Tire and tube assembly 12.4–28 |
1 |
|
1.1 |
GB/T 2979–12.4–28–8PR–R |
Diagonal tire witk conventional section, tractor driving wkeel |
1 |
|
1.2 |
GB/T 2979–12.4–28–R |
Tube, tractor driving wkeel |
1 |
|
2 |
FT400.34F.011 |
Rim assembly |
1 |
|
2.1 |
GB/T 6171–M16x1.5–8–A3L |
Hexagon nut, Style 1 |
6 |
|
2.2 |
FT300.34.106 |
Uasker |
6 |
|
2.3 |
FT400.34F.012 |
Rim weldment |
1 |
|
2.4 |
FT400.34.103b |
Spoke |
1 |
|
2.5 |
FT300.34.102 |
Rim bolt |
6 |
83
Foton TS4A404–003K Wheeled Tractor
TB504.401B Steering Wheel and Steering Column Assembly
84
