LOVOL TS10A854-004K Tractor Parts Catalogue 11
Foton TS10A854-004K Wheeled Tractor
FT800.91B.001 Rear Ballast Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.91B.001 |
Rear Ballast Assembly |
1 |
||
1 |
GBT 5783-M16X40-A3L |
Bolt |
6 |
|
2 |
GBT 93-16-AOP |
Washer |
12 |
|
3 |
FT800.34.108 |
Flat Washer |
12 |
|
4 |
FT804.91.105 |
Rear Ballast |
2 |
|
5 |
FT804.91.102 |
Ballast Screw II |
6 |
|
6 |
FT800.91B.103 |
Rear Ballast II |
2 |
|
7 |
FT804.91.101 |
Ballast Screw I |
6 |
|
8 |
GBT 97.1-16-AOP |
Flat Washer |
6 |
|
9 |
GBT 6170-M16-A3L |
Nut |
6 |
115
Foton TS10A854-004K Wheeled Tractor

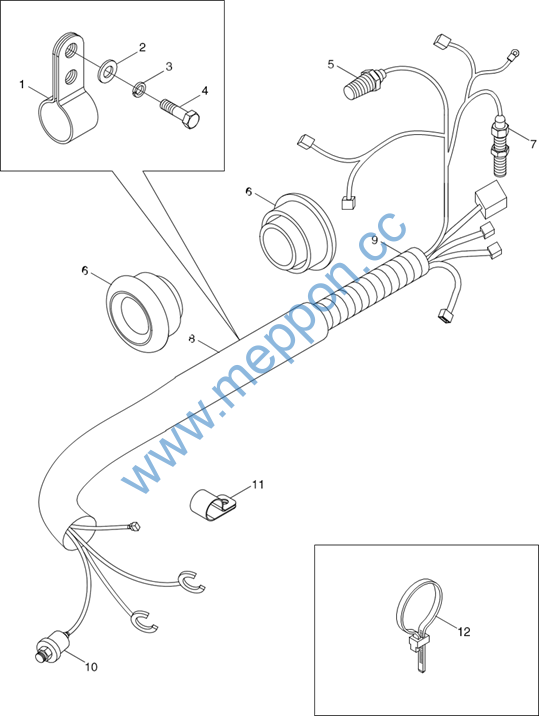

TS10481020000K Harness Installation Assembly, Engine
116
Foton TS10A854-004K Wheeled Tractor
TS10481020000K Harness Installation Assembly, Engine
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10481020000K |
Harness installation assembly, engine |
1 |
||
1 |
FT800.48L.108a |
Fastening clip |
2 |
|
2 |
GB/T 97.1-10-A0P |
Plain washer |
2 |
|
3 |
GB/T 93-10-A0P |
Washer |
2 |
|
4 |
GB/T 5783-M10×20-A3L |
Bolt |
2 |
|
5 |
FT65.48.072 |
Water temperature sensor |
1 |
|
6 |
FT800.48L.107 |
Grommet |
2 |
|
7 |
TS10481010002 |
Rotating speed sensor |
1 |
|
8 |
FT800.48L.106 |
Wire sleeve |
1 |
|
9 |
TS10481020001K |
Engine harness assembly |
1 |
|
10 |
FT65.48.073a |
Oil pressure sensor |
1 |
|
11 |
TF1204.481B-01 |
Harness fastener |
1 |
|
12 |
Q67405100 |
Plastic fastening belt |
5 |
117
Foton TS10A854-004K Wheeled Tractor

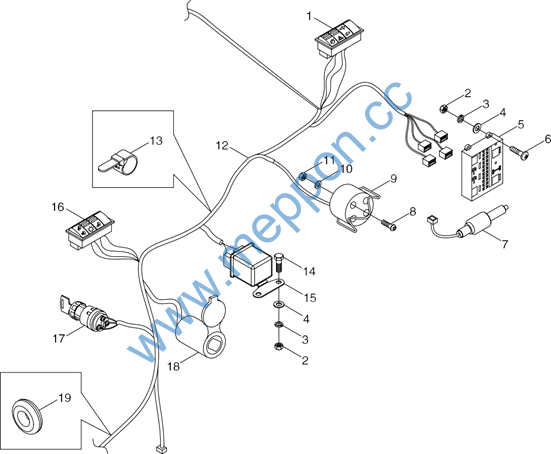

TS10482020000K Harness Installation Assembly, Body
118
Foton TS10A854-004K Wheeled Tractor
TS10482020000K Harness Installation Assembly, Body
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10482020000K |
Body harness installation assembly |
1 |
||
1 |
FT65.48.652 |
Four-function rocker switch (2) |
1 |
|
2 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
6 |
|
3 |
GB/T 93-6-A0P |
Standard spring washer |
6 |
|
4 |
GB/T 97.1-6-A0P |
Plain washer |
6 |
|
5 |
TS10482010002 |
Central electric box assembly |
1 |
|
6 |
GB/T 818-M6×25-4.8-A2L |
Cross recessed pan head screw |
4 |
|
7 |
TB550.484.2 |
Brake lamp switch |
2 |
|
8 |
GB/T 68-M4×35-4.8-A1L |
Slotted countersunk head screw |
2 |
|
9 |
FT800.48B.068 |
Work lamp socket |
1 |
|
10 |
GB/T 97.1-4-A0P |
Plain washer |
2 |
|
11 |
GB/T 6170-M4-8-A2L |
Hexagon nut, style 1 |
2 |
|
12 |
TS10482020001K |
Body harness assembly |
1 |
|
13 |
Q67405200 |
Plastic fastener |
8 |
|
14 |
GB/T 5783-M6×16-A2L |
Hexagon head bolt |
2 |
|
15 |
FT300.48.055 |
Starting relay |
1 |
|
16 |
TD900.482A.1 |
Left rocker switch |
1 |
|
17 |
TB550.482.3 |
Ignition lock |
1 |
|
18 |
FT800.48B.069 |
Charger socket |
1 |
|
19 |
TF1004.482-01 |
Rubber ring |
3 |
119
Foton TS10A854-004K Wheeled Tractor

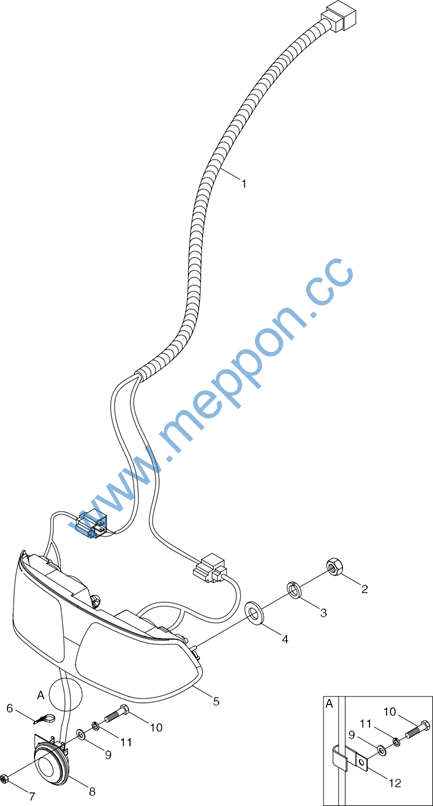

TS10483020000K Harness Installation Assembly, Front Lamp
120
Foton TS10A854-004K Wheeled Tractor
TS10483020000K Harness Installation Assembly, Front Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10483020000K |
Harness installation assembly, front lamp |
1 |
||
1 |
TS10483020001K |
Front lamp harness assembly |
1 |
|
2 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
3 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
4 |
GB/T 97.1-6-A0P |
Plain washer |
2 |
|
5 |
FT600B.48B.031 |
Front lamp combination assembly |
1 |
|
6 |
Q67405100 |
Plastic fastening strap |
1 |
|
7 |
GB/T 6170-M8-8-A2L |
Hexagon nut, style 1 |
1 |
|
8 |
FT65.48.340 |
Horn assembly |
1 |
|
9 |
GB/T 97.1-8-A0P |
Plain washer |
3 |
|
10 |
GB/T 5783-M8×16-8.8-A2L |
Hexagon head bolt |
3 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
12 |
FT65.48.095 |
Harness fastening clip (1) |
2 |
121
Foton TS10A854-004K Wheeled Tractor

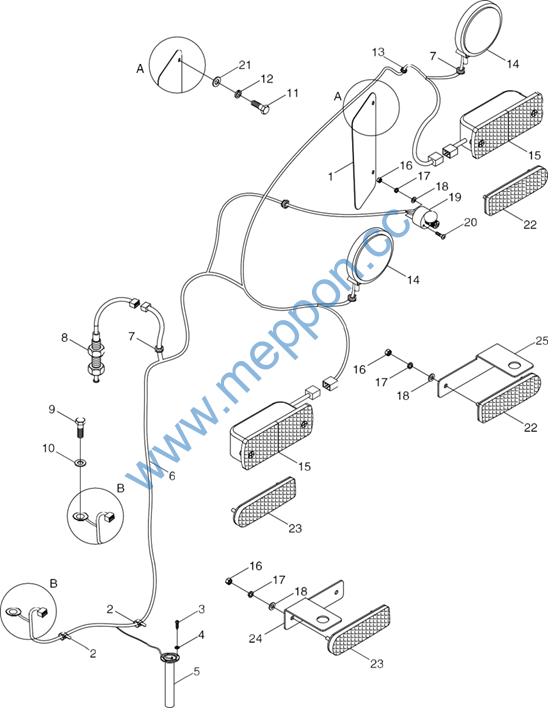

TS10484020000K Rear Lamp Harness Assembly
122
Foton TS10A854-004K Wheeled Tractor
TS10484020000K Rear Lamp Harness Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10484020000K |
Rear lamp harness assembly |
1 |
||
1 |
TS10484010002 |
Harness protection board |
1 |
|
2 |
3724D01-201 |
Loosable cable ties |
15 |
|
3 |
GB/T 818-M4×10-4.8-A2L |
Cross recessed pan head screw |
5 |
|
4 |
GB/T 93-4-A0P |
Standard spring washer |
5 |
|
5 |
TD800.484.2 |
Oil amount sensor |
1 |
|
6 |
TS10484020001K |
Rear lamp harness assembly |
1 |
|
7 |
FT65.48.094 |
Wire through ring (2) |
3 |
|
8 |
FT800A.48L.088 |
Parking brake switch |
1 |
|
9 |
GB/T 5783-M6×12 |
Hexagon head bolt, full thread |
1 |
|
10 |
GB/T 95-6-A0P |
Plain washer |
1 |
|
11 |
GB/T 5783-M8×16-8.8-A2L |
Hexagon head bolt |
2 |
|
12 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
13 |
FT65.48.092 |
Wire through ring (3) |
2 |
|
14 |
TS10484010008 |
Rear lamp assembly |
2 |
|
15 |
TD800.484B.2 |
Rear taillamp assembly |
2 |
|
16 |
GB/T 6170-M5-8-A2L |
Hexagon nut, style 1 |
11 |
|
17 |
GB/T 93-5-A0P |
Standard spring washer |
11 |
|
18 |
GB/T 97.1-5-A0P |
Plain washer |
11 |
|
19 |
TD900.484.2 |
Rear trailer socket |
1 |
|
20 |
GB/T 819.1-M5×35-4.8-A1L |
Cross recessed countersunk head screw |
3 |
|
21 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
|
22 |
TB450.484E.6 |
Right reflector |
2 |
|
23 |
TB450.484E.5 |
Left reflector |
2 |
|
24 |
TS10484010007 |
Reflector installation plate (left) |
1 |
|
25 |
TS10484010006 |
Reflector installation plate (right) |
1 |
123
Foton TS10A854-004K Wheeled Tractor

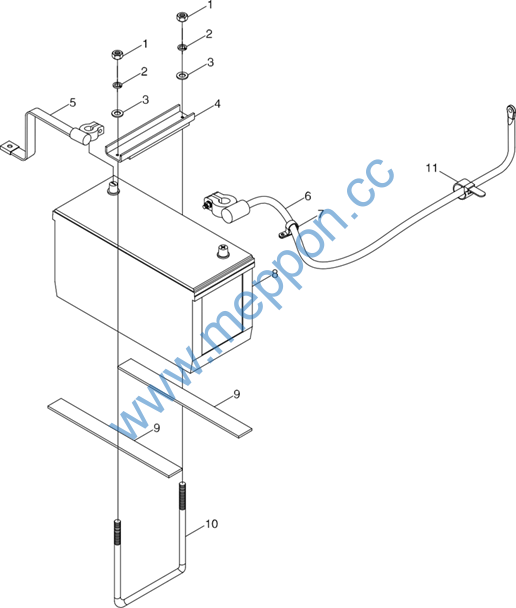

TS10485010000 Battery Installation Assembly
124
Foton TS10A854-004K Wheeled Tractor
TS10485010000 Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10485010000 |
Battery installation assembly |
1 |
||
1 |
GBT 6170-M8-A3L |
Hexagon nut, style 1 |
2 |
|
2 |
GBT 93-8-A0P |
Standard spring washer |
2 |
|
3 |
GBT 97.1-8-A0P |
Plain washer |
2 |
|
4 |
TG1204.485-02 |
Battery pressing plate |
1 |
|
5 |
FT65.48.091 |
Battery bonding |
1 |
|
6 |
FT65.48.090a |
Battery power source wire |
1 |
|
7 |
TD800.485A-03 |
Fixing clip |
1 |
|
8 |
TG1204.485.1 |
Battery assembly |
1 |
|
9 |
TB450.485.1 |
Battery shock absorbing mat |
2 |
|
10 |
TG1204.485-01 |
Battery U-shape pull rod |
1 |
|
11 |
3724D01-201 |
Loosable cable ties |
1 |
125
Foton TS10A854-004K Wheeled Tractor

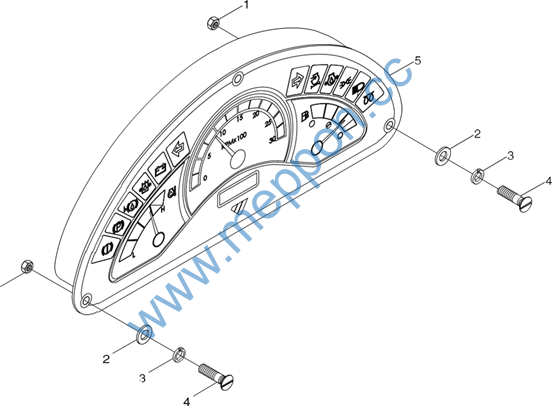

TS10487020000K Compound Instrument Assembly
126
