LOVOL TS10A854-004K Tractor Parts Catalogue 10
Foton TS10A854-004K Wheeled Tractor
TS10490010000 Tool Kit Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10490010000 |
Tool kit assembly |
1 |
||
1 |
GBT 6170-M12-8-A3L |
Hexagon nut, style 1 |
2 |
|
2 |
TS10490010001 |
Mounting trestle weldment |
1 |
|
3 |
FT65.49.103 |
Fixed support plate |
1 |
|
4 |
GBT 97.1-12-A0P |
Plain washer |
2 |
|
5 |
GBT 93-12-A0P |
Standard spring washer |
2 |
|
6 |
GBT 5783-M12X30-8.8-A3L |
Hexagon head bolt |
2 |
|
7 |
GBT 867-4X8 |
Round head rivet |
4 |
|
8 |
FT65.49.101 |
Handle seat |
2 |
|
9 |
FT65.49.115 |
Handle |
1 |
|
10 |
FT300.49.012 |
Tool kit welding assembly |
1 |
|
11 |
FT65.49.102 |
Plug pin |
1 |
103
Foton TS10A854-004K Wheeled Tractor

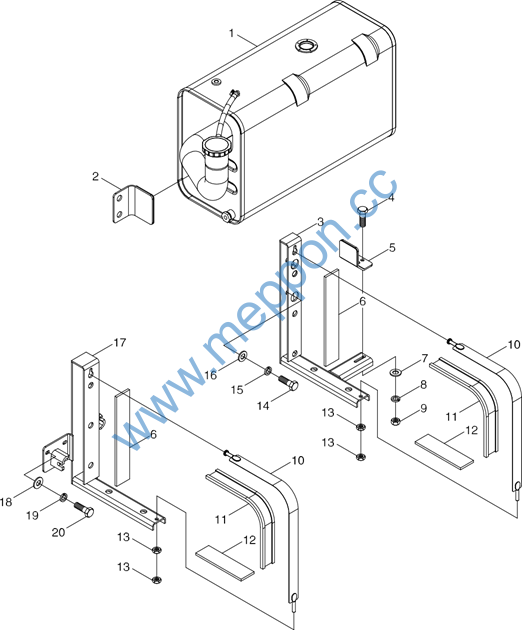

TS10501010000 Main Oil Tank Assembly-1
104
Foton TS10A854-004K Wheeled Tractor
TS10501010000 Main Oil Tank Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10501010000 |
Main oil tank assembly |
1 |
||
1 |
TS10501010027 |
Main oil tank assembly |
1 |
|
2 |
TS10501010022 |
Front limitation plate |
1 |
|
3 |
TS10501010003 |
Main oil tank trestle weldment |
1 |
|
4 |
GBT 5783-M8X25-A2-70 |
Hexagon head bolt |
2 |
|
5 |
TS10501010023 |
Rear limitation plate |
1 |
|
6 |
TS10501010021 |
Oil tank rubber pad |
2 |
|
7 |
GBT 97.1-8-A0P |
Plain washer |
2 |
|
8 |
GBT 93-8-A0P |
Standard spring washer |
2 |
|
9 |
GBT 6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
10 |
TS10501010029 |
Lock cable ties weldment |
2 |
|
11 |
FT800A.50.209 |
Main oil tank cable ties rubber strip |
2 |
|
12 |
TS10501010020 |
Oil tank short rubber pad |
2 |
|
13 |
GBT 6172.1-M10-04-A3L |
Hexagon thin nut |
4 |
|
14 |
GBT 5783-M12X30-8.8-A3L |
Hexagon head bolt |
2 |
|
15 |
GBT 93-12-A3L |
Standard spring washer |
2 |
|
16 |
GBT 97.1-12-A3L |
Plain washer |
2 |
|
17 |
TS10501010007 |
Main oil tank rear trestle weldment |
1 |
|
18 |
GBT 96.1-10-A3L |
Large washer |
4 |
|
19 |
GBT 93-10-A0P |
Standard spring washer |
4 |
|
20 |
GBT 5783-M10X30-8.8-A3L |
Hexagon head bolt |
4 |
105
Foton TS10A854-004K Wheeled Tractor

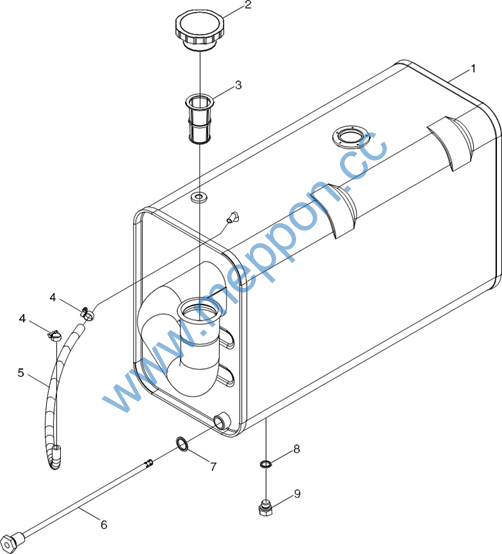

TS10501010000 Main Oil Tank Assembly-2
106
Foton TS10A854-004K Wheeled Tractor
TS10501010000 Main Oil Tank Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10501010000 |
Main oil tank assembly |
1 |
||
TS10501010027 |
Main oil tank assembly |
1 |
||
1 |
TS10501010001 |
Main oil tank assembly |
1 |
|
2 |
TD800.501A.1.1 |
Oil tank cover |
1 |
|
3 |
FT300.50.015 |
Filter mesh assembly |
1 |
|
4 |
Q676B16 |
C-type worm drive type hose clamp |
2 |
|
5 |
TD800.501A.1-01 |
Breathing rubber pipe |
1 |
|
6 |
TD800.501.1.1 |
Oil suction pipe weldment |
1 |
|
7 |
JBT 982-22 |
Compound seal washer |
1 |
|
8 |
JBT 982-16 |
Compound seal washer |
1 |
|
9 |
FT65.50.226 |
Oil drainage screw plug |
1 |
107
Foton TS10A854-004K Wheeled Tractor

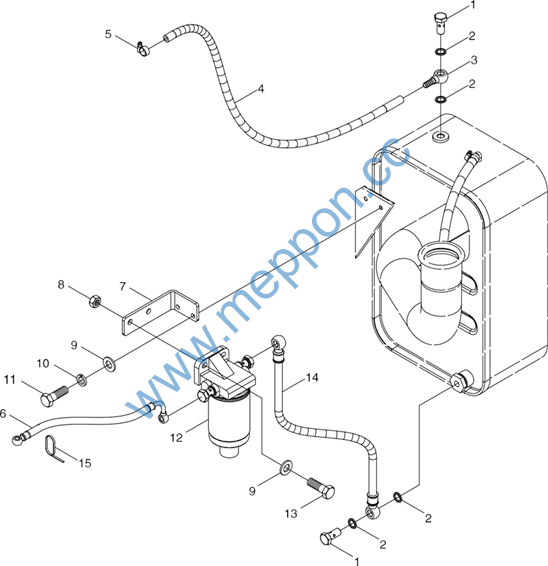

TS10503010000K Oil Delivery Pipeline Assembly
108
Foton TS10A854-004K Wheeled Tractor
TS10503010000K Oil Delivery Pipeline Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10503010000K |
Oil delivery pipeline assembly |
1 |
||
1 |
FT65.50.106 |
Hollow bolt |
2 |
|
2 |
JB/T 982-14 |
Compound seal washer |
4 |
|
3 |
FT800A.50.162 |
Oil pipe joint |
1 |
|
4 |
TS10503010003 |
Oil return pipe |
1 |
|
5 |
Q676B16 |
C-type worm drive type hose clamp |
2 |
|
6 |
TS10503010001K |
Oil delivery pipe assembly |
1 |
|
7 |
TS10503010002 |
Oil filter fixing frame |
1 |
|
8 |
GB/T 6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
9 |
GB/T 97.1-8-A0P |
Plain washer |
4 |
|
10 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
11 |
GB/T 5783-M8×30-8.8-A2L |
Hexagon head bolt |
2 |
|
12 |
TS10503010005 |
Diesel filter assembly |
1 |
|
13 |
GB/T 5783-M8×20-8.8-A2L |
Hexagon head bolt |
2 |
|
14 |
TF1004.504.1 |
Oil delivery pipe assembly |
1 |
|
15 |
Q67405200 |
Plastic fastener |
1 |
109
Foton TS10A854-004K Wheeled Tractor

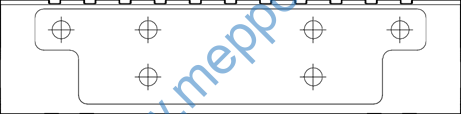

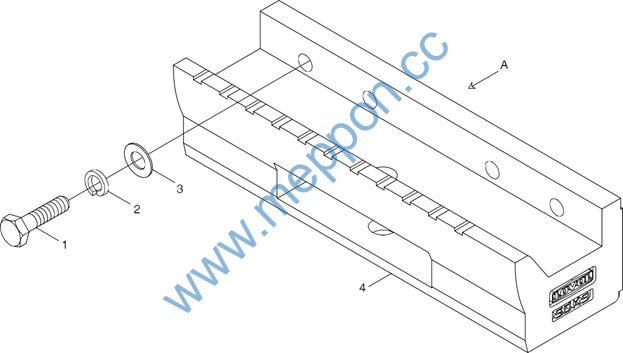

TD800.741 Front Ballast Bracket Assembly
110
Foton TS10A854-004K Wheeled Tractor
TD800.741 Front Ballast Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
TD800.741 GBT 5785-M18X1.5X70-A3L GBT 93-18-AOP GBT 97.1-18-AOP TD800.741-01 |
Front Ballast Bracket Assembly Bolt Spring Washer Flat Washer Ballast Bracket |
1 6 6 6 1 |
111
Foton TS10A854-004K Wheeled Tractor

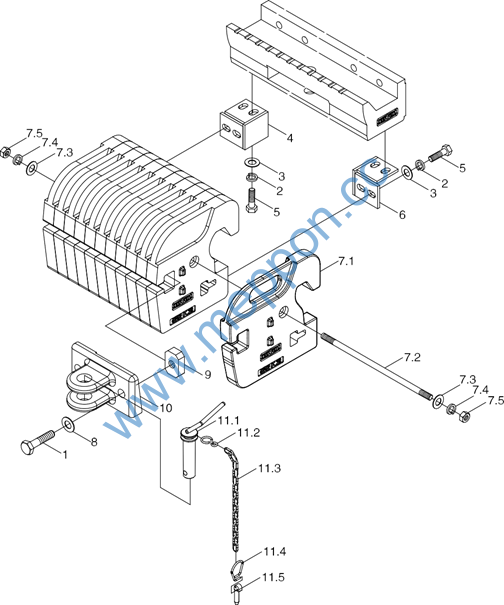

TD800.742 Front counterweight assembly
112
Foton TS10A854-004K Wheeled Tractor
TD800.742 Front counterweight assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.742 |
Front counterweight assembly |
1 |
||
1 |
GBT 5785-M20X1.5X80-A3L |
Bolt |
2 |
|
2 |
GBT 93-16-A0P |
Spring washer |
8 |
|
3 |
GBT 97.1-16-A0P |
Washer |
8 |
|
4 |
FT700.74B.010 |
Right fixing block welding assembly |
1 |
|
5 |
GBT 5783-M16X35-A3L |
Bolt |
8 |
|
6 |
FT700.74B.011 |
Left fixing plate welding assembly |
1 |
|
7 |
TD800.742.2 |
Small front counterweight assembly |
1 |
|
7.1 |
TD800.742-02 |
Counterweight |
11 |
|
7.2 |
F700.74B.107 |
Bolt |
1 |
|
7.3 |
GBT 97.1-16-A0P |
Washer |
2 |
|
7.4 |
GBT 93-16-A0P |
Spring washer |
2 |
|
7.5 |
GBT 6170-M16-A3L |
Nut |
2 |
|
8 |
GBT 97.1-20-A0P |
Washer |
2 |
|
9 |
FT650.74.108 |
Towing nut |
2 |
|
10 |
TD800.742-01 |
Towing lug |
1 |
|
11 |
TB400.74A.2 |
Towing pin and lock pin assembly |
1 |
|
11.1 |
TB400.74A.2.1 |
Towing pin welding |
1 |
|
11.2 |
TA700.35A.1.1-01 |
Adapter ring |
1 |
|
11.3 |
FT65.56.136 |
Small link |
8 |
|
11.4 |
FT800.56.223 |
Lock pin ring |
1 |
|
11.5 |
FT800.56.224 |
Lock pin |
1 |
113
Foton TS10A854-004K Wheeled Tractor

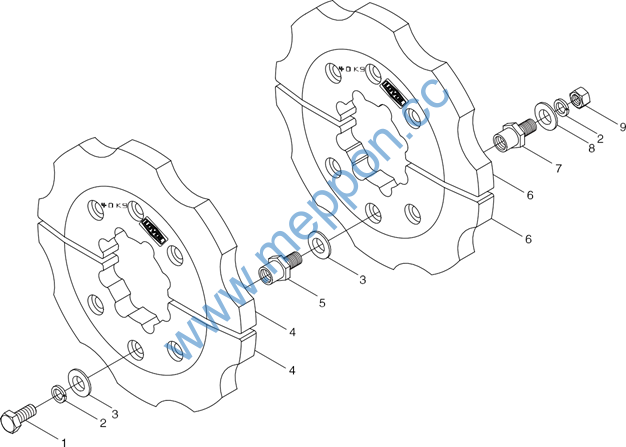

FT800.91B.001 Rear Ballast Assembly
