LOVOL TL1A254-004C Tractor Parts Catalogue 16
TE250.455C Cab Assembly-3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.455C |
Cab Assembly |
1 |
||
TE250.455C.1 |
Cab Assembly |
1 |
||
TE250.455.6 |
Rear window assembly |
1 |
||
1 |
TB600.45.6.2 |
Rear window hinge |
2 |
|
1.1 |
GB/T 5781-M6×25-4.8-A2L |
Hex bolt |
2 |
|
1.2 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
1.3 |
GB/T 97.1-6-A0P |
Flat washer |
2 |
|
1.4 |
TB600.45.6.2-05 |
Rear window hinge shaft |
1 |
|
1.5 |
TB600.45.6.2-01 |
Rear window hinge bottom seat |
1 |
|
1.6 |
TB600.45.6.2-06 |
Clamp spring |
1 |
|
1.7 |
TB600.45.6.2-04 |
Rear window hinger outer gasket |
1 |
|
1.8 |
TB600.45.6.2-03 |
Rear window hinge inner gasket |
1 |
|
1.9 |
TB600.45.6.2-02 |
Rear window hinge press cover |
1 |
|
2 |
TE250.455.6-01 |
Rear window glass |
1 |
|
3 |
TE250.455.6.1 |
Rear window lock body assembly |
1 |
|
3.1 |
TB600.45.6.1-06 |
M12 bolt lever |
2 |
|
3.2 |
TB600.45.6.1-03 |
Rear window lock inner gasket B |
2 |
|
3.3 |
TB600.45.6.1-02 |
Rear window lock outer gasket A |
2 |
|
3.4 |
TB600.45.6.1-05 |
Holding sleeve |
2 |
|
3.5 |
TB600.45.6.1-07 |
Pin shaft |
2 |
|
3.6 |
TE250.455.6.1-02 |
Right rear window lock body |
1 |
|
3.7 |
GB/T 97.1-12-A0P |
Flat washer |
2 |
|
3.8 |
GB/T 6170-M12-8-A3L |
Type 1 hex nut |
2 |
|
3.9 |
TB600.45.6.1-04 |
Rear cover |
2 |
|
3.10 |
TE250.455.6.1-01 |
Left rear window lock body |
1 |
|
4 |
TE250.455.6.2 |
Rear window knob weldment |
1 |
|
4.1 |
TB600.45.6.3-02 |
M8 bolt lever |
2 |
|
4.2 |
TB600.45.6.3-03 |
Rear window handle inner gasket B |
2 |
|
4.3 |
TB600.45.6.3-04 |
Rear window handle outer gasket A |
2 |
|
4.4 |
TE250.455.6.2-01 |
Rear window handle |
1 |
|
5 |
TE250.455.6-02 |
Rear window air spring |
2 |
|
6 |
TE250.455.6-04 |
Rear window glass seal strip |
1 |
|
7 |
TE250.486.1 |
Dome lamp harness assembly |
1 |

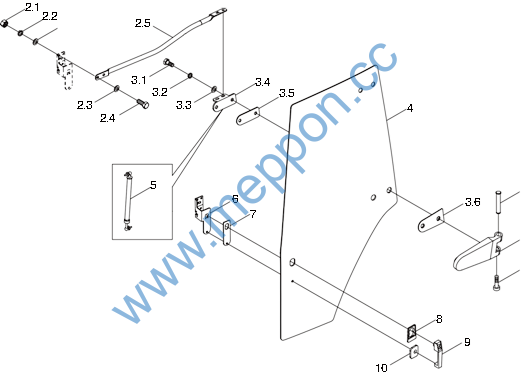

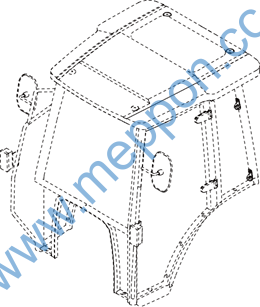

TE250.455C Cab Assembly-4
1
TE250.455C Cab Assembly-4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.455C |
Cab Assembly |
1 |
||
TE250.455C.1 |
Cab Assembly |
1 |
||
TE250.455.9 |
Left door assembly |
1 |
||
TE250.455.10 |
Right door assembly |
1 |
||
1 |
TE250.455.9-02 |
Door glass seal strip |
1 |
|
TE250.455.10-04 |
Right door glass seal strip |
1 |
||
2 |
TE250.455.9.1 |
Left door handle weldment |
1 |
|
TE250.455.10.1 |
Rightdoor handle weldment |
1 |
||
2.1 |
GB/T 923-M8-5 |
Cap nut |
4 |
|
2.2 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
2.3 |
GB/T 96.1-8-A0P |
Big washer |
8 |
|
2.4 |
GB/T 5781-M8×20-4.8-A2L |
Hex bolt |
4 |
|
2.5 |
TE250.455.9.1-01 |
Left door handle |
1 |
|
TE250.455.10.1-01 |
Right door handle |
1 |
||
3 |
TB600.45.9.1 |
Left door hinge |
2 |
|
TB600.45.10.1 |
Right door hinge |
2 |
||
3.1 |
GB/T 5781-M10×25-4.8-A3L |
Hex bolt |
4 |
|
3.2 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
3.3 |
GB/T 97.1-10-A0P |
Flat washer |
4 |
|
3.4 |
TB600.45.9.1-06 |
Upper hinge inner plate |
1 |
|
TB600.45.9.1-07 |
Left lower hinge inner plate |
1 |
||
TB600.45.10.1-03 |
Right lower hinge inner plate |
1 |
||
3.5 |
TB600.45.9.1-05 |
Hinge inner gasket |
2 |
|
3.6 |
TB600.45.9.1-03 |
Left upper hinge outer gasket |
1 |
|
TB600.45.9.1-04 |
Left lower hinge outer gasket |
1 |
||
TB600.45.10.1-01 |
Right upper hinge outer gasket |
1 |
||
TB600.45.10.1-02 |
Right lower hinge outer gasket |
1 |
||
3.7 |
TB600.45.9.1-02 |
Hinge shaft |
2 |
|
3.8 |
TB600.45.9.1-01 |
Hinge |
2 |
|
3.9 |
TB600.45.9.1-08 |
Hinge bolt |
2 |
|
4 |
TE250.455.9-01 |
Left door glass |
1 |
|
TE250.455.10-01 |
Right door glass |
1 |
TE250.455C Cab Assembly-4(continued)
1
TE250.455C Cab Assembly-4(continued)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.455C |
Cab Assembly |
1 |
||
5 |
TB600.45.9-05 |
Door air spring |
1 |
|
6 |
TB600.45.9-03 |
Left door lock body fixing plate |
1 |
|
TB600.45.10-04 |
Right door lock body fixing plate |
1 |
||
7 |
TB600.45.9-08 |
Lock box gasket |
1 |
|
8 |
TB600.45.9-06 |
Lock big gasket |
1 |
|
9 |
TB600.45.9-04 |
Left door lock assembly |
1 |
|
TB600.45.10-03 |
Right door lock assembly |
1 |
||
10 |
TB600.45.9-07 |
Lock small gasket |
1 |

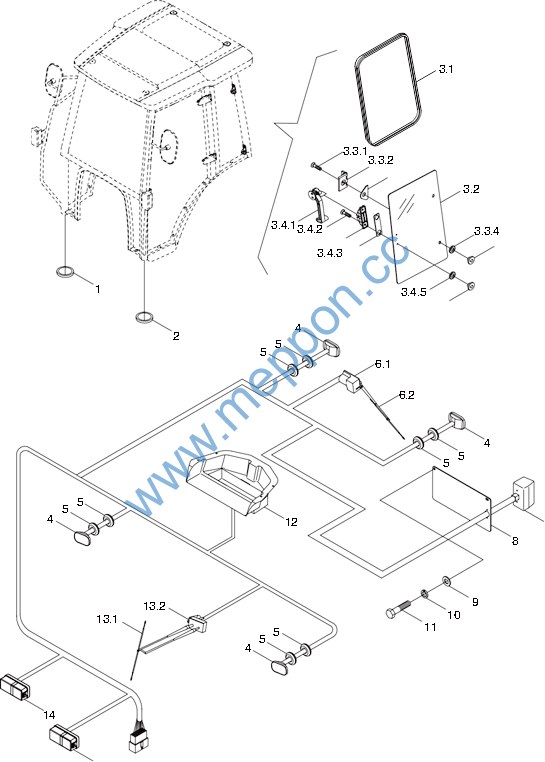

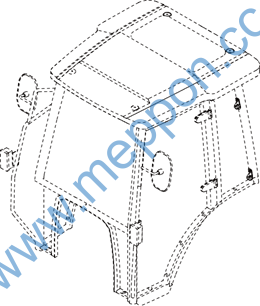

TE250.455C Cab Assembly-5
7
14
TE250.455C Cab Assembly-5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.455C |
Cab Assembly |
1 |
||
TE250.455C.1 |
Cab Assembly |
1 |
||
1 |
TB600.45-08 |
Right pillar rubber sleeve |
1 |
|
2 |
TB600.45-07 |
Left pillar rubber sleeve |
1 |
|
3 |
TE250.455.7 |
Left side window assembly |
1 |
|
TE250.455.8 |
Right side window assembly |
1 |
||
3.1 |
TE250.455.7-02 |
Left window glass seal strip |
1 |
|
TE250.455.8-02 |
Right window glass seal strip |
1 |
||
3.2 |
TE250.455.7-01 |
Left window glass |
1 |
|
TE250.455.8-01 |
Right window glass |
1 |
||
3.3 |
TB600.45L.2.1 |
Side window hinge chain unit |
2 |
|
3.3.1 |
GB/T 819.1-M8×20-4.8-A2L |
Cross recessed countersunk screw |
1 |
|
3.3.2 |
TB600.45L.2.1-01 |
Side window hinge chain |
1 |
|
3.3.3 |
TB600.45L.2.1-02 |
Side window hinge chain gasket |
1 |
|
3.3.4 |
TB600.45L.2.1-04 |
Plastic nut gasket |
1 |
|
3.3.5 |
TB600.45L.2.1-03 |
M8 plastic nut |
1 |
|
3.4 |
TB600.45L.2.2 |
Left side window open handle |
1 |
|
TB600.45L.3.1 |
Right side window open handle |
1 |
||
3.4.1 |
TB600.45L.2.2-01 |
Left side window handle |
1 |
|
TB600.45L.3.1-01 |
Right open window handle |
1 |
||
3.4.2 |
GB/T 819.1-M8×20-4.8-A2L |
Cross recessed countersunk screw |
2 |
|
3.4.3 |
TB600.45L.2.2-03 |
Side window lock seat |
1 |
|
3.4.4 |
TB600.45L.2.2-02 |
Side window handle gasket |
1 |
|
3.4.5 |
TB600.45L.2.1-04 |
Plastic nut gasket |
2 |
|
3.4.6 |
TB600.45L.2.1-03 |
M8 plastic nut |
2 |
|
4 |
FT650.48.082 |
Dome lamp assembly |
4 |
|
5 |
TB600.45-39 |
Wire through ring |
8 |
|
6 |
TB600.45F.2 |
Rear wiper assembly |
1 |
|
6.1 |
TB600.45F.2-01 |
Rear wiper motor |
1 |
|
6.2 |
TB600.45F.2-02 |
Rear wiper |
1 |
|
7 |
TD800.484B.3 |
Licence lamp assembly |
1 |
|
8 |
TE250.455B.1-01 |
Licence lamp fixing board |
1 |
TE250.455C Cab Assembly-5(continued)
7
14
TE250.455C Cab Assembly-5(continued)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TE250.455C |
Cab Assembly |
1 |
||
9 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
10 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
11 |
GB/T 5783-M8×25-8.8-A2L |
Hex bolt |
2 |
|
12 |
FT65.45.990 |
Heater assembly |
1 |
|
13 |
TB600.45.11 |
Front wiper assembly |
1 |
|
13.1 |
TB600.45.11-01 |
Front wiper |
1 |
|
13.2 |
TB600.45.11-02 |
Front wiper motor |
1 |
|
14 |
TE250.484E.3 |
Single-face lamp assembly |
1 |

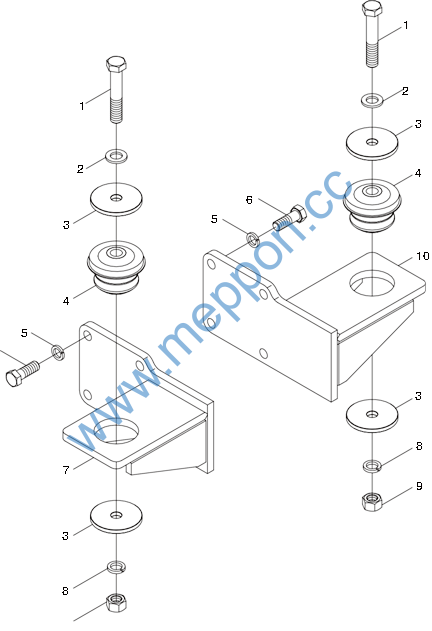

TE254.457 Front Connection Assembly
6
