LOVOL TG1254-F463K11K Tractor Parts Catalogue 22
Lovol TG1254-F463K11K Wheeled Tractor

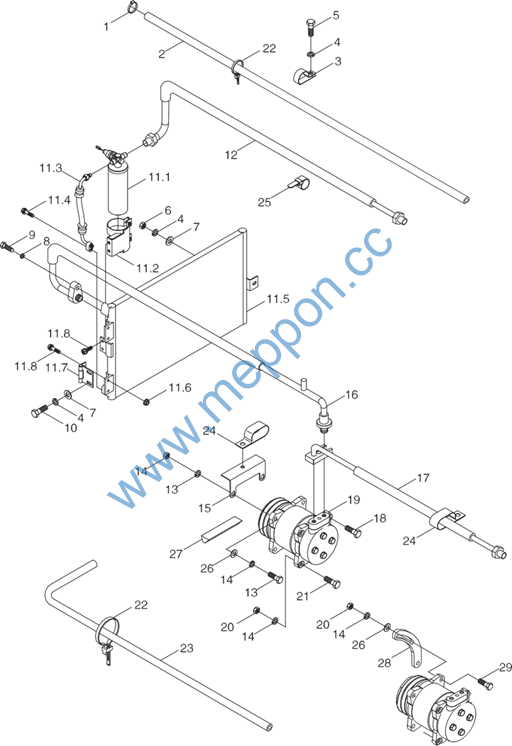

TS08812020000K Air Conditioning System Assembly-Engine(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08812020000K |
Air conditioning system assembly – Engine |
1 |
||
1 |
Q676B25 |
Worm driven hose hoop, type C |
2 |
|
2 |
TG1204.81-06 |
Heater water inlet pipe |
1 |
|
3 |
FT300.48P.103 |
Harness fastener |
1 |
|
4 |
GBT93-8-A0P |
Standard spring washer |
6 |
|
5 |
GBT5783-M8X16-8.8-A2L |
Hexagon head bolt |
1 |
|
6 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
7 |
GBT97.1-8-A0P |
Plain washer |
5 |
|
8 |
GBT93-6-A0P |
Standard spring washer |
1 |
|
9 |
GBT5783-M6X25-8.8-A2L |
Hexagon head bolt |
1 |
|
10 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
4 |
|
11 |
TS08812020001K |
Condenser assembly |
1 |
|
11.1 |
TS08812020002K |
Drying bottle |
1 |
|
11.2 |
TD800.812B.3.2 |
Liquid reservoir bracket |
1 |
|
11.3 |
TG1204.812.1.5 |
Liquid outlet pipe subassembly |
1 |
|
11.4 |
GBT9074.13-M6X25 |
Cross recessed hexagon head bolt with spring and flat washer cluster |
3 |
|
11.5 |
TG1204.812E.1.1 |
Condenser cartridge |
1 |
|
11.6 |
GBT6183.1-M6-8 |
Prevailing torque type hexagon nuts with flange(with non-metallic insert) |
4 |
|
11.7 |
TG1204.812E.1.3 |
Hinge subassembly |
2 |
|
11.8 |
GBT9074.13-M6X20 |
Cross recessed hexagon head bolt with spring and flat washer cluster |
6 |
|
12 |
TG1204.812-03 |
Condenser – cab hose |
1 |
|
13 |
GBT5783-M10X35-8.8-A3L |
Hexagon head bolt |
1 |
|
14 |
GBT93-10-A0P |
Standard spring washer |
5 |
|
15 |
TG1204.812-05 |
Compressor baffle |
1 |
|
16 |
TG1204.812-01 |
Compressor – condenser hose |
1 |
|
17 |
TG1204.812-02 |
Compressor – cab hose |
1 |
|
18 |
GBT5783-M10X50-8.8-A3L |
Hexagon head bolt |
1 |
|
19 |
TS08812010001K |
Compressure assembly |
1 |
|
20 |
GBT6170-M10-8-A3L |
Hexagon nut , Style 1 |
5 |
|
21 |
GBT5783-M10X45-8.8-A3L |
Hexagon head bolt |
2 |
|
22 |
Q67407200 |
Plastic fastening strap |
8 |
|
23 |
TG1204.81-07 |
Heater water outlet pipe |
1 |
245
Lovol TG1254-F463K11K Wheeled Tractor
TS08812020000K Air Conditioning System Assembly-Engine(001)(extension)
246
Lovol TG1254-F463K11K Wheeled Tractor
TS08812020000K Air Conditioning System Assembly-Engine(001)(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
24 25 26 27 28
29 |
TG1204.812-06 Q67405100 GBT97.1-10-A0P TG1204.812-07 TD800.812H.4
GBT5783-M10X40-8.8-A3L |
Fixing pipe clip Plastic fastening strap Plain washer Belt Half round plate
Hexagon head bolt |
5 1 3 1 1
1 |
247
