LOVOL TG1254-F463K11K Tractor Parts Catalogue 21
Lovol TG1254-F463K11K Wheeled Tractor
TS08483020000K Harness Installation Assembly, Front Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08483020000K |
Harness installation assembly, front lamp |
1 |
||
1 |
TS08483010001K |
Front headlamp assembly |
1 |
|
2 |
GBT6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
3 |
GBT93-6-A0P |
Standard spring washer |
2 |
|
4 |
GBT97.1-6-A0P |
Plain washer |
2 |
|
5 |
TS08483020001K |
Front lamp combination assembly |
1 |
|
6 |
GBT5783-M8X16-8.8-A2L |
Hexagon head bolt |
4 |
|
7 |
TS08481010003K |
Wire through ring |
1 |
|
8 |
GBT97.1-8-A0P |
Plain washer |
4 |
|
9 |
GBT93-8-A0P |
Standard spring washer |
4 |
|
10 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
11 |
TG1204.483.3 |
Horn assembly |
1 |
233
Lovol TG1254-F463K11K Wheeled Tractor

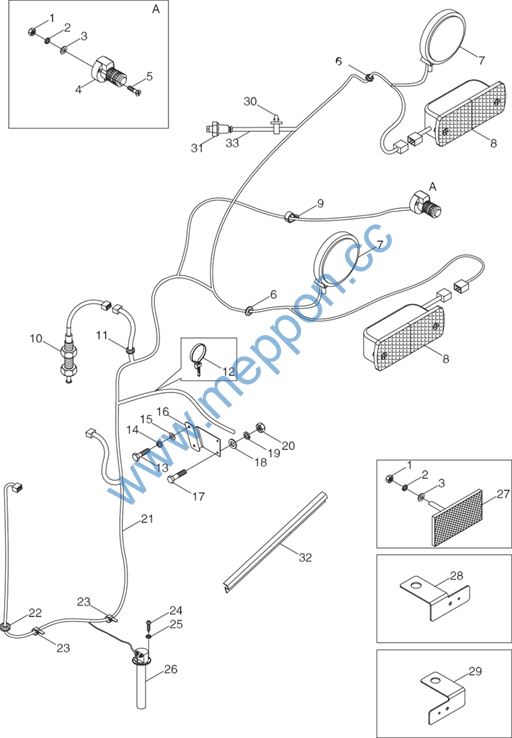

TS08484010000K Harness Installation Assembly, Rear Lamp(005)
234
Lovol TG1254-F463K11K Wheeled Tractor
TS08484010000K Harness Installation Assembly, Rear Lamp(005)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08484010000K |
Harness Installation Assembly, Rear Lamp |
1 |
||
1 |
GBT6170-M5-8-A2L |
Type 1 hex nut |
7 |
|
2 |
GBT93-5-A0P |
Standard spring washer |
7 |
|
3 |
GBT97.1-5-A0P |
Flat washer |
7 |
|
4 |
TD900.484.2 |
Rear trailer socket |
1 |
|
5 |
GBT68-M5X35-4.8-A1L |
Slotted countersunk head screw |
3 |
|
6 |
FT65.48.092 |
Wire through ring (3) |
2 |
|
7 |
TS08484010003K |
Rear working lamp assembly |
2 |
|
8 |
TS08484010002K |
Rear taillamp assembly |
2 |
|
9 |
TA600.486-01 |
Harness fastener |
1 |
|
10 |
FT800A.48L.088 |
Brake switch |
1 |
|
11 |
FT65.48.094 |
Wire through ring (2) |
4 |
|
12 |
Q67405100 |
Plastic fastening belt |
2 |
|
13 |
GBT5783-M8X20-8.8-A2L |
Hex bolt |
2 |
|
14 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
15 |
GBT97.1-8-A0P |
Flat washer |
2 |
|
16 |
TG1204.484-01 |
Washer mounting bracket |
1 |
|
17 |
GBT5783-M6X16-8.8-A2L |
Hex bolt |
6 |
|
18 |
GBT97.1-6-A0P |
Flat washer |
6 |
|
19 |
GBT93-6-A0P |
Standard spring washer |
6 |
|
20 |
GBT6170-M8-8-A2L |
Type 1 hex nut |
2 |
|
21 |
TS08484010001K |
Rear lamp harness assembly |
1 |
|
22 |
TS08484010004K |
Wire through ring |
1 |
|
23 |
3724D01-201 |
Loose tie band |
6 |
|
24 |
GBT818-M4X12-4.8-A2L |
Cross recessed pan head tapping screw |
5 |
|
25 |
GBT93-4-A0P |
Standard spring washer |
5 |
|
26 |
TG1404.484C.1 |
Oil amount sensor assembly |
1 |
|
27 |
TD800.484B.5 |
Reflector assembly |
4 |
|
28 |
TD800.484B-01 |
Reflector mounting board(Left) |
1 |
|
29 |
TD800.484B-02 |
Reflector mounting board(Right) |
1 |
|
30 |
3203505D9-L |
Lock cable ties |
8 |
|
31 |
TD800.484B.7 |
Air pressure alarm |
1 |
|
32 |
TG1404.484H-02 |
Line protection board |
2 |
|
33 |
TS08484040001 |
Air pressure warning line assembly |
1 |
235
Lovol TG1254-F463K11K Wheeled Tractor

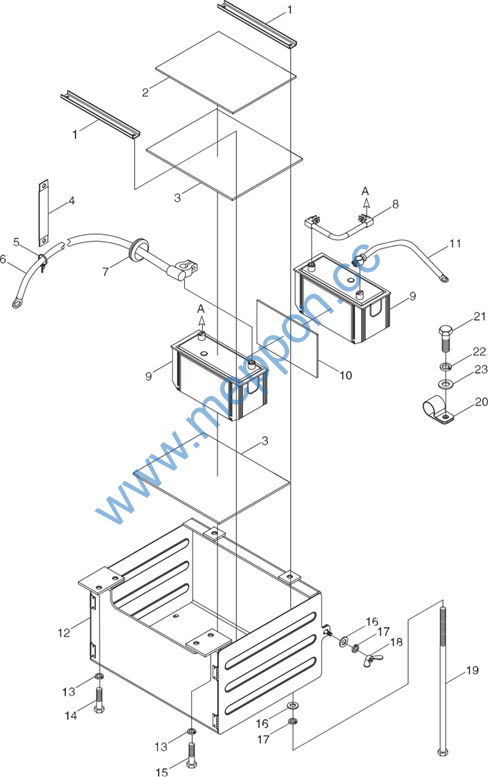

TG1454.485A Battery Installation Assembly-1
236
Lovol TG1254-F463K11K Wheeled Tractor
TG1454.485A Battery Installation Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1454.485A |
Battery installation assembly |
1 |
||
1 |
TG1454.485A.2 |
Pressure plate weldment |
2 |
|
2 |
TG1454.485A-03 |
Battery pressure pad |
1 |
|
3 |
TG1454.485A-02 |
Mat plate |
2 |
|
4 |
TD800.485A-03 |
Locking clamp |
1 |
|
5 |
Q67407200 |
Plastic strap |
3 |
|
6 |
TG1454.485A.4 |
Power source wire |
1 |
|
7 |
FT800A.48L.101 |
Through harness washer(1) |
2 |
|
8 |
TG1454.485A.3 |
Series line |
1 |
|
9 |
TG1204.485.1 |
Battery assembly |
2 |
|
10 |
TG1204.485-03 |
Rubber pad(1) |
1 |
|
11 |
TG1454.485.2 |
Earth wire |
1 |
|
12 |
TG1454.485A.1 |
Battery installation box |
1 |
|
13 |
GB/T 93-12-A0P |
Standard spring washer |
6 |
|
14 |
GB/T 5783-M12×25-A3L |
Hex bolt |
2 |
|
15 |
GB/T 5783-M12×30-A3L |
Hex bolt |
4 |
|
16 |
GB/T 97.1-8-A0P |
Flat washer |
6 |
|
17 |
GB/T 93-8-A0P |
Standard spring washer |
6 |
|
18 |
GB/T 62-M8-A2L |
Wing nut |
2 |
|
19 |
TG1454.485A-01 |
Fixing lever |
4 |
|
20 |
TF1204.481B-01 |
Harness fastener |
1 |
|
21 |
GB/T 5783-M10×20-A3L |
Bolt |
1 |
|
22 |
GB/T 93-10-AOP |
Washer |
1 |
|
23 |
GB/T 97.1-10-AOP |
Washer |
1 |
237
Lovol TG1254-F463K11K Wheeled Tractor

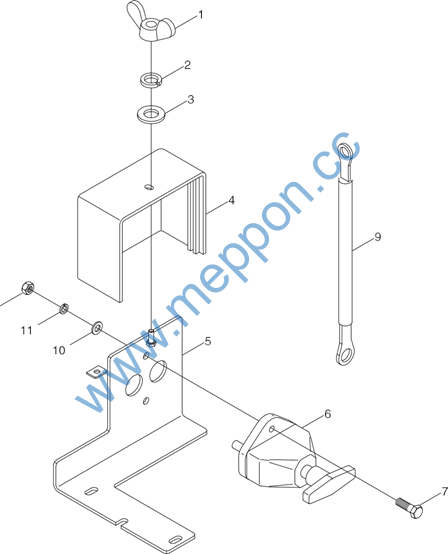

TG1454.485A Battery Installation Assembly-2
238
Lovol TG1254-F463K11K Wheeled Tractor
TG1454.485A Battery Installation Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1454.485A |
Battery installation assembly |
1 |
||
1 |
GB/T 62-M6-A2L |
Wing nut |
1 |
|
2 |
GB/T 93-6-A0P |
Standard spring washer |
1 |
|
3 |
GB/T 95-6-A0P |
Flat washer |
1 |
|
4 |
TG1454.485-01 |
Protection cover |
1 |
|
5 |
TG1454.485.5 |
Trestle weldment |
1 |
|
6 |
TG1454.485.4 |
Power master switch |
1 |
|
7 |
GB/T 5783-M8×30-A2L |
Hex bolt |
2 |
|
8 |
GB/T 6170-M8-A2L |
Type 1 hex nut |
2 |
|
9 |
TG1454.485.3 |
Switch bonding wire |
1 |
|
10 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
239
Lovol TG1254-F463K11K Wheeled Tractor

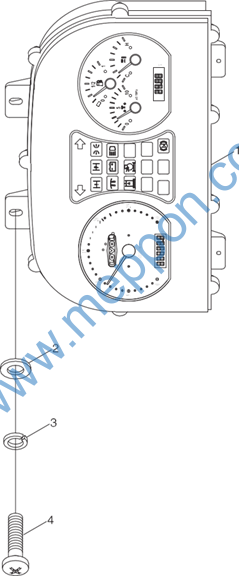

TS08487020000K Compound Instrument Assembly
240
Lovol TG1254-F463K11K Wheeled Tractor
TS08487020000K Compound Instrument Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
TS08487020000K TS08487020001K GBT96.1-6-A0P GBT93-6-A0P GBT818-M6X16-4.8-A2L |
Compound instrument assembly Compound instrument assembly Large washer Standard spring washer Cross recessed pan head screw |
1 1 4 4 4 |
241
Lovol TG1254-F463K11K Wheeled Tractor

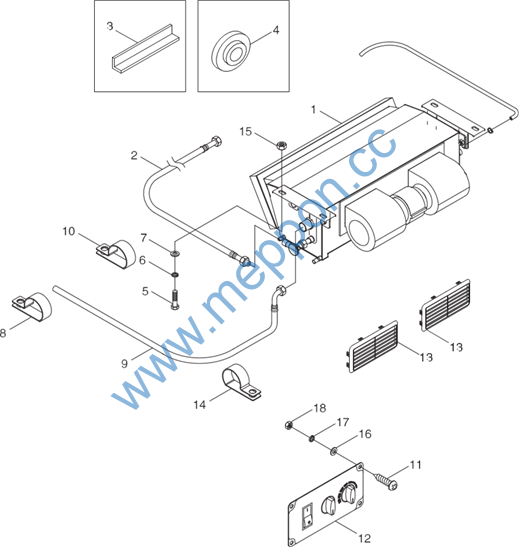

TS08811010000K Evaporator Installation Assembly
242
Lovol TG1254-F463K11K Wheeled Tractor
TS08811010000K Evaporator Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
TS08811010001K |
Evaporator |
1 |
|
2 |
TG1654.811A.2 |
Compressor-evaporator hose |
1 |
|
3 |
TD800.811A-08 |
Sticky patch |
1 |
|
4 |
TD800.811A-06 |
Water drainage pipe sticky patch |
4 |
|
5 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
4 |
|
6 |
GBT93-8-A0P |
Standard spring washer |
4 |
|
7 |
GBT97.1-8-A0P |
Plain washer |
8 |
|
8 |
TD800.811A-04 |
Pipe clip |
2 |
|
9 |
TG1654.811A.1 |
Liquid tank-evaporator high-pressure hose |
1 |
|
10 |
TD800.811A-05 |
Pipe clip 1 |
1 |
|
11 |
GBT818-M5X20-4.8-A2L |
Cross recessed pan head screw |
4 |
|
12 |
TS08811010002K |
Control panel |
1 |
|
13 |
FT800.45.086 |
Air return port |
2 |
|
14 |
TD800.485A-03 |
Fixing clip |
1 |
|
15 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
4 |
|
16 |
GBT97.1-5-A0P |
Plain washer |
4 |
|
17 |
GBT93-5-A0P |
Standard spring washer |
4 |
|
18 |
GBT6170-M5-8-A2L |
Hexagon nut, style 1 |
4 |
243
Lovol TG1254-F463K11K Wheeled Tractor

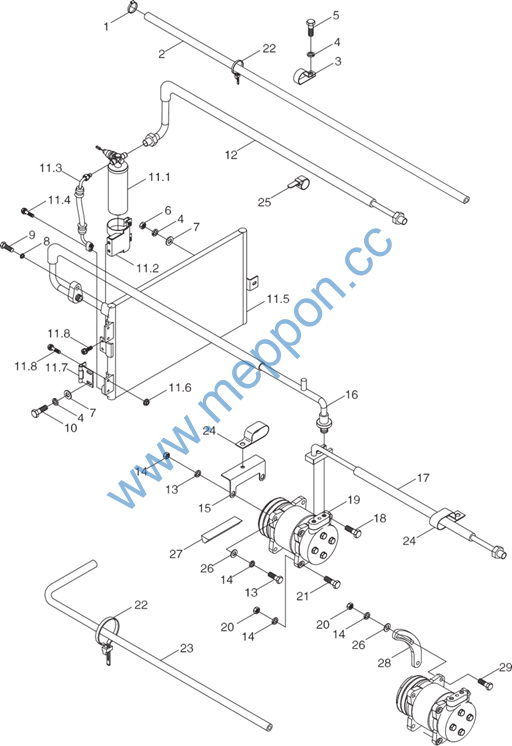

TS08812020000K Air Conditioning System Assembly-Engine(001)
244
