LOVOL TG1254-F463K11K Tractor Parts Catalogue 17
Lovol TG1254-F463K11K Wheeled Tractor
TS08451010000K Driver’s Cab Assembly-7
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08451010000K |
Driver’s cab assembly |
1 |
||
1 |
TD904.451C.7 |
Sun-shading curtain assembly |
1 |
|
1.1 |
TD904.451C.7-01 |
Sun-shading curtain backing block |
2 |
|
1.2 |
TF1004.451.5-01 |
Sun-shading curtain |
1 |
|
1.3 |
GBT818-M6X30-4.8-A2L |
Cross recessed pan head screw |
4 |
|
2 |
TD904.451C.4 |
Left side window assembly |
1 |
|
2 |
TD904.451C.5 |
Right side window assembly |
1 |
|
2.1 |
FT65.45.719 |
Side window plastic cast nut |
4 |
|
2.2 |
FT65.45.720 |
Rubber washer |
4 |
|
2.3 |
TD904.451C.4-01 |
Left side window glass |
1 |
|
2.3 |
TD904.451C.5-01 |
Right side window glass |
1 |
|
2.4 |
TD904.451C.4-02 |
Side window seal strip |
1 |
|
2.5 |
TD904.451C.4-03 |
Side window handle washer |
1 |
|
2.6 |
FT65.45.740 |
Left side window open fork subassembly |
1 |
|
2.6 |
FT65.45.741 |
Right side window open fork subassembly |
1 |
|
2.7 |
GBT5783-M8X16-8.8-A2L |
Hexagon head bolt |
2 |
|
2.8 |
TD904.451C.4-04 |
Side window hinge chain seal gasket |
2 |
|
2.9 |
FT65.45.730 |
Side window hinge chain subassembly |
2 |
|
2.10 |
GBT819.1-M8X16-4.8-A2L |
Cross recessed countersunk head screw |
6 |
185
Lovol TG1254-F463K11K Wheeled Tractor

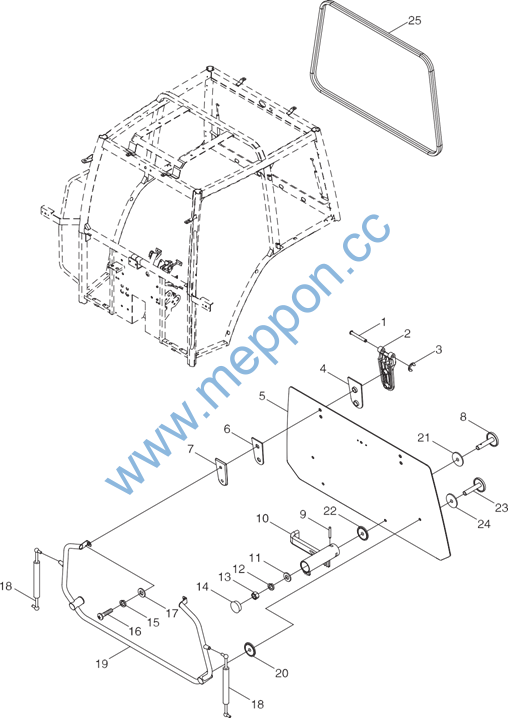

TS08451010000K Driver’s Cab Assembly-8
186
Lovol TG1254-F463K11K Wheeled Tractor
TS08451010000K Driver’s Cab Assembly-8
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08451010000K |
Driver’s cab assembly (003) |
1 |
||
TS08451010001K |
Rear window assembly |
1 |
||
1 |
TD904.451C.6-10 |
Rear window hinge chain pin |
2 |
|
2 |
TD904.451C.6-06 |
Rear window hinge chain plate |
2 |
|
3 |
GBT896-6 |
Split circlip |
2 |
|
4 |
TD904.451C.6-07 |
Rear window hinge chain outer backing plate |
2 |
|
5 |
TS08451010004K |
Rear window glass |
1 |
|
6 |
TD904.451C.6-08 |
Rear window hinge chain inner backing plate |
2 |
|
7 |
TD904.451C.6-09 |
Rear window hinge chain inner plate |
2 |
|
8 |
FT65.45.829 |
Bolt rod |
2 |
|
9 |
FT65.45.828 |
Rear window lock pin |
2 |
|
10 |
TD904.451C.6-03 |
Lock body |
2 |
|
11 |
GBT97.1-12-A0P |
Plain washer |
2 |
|
12 |
GBT93-12-A0P |
Standard spring washer |
2 |
|
13 |
GBT6170-M12-8-A3L |
Hexagon nut, style 1 |
2 |
|
14 |
FT65.45.826 |
Rear cover |
2 |
|
15 |
GBT93-8-A0P |
Standard spring washer |
4 |
|
16 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
4 |
|
17 |
GBT97.1-8-A0P |
Plain washer |
4 |
|
18 |
TD904.451C.6-04 |
Rear window air spring |
2 |
|
19 |
TD904.451C.6.1 |
Rear window handle weldment |
1 |
|
20 |
TD904.451C.6-05 |
Fixing block seal gasket |
2 |
|
21 |
FT65.45.839 |
Rear window lock bolt washer |
2 |
|
22 |
FT65.45.838 |
Seal gasket |
2 |
|
23 |
TD904.451C.2-08 |
Plastic cast bolt |
2 |
|
24 |
TD904.451C.2-10 |
Glass outer washer |
2 |
|
25 |
TG1654.451H.5-02 |
Rear window seal strip |
1 |
187
Lovol TG1254-F463K11K Wheeled Tractor

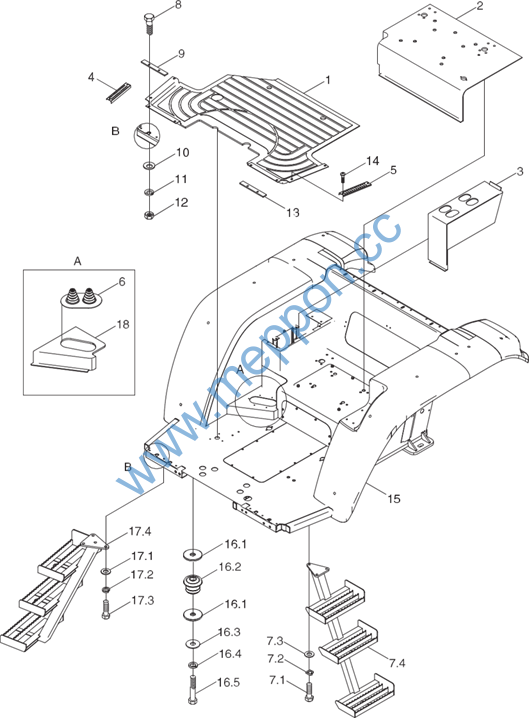

TS08452020000K Floor Assembly-1
188
Lovol TG1254-F463K11K Wheeled Tractor
TS08452020000K Floor Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08452020000K |
Floor assembly |
1 |
||
1 |
TG1554.452H-06 |
Front floor cushion |
1 |
|
2 |
TG1554.452H-03 |
Middle floor cushion |
1 |
|
3 |
TG1554.452H-04 |
Control box trimming |
1 |
|
4 |
TG1654.452N-08 |
Right boarding step |
1 |
|
5 |
TG1654.452N-07 |
Left boarding step |
1 |
|
6 |
FT800A.45.130 |
Dustproof sleeve |
1 |
|
7 |
TG1654.452E.5 |
Pedal assembly |
1 |
|
7.1 |
GBT5783-M10X35-8.8-A3L |
Hexagon head bolt |
3 |
|
7.2 |
GBT93-10-A0P |
Standard spring washer |
3 |
|
7.3 |
GBT97.1-10-A0P |
Plain washer |
3 |
|
7.4 |
TG1654.452E.5.1 |
Pedal weldment |
1 |
|
8 |
GBT5782-M12X80-8.8-A3L |
Hexagon head bolt |
4 |
|
9 |
TG1254.451-19 |
Right front lower seal strip |
1 |
|
10 |
GBT96.1-12-A0P |
Large washer |
6 |
|
11 |
GBT93-12-A0P |
Standard spring washer |
6 |
|
12 |
GBT6170-M12-8-A3L |
Hexagon nut , Style 1 |
6 |
|
13 |
TG1254.451-18 |
Left front lower seal strip |
1 |
|
14 |
GBT818-M8X16-4.8-A2L |
Cross recessed pan head screw |
4 |
|
15 |
TG1554.452H.1 |
Floor weldment |
1 |
|
16 |
TG1654.452E.4 |
Front connection assembly |
2 |
|
16.1 |
TD800.457B.1-01 |
Circlip |
2 |
|
16.2 |
TD800.457B.1.2 |
Shock absorbing block |
1 |
|
16.3 |
GBT96.1-20-A0P |
Large washer |
1 |
|
16.4 |
GBT93-20-A0P |
Standard spring washer |
1 |
|
16.5 |
GBT5782-M20X90-8.8-A9L |
Hexagon head bolt |
1 |
|
17 |
TG1654.452E.6 |
Pedal assembly (right) |
1 |
|
17.1 |
GBT5783-M10X35-8.8-A3L |
Hexagon head bolt |
3 |
|
17.2 |
GBT93-10-A0P |
Standard spring washer |
3 |
|
17.3 |
GBT97.1-10-A0P |
Plain washer |
3 |
|
17.4 |
TG1654.452E.6.1 |
Pedal weldment (right) |
1 |
|
18 |
TG1554.452H-05 |
Shift cover trimming |
1 |
189
Lovol TG1254-F463K11K Wheeled Tractor

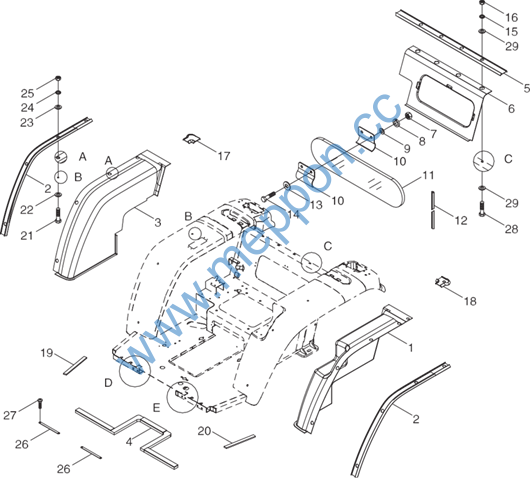

TS08452020000K Floor Assembly-2
190
Lovol TG1254-F463K11K Wheeled Tractor
TS08452020000K Floor Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08452020000K |
Floor assembly |
1 |
||
1 |
TG1654.452N-01 |
Left mudguard trimming |
1 |
|
2 |
TG1654.452N-04 |
Mudguard seal strip |
2 |
|
3 |
TG1554.452H-02 |
Right mudguard trimming |
1 |
|
4 |
TG1254.452-23 |
Seal gasket |
1 |
|
5 |
TG1654.452N-05 |
Rear crossbeam seal strip |
1 |
|
6 |
TG1554.452H-01 |
Rear wall trimming |
1 |
|
7 |
GBT6170-M5-8-A2L |
Hexagon nut, style 1 |
6 |
|
8 |
GBT93-5-A0P |
Standard spring washer |
6 |
|
9 |
GBT97.1-5-A0P |
Plain washer |
6 |
|
10 |
TD800.452-07 |
Glass clamp |
6 |
|
11 |
TG1254.452-11 |
Rear lower window glass |
1 |
|
12 |
TG1254.452-12 |
Rear lower window glass seal strip |
1 |
|
13 |
GBT96.1-5-A0P |
Large washer |
6 |
|
14 |
GBT5783-M5X25-8.8-A2L |
Hexagon head bolt |
6 |
|
15 |
GBT93-10-A0P |
Standard spring washer |
4 |
|
16 |
GBT6170-M10-8-A3L |
Hexagon nut, style 1 |
4 |
|
17 |
TD904.452C-08 |
Right post seal block |
1 |
|
18 |
TG1654.452N-10 |
Post seal block |
1 |
|
19 |
TG1254.451-17 |
Right lower side seal strip |
1 |
|
20 |
TG1254.451-16 |
Left lower side seal strip |
1 |
|
21 |
GBT5783-M12X35-8.8-A3L |
Hexagon head bolt |
8 |
|
22 |
GBT96.1-12-A0P |
Large washer |
6 |
|
23 |
GBT97.1-12-A0P |
Plain washer |
8 |
|
24 |
GBT93-12-A0P |
Standard spring washer |
6 |
|
25 |
GBT6170-M12-8-A3L |
Hexagon nut, style 1 |
6 |
|
26 |
TG1654.452N-09 |
Front floor cushion press strip |
2 |
|
27 |
GBT818-M8X16-4.8-A2L |
Cross recessed pan head screw |
4 |
|
28 |
GBT5782-M10X65-8.8-A2L |
Hexagon head bolt |
4 |
|
29 |
GBT96.1-10-A0P |
Large washer |
8 |
|
30 |
GBT5783-M8X25-8.8-A2L |
Hexagon head bolt |
4 |
|
31 |
GBT93-8-A0P |
Standard spring washer |
4 |
|
32 |
TG1554.452-02 |
Hood bracket (right) |
1 |
|
33 |
TG1554.452-01 |
Hood bracket (left) |
1 |
191
Lovol TG1254-F463K11K Wheeled Tractor

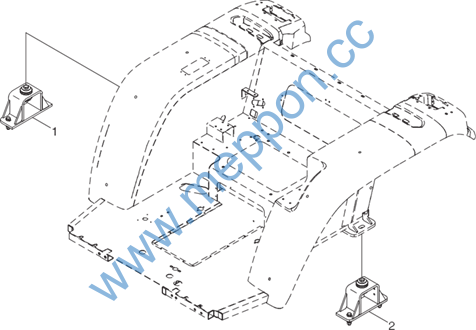

TS08452020000K Floor Assembly-3
192
Lovol TG1254-F463K11K Wheeled Tractor
TS08452020000K Floor Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08452020000K |
Floor assembly |
1 |
||
1 |
TG1654.452E.3 |
Right rear connection assembly |
1 |
|
1.1 |
GBT5782-M20X110-10.9-A3L |
Hexagon head bolt |
1 |
|
1.2 |
GBT96.1-20-A3L |
Large washer |
1 |
|
1.3 |
TD800.457B.1-01 |
Circlip |
2 |
|
1.4 |
TD800.457B.1.2 |
Shock absorbing block |
1 |
|
1.5 |
TG1654.452E.3.1 |
Right rear connection weldment |
1 |
|
1.6 |
GBT97.1-20-A3L |
Plain washer |
1 |
|
1.7 |
GBT93-20-A3L |
Standard spring washer |
1 |
|
1.8 |
GBT6170-M20-8-A9L |
Hexagon nut, style 1 |
1 |
|
1.9 |
GBT5783-M16X80-10.9-A3L |
Hexagon head bolt |
2 |
|
1.10 |
GBT97.1-16-A3L |
Plain washer |
4 |
|
1.11 |
GBT93-16-A3L |
Standard spring washer |
2 |
|
1.12 |
GBT6170-M16-8-A3L |
Hexagon nut, style 1 |
2 |
|
2 |
TG1654.452E.2 |
Left rear connection assembly |
1 |
|
2.1 |
GBT5782-M20X110-10.9-A3L |
Hexagon head bolt |
1 |
|
2.2 |
GBT96.1-20-A3L |
Large washer |
1 |
|
2.3 |
TD800.457B.1-01 |
Circlip |
2 |
|
2.4 |
TD800.457B.1.2 |
Shock absorbing block |
1 |
|
2.5 |
TG1654.452E.2.1 |
Left rear connection weldment |
1 |
|
2.6 |
GBT97.1-20-A3L |
Plain washer |
1 |
|
2.7 |
GBT93-20-A3L |
Standard spring washer |
1 |
|
2.8 |
GBT6170-M20-8-A9L |
Hexagon nut, style 1 |
1 |
|
2.9 |
GBT5783-M16X80-10.9-A3L |
Hexagon head bolt |
2 |
|
2.10 |
GBT97.1-16-A3L |
Plain washer |
4 |
|
2.11 |
GBT93-16-A3L |
Standard spring washer |
2 |
|
2.12 |
GBT6170-M16-8-A3L |
Hexagon nut, style 1 |
2 |
193
Lovol TG1254-F463K11K Wheeled Tractor

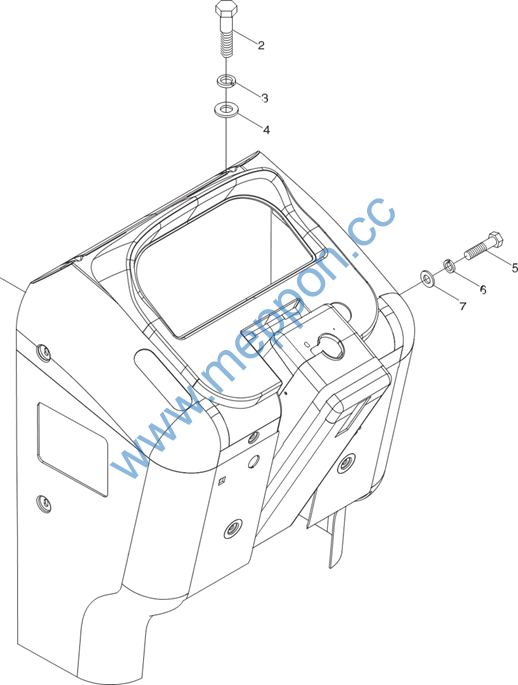

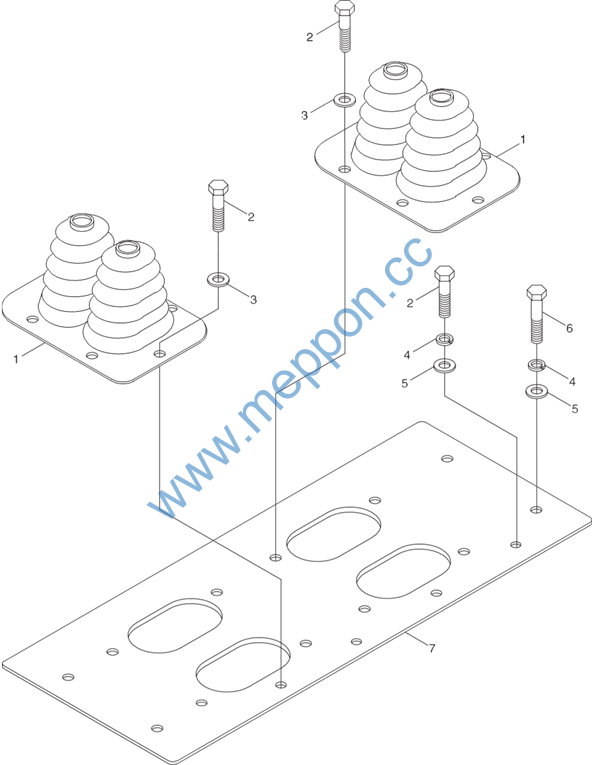

TG1254.454 Control Cover Assembly
194
Lovol TG1254-F463K11K Wheeled Tractor
TG1254.454 Control Cover Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 7 |
TG1254.454 TG1254.454-01 GB/T 5783-M4×12-A2L GB/T 96-4-A0P GB/T 93-4-A0P
GB/T 97.1-4-A0P GB/T 5783-M4×16-A2L TG1254.454.1 |
Control cover assembly Seal sleeve Bolt Washer Washer
Washer Bolt Control cover |
1 2 14 10 6
6 2 1 |
195
Lovol TG1254-F463K11K Wheeled Tractor
TG1654.456 Dashboard Assembly
