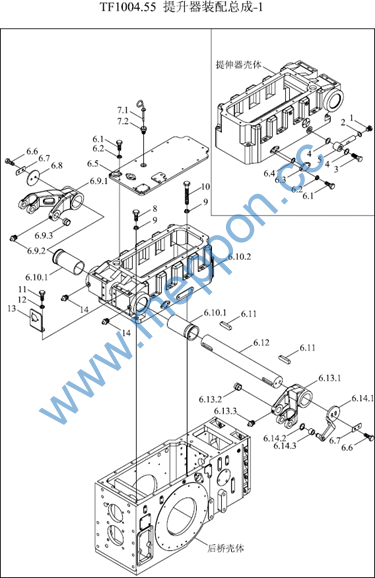

TF1004.55-1 55.1-提升器装配总成-1 LIFTER INSTALLATION ASSEMBLY-7-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT804.42.110

螺堵

SCREW PLUG

1

2011-11_

10

TF1004.55-01

螺栓

BOLT

10

2011-11_

10

TF1004.55-01

螺栓

BOLT

10

2011-11_

12

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

13

TF1004.55-06

连接板

CONNECTING PLATE

1

2011-11_

14

JBT7940.1-M10X1

直通式压注油杯

STRAIGHT PRESSURE FILLING OIL CUP

2

2011-11_

2

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

2

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

3

FT800.55A.118

空心螺栓

HOLLOW BOLT

1

2011-11_

4

JBT982-24

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

5

FT800.55A.016

铰接头总成

HINGE JOINT ASSEMBLY

1

2011-11_

6

TF1004.55.9

提升器总成

LIFTER ASSEMBLY

1

2011-11_

6.1

GBT5783-M8X30-A2L

螺栓

BOLT

11

2011-11_

6.1

TF1004.55.9.1

提升器壳体压装总成

LIFTER HOUSING ASSEMBLY

1

2011-11_

6.101

TF1004.55.9.1-01

铜轴套

COPPER SHAFT SLEEVE

2

2011-11_

6.102

TF1004.55.9.1-02a

提升器壳体

LIFTER HOUSING

0

2009-11_

6.102

TF1004.55.9.1-02

提升器壳体

LIFTER HOUSING

1

2004-01_

6.11

GBT1096-20X12X80

平键

FLAT KEY

2

2011-11_

6.12

TF1004.55.9-02

提升轴

LIFTING SHAFT

1

2011-11_

6.13

TD800.55.5

右提升臂

RIGHT LIFTING ARM

1

2011-11_

6.131

TD800.55.5-01a

右提升臂

RIGHT LIFTING ARM

1

2011-11_

6.132

TD800.55.4-02

衬套

SLEEVE

1

2011-11_

6.133

JBT7940.1-M10X1

直通式压注油杯

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

6.14

TD800.55.1

反馈臂总成

FEEDBACK ARM ASSEMBLY

1

2011-11_

6.141

TD800.55.1.1

反馈臂焊合

FEEDBACK ARM WELDMENT

1

2011-11_








TF1004.55-1 55.1-提升器装配总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

6.142

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

6.143

TD800.55.1-01

滚轮



1

2011-11_

6.2

GBT93-8-A0P

垫圈

WASHER

11

2011-11_

6.3

FT65.55.167

挡板

RETAINER PLATE

1

2011-11_

6.4

GBT3452.1-21.2X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

6.5

TF1004.55.9-01a

提升器上盖

LIFTER UPPER COVER

0

2010-04_

6.5

TF1004.55.9-01

提升器上盖

LIFTER UPPER COVER

1

2004-01_

6.5

TF1004.55.9-01

提升器上盖

LIFTER UPPER COVER

1

2004-01_

6.6

GBT5783-M10X20-A3L

螺栓

BOLT

4

2011-11_

6.7

FT800.55A.112

止动垫

THRUST WASHER

2

2011-11_

6.8

FT800.55A.115

提升臂压板

LIFTING ARM PRESSURE PLATE

1

2011-11_

6.9

TD800.55.4

左提升臂

LEFT LIFTING ARM

1

2011-11_

6.91

TD800.55.4-01a

左提升臂

LEFT LIFTING ARM

1

2011-11_

6.92

JBT7940.1-M10X1

直通式压注油杯

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

6.93

TD800.55.4-02

衬套

SLEEVE

1

2011-11_

7

TF1004.55.6

油位标尺总成

DIPSTICK ASSEMBLY

1

2013-03_

7

FT800.55A.011

油位标尺总成

DIPSTICK ASSEMBLY

1

2013-03_

7.1

TF1004.55.6.1

油尺焊合

OIL DIPSTICK WELDMENT

1

2011-11_

7.2

TF1004.55.6-01

橡胶座

RUBBER SEAT

1

2011-11_

9

GBT93-12-A0P

垫圈

WASHER

13

2011-11_

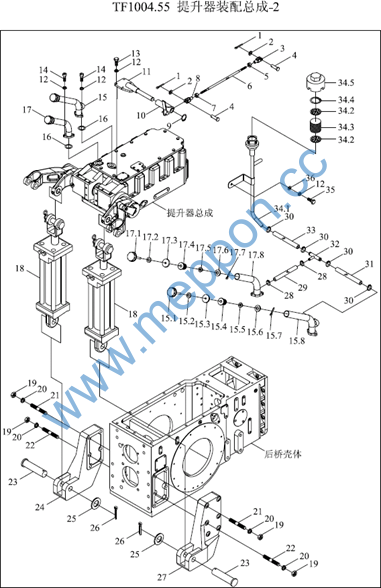

TF1004.55-2 55.2-提升器装配总成-2 LIFTER INSTALLATION ASSEMBLY-7-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT91-2X12-A0P

开口销

PIN

2

2011-11_

10

TF1004.55.1

反馈杆件焊合

FEEDBACK ROD WELDMENT

1

2011-11_

11

TF1004.55.3

支承轴焊合

SUPPORT SHAFT WELDMENT

1

2011-11_

11

TF1004.55.3

支承轴焊合

SUPPORT SHAFT WELDMENT

1

2011-11_

12

GBT93-8-A0P

垫圈

WASHER

20

2011-11_

13

GBT5783-M8X30-A2L

螺栓

BOLT

15

2011-11_

14

GBT70.1-M8X25-A2L

内六角圆柱头螺钉

SCREW

4

2011-11_

15

TF1004.55.4

提升器加油口总成

LIFTER OIL FILLING CAP ASSEMBLY

1

2011-11_

15.1

FT700.55D.029

手轮总成Ⅰ

HANDLE WHEEL ASSEMBLY I

1

2011-11_

15.2

JBT982-8

组合垫圈

COMBINED GASKET

1

2011-11_

15.3

FT700.55D.129

盖板

COVER PLATE

1

2011-11_

15.4

FT700.55D.128

张紧胶套

TENSION RUBBER SLEEVE

1

2011-11_

15.5

FT700.55D.028

调节螺母焊合

ADJUSTING NUT WELDMENT

1

2011-11_

15.6

GBT97.1-8-A0P

平垫圈

WASHER

1

2011-11_

15.7

GBT91-3.2X16-A0P

开口销

PIN

1

2011-11_

15.8

TF1004.55.4.1

加油口焊接2

FILLING CAP WELDMENT 2

1

2011-11_

16

GBT3452.1-32.5X1.80G

液压气动用O形橡胶密封圈

O-SEAL RING

2

2011-11_

17

TF1004.55.5

传动系加油管总成

TRANSMISSION SYSTEM OIL FILLER PIPE

1

2011-11_

17.1

FT700.55D.029

手轮总成Ⅰ

ASSEMBLY

1

2011-11_

17.2

JBT982-10

组合密封垫圈

HANDLE WHEEL ASSEMBLY I

2

2004-01_


COMBINED SEAL GASKET



17.2

JBT982-10

组合密封垫圈



2

2004-01_

17.3

FT700.55D.129

盖板

COMBINED SEAL GASKET

1

2011-11_

17.4

FT700.55D.128

张紧胶套

COVER PLATE

1

2011-11_

17.5

FT700.55D.028

调节螺母焊合

TENSION RUBBER SLEEVE

1

2011-11_

17.6

GBT97.1-8-A0P

平垫圈

ADJUSTING NUT WELDMENT

1

2011-11_








TF1004.55-2 55.2-提升器装配总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

17.7

GBT91-3.2X16-A0P

开口销

PIN

1

2011-11_

17.8

TF1004.55.5.1

加油口焊接总成

TRANSMISSION PIPE

1

2011-11_

18

TF1004.55.8

提升油缸总成

LIFTING CYLINDER ASSEMBLY

2

2011-11_

19

GBT6170-M16-A3L

螺母 M16-A3L

NUT

12

2011-11_

2

GBT97.1-6-A0P

平垫圈

WASHER

2

2011-11_

20

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

12

2011-11_

21

GBT899-M16X88-8.8-A3L

双头螺柱

8.8-A3L STUD

4

2011-11_

22

GBT899-GM16-M16X80-8.8-A3L

双头螺柱

8.8-A3L STUD

8

2011-11_

23

FT800.55A.116

销轴

PIN

2

2011-11_

24

TF1004.55-09

左油缸支架

LEFT OIL CYLINDER BRACKET

1

2011-11_

24

FT800.55A.114c

右油缸支架

RIGHT OIL CYLINDER BRACKET

1

2013-01_

25

FT800.55A.105

垫圈

WASHER

2

2011-11_

26

GBT91-6.3X40-A0P

开口销

PIN

2

2011-11_

27

TF1004.55-10

右油缸支架

RIGHT OIL CYLINDER BRACKET

1

2011-11_

27

FT800.55A.104c

左油缸支架

LEFT OIL CYLINDER BRACKET

1

2013-01_

28

JBT8870-d12

喉箍

HOOP

2

2011-11_

29

TF1004.55-08

连接胶管3

CONNECTING RUBBER HOSE 3

1

2011-11_

3

FT804A.58L.133

右旋拉杆叉

RIGHT REVOLVING PULL ROD FORK

1

2011-11_

30

JBT8870-d16

喉箍

HOOP

3

2011-11_

31

TF1004.55-07

连接胶管

CONNECTING RUBBER PIPE

1

2011-11_

32

TF1004.55.7

3通

TEE

1

2011-11_

32

TF1004.55.7

3通

TEE

1

2011-11_

33

TF1004.55-05

连接胶管2

CONNECTING RUBBER HOSE 2

1

2011-11_

33

TF1004.55-05

连接胶管2

CONNECTING RUBBER HOSE 2

1

2011-11_

34

TD800.55.6

呼吸器总成



1

2011-11_








TF1004.55-2 55.2-提升器装配总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

34

TD800.55.6a

呼吸器总成



1

2011-11_

34.1

TD800.55.6A.1

呼吸器体焊合

BREATHER BODY WELDMENT

1

2011-11_

34.2

FT650.40.167

座板

SEAT PLATE

2

2011-11_

34.3

FT700.55D.109

呼吸器滤芯

BREATH FILTER ELEMENT

1

2011-11_

34.4

GBT893.1-26

孔用弹性挡圈

SNAP RING

1

2011-11_

34.5

FT700.55D.136

呼吸器盖

RESPIRATOR COVER

1

2011-11_

34.5

FT700.55D.136

呼吸器盖

RESPIRATOR COVER

1

2011-11_

35

GBT5783-M8X16-A2L

螺栓

BOLT

1

2011-11_

36

GBT97.1-8-A0P

平垫圈

WASHER

1

2011-11_

4

GBT882-B6X30-A0P

销轴

PIN

2

2011-11_

5

GBT6170-M8-A2L

螺母

NUT

1

2011-11_

6

TF1004.55-03

反馈杆

FEEDBACK ROD

1

2011-11_

7

GBT6170-M8-LH-A2L

螺母

NUT

1

2011-11_

8

FT804A.58L.136

左旋拉杆叉

LEFT REVOLVING PULL ROD FORK

1

2011-11_

9

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

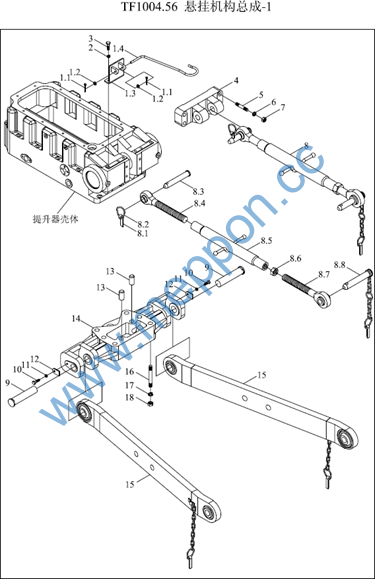

TF1004.56C 56-悬挂机构总成 56-SUSPENSION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TF1004.56.4

上拉杆固定卡总成

UPPER PULL ROD FIXING CLIP ASSEMBLY

1

2012-02_

1.1

GBT91-2X14-A0P

开口销

PIN

2

2012-02_

1.2

GBT97.1-8-A0P

平垫圈

WASHER

2

2012-02_

1.3

TF1004.56.4.1

上拉杆固定卡支座焊合

UPPER PULL ROD FIXING CLIP SEAT

1

2012-02_

1.4

TF1004.56.4-01

固定卡

WELDMENT

1

2012-02_


LOCKING CLAMP



10

GBT5783-M8X20-A2L

螺栓



2

2012-02_

11

GBT93-8-A0P

垫圈

BOLT

2

2012-02_

12

FT800.56.105

限位板

WASHER

2

2012-02_

13

GBT119.1-20X35-A0P

圆柱销

LIMIT PLATE

2

2012-02_

13

GBT119.1-20X35-A0P

圆柱销

PIN

2

2012-02_


PIN



14

TF1004.56-01

下拉杆支架



1

2012-02_

15

TF1004.56.1

下拉杆总成

LOWER PULL ROD BRACKET

2

2012-02_

16

GBT899-M20X110-8.8-A3L

双头螺柱

LOWER PULL ROD ASSEMBLY

6

2012-02_

17

GBT93-20-A0P

垫圈

8.8-A3L STUD

6

2012-02_

18

GBT6170-M20-A3L

螺母

WASHER

6

2012-02_


NUT



2

GBT93-10-A0P

标准型弹簧垫圈



2

2012-02_

3

GBT5783-M10X20-A3L

螺栓

WASHER

2

2012-02_

4

FT800.56A.101a

上拉杆支座

BOLT

1

2012-02_

5

GBT899-M16X65-8.8-A3L

双头螺柱

UPPER PULL ROD SUPPORT SEAT

4

2012-02_

6

GBT93-16-A0P

弹簧垫圈

8.8-A3L STUD

4

2012-02_


SPRING WASHER



7

GBT6170-M16-A3L

螺母 M16-A3L



4

2012-02_

8

TF1004.56.7

上拉杆总成

NUT

1

2012-02_

8.1

FT800.56.224

锁销

UPPER PULL ROD ASSEMBLY

1

2012-02_

8.2

FT800.56.223

锁销环

PIN

1

2012-02_

8.3

FT800.56A.247

上拉杆前销

LOCKING PIN RING

1

2012-02_







TF1004.56C 56-悬挂机构总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8.4

TF1004.56.7.1

上拉杆前调节螺杆挤压总成

UPPER PULL ROD FRONT ADJUSTING SCREW

1

2012-02_

8.5

TF1004.56.7.2

上拉杆调节螺管手柄焊合

EXTRUSION ASSEMBL

1

2012-02_

8.6

TF1004.56.3.2-02

左旋梯形螺母

UPPER PULL ROD ADJUSTING SOLENOID

1

2012-02_

8.7

TG1204.56.1.4

上拉杆后调节螺杆挤压总成

HANDLE WELDMENT

1

2012-02_

8.8

FT800.56.027

上拉杆销及锁销总成

LEFT TRAPEZOIDAL NUT

1

2012-02_


UPPER PULL ROD REAR ADJUSTING SCREW



9

TF1004.56-04

下拉杆支承杆

EXTRUSION ASSEMBLY

2

2012-02_


UPPER PULL ROD PIN AND LOCK PIN




ASSEMBLY




SUPPORT ROD OF LOWER PULL ROD
