TF1004.501C-1 50.1.1-主油箱安装总成-1 MAIN OIL TANK INSTALLATION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q67670

B型蜗杆传动式软管环箍

B-TYPE WORM TRANSMISSION HOSE CLAMP

4

2011-11_

10

Q617B20

六角头螺塞

SCREW PLUG

1

2011-11_

11

TF1004.501.5

主油箱护板焊合

MAIN OIL TANK GUARD PLATE WELDMENT

1

2011-11_

11

TF1004.501.5

主油箱护板焊合

MAIN OIL TANK GUARD PLATE WELDMENT

1

2011-11_

2

TG1204.501-02

连接管

CONNECTING HOSE

2

2011-11_

3

TG1204.501-03

主副油箱连接管

MAIN/ASSISTANT OIL TANK CONNECTING PIPE

1

2011-11_

4

TF1004.501.1

主油箱总成

MAIN OIL TANK ASSEMBLY

1

2011-11_

4.1

TF1004.501.1-01

油箱盖

OIL TANK COVER

1

2011-11_

4.2

TF1004.501.1-02

滤网

SCREEN

1

2011-11_

4.3

TF1004.501.1-03

主油箱壳体

MAIN OIL TANK HOUSING

1

2011-11_

5

TF1004.501.8

吸油管总成

OIL SUCTION PIPE ASSEMBLY

1

2011-11_

6

FT354.40E.172

空心螺栓

HOLLOW BOLT

2

2011-11_

7

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

7

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

8

TF1004.501-04

油管接头

JOINT

2

2011-11_

9

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

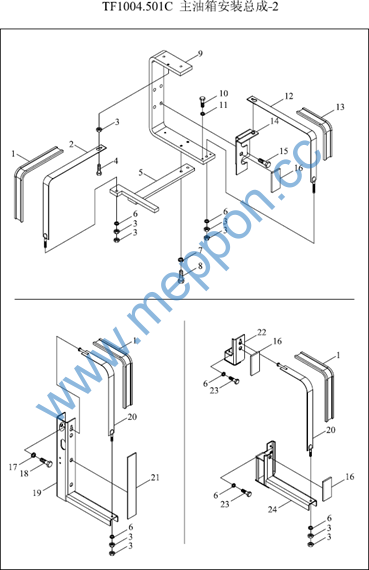

TF1004.501C-2 50.1.2-主油箱安装总成-2 MAIN OIL TANK INSTALLATION ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.50.209

主油箱轧带橡胶条

MAIN OIL TANK BELT RUBBER STRIP

3

2011-11_

10

GBT5783-M8X25-A2L

螺栓

BOLT

2

2011-11_

11

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

12

TF1004.501.7

主油箱短扎带

MAIN OIL TANK SHORT BELT

1

2011-11_

13

TF1004.501-02

主油箱短扎带橡胶垫

MAIN OIL TANK SHORT BELT RUBBER GASKET

1

2011-11_

14

TF1004.501.6

主油箱挡板焊合

MAIN OIL TANK RETAINER PLATE WELDMENT

1

2011-11_

15

GBT5783-M16X55

螺栓16X55

BOLT

4

2004-01_

16

TD800.501-05

油箱短胶垫

OIL TANK SHORT RUBBER GASKET

3

2011-11_

17

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

2

2011-11_

18

GBT5783-M16X30

六角头螺栓

BOLT

2

2004-01_

19

TF1004.501.2

主油箱前支架焊合

MAIN OIL TANK FRONT BRACKET WELDMENT

1

2011-11_

2

TG1204.502.7

副油箱扎带焊合（二）

AUXILIARY OIL TANK FASTENING TIE

1

2011-11_

20

FT800A.50.051

主油箱轧带总成

WELDMENT（2）

2

2011-11_

20

FT800A.50.051

主油箱轧带总成

MAIN OIL TANK BELT ASSEMBLY

2

2011-11_

21

TF1004.501-03

主油箱橡胶垫

MAIN OIL TANK BELT ASSEMBLY

1

2011-11_


MAIN OIL TANK RUBBER WASHER



22

TF1004.501.4

上支架焊合



1

2011-11_

23

GBT5783-M10X20-A3L

螺栓

UPPER BRACKET WELDMENT

5

2011-11_

24

TF1004.501.3

下支架焊合

BOLT

1

2011-11_

3

GBT6170-M10-A3L

螺母

LOWER BRACKET WELDMENT

9

2011-11_

4

GBT5783-M10X30

六角头螺栓

NUT

1

2011-11_


BOLT



5

TF1004.501.11

主油箱前托板焊合



1

2011-11_

6

GBT93-10-A0P

标准型弹簧垫圈

MAIN OIL TANK FRONT SPLINT WELDMENT

8

2011-11_

7

GBT93-12-A0P

垫圈

WASHER

2

2011-11_

8

GBT5783-M12X35-A3L

螺栓

WASHER

2

2011-11_

8

GBT5783-M12X35-A3L

螺栓

BOLT

2

2011-11_








TF1004.501C-2 50.1.2-主油箱安装总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

9

TF1004.501C.1

主油箱支撑架焊合

MAIN OIL TANK BRACKET WELDMENT

1

2011-11_

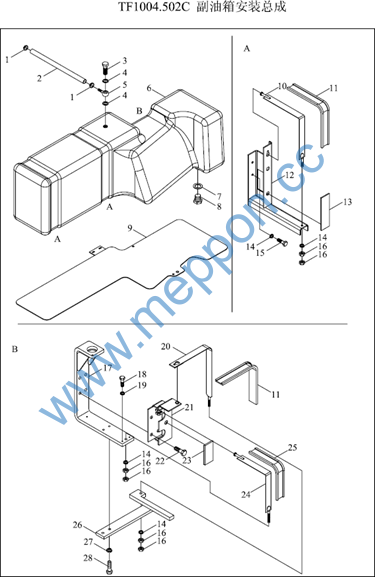

TF1004.502C 50.2-副油箱安装总成 50.2-AUXILIARY OIL TANK INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q673B13

钢带型弹性环箍

CLAMP

2

2011-11_

10

TF1004.502.7

副油箱后扎带焊合

AUXILIARY OIL TANK REAR TIE WELDMENT

2

2011-11_

11

TD800.502-02

副油箱扎带橡胶条

AUXILIARY OIL TANK FASTENING TIE RUBBER

3

2011-11_

12

TF1004.502.2

副油箱支架焊合

STRIP

2

2011-11_

13

TF1004.502-03

副油箱胶垫

AUXILIARY OIL TANK BRACKET WELDMENT

2

2011-11_


AUXILIARY OIL TANK RUBBER WASHER



14

GBT93-10-A0P

标准型弹簧垫圈



8

2011-11_

15

GBT5783-M10X20-A3L

螺栓

WASHER

4

2011-11_

16

GBT6170-M10-A3L

螺母

BOLT

8

2011-11_

17

TF1004.501C.1

主油箱支撑架焊合

NUT

1

2011-11_

18

GBT5783-M8X25-A2L

螺栓

MAIN OIL TANK BRACKET WELDMENT

2

2011-11_


BOLT



19

GBT93-8-A0P

垫圈



2

2011-11_

2

TF1004.502-02

呼吸管

WASHER

1

2011-11_

20

TF1004.502.6

副油箱扎带焊合（一）

BREATH PIPE

1

2011-11_

21

TF1004.502.4

副油箱挡板焊合

AUXILIARY OIL TANK FASTENING TIE

1

2011-11_

22

GBT5783-M16X55-10.9-A3L

六角头螺栓

WELDMENT (1)

4

2004-01_


AUXILIARY OIL TANK RETAINER PLATE



23

TD800.501-05

油箱短胶垫

WELDMENT

1

2011-11_

24

TF1004.502.5

副油箱短扎带焊合

BOLT

1

2011-11_

24

TF1004.502.5

副油箱短扎带焊合



1

2011-11_

25

TF1004.501-02

主油箱短扎带橡胶垫

OIL TANK SHORT RUBBER GASKET

1

2011-11_

26

TF1004.502.8

副油箱前托板焊合

AUXILIARY OIL TANK SHORT TIE WELDMENT

1

2011-11_


AUXILIARY OIL TANK SHORT TIE WELDMENT



27

GBT93-12-A0P

垫圈

MAIN OIL TANK SHORT BELT RUBBER GASKET

2

2011-11_

28

GBT5783-M12X35-A3L

螺栓

AUXILIARY OIL TANK FRONT SPLINT

2

2011-11_

28

GBT5783-M12X35-A3L

螺栓

WELDMENT

2

2011-11_

3

FT354.40E.172

空心螺栓



1

2011-11_

4

JBT982-14

组合密封垫圈

WASHER

2

2011-11_








TF1004.502C 50.2-副油箱安装总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

5

6

7

8



9

JBT982-14 TF1004.501-04 TF1004.502.1 JBT982-20 Q617B20



TF1004.502.3

组合密封垫圈油管接头

副油箱总成 组合密封垫圈六角头螺塞



副油箱护板焊合

COMBINED SEAL GASKET JOINT

AUXILIARY OIL TANK ASSEMBLY COMBINED SEAL GASKET

SCREW PLUG



AUXILIARY OIL TANK GUARD PLATE WELDMENT

2

1

1

1

1



1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

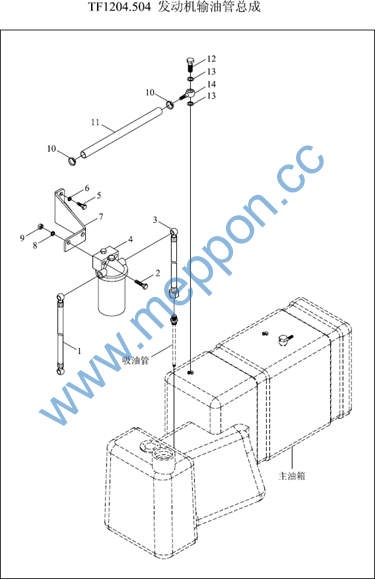

TF1204.504 50.4-发动机输油管总成 50.4-ENGINE OIL OUTPUT PIPE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TF1004.504.1

输油管总成

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

10

Q673B13

钢带型弹性环箍

CLAMP

2

2011-11_

11

TF1004.502-02

呼吸管

BREATH PIPE

1

2011-11_

12

FT65.50.106

空心螺栓

HOLLOW BOLT

1

2011-11_

13

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

13

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

14

FT800A.50.162

油管接头

JOINT

1

2011-11_

2

GBT5781-M10X60-A2L

六角头螺栓

BOLT

2

2011-11_

3

TF1004.504.2

出油管总成

OIL OUTLET PIPE ASSEMBLY

1

2011-11_

4

TG1204.504.3

旋装柴滤器总成

FUEL FILTER ASSEMBLY

1

2011-11_

5

GBT5781-M8X25-A2L

六角头螺栓

BOLT

2

2011-11_

6

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

7

TF1204.504-01

柴滤器支架

FUEL FILTER BRACKET

1

2011-11_

7

TF1204.504-01

柴滤器支架

FUEL FILTER BRACKET

1

2011-11_

8

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

9

GBT6170-M10-A3L

螺母

NUT

2

2011-11_

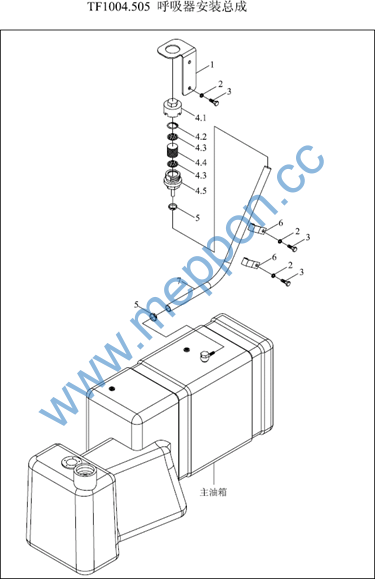

TF1004.505 50.5-呼吸器安装总成 50.5-BREATHER INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TG1204.505-04

呼吸器安装板

BREATHER INSTALLATION PLATE

1

2011-11_

2

GBT93-8-A0P

垫圈

WASHER

4

2011-11_

3

GBT5781-M8X20-A2L

六角头螺栓

BOLT

4

2011-11_

3

GBT5781-M8X20-A2L

六角头螺栓

BOLT

4

2011-11_

4

TF1004.505.1

呼吸器总成



1

2011-11_

4.1

FT700.55D.136

呼吸器盖

RESPIRATOR COVER

1

2011-11_

4.1

FT700.55D.136

呼吸器盖

RESPIRATOR COVER

1

2011-11_

4.2

GBT893.1-26

孔用弹性挡圈

SNAP RING

1

2011-11_

4.3

FT650.40.167

座板

SEAT PLATE

2

2011-11_

4.4

FT700.55D.109

呼吸器滤芯

BREATH FILTER ELEMENT

1

2011-11_

4.5

TF1004.505.1-01

呼吸器体

BREATHER BODY

1

2011-11_

5

Q673B13

钢带型弹性环箍

CLAMP

2

2011-11_

6

TD800.811-08

管夹2

PIPE CLAMP 2

2

2011-11_

7

TF1004.505-01

排气管

EXHAUST PIPE

1

2011-11_

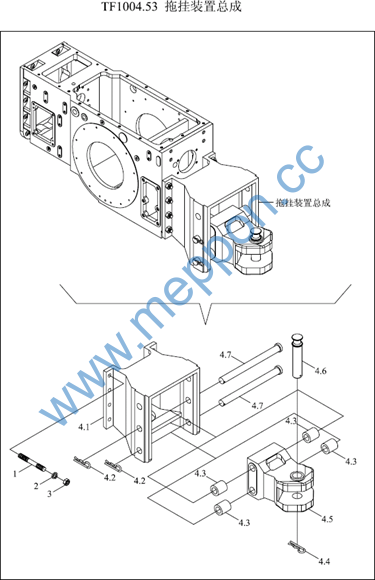

TF1004.53 53-拖挂装置总成 53-TOW EQUIPMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT899-GM16-M16X40-A3L

双头螺柱

8.8-A3L STUD

8

2011-11_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

8

2011-11_

3

GBT6170-M16

螺母

NUT

8

2004-01_

4

TF1004.53.1

拖挂装置组合

TOW MECHANISM COMBINATION

1

2011-11_

4.1

TF1004.53.1-02a

固定架

FIXING BRACKET

1

2006-06_

4.2

FT800.35.112

弹性锁销

SPRING LOCK PIN

2

2011-11_

4.3

TF1004.53.1-05

隔套1

SPACER BUSH 1

4

2011-11_

4.4

FT800.53.111

弹簧锁销

SPRING LOCK PIN

1

2011-11_

4.5

TF1004.53.1-01

拖挂架

TOW BRACKET

1

2011-11_

4.5

TF1004.53.1-01a

拖挂架

TOW BRACKET

1

2014-02_

4.6

FT800.53.102

连接销轴

CONNECTING PIN SHAFT

1

2011-11_

4.7

TF1004.53.1-04a

拖挂销

TOW PIN

2

2006-06_
