LOVOL TF1254-F153F1K Tractor Parts Catalogue 15
TF1004.422 42.2-分动箱传动总成(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
6 7 8 9 |
GBT119.1-8h8X20-A0P GBT899-AM16-M16X1.5X50-A3L GBT93-16-A0P GBT6176-M16X1.5-A3L |
圆柱销 双头螺柱弹簧垫圈 2型六角螺母 |
PIN 8.8-A3L STUD SPRING WASHER HEXAGON NUT, TYPE-2 |
2 2 2 2 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ |

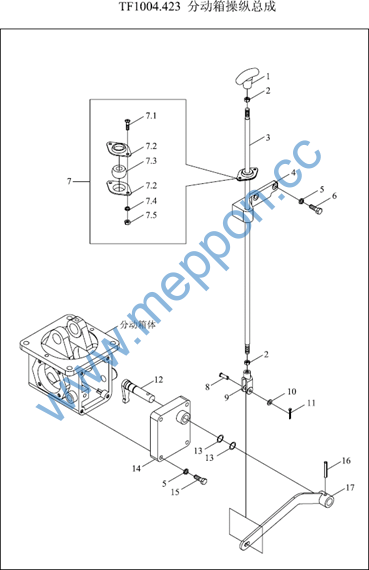

TF1004.423 42.3-分-动箱操纵总成 42.3-TRANSFER CASE CONTROL ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
TF1004.422 |
42.2-分动箱传动总成 |
42.2-TRANSFER CASE TRANSMISSION ASSEMBLY |
1 |
2011-11_ |
|
1 |
TF1004.422.1 |
分动箱传动轴装配 |
TRANSFER CASE TRANSMISSION SHAFT |
1 |
2011-11_ |
|
1 |
FT65.38.051 |
拉压手柄 |
INSTALLATION |
1 |
2011-11_ |
|
1.1 |
TF1004.422.1.4 |
外护套焊合（二） |
PULL/PRESS HANDLE |
1 |
2011-11_ |
|
10 |
GBT97.1-8-A0P |
平垫圈 |
OUTER SLEEVE WELDMENT (2) |
1 |
2011-11_ |
|
WASHER |
|||||
|
11 |
GBT91-3.2X20-A0P |
开口销 |
1 |
2011-11_ |
|
|
11 |
GBT91-3.2X20-A0P |
开口销 |
PIN |
1 |
2011-11_ |
|
12 |
FT804.42.010 |
转轴焊合 |
PIN |
1 |
2011-11_ |
|
13 |
GBT3452.1-17.0X1.80G |
液压气动用O形橡胶密封圈 |
ROTARY SHAFT WELDMENT |
2 |
2011-11_ |
|
14 |
TF1004.423-02 |
侧盖 |
O-SEAL RING |
1 |
2011-11_ |
|
SIDE COVER |
|||||
|
16 |
GBT879.1-8X30 |
弹性圆柱销 |
1 |
2011-11_ |
|
|
17 |
FT804A.42B.012 |
摇臂焊合 |
PIN |
1 |
2011-11_ |
|
2 |
GBT6170-M10-A3L |
螺母 |
ROCKER WELDMENT |
2 |
2011-11_ |
|
3 |
TF1004.423-01 |
操纵杆 |
NUT |
1 |
2011-11_ |
|
4 |
FT804A.42.121 |
导向管 |
CONTROL ROD |
1 |
2011-11_ |
|
GUIDE PIPE |
|||||
|
4 |
FT804A.42.121 |
导向管 |
1 |
2011-11_ |
|
|
5 |
GBT93-10-A0P |
标准型弹簧垫圈 |
GUIDE PIPE |
6 |
2011-11_ |
|
6 |
GBT5781-M10X25-A3L |
六角头螺栓 |
WASHER |
2 |
2011-11_ |
|
7 |
TG1204.435.2 |
密封胶圈 |
BOLT |
1 |
2011-11_ |
|
7.1 |
GBT818-M6X14-A2L |
十字槽盘头螺钉 |
SEAL RUBBER RING |
2 |
2011-11_ |
|
SCREW |
|||||
|
7.2 |
TG1204.435.2-01 |
球面轴衬座 |
2 |
2011-11_ |
|
|
7.2 |
TG1204.435.2-01 |
球面轴衬座 |
SPHERICAL SHAFT LINING SEAT |
2 |
2011-11_ |
|
7.3 |
TG1204.435.2-02 |
球面轴衬 |
SPHERICAL SHAFT LINING SEAT |
1 |
2011-11_ |
|
7.4 |
GBT93-6-A0P |
垫圈 |
SPHERICAL SHAFT LINING |
2 |
2011-11_ |
|
7.5 |
GBT6170-M6-A2L |
螺母 |
WASHER |
2 |
2011-11_ |
TF1004.423 42.3-分-动箱操纵总成(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
8 9 |
GBT882-B8X26 FT804.42.150 |
销轴 拉杆前叉 |
PIN PULL ROD FRONT FORK |
1 1 |
2011-11_ 2011-11_ |
TF1004.431 43.1-左制动器总成 43.1-LEFT BRAKE ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TF1004.431.1 |
磨擦片组合件 |
FRICTION PLATE UNIT |
1 |
2011-11_ |
|
1.1 |
TF1004.431.1-02 |
摩擦衬片 |
FRICTION LINER |
2 |
2011-11_ |
|
1.1 |
TF1004.431.1-02 |
摩擦衬片 |
FRICTION LINER |
2 |
2011-11_ |
|
1.2 |
TF1004.431.1-01 |
制动器从动盘 |
BRAKE DRIVEN PLATE |
1 |
2011-11_ |
|
10 |
FT800.43.156 |
防尘圈 |
1 |
2011-11_ |
|
|
11 |
FT800.43.152 |
放气螺塞 |
DISCHARGE AIR PLUG |
1 |
2011-11_ |
|
2 |
TF1004.431-02 |
制动活塞 |
BRAKE PISTON |
1 |
2011-11_ |
|
3 |
TF1004.431-04 |
O形密封圈 |
O RING |
1 |
2011-11_ |
|
4 |
GBT119.1-10m6X22-A0P |
圆柱销 |
PIN |
3 |
2004-01_ |
|
4 |
GBT119.1-10m6X22-A0P |
圆柱销 |
PIN |
3 |
2004-01_ |
|
5 |
FT800.43.173 |
弹簧 |
SPRING |
3 |
2011-11_ |
|
6 |
JBTZQ4450-M10X1 |
螺塞 |
SCREW PLUG |
1 |
2011-11_ |
|
7 |
JBTZQ4454-10X13.5 |
密封垫 |
SEAL GASKET |
1 |
2011-11_ |
|
8 |
TF1004.431-01a |
左制动器缸体 |
LEFT BRAKE CYLINDER HOUSING |
1 |
2004-01_ |
|
8 |
TF1004.431-01b |
左制动器缸体 |
LEFT BRAKE CYLINDER HOUSING |
1 |
2011-01_ |
|
9 |
TF1004.431-03 |
O形密封圈 |
O RING |
1 |
2011-11_ |

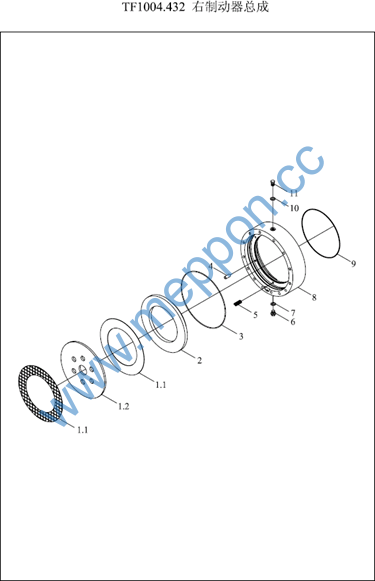

TF1004.432 43.2-右制动器总成 43.2-RIGHT BRAKE ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TF1004.431.1 |
磨擦片组合件 |
FRICTION PLATE UNIT |
1 |
2011-11_ |
|
1.1 |
TF1004.431.1-02 |
摩擦衬片 |
FRICTION LINER |
2 |
2011-11_ |
|
1.1 |
TF1004.431.1-02 |
摩擦衬片 |
FRICTION LINER |
2 |
2011-11_ |
|
1.2 |
TF1004.431.1-01 |
制动器从动盘 |
BRAKE DRIVEN PLATE |
1 |
2011-11_ |
|
10 |
FT800.43.156 |
防尘圈 |
1 |
2011-11_ |
|
|
11 |
FT800.43.152 |
放气螺塞 |
DISCHARGE AIR PLUG |
1 |
2011-11_ |
|
2 |
TF1004.431-02 |
制动活塞 |
BRAKE PISTON |
1 |
2011-11_ |
|
3 |
TF1004.431-04 |
O形密封圈 |
O RING |
1 |
2011-11_ |
|
4 |
GBT119.1-10m6X22-A0P |
圆柱销 |
PIN |
3 |
2004-01_ |
|
4 |
GBT119.1-10m6X22-A0P |
圆柱销 |
PIN |
3 |
2004-01_ |
|
5 |
FT800.43.173 |
弹簧 |
SPRING |
3 |
2011-11_ |
|
6 |
JBTZQ4450-M10X1 |
螺塞 |
SCREW PLUG |
1 |
2011-11_ |
|
7 |
JBTZQ4454-10X13.5 |
密封垫 |
SEAL GASKET |
1 |
2011-11_ |
|
8 |
TF1004.432-01b |
右制动器缸体 |
RIGHT BRAKE CYLINDER |
1 |
2011-01_ |
|
8 |
TF1004.432-01a |
右制动器缸体 |
RIGHT BRAKE CYLINDER |
1 |
2004-01_ |
|
9 |
TF1004.431-03 |
O形密封圈 |
O RING |
1 |
2011-11_ |

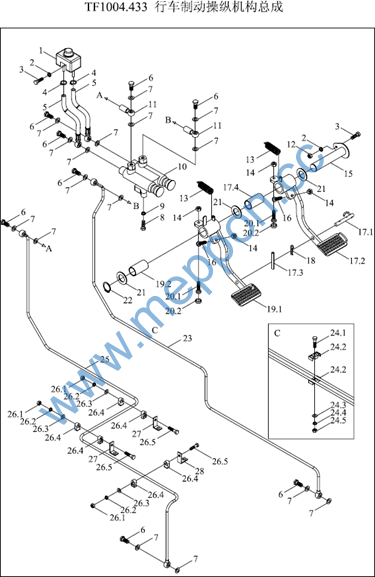

TF1004.433 43.3-行车制动操纵机构总成 43.3-TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT800.43.018 |
制动油箱 |
BRAKE OIL TANK |
1 |
2004-01_ |
|
1 |
TG1204.433.2 |
制动器油箱总成 |
BRAKE OIL TANK ASSEMBLY |
1 |
2010-05_ |
|
10 |
FT800A.43C.018 |
制动泵总成 |
BRAKE PUMP ASSEMBLY |
1 |
2011-11_ |
|
11 |
FT800A.43C.017 |
管接头焊合件 |
PIPE JOINT WELDMENT UNIT |
2 |
2011-11_ |
|
12 |
GBT6170-M8-A2L |
螺母 |
NUT |
1 |
2011-11_ |
|
13 |
FT800.21.215 |
副离合回位弹簧 |
AUXILIARY CLUTCH RETURN SPRING |
2 |
2004-01_ |
|
13 |
TD800.43-01 |
踏板回位弹簧 |
PEDAL RETURN SPRING |
2 |
2010-03_ |
|
14 |
GBT6170-M10-A3L |
螺母 |
NUT |
4 |
2011-11_ |
|
15 |
FT800A.43.053 |
制动踏板支承轴焊合 |
BRAKE PEDAL SUPPORT SHAFT WELDMENT |
1 |
2011-11_ |
|
16 |
FT800.43.103 |
调整螺钉 |
ADJUSTING SCREW |
2 |
2011-11_ |
|
17 |
TF1004.433.4 |
右制动摇臂合件 |
RIGHT BRAKE ROCKER UNIT |
1 |
2011-11_ |
|
17.1 |
FT800A.43.065 |
制动联锁杆焊合 |
BRAKE CONNECTING LOCK ROD WELDMENT |
1 |
2011-11_ |
|
17.2 |
TF1004.433.4.1 |
右制动摇臂焊合 |
RIGHT BRAKE ROCKER WELDMENT |
1 |
2011-11_ |
|
17.3 |
GBT879.1-5X16 |
弹性圆柱销 |
PIN |
1 |
2011-11_ |
|
17.4 |
TF1004.433.3-01 |
制动踏板毂衬套 |
BRAKE PEDAL HUB BUSH |
1 |
2011-11_ |
|
18 |
FT800A.43.401 |
锁销 |
PIN |
1 |
2011-11_ |
|
19 |
TF1004.433.3 |
左制动摇臂压合 |
LEFT BRAKE ROCKER PRESSURE UNIT |
1 |
2011-11_ |
|
19.1 |
TF1004.433.3.1 |
左制动摇臂焊合 |
LEFT BRAKE ROCKER WELDMENT |
1 |
2011-11_ |
|
19.2 |
TF1004.433.3-01 |
制动踏板毂衬套 |
BRAKE PEDAL HUB BUSH |
1 |
2011-11_ |
|
2 |
GBT93-8-A0P |
垫圈 |
WASHER |
2 |
2011-11_ |
|
20 |
FT800.43.030 |
调整螺钉 |
ADJUSTING SCREW |
2 |
2011-11_ |
|
20.1 |
FT800.43.103 |
调整螺钉 |
ADJUSTING SCREW |
1 |
2011-11_ |
|
20.2 |
FT800.43.210 |
缓冲套 |
CUSHION BLOCK |
1 |
2011-11_ |
|
21 |
TF1004.433-01 |
尼龙隔套 |
NYLON SPACER BUSH |
3 |
2011-11_ |
|
22 |
GBT894.1-30 |
挡圈 |
RETAINER RING |
1 |
2011-11_ |
TF1004.433 43.3-行车制动操纵机构总成(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
23 |
TF1004.433.2a |
右制动油管焊合 |
RIGHT BRAKE OIL PIPE WELDMENT |
1 |
2011-01_ |
|
23 |
TF1004.433.2 |
右制动油管焊合 |
RIGHT BRAKE OIL PIPE WELDMENT |
1 |
2004-01_ |
|
24 |
F600210 |
管夹组合（六） |
PIPE CLAMP COMBINATION（6） |
3 |
2011-11_ |
|
24.1 |
GBT5783-M8X40 |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
24.2 |
F600229 |
双孔管夹（8-8） |
DOUBLE HOLE CLAMP |
2 |
2011-11_ |
|
24.4 |
GBT93-8 |
垫圈8 |
WASHER 8 |
1 |
2011-11_ |
|
24.5 |
GBT6170-M8 |
螺母M8 |
NUT M8 |
1 |
2011-11_ |
|
25 |
TF1004.433.1a |
左制动油管焊合 |
LEFT BRAKE OIL PIPE WELDMENT |
1 |
2011-01_ |
|
25 |
TF1004.433.1 |
左制动油管焊合 |
LEFT BRAKE OIL PIPE WELDMENT |
1 |
2004-01_ |
|
26 |
F600190 |
管夹组合（五） |
PIPE CLAMP COMBINATION（5） |
3 |
2011-11_ |
|
26.1 |
GBT6170-M8 |
螺母M8 |
NUT M8 |
1 |
2011-11_ |
|
26.2 |
GBT93-8 |
垫圈8 |
WASHER 8 |
1 |
2011-11_ |
|
26.4 |
F600209 |
单孔管夹（二） |
SINGLE HOLE PIPE CLAMP（Ⅱ） |
2 |
2011-11_ |
|
26.5 |
GBT5783-M8X40 |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
27 |
FT800A.43.335 |
油管固定板 |
FIXED PLATE OF OIL PIPE |
2 |
2011-11_ |
|
28 |
TF1004.433-02 |
油管固定架 |
OIL PIPE FIXING BRACKET |
1 |
2011-11_ |
|
3 |
GBT5781-M8X20-A2L |
六角头螺栓 |
BOLT |
2 |
2011-11_ |
|
3 |
GBT5781-M8X20-A2L |
六角头螺栓 |
BOLT |
2 |
2011-11_ |
|
4 |
JBT8870-d16 |
喉箍 |
HOOP |
2 |
2011-11_ |
|
4 |
Q673B115 |
型蜗杆传动式软管环箍 |
STRAP |
2 |
2011-12_ |
|
5 |
TF1004.433.5 |
输油胶管 |
OIL HOSE |
2 |
2011-11_ |
|
6 |
FT800.43.115 |
油管接头螺钉 |
OIL PIPE JOINT SCREW |
8 |
2011-11_ |
|
7 |
JBTZQ4454-12X16 |
密封垫 |
SEAL GASKET |
16 |
2011-11_ |
|
8 |
GBT5783-M10X30-A3L |
螺栓 |
BOLT |
3 |
2011-11_ |
|
9 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
3 |
2011-11_ |

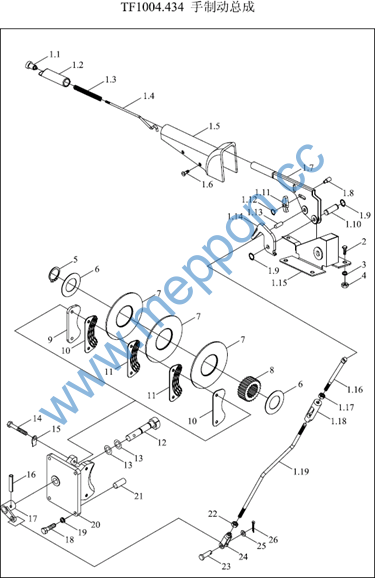

TF1004.434 43.4-手制动总成 43.4-HANDLE BRAKE ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TF1004.434.1 |
手制动操纵把手总成 |
HAND BRAKE CONTROLLING HANDLE |
1 |
2011-11_ |
|
1.1 |
FT800A.21.045 |
按钮总成 |
ASSEMBLY |
1 |
2011-11_ |
|
1.1 |
FT800A.21.321 |
销轴 |
BUTTON ASSEMBLY |
1 |
2011-11_ |
|
1.11 |
FT800A.21.314 |
棘爪 |
PIN |
1 |
2011-11_ |
|
1.12 |
GBT894.1-6 |
轴用弹性挡圈 |
PAWL |
1 |
2011-11_ |
|
SNAP RING |
|||||
|
1.13 |
FT800A.21.323 |
销 |
1 |
2011-11_ |
|
|
1.14 |
FT800A.43.310 |
棘轮 |
PIN |
1 |
2011-11_ |
|
1.15 |
FT800A.43.058 |
手制动操纵把手固定座焊合 |
RATCHET WHEEL |
1 |
2011-11_ |
|
1.16 |
FT800A.43.402 |
手制动短拉杆 |
HANDLE FIXING SEAT WELDMENT OF HAND |
1 |
2011-11_ |
|
1.17 |
GBT6171-M10X1-A2L |
螺母 |
BRAKE |
1 |
2011-11_ |
|
HAND BRAKE SHORT PULL ROD |
|||||
|
1.18 |
TG1204.435-01 |
调节套筒 |
NUT |
1 |
2011-11_ |
|
1.19 |
TF1004.434.1-01 |
手制动长拉杆 |
1 |
2011-11_ |
|
|
1.2 |
FT800A.21.319 |
操纵把手套 |
ADJUSTING SLEEVE |
1 |
2011-11_ |
|
1.3 |
FT800.43.180 |
弹簧 |
HANDLE BRAKE LONG PULL ROD |
1 |
2011-11_ |
|
1.4 |
FT800A.21.315 |
顶杆 |
CONTROLLING HANDLE SLEEVE |
1 |
2011-11_ |
|
SPRING |
|||||
|
1.5 |
FT800A.21.320 |
护罩 |
TOP ROD |
1 |
2011-11_ |
|
1.6 |
GBT68-M4X10-A2L |
开槽沉头螺钉 |
4 |
2011-11_ |
|
|
1.7 |
FT800A.21.044 |
操纵把手总成 |
BONNET |
1 |
2011-11_ |
|
1.8 |
FT800A.21.322 |
小销轴 |
SCREW |
1 |
2011-11_ |
|
1.9 |
GBT894.1-13 |
轴用弹性挡圈 |
CONTROLLING HANDLE ASSEMBLY |
2 |
2011-11_ |
|
SMALL PIN SHAFT |
|||||
|
10 |
FT800.43.023 |
磨擦片合件 |
SNAP RING |
2 |
2011-11_ |
|
11 |
FT800.43.024 |
中间磨擦片合件 |
2 |
2011-11_ |
|
|
12 |
FT800.43.169 |
制动凸轮轴 |
FRICTION PLATE UNIT |
1 |
2011-11_ |
|
13 |
GBT3452.1-15.0X2.65 |
液压气动用O形橡胶密封圈 |
MIDDLE FRICTION PLATE UNIT |
2 |
2011-11_ |
|
14 |
GBT5782-M10X80-A2L |
螺栓 |
BRAKE CAMSHAFT |
2 |
2004-01_ |
