LOVOL TF1254-F153F1K Tractor Parts Catalogue 13
TF1004.382-1 38.2.1-后桥中央传动总成-1 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TF1004.382-01 |
左轴承座 |
LEFT BEARING SEAT |
1 |
2011-11_ |
|
10 |
GBT895.2-30 |
挡圈 |
RETAINER RING |
1 |
2011-11_ |
|
11 |
GBT276-6306N |
深沟球轴承 |
BEARING |
1 |
2011-11_ |
|
12 |
GBT305-72/74.8 |
止动环 |
THRUST RING |
1 |
2011-11_ |
|
13 |
TF1004.382-03 |
动力输出中段轴 |
MIDDLE SHAFT OF PTO |
1 |
2011-11_ |
|
14 |
TF1004.382.2 |
小圆锥齿轮总成 |
SMALL TAPER GEAR ASSEMBLY |
1 |
2011-11_ |
|
14.1 |
TF1004.382.2-01 |
小圆锥齿轮轴 |
SMALL TAPER GEAR SHAFT |
1 |
2011-11_ |
|
14.2 |
GBT297-32311 |
圆锥滚子轴承 |
BEARING |
1 |
2011-11_ |
|
14.3 |
TF1004.382.2-02 |
小圆锥齿轮轴承座 |
SMALL TAPER GEAR BEARING SEAT |
1 |
2011-11_ |
|
14.4 |
GBT297-30310 |
圆锥滚子轴承 |
BEARING |
1 |
2011-11_ |
|
14.5 |
FT800.38.207 |
圆螺母 |
ROUND NUT |
2 |
2011-11_ |
|
14.6 |
GBT858-50 |
止动垫圈 |
WASHER |
1 |
2011-11_ |
|
15 |
TF1004.382-05 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
|
16 |
GBT93-12-A0P |
垫圈 |
WASHER |
4 |
2011-11_ |
|
17 |
GBT5783-M12X35-A3L |
螺栓 |
BOLT |
4 |
2011-11_ |
|
17 |
GBT5783-M12X35-A3L |
螺栓 |
BOLT |
4 |
2011-11_ |
|
2 |
TF1004.382-06 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
|
3 |
FT800.38.113 |
差速锁啮合套 |
DIFFERENTIAL LOCK SHIFT COLLAR |
1 |
2011-11_ |
|
4 |
TF1004.382-04 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
|
4 |
TF1004.382-04 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
|
5 |
TF1004.382-02 |
右轴承座 |
RIGHT BEARING SEAT |
1 |
2011-11_ |
|
6 |
FT800.38.123 |
压板 |
PRESSURE PLATE |
1 |
2011-11_ |
|
7 |
FT800.38.124 |
锁片 |
LOCK SHIM |
1 |
2011-11_ |
|
8 |
GBT93-10 |
垫圈10 |
WASHER 10 |
2 |
2011-11_ |
|
9 |
GBT5783-M10X25 |
螺栓 |
BOLT |
2 |
2011-11_ |
TF1004.382-2 38.2.2-后桥中央传动总成-2 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
TF1004.382.1 |
差速器总成 |
DIFFERENTIAL ASSEMBLY |
1 |
2011-11_ |
|
1 |
GBT297-32217 |
圆锥滚子轴承 |
BEARING |
1 |
2011-11_ |
|
10 |
FT800.38.215 |
行星齿轮轴 |
PLANET GEAR SHAFT |
1 |
2011-11_ |
|
11 |
FT800.38.216 |
行星齿轮垫片 |
PLANET GEAR WASHER |
4 |
2011-11_ |
|
12 |
FT800.38.217 |
行星齿轮 |
PLANETARY GEAR |
4 |
2004-01_ |
|
12 |
FT800.38.217a |
行星齿轮 |
PLANETARY GEAR |
4 |
2009-09_ |
|
13 |
FT800.38.131 |
短行星齿轮轴 |
SHORT PLANETARY GEAR SHAFT |
2 |
2011-11_ |
|
14 |
FT800.38.132 |
中心环 |
CENTRAL RING |
1 |
2011-11_ |
|
15 |
FT800.38.133 |
差速器盖 |
DIFFERENTIAL HOUSING |
1 |
2011-11_ |
|
16 |
FT800.38.218 |
锁片 |
LOCK SHIM |
4 |
2011-11_ |
|
17 |
GBT5783-M12X25-A3L |
六角头螺栓 |
BOLT |
8 |
2011-11_ |
|
18 |
GBT297-30216 |
圆锥滚子轴承 |
BEARING |
1 |
2011-11_ |
|
2 |
TF1004.382.1-01 |
差速器壳体 |
DIFFERENTIAL HOUSING |
1 |
2011-11_ |
|
3 |
TF1004.382.1-03 |
大圆椎齿轮 |
BIG BEVEL GEAR |
1 |
2011-11_ |
|
4 |
TF1004.382.1-04 |
大圆锥齿轮固定螺钉 |
LOCKING BOLT |
4 |
2011-11_ |
|
5 |
GBT6171-M14X1.5-A3L |
1型六角螺母 |
NUT |
8 |
2011-11_ |
|
6 |
FT800.38.213 |
锁片 |
LOCK SHIM |
4 |
2011-11_ |
|
7 |
TF1004.382.1-02 |
行星齿轮轴止动螺栓 |
PLANET GEAR SHAFT THRUST BOLT |
4 |
2011-11_ |
|
8 |
FT800.38.210 |
半轴齿轮垫片 |
HALF SHAFT GEAR WASHER |
2 |
2011-11_ |
|
9 |
FT800.38.130a |
半轴齿轮 |
HALF SHAFT GEAR |
2 |
2009-09_ |
|
9 |
FT800.38.130 |
半轴齿轮 |
HALF SHAFT GEAR |
2 |
2004-01_ |

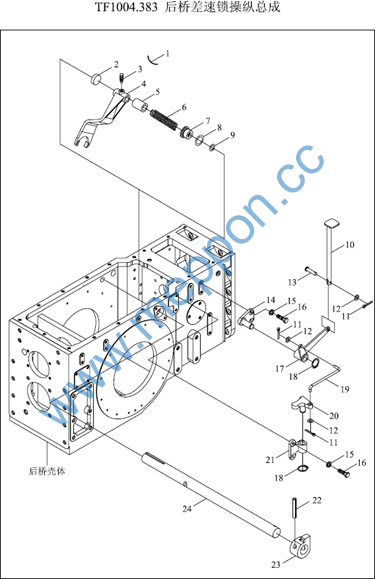

TF1004.383 38.3-后桥差速锁操纵总成 38.3-REAR AXLE DIFFERENTIAL LOCK CONTROL ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT343-SZ-F-1.4X270 |
镀锌钢丝 |
WIRE AS. |
1 |
2011-11_ |
|
10 |
TF1004.383.1 |
踏把焊合 |
PEDAL WELDMENT |
1 |
2011-11_ |
|
11 |
GBT91-3.2X22-A0P |
开口销 |
PIN |
3 |
2011-11_ |
|
12 |
GBT95-8-A0P |
平垫圈 |
WASHER |
3 |
2011-11_ |
|
13 |
GBT882-B8X24 |
销轴 |
PIN |
1 |
2011-11_ |
|
14 |
FT800A.38.252 |
转轴 |
ROTATING SHAFT |
1 |
2011-11_ |
|
15 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
4 |
2011-11_ |
|
16 |
GBT5783-M10X25-A3L |
螺栓 |
BOLT |
4 |
2011-11_ |
|
17 |
FT800A.38.016 |
摇臂焊合 |
ROCKER WELDMENT |
1 |
2011-11_ |
|
18 |
GBT894.1-20 |
挡圈20 |
BLCOKING RING |
2 |
2011-11_ |
|
19 |
TF1004.383-04 |
拉杆 |
PULL ROD |
1 |
2011-11_ |
|
2 |
Q722-20 |
碗形塞片 |
PLUG PIECE |
1 |
2011-11_ |
|
20 |
FT800A.38.250 |
拨块 |
SHIFTING BLOCK |
1 |
2011-11_ |
|
21 |
FT800A.38.251 |
安装座 |
FIX SEAT |
1 |
2011-11_ |
|
22 |
GBT879.1-8X40 |
弹性圆柱销 |
PIN |
1 |
2011-11_ |
|
23 |
FT800.38.109 |
拨块 |
SHIFTING BLOCK |
1 |
2011-11_ |
|
24 |
TF1004.383-01 |
差速锁拨叉轴 |
DIFFERENTIAL LOCK FORK SHAFT |
1 |
2011-11_ |
|
3 |
FT800.37.194 |
紧定螺钉 |
LOCKING SCREW |
1 |
2011-11_ |
|
4 |
TF1004.383-02 |
差速锁拨叉 |
DIFFERENTIAL LOCK FORK |
1 |
2011-11_ |
|
5 |
TF1004.383-03 |
隔套 |
SPACER BUSH |
1 |
2011-11_ |
|
6 |
FT800.38.112 |
差速锁弹簧 |
DIFFERENTIAL LOCK SPRING |
1 |
2011-11_ |
|
7 |
FT800A.38.259 |
套筒 |
SLEEVE |
1 |
2011-11_ |
|
7 |
FT800A.38.259 |
套筒 |
SLEEVE |
1 |
2011-11_ |
|
8 |
GBT3452.1-30X2.65G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |
|
9 |
GBT3452.1-20X2.65G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |

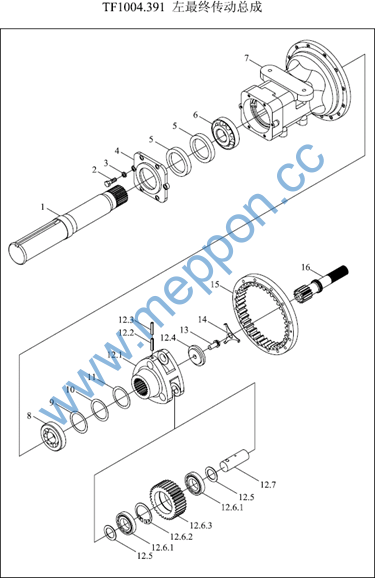

TF1004.391 39.1-左最终传动总成 39.1-LEFT FINAL TRANSMISSION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TF1004.391-02 |
驱动轴 |
DRIVING SHAFT |
1 |
2011-11_ |
|
10 |
TF1004.391-07 |
调整垫片 |
ADJUSTING WASHER |
999 |
2004-01_ |
|
10 |
TF1004.391-07A |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-01_ |
|
11 |
TF1004.391-08A |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-01_ |
|
11 |
TF1004.391-08 |
调整垫片 |
ADJUSTING WASHER |
999 |
2004-01_ |
|
12 |
TF1004.391.1 |
最终传动行星架总成 |
FINAL TRANSMISSION PLANET BRACKET |
1 |
2011-11_ |
|
12.1 |
TF1004.391.1-01 |
最终传动行星架 |
ASSEMBLY |
1 |
2011-11_ |
|
12.2 |
GBT879.1-8X35 |
弹性圆柱销 |
FINAL TRANSMISSION PLANET BRACKET |
3 |
2011-11_ |
|
12.3 |
GBT879.1-12X35 |
弹性圆柱销 |
PIN |
3 |
2011-11_ |
|
12.4 |
TF1004.391.1-03 |
最终传动行星架压板 |
PIN |
1 |
2004-01_ |
|
FINAL TRANSMISSION PLANET BRACKET |
|||||
|
12.4 |
TF1004.391.1-03a |
最终传动行星架压板 |
PRESSURE PLATE |
1 |
2011-01_ |
|
12.5 |
TF1004.391.1-04 |
最终传动行星轮轴承隔圈 |
6 |
2011-11_ |
|
|
12.6 |
TF1004.391.1.1 |
最终传动行星齿轮总成 |
FINAL TRANSMISSION PLANET BRACKET |
3 |
2011-11_ |
|
12.61 |
GBT283-NJ308E |
圆柱滚子轴承 |
PRESSURE PLATE |
2 |
2011-11_ |
|
12.62 |
GBT893.1-90 |
孔用挡圈 |
FINAL TRANSMISSION PLANET GEAR BEARING |
1 |
2011-11_ |
|
SPACING RING |
|||||
|
12.63 |
TF1004.391.1.1-01 |
最终传动行星齿轮 |
FINAL TRANSMISSION PLANET GEAR ASSEMBLY |
1 |
2011-11_ |
|
12.7 |
TF1004.391.1-02 |
最终传动行星齿轮轴 |
BEARING |
3 |
2011-11_ |
|
13 |
FT800.39.105a |
行星架固定螺栓 |
RETAINER RING FOR HOLE |
1 |
2007-10_ |
|
13 |
FT800.39.105 |
行星架固定螺栓 |
1 |
2004-01_ |
|
|
14 |
TF1004.391-05a |
驱动轴固定螺栓锁片 |
FINAL TRANSMISSION PLANET GEAR |
1 |
2007-10_ |
|
FINAL TRANSMISSION PLANET GEAR SHAFT |
|||||
|
14 |
TF1004.391-05 |
驱动轴固定螺栓锁片 |
PLANET CARRIER FIXING BOLT |
1 |
2004-01_ |
|
15 |
TF1004.391-04a |
最终传动齿圈 |
PLANET CARRIER FIXING BOLT |
1 |
2008-04_ |
|
15 |
TF1004.391-04 |
最终传动齿圈 |
DRIVING SHAFT FIXING BOLT LOCK PIECE |
1 |
2004-01_ |
|
15 |
TF1004.391-04a |
最终传动齿圈 |
1 |
2008-04_ |
|
|
16 |
TF1004.391-01 |
左半轴 |
DRIVING SHAFT FIXING BOLT LOCK PIECE |
1 |
2011-11_ |
TF1004.391 39.1-左最终传动总成(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
2 |
GBT5783-M14X40-A3L |
六角头螺栓 |
BOLT |
6 |
2011-11_ |
|
3 |
GBT93-14-A0P |
弹簧垫圈 |
SPRING WASHER |
6 |
2011-11_ |
|
3 |
GBT93-14-A0P |
弹簧垫圈 |
SPRING WASHER |
6 |
2011-11_ |
|
4 |
TF1004.391-09 |
半轴油封座 |
HALF SHAFT OIL SEAL SEAT |
1 |
2011-11_ |
|
5 |
GBT9877.1-FB110X140X12D |
内包骨架旋转轴唇形密封 |
O RING |
2 |
2011-11_ |
|
6 |
GBT297-30220 |
圆锥滚子轴承 |
BEARING |
1 |
2011-11_ |
|
7 |
TF1004.391-03 |
半轴壳体 |
HALF SHAFT HOUSING |
1 |
2004-01_ |
|
7 |
TF1004.391-03a |
半轴壳体 |
HALF SHAFT HOUSING |
1 |
2008-04_ |
|
8 |
GBT297-30218 |
圆锥滚子轴承 |
BEARING |
1 |
2011-11_ |
|
9 |
TF1004.391-06a |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-01_ |
|
9 |
TF1004.391-06 |
调整垫片 |
ADJUSTING WASHER |
999 |
2004-01_ |

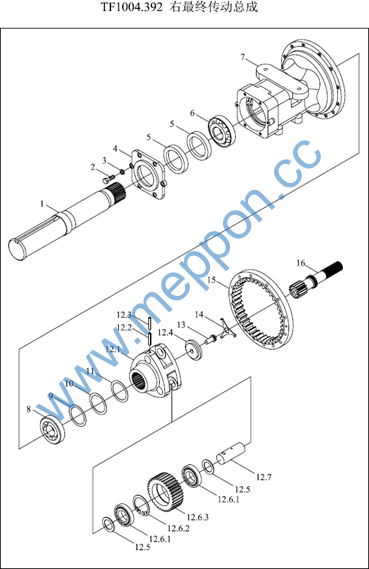

TF1004.392 39.2-右最终传动总成 39.2-RIGHT FINAL TRANSMISSION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TF1004.391-02 |
驱动轴 |
DRIVING SHAFT |
1 |
2011-11_ |
|
10 |
TF1004.391-07 |
调整垫片 |
ADJUSTING WASHER |
999 |
2004-01_ |
|
10 |
TF1004.391-07A |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-01_ |
|
11 |
TF1004.391-08 |
调整垫片 |
ADJUSTING WASHER |
999 |
2004-01_ |
|
11 |
TF1004.391-08A |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-01_ |
|
12 |
TF1004.391.1 |
最终传动行星架总成 |
FINAL TRANSMISSION PLANET BRACKET |
1 |
2011-11_ |
|
12.1 |
TF1004.391.1-01 |
最终传动行星架 |
ASSEMBLY |
1 |
2011-11_ |
|
12.2 |
GBT879.1-8X35 |
弹性圆柱销 |
FINAL TRANSMISSION PLANET BRACKET |
3 |
2011-11_ |
|
12.3 |
GBT879.1-12X35 |
弹性圆柱销 |
PIN |
3 |
2011-11_ |
|
12.4 |
TF1004.391.1-03 |
最终传动行星架压板 |
PIN |
1 |
2004-01_ |
|
FINAL TRANSMISSION PLANET BRACKET |
|||||
|
12.4 |
TF1004.391.1-03a |
最终传动行星架压板 |
PRESSURE PLATE |
1 |
2011-01_ |
|
12.5 |
TF1004.391.1-04 |
最终传动行星轮轴承隔圈 |
6 |
2011-11_ |
|
|
12.6 |
TF1004.391.1.1 |
最终传动行星齿轮总成 |
FINAL TRANSMISSION PLANET BRACKET |
3 |
2011-11_ |
|
12.61 |
GBT283-NJ308E |
圆柱滚子轴承 |
PRESSURE PLATE |
2 |
2011-11_ |
|
12.62 |
GBT893.1-90 |
孔用挡圈 |
FINAL TRANSMISSION PLANET GEAR BEARING |
1 |
2011-11_ |
|
SPACING RING |
|||||
|
12.63 |
TF1004.391.1.1-01 |
最终传动行星齿轮 |
FINAL TRANSMISSION PLANET GEAR ASSEMBLY |
1 |
2011-11_ |
|
12.7 |
TF1004.391.1-02 |
最终传动行星齿轮轴 |
BEARING |
3 |
2011-11_ |
|
13 |
FT800.39.105 |
行星架固定螺栓 |
RETAINER RING FOR HOLE |
1 |
2004-01_ |
|
14 |
TF1004.391-05 |
驱动轴固定螺栓锁片 |
1 |
2004-01_ |
|
|
15 |
TF1004.391-04a |
最终传动齿圈 |
FINAL TRANSMISSION PLANET GEAR |
1 |
2008-04_ |
|
FINAL TRANSMISSION PLANET GEAR SHAFT |
|||||
|
15 |
TF1004.391-04a |
最终传动齿圈 |
PLANET CARRIER FIXING BOLT |
1 |
2008-04_ |
|
15 |
TF1004.391-04 |
最终传动齿圈 |
DRIVING SHAFT FIXING BOLT LOCK PIECE |
1 |
2004-01_ |
|
16 |
TF1004.392-01 |
右半轴 |
FINAL TRANSMISSION GEAR RING |
1 |
2011-11_ |
|
2 |
GBT5783-M14X40-A3L |
六角头螺栓 |
6 |
2011-11_ |
|
|
3 |
GBT93-14-A0P |
弹簧垫圈 |
FINAL TRANSMISSION GEAR RING |
6 |
2011-11_ |
TF1004.392 39.2-右最终传动总成(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
3 |
GBT93-14-A0P |
弹簧垫圈 |
SPRING WASHER |
6 |
2011-11_ |
|
4 |
TF1004.391-09 |
半轴油封座 |
HALF SHAFT OIL SEAL SEAT |
1 |
2011-11_ |
|
5 |
GBT9877.1-FB110X140X12D |
内包骨架旋转轴唇形密封 |
O RING |
2 |
2011-11_ |
|
6 |
GBT297-30220 |
圆锥滚子轴承 |
BEARING |
1 |
2011-11_ |
|
7 |
TF1004.391-03 |
半轴壳体 |
HALF SHAFT HOUSING |
1 |
2004-01_ |
|
7 |
TF1004.391-03a |
半轴壳体 |
HALF SHAFT HOUSING |
1 |
2008-04_ |
|
8 |
GBT297-30218 |
圆锥滚子轴承 |
BEARING |
1 |
2011-11_ |
|
9 |
TF1004.391-06 |
调整垫片 |
ADJUSTING WASHER |
999 |
2004-01_ |
|
9 |
TF1004.391-06a |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-01_ |
TF1204.40-1 40.1-全液压转向总成-1 40FULL HYDRAULIC STEERING ASSEMBLY-1
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
JBT982-20 |
组合密封垫圈 |
COMBINED SEAL GASKET |
2 |
2011-11_ |
|
10 |
GBT5783-M8X40-8.8-A2L |
六角头螺栓 |
BOLT |
2 |
2011-11_ |
|
11 |
GBT93-8-A0P |
垫圈 |
WASHER |
5 |
2011-11_ |
|
12 |
TG1204.402E-03 |
双孔管夹 |
DOUBLE-HOLE PIPE CLIP |
4 |
2011-11_ |
|
13 |
GBT5783-M8X30-8.8-A2L |
六角头螺栓 |
BOLT |
3 |
2011-11_ |
|
14 |
TF1204.40-09 |
挡板 |
RETAINER PLATE |
1 |
2012-03_ |
|
14 |
FT800A.40L.107 |
垫板 |
PAD BOARD |
1 |
2011-11_ |
|
15 |
TF1204.40-08 |
减震垫 |
SHOCK ABSORBER |
1 |
2012-03_ |
|
15 |
TF1004.40A-08 |
减震垫 |
SHOCK ABSORBER |
1 |
2011-11_ |
|
16 |
GBT6170-M8-8-A2L |
Ⅰ型六角螺母 |
I-TYPE HEXAGON NUT |
3 |
2011-11_ |
|
17 |
FT804A.40L.011 |
转向器及方向盘总成 |
REDIRECTOR AND STEERING WHEEL ASSEMBLY |
1 |
2011-11_ |
|
17.1 |
FT800A.40L.050 |
转向盘总成 |
STEERING WHEEL ASSEMBLY |
1 |
2011-11_ |
|
17.2 |
GBT97.1-16-A0P |
垫圈 |
WASHER |
1 |
2011-11_ |
|
17.3 |
FT650.40.014 |
喇叭电刷座总成 |
HORN BRUSH SEAT ASSEMBLY |
1 |
2011-11_ |
|
17.4 |
FT800A.40L.034 |
转向管柱总成 |
STEERING PIPE COLUMN ASSEMBLY |
1 |
2011-11_ |
|
17.5 |
GBT5783-M10X25-8.8-A3L |
六角头螺栓 |
BOLT |
4 |
2011-11_ |
|
17.6 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
4 |
2011-11_ |
|
17.7 |
FT804.40L.032 |
转向器及阀块总成 |
REDIRECTOR AND VALVE BLOCK ASSEMBLY |
1 |
2011-11_ |
|
18 |
TF1204.40.5 |
油管支架焊合 |
OIL PIPE BRACKET WELDMENT |
1 |
2011-11_ |
|
19 |
GBT93-10 |
垫圈10 |
WASHER 10 |
1 |
2011-11_ |
|
2 |
TF1004.40A-07 |
卡套式端直通接头体 |
STRAIGHT PIPE JOINT BODY |
2 |
2011-11_ |
|
20 |
GBT5783-M10X20-8.8-A3L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
20 |
GBT5783-M10X20-8.8-A3L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
3 |
TF1204.40.7 |
左转向出油管焊合 |
LEFT STEERING OIL OUTLET PIPE WELDMENT |
1 |
2011-11_ |
|
4 |
TF1204.40.6 |
右转向出油管焊合 |
RIGHT STEERING OIL OUTLET PIPE WELDMENT |
1 |
2011-11_ |
