LOVOL TF1254-F153F1K Tractor Parts Catalogue 11

Meppon Parts Posted on by

TF1004.34 34-后驱动轮总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

5

6

7

8



9

GBT119.1-8h8X22-A0P FT800.34C.105 TF1004.34-01 TF1004.34-02 FT800.34C.106



GBT6176-M20X1.5-LH-A3L

圆柱销平键

轮毂（一）轮毂（二）平键



2型六角螺母

PIN

FLAT KEY HUB (1)

HUB (2) FLAT KEY



HEXAGON NUT, TYPE-2

2

2

2

2

2



8

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_







TF1004.34C 34-后驱动轮总成 34-REAR DRIVE WHEEL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1.1

GBT1192-18.4-34-10PR-R

后轮外胎

COVER TIRE

1



1.2

GBT1192-18.4-34-R

内胎

INNER TUBE

1

1.31

TF1004.34.1.1-01

轮辋螺栓

RIM BOLT

8

1.35

GBT6171-M16X1.5-10-LH-A3L

1型六角螺母

NUT

8

1.35

GBT6171-M16X1.5-10-LH-A3L

1型六角螺母

NUT

8

10

FT800.39.130

垫圈

WASHER

16

11

FT800.34C.103a

后轮毂安装座

REAR HUB INSTALLATION SEAT

2

12

FT800.39.101c

驱动轮固定螺栓

DRIVING WHEEL FIXING BOLT

8

13.31

GBT6171-M16X1.5-10-A2L

1型六角螺母

NUT

8

13.32

FT800.34.108

平垫圈

WASHER

8

13.34

FT804.34C.101

辐板

SPOKE PLATE

1

13.35

FT804.34.107

轮辋螺栓

RIM BOLT

8

14

FT800.39.101d

驱动轮固定螺栓

DRIVING WHEEL FIXING BOLT

8

15

GBT6176-M20X1.5-A3L

2型六角螺母

HEXAGON NUT, TYPE-2

8

2

GBT5782-M18X1.5X70-10.9-A3L

六角头螺栓

BOLT

12

3

FT804.31B.120

垫圈

WASHER

12

4

GBT119.1-8h8X22-A0P

圆柱销

PIN

2

5

FT800.34C.105

平键

FLAT KEY

2

6

TF1004.34-01

轮毂（一）

HUB (1)

2

7

TF1004.34-02

轮毂（二）

HUB (2)

2

8

FT800.34C.106

平键

FLAT KEY

2

9

GBT6176-M20X1.5-LH-A3L

2型六角螺母

HEXAGON NUT, TYPE-2

8

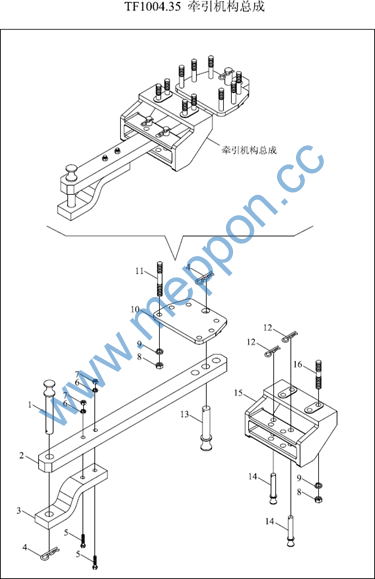

TF1004.35 35-牵引机构总成 35-TOWING MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TG1204.35-05

牵引销

HITCH PIN

1

2011-11_

10

TG1204.35.1

下拉杆支座底板焊合

LOWER LINK SEAT BOTTOM PLATE

1

2011-11_

11

GBT899-M20X120-A3L

双头螺柱

8.8-A3L STUD

6

2011-11_

12

FT65.35.103

弹性锁销

SPRING LOCK PIN

2

2011-11_

12

FT65.35.103

弹性锁销

SPRING LOCK PIN

2

2011-11_

13

TG1204.35-01

摆销

SWING PIN

1

2011-11_

14

TG1204.35-03

限位销

LIMITING PIN

2

2011-11_

15

TF1004.35-01

牵引架

TRACTION FRAME

1

2011-11_

16

GBT899-M20X50-A9L

双头螺柱

8.8-A3L STUD

4

2011-11_

16

GBT899-M20X50-A9L

双头螺柱

8.8-A3L STUD

4

2011-11_

16

GBT899-M20X55-8.8-A9L

双头螺柱

8.8-A3L STUD

4

2011-11_

2

TF1004.35-02

摆杆

UPPER PART U-HOOK

1

2011-11_

2

TF1004.35-02

摆杆

UPPER PART U-HOOK

1

2011-11_

3

TG1204.35-04

连接摆杆

CONNECTING SWING ROD

1

2011-11_

4

FT800.35.112

弹性锁销

SPRING LOCK PIN

2

2011-11_

4

FT800.56.115

弹簧锁销Ⅱ

SPRING LOCKING PIN II

2

2011-07_

5

GBT5782-M16X110-A2L

六角头螺栓

BOLT

2

2011-11_

6

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

2

2011-11_

7

GBT6170-M16-A3L

螺母 M16-A3L

NUT

2

2011-11_

8

GBT6170-M20-A3L

螺母

NUT

10

2011-11_

9

GBT93-20-A0P

垫圈

WASHER

10

2011-11_

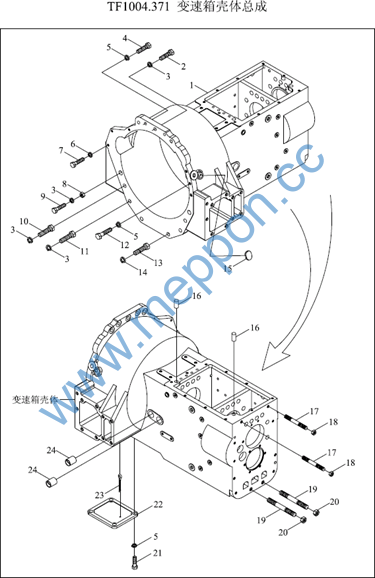

TF1004.371 37.1-变速箱壳体总成 37.1-GEARBOX HOUSING ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TF1004.371-01

变速箱壳体

GEAR BOX

1

2011-11_

10

GBT5783-M16X50-10.9-A3L

六角头螺栓

BOLT

2

2011-11_

11

GBT5783-M16X45-10.9-A3L

六角头螺栓

BOLT

2

2011-11_

12

GBT5783-M12X40-A3L

螺栓

BOLT

4

2011-11_

13

TF1004.371-03

专用螺栓

SPECIAL BOLT

2

2011-11_

14

GBT93-18-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

15

FT800.37.316

橡胶塞

RUBBER RING

1

2011-11_

16

GBT119.1-16m6X28-A0P

圆柱销

PIN

2

2011-11_

17

GBT899-AM12-M12X1.5X40-10.9-A3L

双头螺柱

8.8-A3L STUD

10

2011-11_

18

SPL-6177.2-M12X1.5-10-F3

六角法兰面螺母

NUT

10

2011-11_

19

GBT899-AM16-M16X1.5X45-10.9-A3L

双头螺柱

8.8-A3L STUD

2

2011-11_

2

GBT5783-M16X40-10.9-A3L

六角头螺栓

BOLT

1

2011-11_

20

SPL-6177.2-M16X1.5-10-F3

六角法兰面螺母

NUT

2

2011-11_

21

GBT5783-M12X30-A3L

螺栓

BOLT

4

2011-11_

22

FT800A.37.181

检视窗盖

INSPECTION WINDOW COVER

1

2011-11_

23

GBT91-5X25-A0P

开口销

PIN

1

2011-11_

24

FT800.37.198

分离叉轴衬套

RELEASE FORK SHAFT BUSH

4

2011-11_

3

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

7

2011-11_

4

GBT5782-M12x60-A2L

螺栓

BOLT

2

2004-01_

5

GBT93-12-A0P

垫圈

WASHER

10

2011-11_

6

GBT93-10-A0P

标准型弹簧垫圈

WASHER

1

2011-11_

7

GBT5782-M10X55-A2L

六角头螺栓

BOLT

1

2011-11_

8

GBT6170-M16-10-A3L

螺母

NUT

2

2011-11_

9

GBT5782-M16X90-10.9-A2L

六角头螺栓

BOLT

2

2011-11_

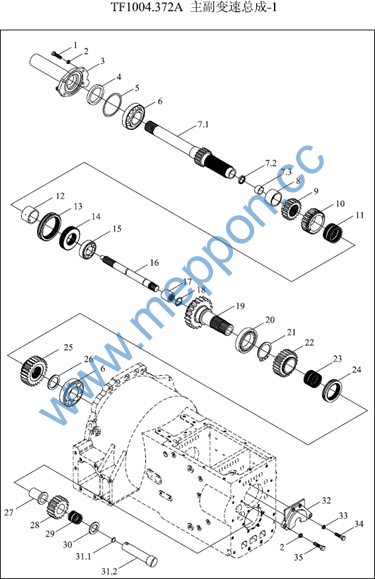

TF1004.372A-1 37.2.1-主副变速总成-1 MAIN/ASSISTANT GEAR ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X25-A3L

螺栓

BOLT

4

2011-11_

10

TF1004.372-02

Ⅲ档主动齿轮

Ⅲ DRIVING GEAR

1

2011-11_

11

TF1004.372-26

轴承

BEARING

1

2011-11_

11

TF1004.372-26

轴承

BEARING

1

2011-11_

12

FT800.37.117C

衬套

SLEEVE

1

2004-01_

13

FT800.37.118

Ⅲ-Ⅳ档啮合套

Ⅲ-Ⅳ SHIFT COLLAR

1

2011-11_

14

FT800.37.119

Ⅲ-Ⅳ档啮合齿座

Ⅲ-Ⅳ ENGAGING GEAR SEAT

1

2011-11_

15

GBT297-32209

圆锥滚子轴承

BEARING

1

2011-11_

15

GBT297-32209

圆锥滚子轴承

BEARING

1

2011-11_

16

FT800.37C.104

动力输出前段轴

PTO FRONT SHAFT

1

2011-11_

17

FT800.37.106

动力输出轴连接套

PTO SHAFT CONNECTING SLEEVE

1

2011-11_

18

GBT893.1-28

挡圈

RETAINER RING

1

2011-11_

19

TF1004.372A-01

梭式换档中间轴

SHUTTLE SHIFT MIDDLE SHAFT

1

2011-11_

2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

6

2011-11_

20

TD800A.372F-16

轴承

BEARING

1

2011-11_

20

TD800A.372F-16

轴承

BEARING

1

2011-11_

21

GBT894.1-70

轴用弹性挡圈

SNAP RING

1

2011-11_

22

TF1004.372-04a

副变速低档主动齿轮

AUXILIARY LOW DRIVING GEAR

1

2011-11_

23

TF1004.372-25

轴承

BEARING

1

2011-11_

24

TD800A.372F-05

副变速低档啮合套

AUXILIARY LOW GEAR SHIFT COLLAR

1

2011-11_

25

TF1004.372-05

梭式换档主动齿轮

SHUTTLE SHIFT DRIVING GEAR

1

2011-11_

26

TF1004.372-19

隔套

SPACER BUSH

1

2011-11_

27

TF1004.372-29

惰轮隔套

IDLER SHAFT SPACER BUSH

1

2011-11_

27

TF1004.372-29

惰轮隔套

IDLER SHAFT SPACER BUSH

1

2011-11_

28

TF1004.372-18

惰轮

IDLER

1

2011-11_








TF1004.372A-1 37.2.1-主副变速总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

29

TF1004.372-27

轴承

BEARING

1

2011-11_

3

TF1004.372-24

输入轴轴承座

INPUT SHAFT BEARING SEAT

1

2011-11_

30

FT800.37D.233

档圈

RETAINER RING

1

2011-11_

31

TF1004.372.2

惰轮轴总成

IDLER SHAFT ASSEMBLY

1

2010-12_

31

FT800.37D.023

惰轮轴总成

IDLER SHAFT ASSEMBLY

1

2004-01_

31.1

QCT387-14

塞片

PLUG PIECE

1

2011-11_

31.2

FT800.37D.136

惰轮轴

IDLER SHAFT

1

2011-11_

32

TF1004.372-06

轴承压盖

BEARING PRESSURE COVER

1

2011-11_

33

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

34

GBT5783-M8X30-A2L

螺栓

BOLT

2

2011-11_

35

GBT5783-M10X30-A3L

螺栓

BOLT

2

2011-11_

4

GBT9877.1-FB50X72X8F

内包骨架旋转轴唇形密封

O RING

1

2011-11_

5

TF1004.372-30

调整垫片

ADJUSTING WASHER

9999

2011-11_

6

GBT297-30310

圆锥滚子轴承

BEARING

2

2011-11_

7

TF1004.372.1

输入轴总成

INPUT SHAFT ASSEMBLY

1

2011-11_

7.1

TF1004.372.1-01

输入轴

INPUT SHAFT

1

2011-11_

7.2

FT800.37.113

输入轴油封

INPUT SHAFT OIL SEAL

1

2011-11_

7.3

FT800.37.112

输入轴衬套

INPUT SHAFT LINING

1

2011-11_

8

TF1004.372-23

输入轴隔套

SPACER BUSH OF INPUT SHAFT

1

2011-11_

9

TF1004.372-01

Ⅱ档主动齿轮

Ⅱ DRIVING GEAR

1

2011-11_

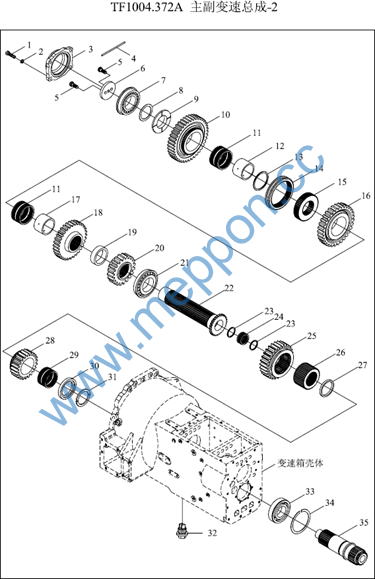

TF1004.372A-2 37.2.2-主副变速总成-2 MAIN/ASSISTANT GEAR ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X25-A3L

螺栓

BOLT

4

2011-11_

10

TF1004.372-14

Ⅰ档从动齿轮

I DRIVEN GEAR

1

2011-11_

11

TF1004.372-26

轴承

BEARING

2

2011-11_

11

TF1004.372-26

轴承

BEARING

2

2011-11_

12

FT800.37.123C

衬套

SLEEVE

1

2004-01_

13

FT800.37.209C

隔套二

SPACER BUSH 2

1

2004-01_

14

FT800.37.118

Ⅲ-Ⅳ档啮合套

Ⅲ-Ⅳ SHIFT COLLAR

1

2011-11_

15

FT800.37.119

Ⅲ-Ⅳ档啮合齿座

Ⅲ-Ⅳ ENGAGING GEAR SEAT

1

2011-11_

16

TF1004.372-13

Ⅱ档从动齿轮

Ⅱ DRIVEN GEAR

1

2011-11_

17

FT800.37.117C

衬套

SLEEVE

1

2004-01_

18

TF1004.372-12

Ⅲ档从动齿轮

Ⅲ DRIVEN GEAR

1

2011-11_

19

TF1004.372-32

中间轴隔套

MIDDLE SHAFT SPACER BUSH

1

2011-11_

2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

20

TF1004.372A-02

Ⅳ档从动齿轮

Ⅳ DRIVEN GEAR

1

2011-11_

21

TF1004.372-09

圆锥滚子轴承

BEARING

1

2011-11_

22

TF1004.372-11

中间轴

MIDDLE SHAFT

1

2011-11_

22

TF1004.372-11

中间轴

MIDDLE SHAFT

1

2011-11_

23

FT800.37.175

滚针轴承隔圈

NEEDLE BEARING SPACER RING

2

2011-11_

24

TF1004.372-28

轴承

BEARING

1

2011-11_

25

TF1004.372-08a

梭式换档啮合套

SHUTTLE SHIFT SHIFT COLLAR

1

2011-11_

26

TD800A.372F-10

梭式换档啮合齿座

SHUTTLE SHIFT SHIFT GEAR SEAT

1

2011-11_

27

TF1004.372-22

隔套

SPACER BUSH

1

2011-11_

28

TF1004.372-07

梭式换档从动齿轮

SHUTTLE SHIFT DRIVEN GEAR

1

2011-11_

29

JBT7918-K55X65X40-ZW

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

3

TF1004.372-17

中间轴端盖

MIDDLE SHAFT END COVER

1

2011-11_








TF1004.372A-2 37.2.2-主副变速总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

FT800.37D.190

止推环挡圈

THRUST RETAINER RING

1

2011-11_

31

FT800.37D.236

止推环

PLATE;THRUST

1

2011-11_

32

FT65.38.026

油塞总成

Oil Plug assembly

1

2011-11_

32

FT65.38.026

油塞总成

Oil Plug assembly

1

2011-11_

33

GBT276-6211N

深沟球轴承

BEARING

1

2011-11_

34

GBT305-100/106.5

止动环

THRUST RING

1

2011-11_

35

TF1004.372A-04a

输出轴

OUTPUT SHAFT

1

2013-09_

35

TD800A.372F-08

输出轴

OUTPUT SHAFT

1

2011-11_

4

TF1004.374-02

低碳钢丝

LOW CARBON STEEL WIRE

1

2011-11_

5

TF1004.372-20

螺栓

BOLT

2

2011-11_

6

TF1004.372-21

挡圈

RETAINER RING

1

2011-11_

7

TF1004.372-16

轴承

BEARING

1

2011-11_

8

TF1004.372-31

调整垫片

ADJUSTING WASHER

9999

2011-11_

9

TF1004.372-15

中间轴止推环

MIDDLE SHAFT THRUST RING

1

2011-11_



Comments are closed.

↑
