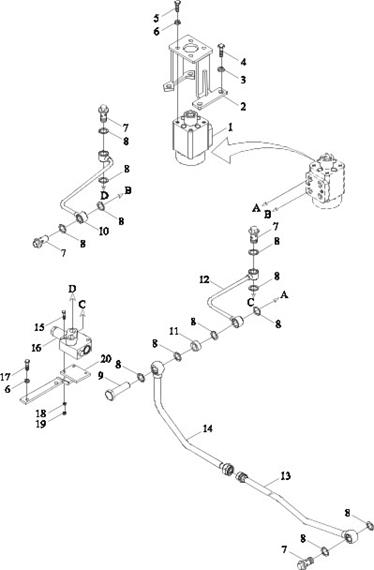

No.

Part No.

Description

Version

QTY.

Remark

TE304.402C

STEERING PIPE ASSEMBLY

1

1

FT254.40.028

HYDRAULIC STEERING MECHANISM ASSEMBLY

1

2

TE254.402A.6

REDIRECTOR BRACKET WELDMENT

1

3

GBT93-14-A0P

STANDARD SPRING WASHER

4

4

GBT5783-M14X35-8.8-A3L

HEXAGON BOLT

4

5

GBT5783-M10X30-8.8-A3L

HEXAGON BOLT

4

6

GBT93-10-A0P

STANDARD SPRING WASHER

6

7

FT254.40.102

HOLLOW BOLT

4

8

JBT982-20

COMBINED SEAL GASKET

14

9

FT254.40.106

HOLLOW BOLT

1

10

TE250.402A.2

REDIRECTOR OIL INLET STEEL PIPE ASSEMBLY

1

11

FT254.40.127

SPACER BUSH

1

12

TE250.402A.1

DIVERTER VALVE OIL RETURN STEEL PIPE ASSEMBLY

1

13

TE304.402.7a

OIL RETURN PIPE ASSEMBLY

1

14

TE250.402A.9a

OIL RETURN STEEL PIPE ASSEMBLY

1

15

GBT5782-M8X55-8.8-A2L

HEXAGON BOLT

3

16

FT254.40.030

SINGLE-WAY STABILIZER DIVERTER VALVE

1

17

GBT5783-M10X25-8.8-A3L

HEXAGON BOLT

2

18

GBT93-8-A0P

STANDARD SPRING WASHER

3

19

GBT6170-M8-8-A2L

HEXAGON NUT, TYPE-1

3

20

TE254.402A.7

DIVERTER VALVE BRACKET WELDMENT

1

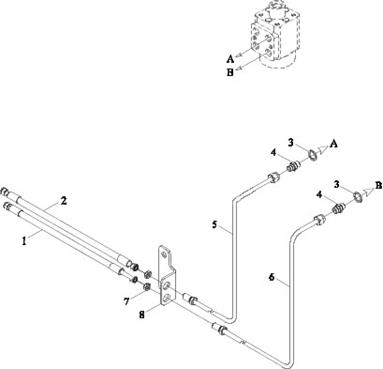

No.

Part No.

Description

Version

QTY.

Remark

TE304.402C(2)

STEERING PIPE ASSEMBLY

1

1

TE304.402F.3

HIGH PRESSURE LEFT OIL HOSE ASSEMBLY

1

2

TD950.402A.6

OIL CYLINDER HOSE ASSEMBLY L10-565

1

3

JBT982-20(2)

COMBINED SEAL GASKET

14

4

TE250.402A-05

JOINT BODY

2

5

TE304.402C.5

LEFT STEEL OIL PIPE ASSEMBLY

1

6

TE304.402C.6

RIGHT OIL STEEL PIPE ASSEMBLY

1

7

GBT6173-M16X1.5-05-A3L

HEXAGON THIN NUT

2

8

TE254.402F-01

OIL PIPE BRACKET1

1

No.

Part No.

Description

Version

QTY.

Remark

TL01403010000K

STEERING PIPE COLUMN ASSEMBLY

003

1

1

TE250.403B.2

STEERING COLUMN UNIT

1

2

FT220.40.301

STEERING ROD SLEEVE

1

3

TL01403010001K

HORN BRUSH SEAT ASSEMBLY

1
