TE250.403B 40.3-转向管柱总成 40.3-STEERING PIPE COLUMN ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6173-M16X1.5-A3L

六角薄螺母

NUT

1

2011-11_

10

TE250.403B.1

转向套筒焊合

STEERING SLEEVE WELDMENT

1

2011-11_

11

FT254.40.114

隔套

SPACER BUSH

1

2011-11_

2

TE250.403B-01

转向杆

STEERING ROD

1

2011-11_

3

FT650.40.014

喇叭电刷座总成

HORN BRUSH SEAT ASSEMBLY

1

2011-11_

4

FT220.40.301

转向杆护套

STEERING ROD SLEEVE

1

2011-11_

5

FT650.40.172

轴承挡圈

BEARING RETAINER RING

1

2011-11_

6

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

7

GBT276-61804-2LS

轴承

BEARING

1

2011-11_

8

FT650.40.173

轴承挡圈2

BEARING RETAINER RING 2

1

2011-11_

9

GBT893.1-32

档圈

RETAINER RING

1

2011-11_








TE250.411B 41.1-双动力输出总成 DOUBLE POWER OUTPUT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TE250.411B-04

止推片挡环

THRUST WASHER RETAINER RING

999

2011-11_

0

TE250.411B-03

止推片挡环

THRUST WASHER RETAINER RING

999

2011-11_

1

TE250.411B-02

止推片挡环

THRUST WASHER RETAINER RING

999

2011-11_

10

TE250.411C-02

动力输出轴护罩

PTO SHAFT HOOD

1

2004-01_

10

TB550.412-02

动力输出轴护罩

PTO SHAFT HOOD

1

2010-09_

2

FT250.41.131

止推片

THRUST SHIM

1

2011-11_

3

GBT276-6207

轴承

BEARING

1

2011-11_

4

TE250.411B-01

动力输出轴

PTO SHAFT

1

2011-11_

5

GBT9877.1-B35X55X8F

内包骨架旋转轴唇形密封

O RING

2

2004-01_

5

GBT9877.1-FB35X55X8F

内包骨架旋转轴唇形密封

O RING

2

2010-07_

6

FT250.41.133

垫片

WASHER

1

2011-11_

7

FT250.41.104

动力输出轴轴承盖

PTO SHAFT BEARING COVER

1

2011-11_

8

GBT93-10-A0P

标准型弹簧垫圈

WASHER

3

2011-11_

9

GBT5783-M10X25-A3L

螺栓

BOLT

3

2011-03_








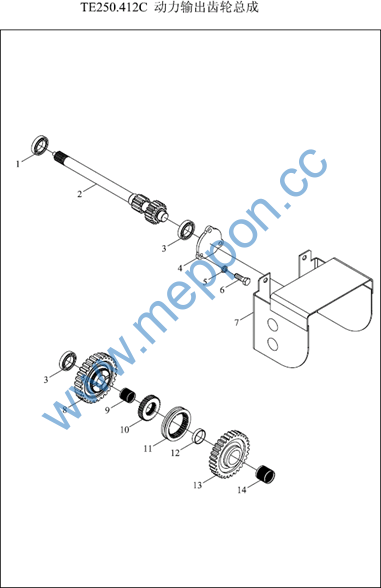

TE250.412C 41.2-动力输出齿轮总成 41.2-PTO GEAR ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT276-6206

深沟球轴承

BEARING

1

2011-11_

10

TE250.412B-06

动力输出啮合座

PTO MESHING SEAT

1

2011-11_

11

TE250.412B-03

动力输出啮合套

PTO SHIFT COLLAR

1

2011-11_

12

TE250.412B-04

隔套

SPACER BUSH

1

2011-11_

13

TE250.412C-02

动力输出从动齿轮

PTO DRIVEN GEAR

1

2011-11_

2

TE250.412C-01

动力输出传动轴

PTO TRANSMISSION SHAFT

1

2011-11_

3

GBT276-6305

轴承

BEARING

2

2011-11_

4

FT250.41.103

传动轴轴承盖

TRANSMISSION SHAFT BEARING COVER

1

2011-11_

5

GBT93-10-A0P

标准型弹簧垫圈

WASHER

3

2011-11_

6

GBT5783-M10X25-A3L

螺栓

BOLT

3

2011-11_

7

FT250.41.018a

动力输出防护罩焊合

PTO BONNET WELDMENT

1

2011-11_

8

TE250.412B-02

动力输出从动齿轮

PTO DRIVEN GEAR

1

2011-11_

9

TE250.412B-07

滚针轴承

NEEDLE BEARINGS

1

2011-11_








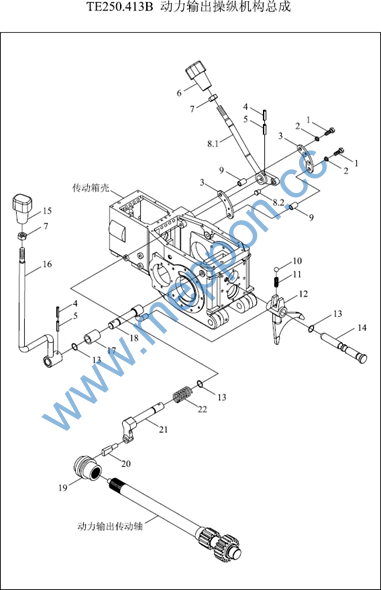

TE250.413B 41.3-动力输出操纵机构总成 41.3-PTO CONTROL MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5781-M8X35-A2L

六角头螺栓

BOLT

2

2011-11_

10

GBT308-8.731-G200-b

钢球

BALL

1

2004-01_

11

FT250.37.148

拨叉轴锁定弹簧

FORK SHAFT LOCKING SPRING

1

2011-11_

11

FT250.37.148

拨叉轴锁定弹簧

FORK SHAFT LOCKING SPRING

1

2011-11_

12

TE250.413B-02

动力输出换档拨叉

PTO GEARSHIFT FORK

1

2011-11_

12

TE250.413B-02

动力输出换档拨叉

PTO GEARSHIFT FORK

1

2011-11_

13

GBT3452.1-11.8X1.80G

液压气动用O形橡胶密封圈

O-SEAL RING

3

2011-11_

14

TE250.413B-01

动力输出换档拨叉轴

PTO GEARSHIFT FORK SHAFT

1

2011-11_

15

FT250.41.016

动力输出换档手柄

PTO GEARSHIFT HANDLE

1

2011-11_

16

FT250.41.014

动力输出换档操纵杆焊合

PTO GEARSHIFT CONTROL ROD WELDMENT

1

2011-11_

17

TE300.413-04

隔套

SPACER BUSH

1

2011-11_

18

FT250.41.013

动力输出换档拨杆总成

PTO GEARSHIFT DIAL ROD ASSEMBLY

1

2011-11_

19

FT250.41.101

花键套

SPLINE BUSH

1

2011-11_

2

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

20

FT250.41.109

动力输出轴拨叉头

PTO SHAFT FORK HEAD

1

2011-11_

21

FT250.41.110

动力输出拨叉轴

PTO FORK SHAFT

1

2011-11_

22

FT250.41.114

分离杆弹簧

RELEASE ROD SPRING

1

2011-11_

22

FT250.41.114

分离杆弹簧

RELEASE ROD SPRING

1

2011-11_

3

FT250.41.112

分离杆定位片

RELEASE ROD FIXING PIECE

2

2011-11_

4

GBT879.1-3X24

弹性圆柱销

PIN

2

2011-11_

5

GBT879.1-5X24

弹性圆柱销

PIN

2

2011-11_

6

FT250.41.011

动力输出分离操纵手柄

PTO RELEASE CONTROL HANDLE

1

2011-11_

7

GBT6170-M10-A3L

螺母

NUT

2

2011-11_

8

FT250.41.012

分离杆及销总成

RELEASE ROD AND PIN ASSEMBLY

1

2011-11_

8.1

FT250.41.017

分离杆总成

RELEASE ROD ASSEMBLY

1

2011-11_








TE250.413B 41.3-动力输出操纵机构总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8.1

8.2

9

FT250.41.017 FT250.41.128 FT250.41.111

分离杆总成限位销

隔套

RELEASE ROD ASSEMBLY LIMITING PIN

SPACER BUSH

1

1

2

2011-11_

2011-11_

2011-11_








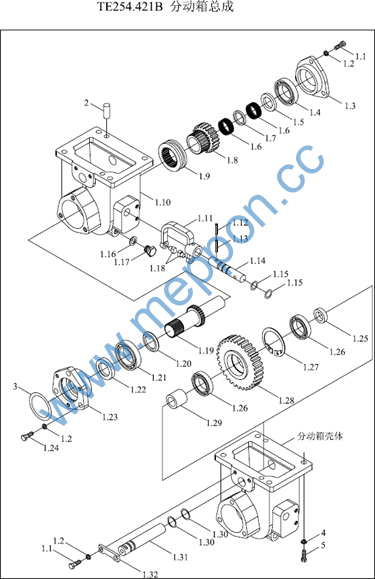

TE254.421B 42.1-分动箱总成 42.1-TRANSFER CASE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE254.421B.1

分动箱箱体总成

TRANSFER CASE HOUSING ASSEMBLY

1

2011-11_

1.1

TE254.421A.1-01

分动箱壳体

TRANSFER CASE HOUSING

1

2011-11_

1.1

GBT5783-M10X20-A3L

螺栓

BOLT

5

2011-11_

1.11

TE254.421A.1-02

分动箱拨叉

TRANSFER CASE FORK

1

2011-11_

1.12

GBT879.1-6X24

弹性圆柱销

PIN

1

2011-11_

1.13

GBT879.1-3.5X24

弹性圆柱销

PIN

1

2011-11_

1.14

TE254.421A.1-03

分动箱拨叉轴

TRANSFER CASE FORK SHAFT

1

2011-11_

1.15

GBT3452.1-12.5X1.80G

液压气动用O形橡胶密封圈

O-SEAL RING

2

2011-11_

1.16

JBT982-12

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

1.17

Q617B12

六角头螺塞

SCREW PLUG

1

2011-11_

1.18

FT254.42.121

分动箱拨叉头

TRANSFER CASE FORK HEAD

2

2011-11_

1.19

FT254.42.102

输出轴

OUTPUT SHAFT

1

2011-11_

1.2

FT254.42.109

输出轴前止推环

OUTPUT SHAFT FRONT THRUST RING

1

2011-11_

1.2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

8

2011-11_

1.21

GBT276-6206

深沟球轴承

BEARING

1

2011-11_

1.22

TE254.421.1.1

油封

OIL SEAL

1

2011-11_

1.22

TE254.421.1.1

油封

OIL SEAL

1

2011-11_

1.23

TE254.421A.1-09

前轴承盖

FRONT BEARING COVER

1

2011-11_

1.24

GBT5783-M10X30-A3L

螺栓

BOLT

3

2011-11_

1.25

TE254.421A.1-10

中间轴小止推环

MIDDLE SHAFT SMALL THRUST RING

1

2011-11_

1.26

GBT276-6204

深沟球轴承

BEARING

2

2011-11_

1.27

GBT893.1-47

挡圈

RETAINER RING

1

2011-11_

1.28

TE254.421A.1-08

分动箱中间齿轮

TRANSFER CASE MIDDLE GEAR

1

2004-01_

1.28

TE254.421B.1-02

分动箱中间齿轮

TRANSFER CASE MIDDLE GEAR

1

2006-12_

1.29

TE254.421A.1-11

中间轴大止推环

MIDDLE SHAFT BIG THRUST RING

1

2011-11_








TE254.421B 42.1-分动箱总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1.3

TE254.421A.1-04

后轴承盖

REAR BEARING COVER

1

2011-11_

1.3

GBT3452.1-15.0X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

2

2011-11_

1.31

TE254.421A.1-05

中间轴

MIDDLE SHAFT

1

2011-11_

1.32

TE254.421A.1-07

中间轴定位板

MIDDLE SHAFT LOCATING PLATE

1

2011-11_

1.4

GBT276-6305

轴承

BEARING

1

2011-11_

1.5

FT254.42.107

输出轴后止推环

OUTPUT SHAFT REAR THRUST RING

1

2011-11_

1.5

FT254.42.107

输出轴后止推环

OUTPUT SHAFT REAR THRUST RING

1

2011-11_

1.6

JBT7918-K25X31X20

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

2



1.7

FT254.42.108

输出轴滚针轴承隔套

OUTPUT SHAFT ROLLING BEARING SPACER

1

2011-11_

1.8

TE254.421B.1-01a

分动箱从动齿轮

BUSH

1

2006-12_


TRANSFER CASE DRIVEN GEAR



1.9

FT254.42F.103

啮合套



1

2011-11_

2

GBT119.1-10m6X18-A0P

圆柱销

SHIFT COLLAR

2

2011-11_

3

GBT3452.1-53.0X2.65G

液压气动用O形橡胶密封圈

PIN

1

2004-01_

4

GBT93-10-A0P

标准型弹簧垫圈

O-SEAL RING

4

2011-11_

5

GBT5783-M10X30-10.9-A3L

六角头螺栓

WASHER

4

2011-11_


BOLT
