LOVOL TD904-1F163F10K Tractor Parts Catalogue 03
Foton TD904-1F163F10K Wheeled Tractor
FT800.21C.001 Clutch Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.21C.001 |
Clutch Assembly |
1 |
||
1 |
L-03031-0757-04 |
Assistant Clutch Driven Plate Assembly |
1 |
|
2 |
L-02103-0733-00 |
Assistant Clutch Press Plate |
1 |
|
3 |
L-04130-0003-01 |
Film Spring |
1 |
|
4 |
L-02165-0105-01 |
Support Washer |
1 |
|
5 |
L-00454-0002-00 |
Flexible Column Pin |
1 |
|
6 |
L-02103-0732-10 |
Main Clutch Press Plate |
1 |
|
7 |
L-03031-0117-00 |
Driving/Driven Plate Assembly |
1 |
|
8 |
L-02101-0215-06 |
Clutch Housing |
1 |
|
9 |
L-02615-0031-02 |
Assistant Clutch Separator Rod Assembly |
3 |
|
10 |
L-02615-0051-02 |
Main Clutch Separator Rod Assembly |
3 |
17
Foton TD904-1F163F10K Wheeled Tractor

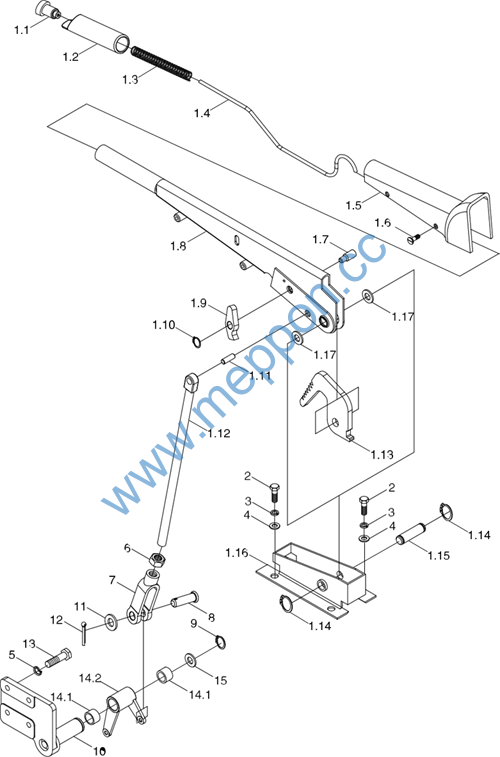

FT800A.21C.002 Clutch control mechanism assembly-1
18
Foton TD904-1F163F10K Wheeled Tractor
FT800A.21C.002 Clutch control mechanism assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.21C.002 |
Clutch control mechanism assembly |
1 |
||
1 |
FT800A.21.043 |
Auxiliary clutch control handle assembly |
1 |
|
1.1 |
FT800A.21.045 |
Button assembly |
1 |
|
1.2 |
FT800A.21.319 |
Control handle sleeve |
1 |
|
1.3 |
FT800.43.180 |
Spring |
1 |
|
1.4 |
FT800A.21.315 |
Support rod |
1 |
|
1.5 |
FT800A.21.320 |
Guard |
1 |
|
1.6 |
GB/T 68-M4×10-4.8-A2L |
Slotted countersunk flat head screw |
4 |
|
1.7 |
FT800A.21.322 |
Small pin |
1 |
|
1.8 |
FT800A.21.044 |
Control handle assembly |
1 |
|
1.9 |
FT800A.21.314 |
Pawl |
1 |
|
1.10 |
GB/T 894.1-6 |
Retainer ring |
1 |
|
1.11 |
FT800A.21.323 |
Pin |
1 |
|
1.12 |
FT800A.21.337a |
Auxiliary clutch pull rod |
1 |
|
1.13 |
FT800A.43.310 |
Ratchet |
1 |
|
1.14 |
GB/T 894.1-14 |
Circlip for shaft |
2 |
|
1.15 |
FT800A.21.321 |
Pivot |
1 |
|
1.16 |
FT800A.21.065 |
Auxiliary clutch control handle fixed seat combination |
1 |
|
1.17 |
GB/T 97.1-14-A0P |
Plain washer |
2 |
|
2 |
GB/T 5783-M8×35-8.8-A2L |
Hexagon head bolt |
4 |
|
3 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
4 |
GB/T 97.1-8-A0P |
Washer |
4 |
|
5 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
6 |
GB/T 6171-M10×1-8-A2L |
Hexagon nut, type 1 |
1 |
|
7 |
FT800.21.240 |
Front fork of pull rod |
1 |
|
8 |
GB/T 882-B10×30 |
Pivot |
1 |
|
9 |
GB/T 894.1-30 |
Circlip for shaft |
1 |
|
10 |
FT800A.21.070 |
Auxiliary clutch support shaft welding |
1 |
|
11 |
GB/T 97.1-10-A0P |
Plain washer |
1 |
|
12 |
GB/T 91-3.2×20-A0P |
Split pin |
1 |
|
13 |
GB/T 5783-M10×30-8.8-A3L |
Hexagon head bolt |
4 |
|
14 |
FT800A.21.062a |
Auxiliary clutch hub combination |
1 |
|
14.1 |
TG1654.212B.1-01 |
Bushing |
2 |
|
14.2 |
FT800A.21.338a |
Auxiliary clutch hub |
1 |
|
15 |
GB/T 97.1-30-A0P |
Plain washer |
1 |
19
Foton TD904-1F163F10K Wheeled Tractor

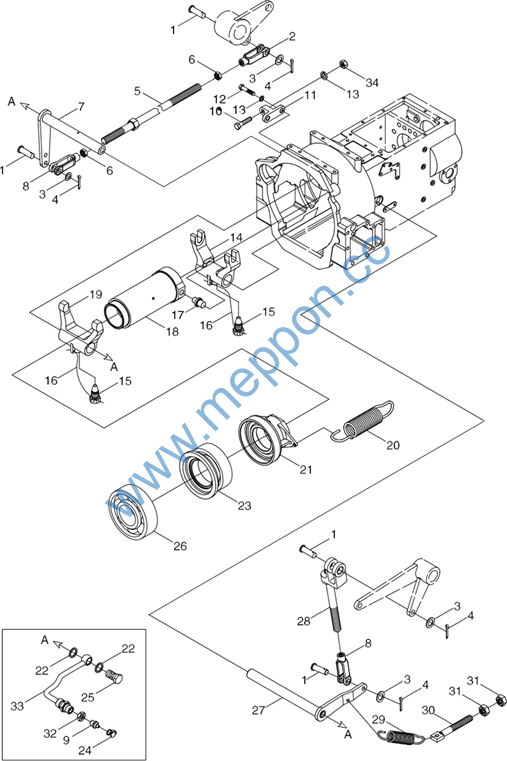

FT800A.21C.002 Clutch control mechanism assembly-2
20
Foton TD904-1F163F10K Wheeled Tractor
FT800A.21C.002 Clutch control mechanism assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.21C.002 |
Clutch control mechanism assembly |
1 |
||
1 |
GB/T 882-B10×30 |
Pivot |
4 |
|
2 |
FT800.21.241 |
Rear fork of pull rod |
1 |
|
3 |
GB/T 97.1-10-A0P |
Plain washer |
4 |
|
4 |
GB/T 91-3.2×20-A0P |
Split pin |
4 |
|
5 |
FT800A.21.059a |
Auxiliary clutch pull rod welding |
1 |
|
6 |
GB/T 6171-M10×1-8-A2L |
Hexagon nut, type 1 |
2 |
|
7 |
FT800.21.028 |
Auxiliary clutch rocker shaft welding |
1 |
|
8 |
FT800.21.240 |
Front fork of pull rod |
2 |
|
9 |
JB/T 7940.1-M8×1 |
Thru forced filling oil cup |
4 |
|
10 |
GB/T 5783-M10×60-8.8-A2L |
Hexagon head bolt |
1 |
|
11 |
FT800.21.212 |
Limit seat |
1 |
|
12 |
GB/T 5783-M10×25-8.8-A3L |
Hexagon head bolt |
2 |
|
13 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
14 |
FT800.21.204 |
Main clutch fork |
1 |
|
15 |
FT800.21.239 |
Slotted taper |
2 |
|
16 |
TA800.212B-02 |
Low carbon steel wire SZ-1.4 |
2 |
|
17 |
FT800.21.213 |
Cylindrical pin |
2 |
|
18 |
FT800.21C.205 |
Main clutch release bearing block |
1 |
|
19 |
FT800.21.203 |
Auxiliary clutch yoke |
1 |
|
20 |
FT800.21.215 |
Auxiliary clutch return spring |
2 |
|
21 |
FT800.21C.202a |
Auxiliary clutch bearing block |
1 |
|
22 |
JB/T 982-8 |
Composite seal washer |
8 |
|
23 |
TA820.213-10 |
Release bearing NTM8842 |
1 |
|
24 |
TD800.311C.1-01 |
Oil cup dust cap |
4 |
|
25 |
FT800A.21.388 |
Hollow bolt |
4 |
|
26 |
TA800.212-02 |
Thrust bearing 996713 |
1 |
|
27 |
FT800A.21.058a |
Main clutch rocker arm shaft welding |
1 |
|
28 |
FT800A.21.080 |
Intermediate rod welding |
1 |
|
29 |
FT800A.21.383 |
Return spring |
1 |
|
30 |
FT800.21.207 |
Adjustment screw |
1 |
|
31 |
GB/T 6170-M8-8-A2L |
Hexagon nut, type 1 |
3 |
|
32 |
GB/T 6172.1-M12-04-A3L |
Hexagon thin nut |
1 |
|
33 |
FT800A.21.387 |
Lube oil pipe |
4 |
|
34 |
GB/T 6170-M10-8-A3L |
Hexagon nut, type 1 |
1 |
21
Foton TD904-1F163F10K Wheeled Tractor

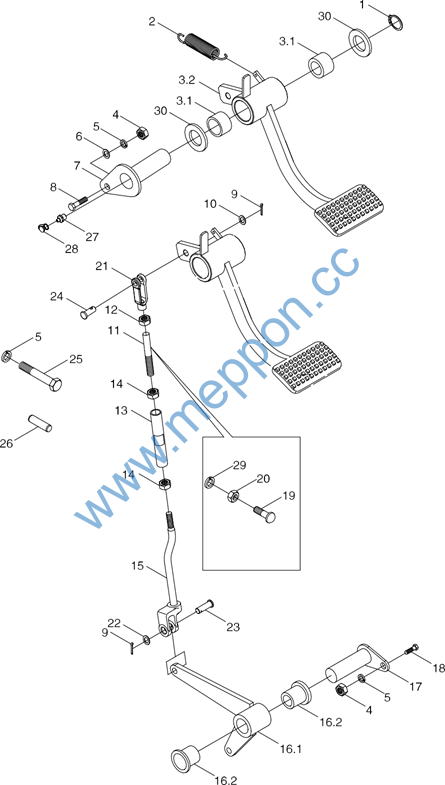

FT800A.21C.002 Clutch control mechanism assembly-3
22
Foton TD904-1F163F10K Wheeled Tractor
FT800A.21C.002 Clutch control mechanism assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800A.21C.002 |
Clutch control mechanism assembly |
1 |
||
1 |
GB/T 894.1-30 |
Circlip for shaft |
1 |
|
2 |
FT800A.21.373 |
Return spring |
1 |
|
3 |
FT800A.21.041 |
Clutch rocker arm combination |
1 |
|
3.1 |
TG1654.212B.1-01 |
Bushing |
2 |
|
3.2 |
FT800A.21.050 |
Clutch rocker arm welding |
1 |
|
4 |
GB/T 6170-M8-8-A2L |
Hexagon nut, type 1 |
2 |
|
5 |
GB/T 93-8-A0P |
Standard spring washer |
14 |
|
6 |
GB/T 97.1-8-A0P |
Plain washer |
1 |
|
7 |
FT800A.21.049 |
Clutch pedal support shaft welding |
1 |
|
8 |
GB/T 5783-M8×35-8.8-A2L |
Hexagon head bolt |
1 |
|
9 |
GB/T 91-3.2×20-A0P |
Split pin |
2 |
|
10 |
GB/T 97.1-10-A0P |
Plain washer |
1 |
|
11 |
FT800A.21.352 |
Short rod |
1 |
|
12 |
GB/T 6171-M10×1-8-A2L |
Hexagon nut, type 1 |
1 |
|
13 |
FT800A.21.353 |
Intermediate rod |
1 |
|
14 |
GB/T 6171-M10×1-LH-8-A2L |
Hexagon nut, type 1 |
3 |
|
15 |
FT800A.21.060 |
Main clutch long pull rod welding piece |
1 |
|
16 |
FT800A.21.072 |
Transition lever pressing combination |
1 |
|
16.1 |
FT800A.21.073 |
Transition lever welding piece |
1 |
|
16.2 |
FT800A.21.380 |
Supporting shaft bushing |
2 |
|
17 |
FT800A.21.074 |
Transition lever support shaft welding |
1 |
|
18 |
GB/T 5783-M8×20-8.8-A2L |
Hexagon head bolt |
1 |
|
19 |
FT800.43.030 |
Adjusting screw combination |
1 |
|
20 |
GB/T 6170-M10-8-A3L |
Hexagon nut, type 1 |
1 |
|
21 |
FT800A.43B.119 |
Left -hand pull rod fork |
1 |
|
22 |
GB/T 97.1-12-A0P |
Plain washer |
2 |
|
23 |
GB/T 882-B12×30 |
Pivot |
1 |
|
24 |
GB/T 882-B10×30 |
Pivot |
1 |
|
25 |
GB/T 5782-M10×45-10.9-A3L |
Bolt |
6 |
|
26 |
GB/T 119.1-10m6×26-A0P |
Cylindrical pin |
2 |
|
27 |
JB/T 7940.1-M8×1 |
Thru forced filling oil cup |
2 |
|
28 |
TD800.311C.1-01 |
Oil cup dust cap |
2 |
|
29 |
GB/T 93-10-A0P |
Standard spring washer |
1 |
|
30 |
GB/T 97.1-30-A0P |
Plain washer |
2 |
23
Foton TD904-1F163F10K Wheeled Tractor

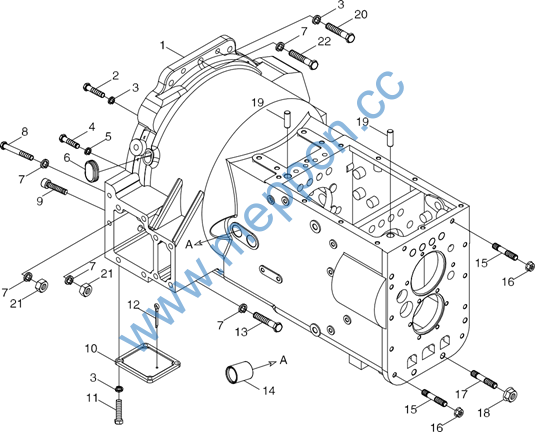

TD800A.371C Gearbox Housing Assembly
24
Foton TD904-1F163F10K Wheeled Tractor
TD800A.371C Gearbox Housing Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800A.371C |
Gearbox housing assembly |
1 |
||
1 |
TD800A.371C-01 |
Gearbox housing |
1 |
|
2 |
GB/T 5783-M12×40-10.9-A3L |
Hex bolt |
5 |
|
3 |
GB/T 93-12-A0P |
Standard spring washer |
11 |
|
4 |
GB/T 5783-M10×50-10.9-A3L |
Hex bolt |
1 |
|
5 |
GB/T 93-10-A0P |
Standard spring washer |
1 |
|
6 |
FT800.37.316 |
Rubber plug |
1 |
|
7 |
GB/T 93-16-A0P |
Standard spring washer |
9 |
|
8 |
GB/T 5782-M16×90-10.9-A2L |
Hex bolt |
2 |
|
9 |
GB/T 70.1-M16×80-10.9-A3L |
Hexagon socket cap head screw |
2 |
|
10 |
FT800A.37.181 |
Postmortem window cover |
1 |
|
11 |
GB/T 5783-M12×30-8.8-A3L |
Hex bolt |
4 |
|
12 |
GB/T 91-5×25-A0P |
Cotter pin |
1 |
|
13 |
TD800A.371C-02 |
Special bolt M16×75-10.9-A3L |
4 |
|
14 |
FT800.37.198 |
Separator fork shaft sleeve |
4 |
|
15 |
GB/T 899-AM12-M12×1.5×35-10.9-A2L |
Double-headed stud |
10 |
|
16 |
SPL6177.2-M12×1.5-10-F3 |
Hex flange nut |
10 |
|
17 |
GB/T 899-AM16-M16×1.5×40-10.9-A3L |
Double-headed stud |
2 |
|
18 |
SPL6177.2-M16×1.5-10-F3 |
Hex flange nut |
2 |
|
19 |
GB/T 119.1-16m6×28-A0P |
Column pin |
2 |
|
20 |
GB/T 5782-M12×65-10.9-A2L |
Hex bolt |
2 |
|
21 |
GB/T 6170-M16-10-A3L |
Type 1 hex nut |
4 |
|
22 |
GB/T 5783-M16×45-10.9-A3L |
Hex bolt |
1 |
25
Foton TD904-1F163F10K Wheeled Tractor

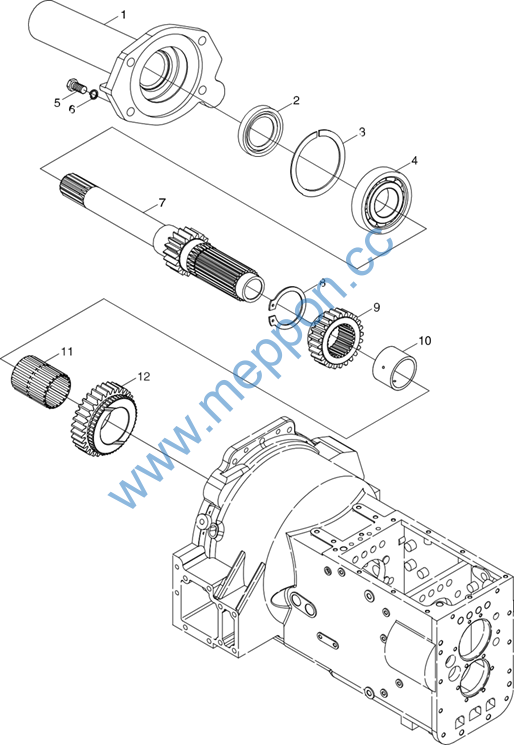

TD800A.372G Main/auxiliary shifting assembly-1
26
Foton TD904-1F163F10K Wheeled Tractor
TD800A.372G Main/auxiliary shifting assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800A.372G |
Main/auxiliary shifting assembly |
1 |
||
1 |
FT800.37C.107 |
Input shaft bearing block |
1 |
|
2 |
GB/T 9877.1-FB50×72×8F |
Oil seal |
1 |
|
3 |
FT800.37.172 |
Adjustment washer |
As required |
|
4 |
GB/T 276-6310 |
Bearing |
1 |
|
5 |
GB/T 5783-M10×25-A3L |
Bolt |
4 |
|
6 |
GB/T 93-10-AOP |
Washer |
4 |
|
7 |
FT800.37C.011 |
Input shaft assembly |
1 |
|
8 |
GB/T 894.1-55 |
Retainer ring |
1 |
|
9 |
TD800A.372F-01 |
II driving gear |
1 |
|
10 |
FT800.37.117C |
Bushing |
1 |
|
11 |
Q/LWZ B120-K64×74×41ZW |
Needle bearing |
1 |
|
12 |
TD800A.372F-02 |
III driving gear |
1 |
27
Foton TD904-1F163F10K Wheeled Tractor

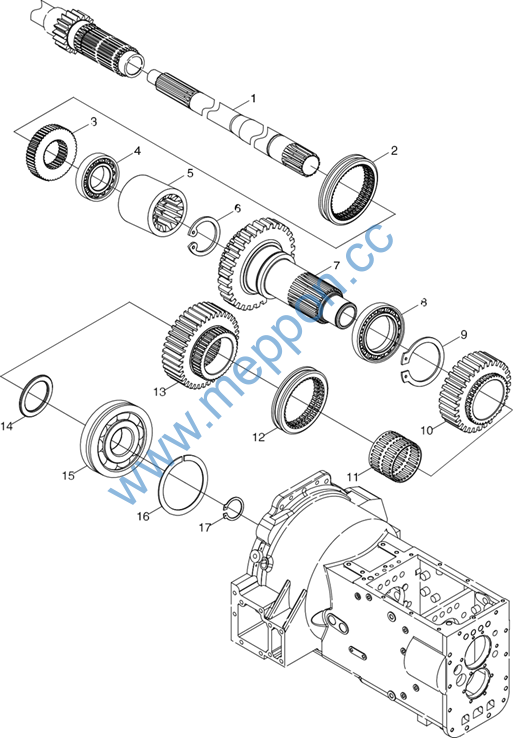

TD800A.372G Main/auxiliary shifting assembly-2
28
