TD804A.38-3 38.3-后桥箱总成-3 REAR AXLE CASE ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800.38.012

DIFFERENTIAL ASSEMBLY

1

2011-11_

1

FT800.38.216

PLANET GEAR WASHER

4

2011-11_

10

GBT297-32216

BEARING

1

2011-11_

10

GBT297-32216

BEARING

1

2011-11_

11

GBT5783-M12X25-A3L

BOLT

8

2011-11_

12

FT800.38.218

LOCK SHIM

4

2011-11_

13

FT800.38.132

CENTRAL RING

1

2011-11_

14

FT800.38.210

HALF SHAFT GEAR WASHER

2

2011-11_

15

FT800.38.130

HALF SHAFT GEAR

2

2011-11_

16

FT800.38.129

BIG TAPER GEAR

1

2011-11_

17

FT800.38.133

DIFFERENTIAL HOUSING

1

2011-11_

18

GBT297-30216

BEARING

1

2011-11_

2

FT800.38.217

PLANETARY GEAR

4

2011-11_

3

FT800.38.215

PLANET GEAR SHAFT

1

2011-11_

4

FT800.38.211

LOCKING BOLT

4

2011-11_

5

FT800.38.212

PLANET GEAR SHAFT THRUST SCREW

4

2011-11_

6

FT800.38.213

LOCK SHIM

4

2011-11_

7

GBT6171-M14X1.5-A3L

NUT

8

2011-11_

8

FT800.38.131

SHORT PLANETARY GEAR SHAFT

2

2011-11_

9

FT800.38.128

DIFFERENTIAL HOUSING

1

2011-11_








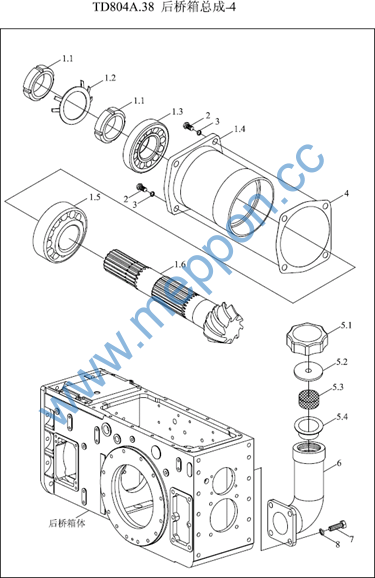

TD804A.38-4 38.4-后桥箱总成-4 REAR AXLE CASE ASSEMBLY-4



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.38.011

SMALL TAPER GEAR ASSEMBLY

1

2011-11_

1.1

FT800.38.207

ROUND NUT

2

2011-11_

1.2

GBT858-50

WASHER

1

2011-11_

1.3

GBT297-30310

BEARING

1

2011-11_

1.4

FT800.38.205

SMALL TAPER GEAR BEARING SEAT

1

2011-11_

1.5

GBT297-32311

BEARING

1

2011-11_

1.6

FT800.38.126

SMALL TAPER GEAR

1

2011-11_

2

GBT5783-M12X35-A3L

BOLT

4

2011-11_

2

GBT5783-M12X35-A3L

BOLT

4

2011-11_

3

GBT93-12-A0P

SPRING WASHER

4

2011-11_

4

FT800.38.208

ADJUSTING WASHER

999

2011-11_

5

FT800.38.017

REAR AXLE FILLING CAP COVER ASSEMBLY

1

2011-11_

5.2

FT800.38.149

SPACER RING OF OIL FILLING CAP COVER

1

2011-11_

5.3

TA650.502.3-04

SPONGE

1

2011-11_

5.4

FT800.38.148

RUBBER GASKET OF OIL FILLING CAP

1

2011-11_

6

FT800.38.103a

REAR AXLE FILLING CAP PIPE

1

2011-11_

7

GBT5781-M10X25-A3L

BOLT

14

2011-11_

8

GBT93-10-A0P

WASHER

12

2011-11_








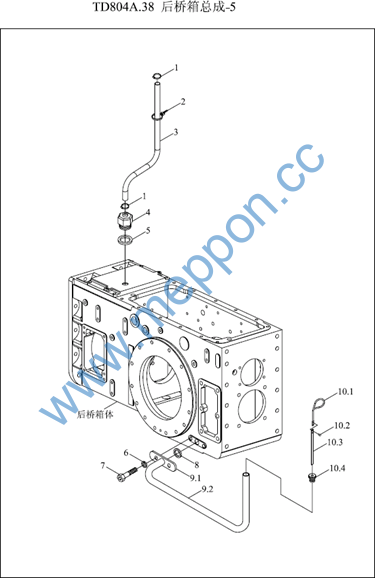

TD804A.38-5 38.5-后桥箱总成-5 REAR AXLE ASSEMBLY-5



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q675B12

A-TYPE WORM TRANSMISSION HOSE CLAMP

2

2011-11_

10

FT800A.38.018

DIPSTICK ASSEMBLY

1

2011-11_

10.1

FT800A.38.216

DIPSTICK HANDLE

1

2011-11_

10.2

GBT867-2X3

RIVET

2

2011-11_

10.3

FT800A.38.217

OIL DISTICK

1

2011-11_

10.4

FT800A.38.218

RUBBER SEAT

1

2011-11_

2

Q674-05100

PLASTIC FASTEN STRIP

1

2011-11_

2

Q674-05100

PLASTIC FASTEN STRIP

1

2011-11_

3

FT800A.38.195

BREATH HOSE

1

2011-11_

4

FT65.55.176

BREATH JOINT

1

2011-11_

5

JBT982-12

COMBINED SEAL GASKET

1

2011-11_

6

GBT93-8-A0P

WASHER

2

2011-11_

7

GBT70.1-M8X25-A2L

SCREW

2

2011-11_

8

GBT3452.1-15X2.65G

O-SEAL RING

1

2011-11_

9

FT800A.38.019

DIPSTICK TUBE ASSEMBLY

1

2011-11_

9.1

FT800A.38.239

OIL DIPSTICK PIPE SEAT

1

2011-11_

9.1

FT800A.38.239

OIL DIPSTICK PIPE SEAT

1

2011-11_

9.2

FT800A.38.235

OIL DIPSTICK PIPE

1

2011-11_

9.2

FT800A.38.235

OIL DIPSTICK PIPE

1

2011-11_








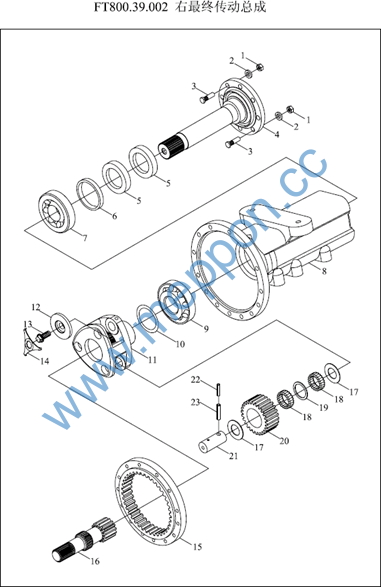

FT800.39.002 39-右最终传动总成 39-RIGHT FINAL TRANSMISSION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6176-M20X1.5-A3L

HEXAGON NUT, TYPE-2

8

2011-11_

10

FT800.39.117

ADJUSTING WASHER

999

2004-01_

10

FT800.39.117a

ADJUSTING WASHER

999

2011-01_

11

FT800.39.104

PLANET CARRIER

1

2011-11_

12

FT800.39.106b

PLANET CARRIER PRESSURE PLATE

1

2014-05_

12

FT800.39.106

PLANET CARRIER PRESSURE PLATE

1

2008-06_

12

FT800.39.106a

PLANET CARRIER PRESSURE PLATE

1

2011-01_

13

FT800.39.105

PLANET CARRIER FIXING BOLT

1

2004-01_

13

FT800.39.105a

PLANET CARRIER FIXING BOLT

1

2007-10_

14

FT800.39.112

THRUST WASHER

1

2004-01_

14

FT800.39.112a

THRUST WASHER

1

2007-10_

15

FT800.39.108

FINAL TRANSMISSION GEAR RING

1

2011-11_

16

FT800.39.114

RIGHT HALF SHAFT

1

2011-11_

17

FT800.39.110

PLANET GEAR ROLL NEEDLE OUTER SPACER RING

6

2011-11_

18

FT800.39.118

NEEDLE

126

2011-11_

19

FT800.39.109

NEEDLE INNER SPACER RING

3

2011-11_

2

FT800.39.130

WASHER

8

2011-11_

20

FT800.39.107

PLANETARY GEAR

3

2011-11_

21

FT800.39.111

PLANET GEAR SHAFT

3

2011-11_

22

GBT879.1-8X32

PIN

3

2011-11_

23

GBT879.1-12X32

PIN

3

2011-11_

3

FT800.39.101d

DRIVING WHEEL FIXING BOLT

8

2011-11_

4

FT800.39.012

DRIVING SHAFT WELDMENT

1

2011-11_

5

GBT9877.1-FB100X130X12D

O RING

2

2007-07_

6

FT800.39.120

OIL SEAL SPACER RING

1

2011-11_








FT800.39.002 39-右最终传动总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

7

8

9

GBT297-30215 FT800.39.103a GBT297-30214

BEARING

HALF SHAFT HOUSING BEARING

1

1

1

2011-11_

2011-11_

2011-11_








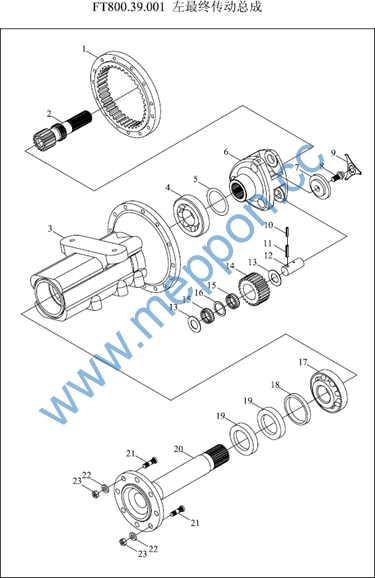

FT800.39.001 39-左最终传动总成 39-LEFT FINAL TRANSMISSION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.39.108

FINAL TRANSMISSION GEAR RING

1

2011-11_

10

GBT879.1-8X32

PIN

3

2011-11_

11

GBT879.1-12X32

PIN

3

2011-11_

12

FT800.39.111

PLANET GEAR SHAFT

3

2011-11_

13

FT800.39.110

PLANET GEAR ROLL NEEDLE OUTER SPACER RING

6

2011-11_

14

FT800.39.107

PLANETARY GEAR

3

2011-11_

15

FT800.39.118

NEEDLE

126

2011-11_

16

FT800.39.109

NEEDLE INNER SPACER RING

3

2011-11_

17

GBT297-30215

BEARING

1

2011-11_

18

FT800.39.120

OIL SEAL SPACER RING

1

2011-11_

19

GBT9877.1-FB100X130X12D

O RING

2

2011-11_

2

FT800.39.113

LEFT HALF SHAFT

1

2011-11_

20

FT800.39.012

DRIVING SHAFT WELDMENT

1

2011-11_

21

FT800.39.101c

DRIVING WHEEL FIXING BOLT

8

2011-11_

22

FT800.39.130

WASHER

8

2011-11_

23

GBT6176-M20X1.5-LH-A3L

HEXAGON NUT, TYPE-2

8

2011-11_

3

FT800.39.103a

HALF SHAFT HOUSING

1

2011-11_

4

GBT297-30214

BEARING

1

2011-11_

4

FT800.39.106a

PLANET CARRIER PRESSURE PLATE

1

2011-01_

5

FT800.39.117

ADJUSTING WASHER

999

2011-11_

5

FT800.39.117a

ADJUSTING WASHER

999

2011-01_

6

FT800.39.104

PLANET CARRIER

1

2011-11_

7

FT800.39.106

PLANET CARRIER PRESSURE PLATE

1

2008-06_

7

FT800.39.106b

PLANET CARRIER PRESSURE PLATE

1

2014-05_

8

FT800.39.105a

PLANET CARRIER FIXING BOLT

1

2007-10_








FT800.39.001 39-左最终传动总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

9

9

FT800.39.105 FT800.39.112 FT800.39.112a

PLANET CARRIER FIXING BOLT THRUST WASHER

THRUST WASHER

1

1

1

2004-01_

2004-01_

2007-10_
