LOVOL TD904-1F161F18K Tractor Parts Catalogue 07

Meppon Parts Posted on by

TD800.131F 13.1-冷却系总成 13.1-COOLING SYSTEM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD800.131-09

LEFT INSTALLATION PLATE 1

1



1

TD1000.131H.2

LEFT INSTALLATION PLATE WELDMENT

1

2012-10_

10

Q67664

B-TYPE WORM TRANSMISSION HOSE CLAMP

2



11

TD800.131-02

WATER TANK OUTLET RUBBER HOSE

1



12

TD800.131-01

WATER TANK INLET RUBBER HOSE

1



12

TD800.131-01a

WATER TANK INLET HOSE

1

2010-08_

13

TD800.131F.1a

RADIATER ASSEMBLY

1

2010-08_

13

TD800.131F.1

RADIATER ASSEMBLY

1

2008-03_

14

GBT93-8-A0P

WASHER

12



15

TD800.131-03

RIGHT GUARD PLATE

1



15

TD800.131-03

RIGHT GUARD PLATE

1



16

TD800.131-07

LEFT GUARD PLATE

1



17

TD1000.131H.3

RIGHT FIX WELDMENT

1

2012-10_

17

TD800.131-05

RIGHT INSTALLATION PLATE 2

1



18

GBT6170-M8-8-A2L

I-TYPE HEXAGON NUT

8



2

GBT5783-M8X25-8.8-A2L

BOLT

12



3

GBT96.1-8-A0P

WASHER

20



4

TD800.131-12

SLEEVE

2



5

GBT91-2.5X28-A0P

PIN

2



6

GBT6178-M10-8-A3L

NUT (PAGE81)

2



7

FT650.13.116

WASHER

2



8

FT650.13.112

RUBBER PAD BLOCK

4



8

TD800.131-11

RUBBER PAD BLOCK

4

2011-06_

9

Q67670

B-TYPE WORM TRANSMISSION HOSE CLAMP

2










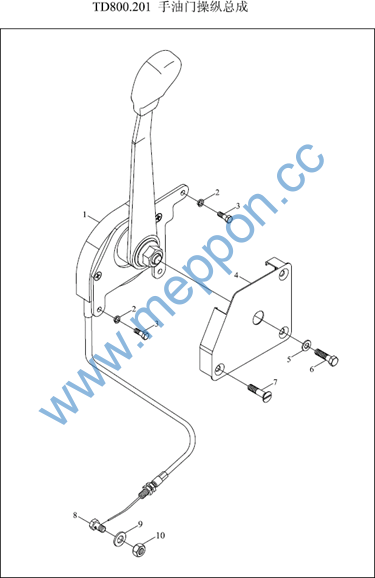

TD800.201 20.1-手油门操纵总成 20.1-HAND THROTTLE CONTROL ASSSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA700.201-01

HANDLE THROTTLE ASSEMBLY

1

2010-06_

1

TD800.201-01

HANDLE THROTTLE ASSEMBLY

1

2010-07_

1

FT800.20L.019

HANDLE THROTTLE ASSEMBLY

1

1998-08_

10

GBT6170-M8-A2L

NUT

1

2011-11_

2

GBT93-6-A0P

SPRING WASHER

3

2011-11_

3

GBT5781-M6X16-A2L

BOLT

3

2011-11_

4

FT700.20.324

HAND THROTTLE COVER

1

2011-11_

5

GBT5780-M10X45-A3L

BOLT

1

2011-11_

6

GBT96-10-A0P

WASHER

1

2011-11_

7

GBT68-M8X30-A2L

SCREW

3

2011-11_

8

FT650.20.133

LOCKING SCREW

1

2011-11_

9

GBT97.1-8-A0P

WASHER

1

2011-11_








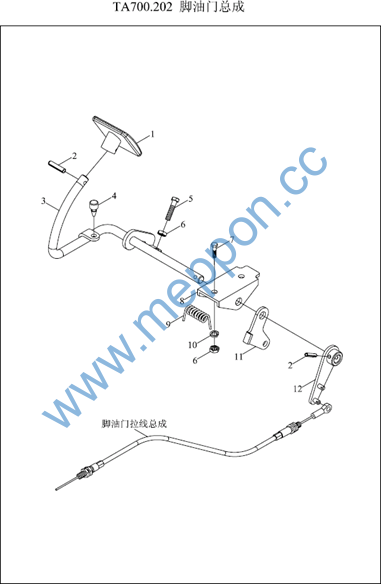

TA700.202 20.2-脚油门总成 20.2-FOOT THRORRLE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT65.45.393

THROTTLE PEDAL SEAL SLEEVE

1

2008-11_

1

FT650.20.101

FOOT PEDAL

1

2011-11_

10

GBT93-8-A0P

WASHER

2

2011-11_

11

FT650.20.114

HAND THROTTLE ROCKER

1

2011-11_

12

FT650.20.011

FOOT THROTTLE ROCKER ARM WELDMENT

1

2011-11_

2

GBT879.1-5X20-A0P

PIN

2



3

FT800.20.013

FOOT PEDAL ROCKER ARM WELDMENT

1

2011-11_

4

FT650.20.107

RUBBER RING

1

2011-11_

5

GBT5781-M8X45-A2L

BOLT

1

2011-11_

6

GBT6172.1-M8-A2L

NUT

3

2011-11_

7

GBT5781-M8X20-A2L

BOLT

2

2011-11_

7

GBT5781-M8X20-A2L

BOLT

2

2011-11_

8

FT650.20.108

THROTTLE PEDESTAL

1

2011-11_

9

FT650.20.104

TORSION SPRING

1

2011-11_








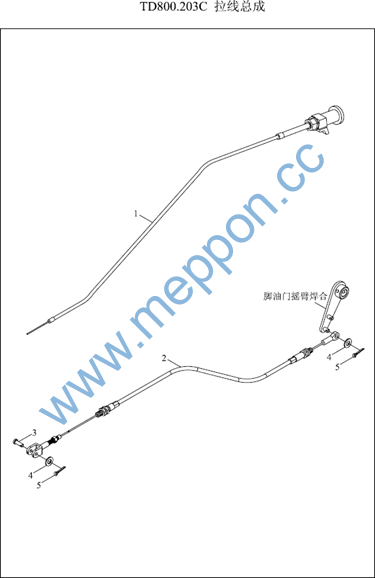

TD800.203C 20.3-拉线总成 20.3-PULL WIRE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

2

3

4



5

FT750.20.018 FT650.20.018 FT800.20.014a GBT882-B5X20-A0P GBT97.1-6-A0P



GBT91-2X12-A0P

EXTINGUISH WIRE ASSEMBLY EXTINGUISH WIRE ASSEMBLY FOOT THROTTLE WIRE ASSEMBLY PIN

WASHER PIN

1

1

1

1

2



2

2011-11_

2006-05_

2011-11_



2011-11_



2011-11_








FT800.21C.001 21-离合器总成 21-CLUTCH ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

L-03031-0757-04

AUXILIARY CLUTCH DRIVEN PLATE ASSEMBLY

1

2011-11_

10

L-02615-0051-02

MAIN RELEASE LEVER ASSEMBLY

3

2011-11_

2

L-02103-0733-00

AUXILIARY CLUTCH PRESSURE PLATE

1

2011-11_

3

L-04130-0003-01

FILM SPRING

1

2011-11_

4

L-02165-0105-01

SUPPORT WASHER

1

2011-11_

5

L-00454-0002-00

PIN

1

2011-11_

6

L-02103-0732-10

MAIN CLUTCH PRESSURE PLATE

1

2011-11_

7

L-03031-0117-00

MAIN DRIVEN PLATE ASSEMBLY

1

2011-11_

8

L-02101-0215-06

CLUTCH HOUSING

1

2011-11_

9

L-02615-0031-02

AUXILIARY RELEASE LEVER ASSEMBLY

3

2011-11_








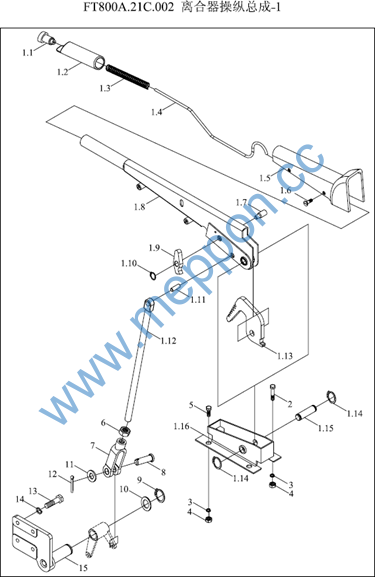

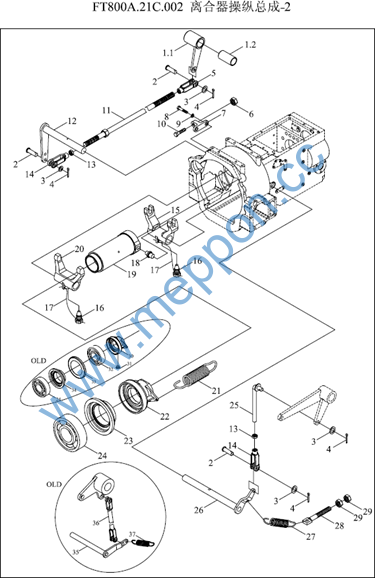

FT800A.21C.002-1 21.1-离合器操纵总成-1 CLUTCH CONTROL ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.21.043

AUXILIARY CLUTCH CONTROL HANDLE ASSEMBLY

1

2011-11_

1.1

FT800A.43.065

BRAKE CONNECTING LOCK ROD WELDMENT

1

2011-11_

1.1

FT800A.21.045

BUTTON ASSEMBLY

1

2011-11_

1.11

FT800A.21.323

PIN

1

2011-11_

1.12

FT800A.21.337a

AUXILIARY CLUTCH PULL ROD

1

2011-11_

1.13

FT800A.43.310

RATCHET WHEEL

1

2011-11_

1.14

GBT894.1-13

SNAP RING

2

2009-04_

1.15

FT800A.21.321

PIN

1

2011-11_

1.16

FT800A.21.065

AUXILIARY CLUTCH CONTROL HANDLE FIXING SEAT UNIT

1

2011-11_

1.2

FT800A.21.319

CONTROLLING HANDLE SLEEVE

1

2011-11_

1.3

FT800.43.180

SPRING

1

2011-11_

1.4

FT800A.21.315

TOP ROD

1

2011-11_

1.5

FT800A.21.320

BONNET

1

2011-11_

1.6

GBT68-M4X10-4.8-A2L

SCREW

4

2009-04_

1.7

FT800A.21.322

SMALL PIN SHAFT

1

2011-11_

1.8

FT800A.21.044

CONTROLLING HANDLE ASSEMBLY

1

2011-11_

1.9

FT800A.21.314

PAWL

1

2011-11_

10

GBT894.1-30

RETAINER RING

1



11

GBT882-B10X30

PIN

1

2004-01_

12

GBT848-10-A0P

WASHER

1

2004-01_

13

GBT91-3.2X20-A0P

PIN

1

2004-01_

13

GBT91-3.2X20-A0P

PIN

1

2004-01_

14

GBT848-30-A0P

WASHER

1

2004-01_

15

FT800A.21.070

AUXILIARY CLUTCH SUPPORT SHAFT WELDMENT

1

2011-11_

2

GBT5781-M8X30-A2L

BOLT

2

2004-01_








FT800A.21C.002-1 21.1-离合器操纵总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

4

5

6

7



8

9

GBT93-8-A0P GBT41-M8-5-A2L

GBT5781-M8X16-A2L GBT6171-M10X1-A2L FT800.21.240



GBT5781-M10X30-A3L GBT93-10-A0P

WASHER HEXAGON NUT BOLT

NUT

PULL ROD FRONT FORK



BOLT WASHER

4

4

2

1

1



4

4

2004-01_

2004-01_

2004-01_

2004-01_

2011-11_



2004-01_

2004-01_
