LOVOL TD824-1F461F36K Tractor Parts Catalogue 15
TD800.43-2 43.2-制动系总成-2 43BRAKING SYSTEM ASSEMBLY-2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
FT800A.43.014 |
手制动总成 |
HANDLE BRAKE ASSEMBLY |
1 |
2011-11_ |
|
1 |
FT800.43.194 |
螺栓 |
BOLT |
2 |
2011-11_ |
|
3 |
FT800.43.131 |
压板 |
PRESSURE PLATE |
1 |
2011-11_ |
|
4 |
FT800.43.023 |
磨擦片合件 |
FRICTION PLATE UNIT |
2 |
2011-11_ |
|
5 |
FT800.43.024 |
中间磨擦片合件 |
MIDDLE FRICTION PLATE UNIT |
1 |
2011-11_ |
|
7 |
FT800.43.136 |
花键套轮 |
SPLINE BUSH WHEEL |
1 |
2011-11_ |
|
8 |
FT800.43.141 |
钢片 |
STEEL PIECE |
2 |
2011-11_ |
|
9 |
FT800.43.142 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
TD800.43-3 43.3-制动系总成-3 43BRAKING SYSTEM ASSEMBLY-3
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
FT800.43.015 |
制动器总成 |
BREAK ASS. |
1 |
2011-11_ |
|
1 |
FT800.43.149 |
O形密封环 |
O-SEAL RING |
2 |
2011-11_ |
|
10 |
FT800.43.173 |
弹簧 |
SPRING |
6 |
2011-11_ |
|
11 |
GBT119-D10X22 |
圆柱销 |
PIN |
6 |
2011-11_ |
|
12 |
FT800.43.150 |
O形密封环 |
O-SEAL RING |
2 |
2011-11_ |
|
13 |
FT800.43.151 |
制动器活塞 |
BRAKE PISTON |
2 |
2011-11_ |
|
14 |
FT800.43.027 |
磨擦片组合件 |
FRICTION PLATE UNIT |
2 |
2011-11_ |
|
15 |
FT800.43.147a |
左制动器缸体 |
LEFT BRAKE CYLINDER HOUSING |
1 |
2011-11_ |
|
15.1 |
FT800.43.147 |
左制动器缸体 |
LEFT BRAKE CYLINDER HOUSING |
1 |
2011-11_ |
|
15.1 |
FT800.43.147 |
左制动器缸体 |
LEFT BRAKE CYLINDER HOUSING |
1 |
2011-11_ |
|
2 |
FT800.43.153a |
右制动器缸体 |
RIGHT BRAKE CYLINDER |
1 |
2011-11_ |
|
2.1 |
FT800.43.153 |
右制动器缸体 |
RIGHT BRAKE CYLINDER |
1 |
2011-11_ |
|
2.1 |
FT800.43.153 |
右制动器缸体 |
RIGHT BRAKE CYLINDER |
1 |
2011-11_ |
|
3 |
FT800.43.152 |
放气螺塞 |
DISCHARGE AIR PLUG |
2 |
2011-11_ |
|
4 |
FT800.43.156 |
防尘圈 |
2 |
2011-11_ |
|
|
5 |
JBZQ4454-16X20 |
密封垫 |
SEAL GASKET |
2 |
2011-11_ |
|
6 |
FT800.43.130 |
接头体 |
JOINT BODY |
2 |
2011-11_ |
|
8 |
JBZQ4454-10X13.5 |
密封圈 |
SEAL RING |
2 |
2011-11_ |
|
9 |
JBTZQ4450-M10X1 |
螺塞 |
SCREW PLUG |
2 |
2011-11_ |
TD800.43-4 43.4-制动系总成-4 43BRAKING SYSTEM ASSEMBLY-4
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT5781-M8X20-A2L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
1 |
GBT5781-M8X20-A2L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
10 |
TD800.43-01 |
踏板回位弹簧 |
PEDAL RETURN SPRING |
2 |
2011-11_ |
|
11 |
FT800.43.103 |
调整螺钉 |
ADJUSTING SCREW |
2 |
2011-11_ |
|
12 |
FT800A.43C.014 |
右制动摇臂合件 |
RIGHT BRAKE ROCKER UNIT |
1 |
2011-11_ |
|
12.1 |
GBT879.1-5X16 |
弹性圆柱销 |
PIN |
1 |
2011-11_ |
|
12.2 |
FT800A.43.065 |
制动联锁杆焊合 |
BRAKE CONNECTING LOCK ROD WELDMENT |
1 |
2011-11_ |
|
12.3 |
FT800A.43C.016 |
右制动摇臂焊合 |
RIGHT BRAKE ROCKER WELDMENT |
1 |
2011-11_ |
|
12.4 |
FT800A.43.307 |
制动踏板毂衬套 |
BRAKE PEDAL HUB BUSH |
1 |
2011-11_ |
|
13 |
FT800A.43.401 |
锁销 |
PIN |
1 |
2011-11_ |
|
2 |
FT800A.43.053 |
制动踏板支承轴焊合 |
BRAKE PEDAL SUPPORT SHAFT WELDMENT |
1 |
2011-11_ |
|
3 |
GBT93-8-A0P |
垫圈 |
WASHER |
1 |
2011-11_ |
|
4 |
GBT6170-M8-A2L |
螺母 |
NUT |
1 |
2011-11_ |
|
5 |
GBT894.1-30 |
挡圈 |
RETAINER RING |
1 |
2011-11_ |
|
6 |
FT800A.43.305 |
隔套 |
SPACER BUSH |
4 |
2011-11_ |
|
7 |
FT800A.43C.013 |
左制动摇臂合件 |
LEFT BRAKE ROCKER WELDMENT |
1 |
2011-11_ |
|
7.1 |
FT800A.43.307 |
制动踏板毂衬套 |
BRAKE PEDAL HUB BUSH |
1 |
2011-11_ |
|
7.2 |
FT800A.43C.015 |
左制动摇臂焊合 |
LEFT BRAKE ROCKER WELDMENT |
1 |
2011-11_ |
|
8 |
GBT6170-M10-A3L |
螺母 |
NUT |
2 |
2011-11_ |
|
9 |
FT800.43.030 |
调整螺钉 |
ADJUSTING SCREW |
2 |
2011-11_ |

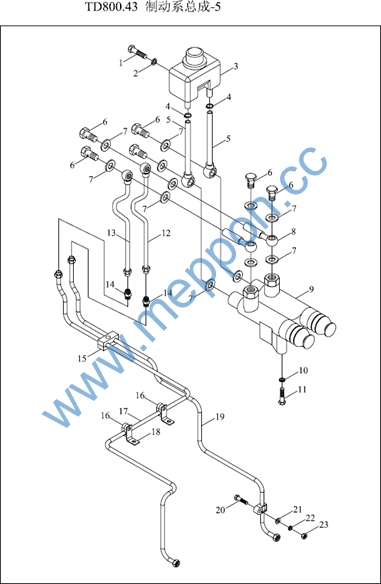

TD800.43-5 43.5-制动系总成-5 43BRAKING SYSTEM ASSEMBLY-5
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT5781-M8X20-A2L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
1 |
GBT5781-M8X20-A2L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
10 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
3 |
2011-11_ |
|
11 |
GBT5783-M10X30-A3L |
螺栓 |
BOLT |
3 |
2011-11_ |
|
12 |
FT800A.43C.012b |
右制动短油管总成 |
RIGHT BRAKE SHORT OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
12.1 |
FT800A.43C.012a |
右制动短油管总成 |
RIGHT BRAKE SHORT OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
13 |
FT800A.43C.011b |
左制动短油管总成 |
LEFT BRAKE SHORT OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
13.1 |
FT800A.43C.012a |
右制动短油管总成 |
RIGHT BRAKE SHORT OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
14 |
FT800A.43.315 |
卡套式直通接头体 |
JOINT |
2 |
2011-11_ |
|
15 |
F600210 |
管夹组合（六） |
PIPE CLAMP COMBINATION（6） |
2 |
2011-11_ |
|
16 |
F600190 |
管夹组合（五） |
PIPE CLAMP COMBINATION（5） |
3 |
2011-11_ |
|
17 |
FT800A.43.056b |
左制动长油管总成 |
LEFT BRAKE LONG OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
17 |
FT800A.43.056b |
左制动长油管总成 |
LEFT BRAKE LONG OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
17.1 |
FT800A.43.056a |
左制动长油管总成 |
LEFT BRAKE LONG OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
18 |
FT800A.43.335 |
油管固定板 |
FIXED PLATE OF OIL PIPE |
2 |
2011-11_ |
|
19 |
FT800A.43.057b |
右制动长油管总成 |
RIGHT BRAKE LONG OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
19.1 |
FT800A.43.056a |
左制动长油管总成 |
LEFT BRAKE LONG OIL PIPE ASSEMBLY |
1 |
2011-11_ |
|
2 |
GBT93-8-AOP |
弹簧垫圈 |
SPRING WASHER |
1 |
2011-11_ |
|
20 |
GBT5780-M6X40-A2L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
20 |
GBT5780-M6X40-A2L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
21 |
GBT97.1-6-A0P |
平垫圈 |
WASHER |
1 |
2011-11_ |
|
22 |
GBT93-6-A0P |
弹簧垫圈 |
SPRING WASHER |
1 |
2011-11_ |
|
23 |
GBT6170-M6-A2L |
螺母 |
NUT |
1 |
2011-11_ |
|
3 |
TG1204.433.2 |
制动器油箱总成 |
BRAKE OIL TANK ASSEMBLY |
1 |
2011-11_ |
|
3.1 |
FT800.43.018 |
制动油箱 |
BRAKE OIL TANK |
1 |
2011-11_ |
TD800.43-5 43.5-制动系总成-5(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
4 |
Q67516 |
A型蜗杆传动式软管环箍 |
A-TYPE WORM TRANSMISSION HOSE CLAMP |
2 |
2011-11_ |
|
5 |
TD800.43.1 |
输油胶管总成 |
OIL CONVEYING HOSE ASSEMBLY |
2 |
2011-11_ |
|
6 |
FT800.43.115 |
油管接头螺钉 |
OIL PIPE JOINT SCREW |
6 |
2011-11_ |
|
7 |
JBZQ4454-12X16 |
密封垫 |
SEAL GASKET |
12 |
2011-11_ |
|
8 |
FT800A.43C.017 |
管接头焊合件 |
PIPE JOINT WELDMENT UNIT |
2 |
2011-11_ |
|
9 |
FT800A.43C.018 |
制动泵总成 |
BRAKE PUMP ASSEMBLY |
1 |
2011-11_ |

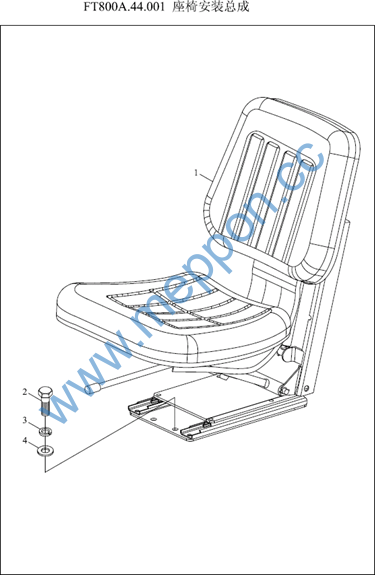

FT800A.44.001 44-座椅安装总成 44SEAT INSTALLATION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 2 2 3 4 |
FT800A.44.011 GBT5783-M12X35-A3L GBT5783-M12X35-A3L GBT93-12-A0P GBT97.1-12-A0P |
座椅总成螺栓 螺栓 弹簧垫圈平垫圈 |
SEAT ASSEMBLY BOLT BOLT SPRING WASHER WASHER |
1 4 4 4 4 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ 2011-11_ |

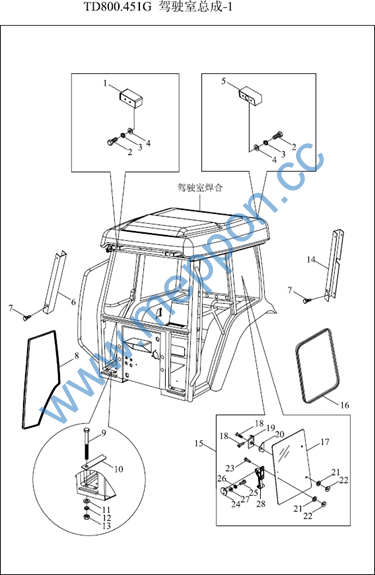

TD800.451G-1 45.1-驾驶室总成-1 45CAB ASSEMBLY-1
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
FT65.45.712 |
右侧窗玻璃 |
RIGHT WINDOW GLASS |
1 |
2011-11_ |
|
0 |
FT65T.45.071 |
右侧窗总成 |
RIGHT SIDE WINDOW ASSEMBLY |
1 |
2011-11_ |
|
0 |
FT65.45.741 |
右侧窗开窗叉合件 |
RIGHT WINDOW FORK UNIT |
1 |
2011-11_ |
|
1 |
FT65.45.098 |
前顶灯支架总成 |
FRONT UPPER LAMP BRACKET ASSEMBLY |
2 |
2011-11_ |
|
10 |
FT800.45.949 |
粘贴密封胶 |
SEAL GLUE |
999 |
2011-11_ |
|
11 |
GBT97.1-12-A0P |
平垫圈 |
WASHER |
12 |
2011-11_ |
|
12 |
GBT93-12-A0P |
弹簧垫圈 |
SPRING WASHER |
16 |
2011-11_ |
|
13 |
GBT6170-M12-A3L |
螺母 |
NUT |
12 |
2011-11_ |
|
14 |
FT65.45.309 |
左中柱内饰 |
LEFT MIDDLE COLUMN UPHOLSTERY |
1 |
2011-11_ |
|
15 |
FT65T.45.070 |
左侧窗总成 |
LEFT SIDE WINDOW ASSEMBLY |
1 |
2011-11_ |
|
16 |
FT65.45.713 |
侧窗密封条 |
SIDE WINDOW SEAL STRIP |
2 |
2011-11_ |
|
16 |
FT65.45.713 |
侧窗密封条 |
SIDE WINDOW SEAL STRIP |
2 |
2011-11_ |
|
17 |
FT650T.45.711 |
左侧窗玻璃 |
LEFT SIDE WINDOW GLASS |
1 |
2011-11_ |
|
18 |
GBT819-M8X16-A2L |
螺钉 |
SCREW |
12 |
2011-11_ |
|
19 |
FT65.45.730 |
侧窗铰链合件 |
SIDE WINDOW HINGE UNIT |
4 |
2011-11_ |
|
2 |
GBT5783-M6x16-A2L |
螺栓 |
BOLT |
8 |
2011-11_ |
|
20 |
FT65.45.715 |
侧窗活动铰链密封垫 |
SIDE WINDOW MOVABLE HINGE WASHER |
4 |
2011-11_ |
|
21 |
FT65.45.720 |
橡胶垫圈 |
RUBBER WASHER |
8 |
2011-11_ |
|
22 |
FT65.45.719 |
侧窗塑铸螺母 |
SIDE WINDOW CAST NUT |
8 |
2011-11_ |
|
23 |
GBT5783-M8X16-A2L |
螺栓 |
BOLT |
2 |
2011-11_ |
|
24 |
FT65.45.750 |
销子合件 |
PIN UNIT |
2 |
2011-11_ |
|
25 |
GBT818-M5X20-A2L |
十字槽盘头螺钉 |
SCREW |
2 |
2011-11_ |
|
26 |
GBT93-5-A0P |
标准型弹簧垫圈 |
WASHER |
2 |
2011-11_ |
|
27 |
GBT97.1-5-A0P |
垫圈 |
WASHER |
2 |
2011-11_ |
|
28 |
FT65.45.740 |
左侧窗开窗叉合件 |
LEFT SIDE WINDOW FORK UNIT |
1 |
2011-11_ |
