LOVOL TD824-1F461F20K Tractor Parts Catalogue 24

Meppon Parts Posted on by

TD800.487 48.7-组合仪表总成 48.7-COMBINED INSTRUMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

1

FT65.48.610c FT700.48G.061b FT700.48G.061a

COMBINED INSTRUMENT ASSEMBLY COMBINED INSTRUMENT ASSEMBLY COMBINED INSTRUMENT ASSEMBLY

1

1

1

2010-01_

2009-05_








FT300.49.001 49-工具箱总成 49-TOOL BOX ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M12X25-A3L

BOLT

2

2011-11_

1

FT65.49.101

HANDLE SEAT

2

2003-11_

10

FT300.49.012

TOOL BOX WELDMENT ASSEMBLY

1

2003-11_

2

GBT 867-4X8

RIVET

2

2003-11_

3

FT65.49.115

HANDLE

1

2003-11_

4

FT65.49.102

CROSS PIN

1

2003-11_

5

GBT5783-M12X35-A3L

BOLT

2

2003-11_

5

GBT5783-M12X35-A3L

BOLT

2

2003-11_

6

FT65.49.103

FIXING SUPPORT PLATE

1

2003-11_

7

GBT97.1-12-A0P

WASHER

2

2003-11_

8

GBT93-12-A0P

SPRING WASHER

2

2003-11_

9

GBT6170-M12-A3L

NUT

2

2003-11_








TD800.501A 50.1-主油箱总成 50.1-MAIN OIL TANK ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.50.051

MAIN OIL TANK BELT ASSEMBLY

2

2011-11_

1

FT800A.50.051

MAIN OIL TANK BELT ASSEMBLY

2

2011-11_

10

TD800.501-05

OIL TANK SHORT RUBBER GASKET

2

2011-11_

11

TD800.501.3

UPPER BRACKET WELDMENT

1

2011-11_

12

GBT93-10-A0P

WASHER

4

2011-11_

13

GBT5783-M10X20-A3L

BOLT

4

2011-11_

14

TD800.501.4

LOWER BRACKET WELDMENT

1

2011-11_

2

GBT6170-M10-A3L

NUT

4

2011-11_

3

FT800A.50.209

MAIN OIL TANK BELT RUBBER STRIP

2

2011-11_

4

TD800.501A.1

MAIN OIL TANK ASSEMBLY

1

2011-11_

4.1

TD800.501A.1.2

MAIN OIL TANK WELDMENT

1

2011-11_

4.2

TD800.501A.1.1

OIL TANK COVER

1

2011-11_

4.3

FT300.50.015

FILTER MESH ASSEMBLY

1

2011-11_

4.4

JBT982-16

COMBINED SEAL GASKET

1

2011-11_

4.5

FT65.50.226

OIL DISCHARGING SCREW PLUG

1

2011-11_

5

GBT5783-M16X35-A3L

BOLT

2

2011-11_

6

GBT93-16-A0P

SPRING WASHER

2

2011-11_

7

FT800A.50.207

MAIN OIL TANK RUBBER WASHER (1)

1

2011-11_

8

TD800.501.2

MAIN OIL TANK FRONT BRACKET WELDMENT

1

2011-11_

9

TD800.502-01

OIL TANK RUBBER WASHER

2

2011-11_

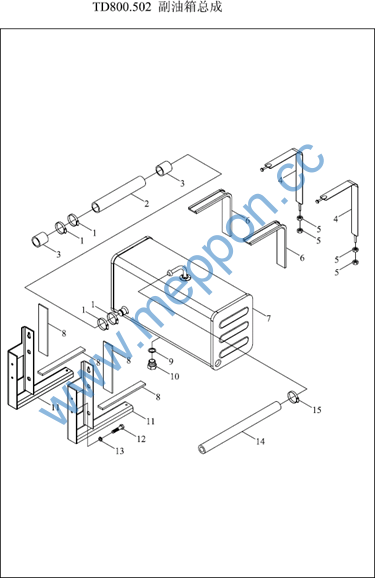

TD800.502 50.2-副油箱总成 50.2-AUXILIARY OIL TANK ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q67645

CLAMP HOOP

4

2011-11_

10

FT65.50.226

OIL DISCHARGING SCREW PLUG

1

2011-11_

11

TD800.502.2

AUXILIARY OIL TANK BRACKET WELDMENT

2

2011-11_

11

TD800.502.2

AUXILIARY OIL TANK BRACKET WELDMENT

2

2011-11_

12

GBT5783-M10X20-A3L

BOLT

4

2011-11_

13

GBT93-10-A0P

WASHER

4

2011-11_

14

TD800.502-04

EXHAUST HOSE

1



14

TD800.505-01

BREATH HOSE

1

2006-05_

15

Q673B23

CLAMP

2

2011-11_

2

TD800.502-03

MAIN/ASSISTANT OIL TANK CONNECTING PIPE

1



2

TD800.502-03a

MAIN/ASSISTANT OIL TANK CONNECTING PIPE

1

2006-04_

3

TD800.502-05

RUBBER CONNECTING PIPE

2

2011-11_

4

TD800.502.3

AUXILIARY OIL TANK FASTENING TIE WELDMENT

2

2011-11_

5

GBT6170-M10-A3L

NUT

4

2011-11_

6

TD800.502-02

AUXILIARY OIL TANK FASTENING TIE RUBBER STRIP

2

2011-11_

7

TD800.502.1

AUXILIARY OIL TANK WELDMENT

1

2011-11_

8

TD800.502-01

OIL TANK RUBBER WASHER

4

2011-11_

9

JBT982-16

COMBINED SEAL GASKET

1

2011-11_

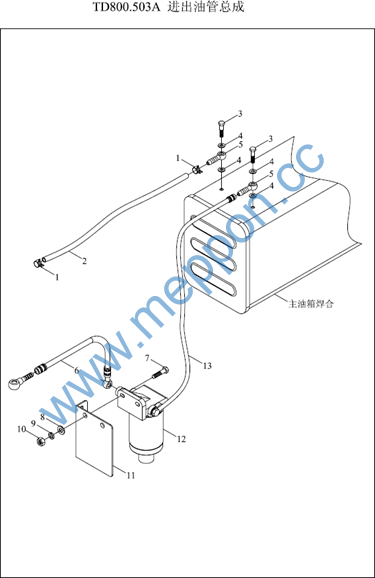

TD800.503A 50.3-进出油管总成 50.3-OIL INLET/OUTLET PIPE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q673B155

CLAMP

2

2011-11_

10

GBT6170-M8-8-A2L

I-TYPE HEXAGON NUT

2

2012-08_

11

TD800.503A-01

INSTALLATION BRACKET

1

2011-11_

12

FT800A.50.061a

FUEL FILTER ASSEMBLY

1

2011-11_

13

TD800.503A.1

OIL OUTLET PIPE ASSEMBLY

1

2011-11_

2

FT800A.50P.101a

OIL RETURN PIPE

1



2

FT700.50G.121

OIL RETURN PIPE

1

2011-11_

3

FT65.50.106

HOLLOW BOLT

2

2011-11_

4

JBT982-14

COMBINED SEAL GASKET

4

2011-11_

4

JBT982-14

COMBINED SEAL GASKET

4

2011-11_

5

FT800A.50.162

JOINT

1

2011-11_

6

FT800A.50P.081

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

7

GBT5783-M8X30-A2L

BOLT

2

2011-11_

8

GBT97.1-8-A0P

WASHER

2

2011-11_

9

GBT93-8-A0P

WASHER

2

2011-11_

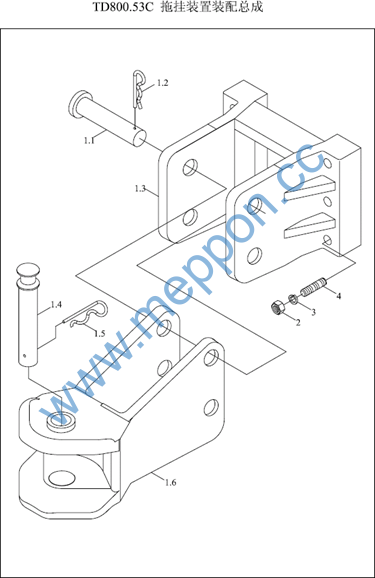

TD800.53C 53-拖挂装置装配总成 53-TOW EQUIPMENT INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD800.53.1

TOW EQUIPMENT ASSEMBLY

1

2011-11_

1.1

TD800.53.1-03

CONNECTING PIN

2

2011-11_

1.2

FT800.35.112

SPRING LOCK PIN

2

2011-11_

1.3

TD800.53.1-02

TOW FIXING BRACKET

1

2011-11_

1.4

FT800.53.102

CONNECTING PIN SHAFT

1

2011-11_

1.5

FT800.53.111

SPRING LOCK PIN

1

2011-11_

1.6

TD800.53.1-01

TOW BRACKET

1

2011-11_

2

GBT6170-M16-A3L

NUT M16-A3L

6

2011-11_

3

GBT93-16-AOP

WASHER

6

2011-11_

3

GBT93-16-A0P

SPRING WASHER

6

2013-04_

4

GBT899-GM16-M16X55-8.8-A3L

8.8-A3L STUD

6

2011-11_

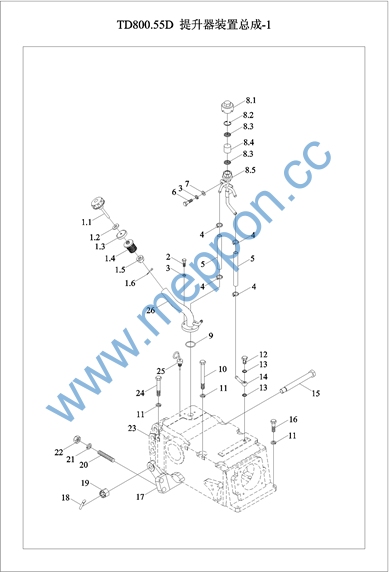

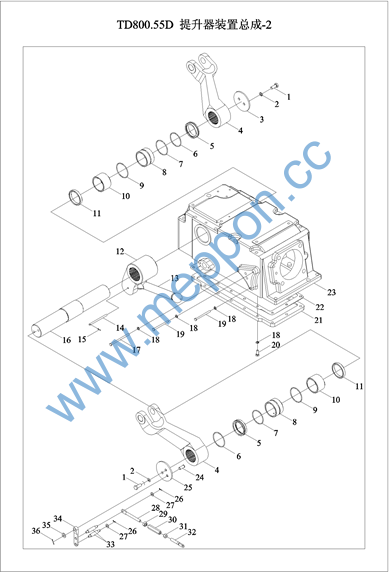

TD800.55D-1 55.1-提升器装置总成-1 LIFT INSTALLATION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0.1

TD-B02223

RISER KIT

1

2014-01_

1

TA700.55A.7

PLUG,THREADED

1

2013-05_

1

FT300.55B.029

OIL PIPE PLUG ASSEMBLY

1

2011-11_

1.1

FT700.55D.029

HANDLE WHEEL ASSEMBLY I

1

2011-11_

1.2

JBT982-8

COMBINED GASKET

1

2011-11_

1.3

FT700.55D.129

COVER PLATE

1

2011-11_

1.4

FT300.55B.165

TENSION RUBBER SLEEVE

1

2011-11_

1.5

FT300.55B.166

ADJUSTING NUT

1

2011-11_

1.6

GBT91-3.2X16-A0P

PIN

1

2011-11_

10

TD800.55B-02

BOLT

8

2011-11_

11

GBT93-12-A0P

SPRING WASHER

12

2011-11_

12

FT700.55D.147

HOLLOW BOLT

1

2011-11_

13

JBT982-8

COMBINED GASKET

2

2011-11_

14

TD800.55B.4

BREATH CONNECT STEEL PIPE ASSEMBLY

1

2011-11_

15

FT800.55.120a

CONNECTING BOLT

1

2011-11_

16

GBT5783-M12X40-A3L

BOLT

2

2011-11_

17

FT800.55.119b

UPPER PULL ROD SUPPORT SEAT

1

2011-11_

18

GBT91-4X36-A0P

PIN

1

2011-11_

19

GBT6181-M20-A9L

NUT

1

2011-11_

19

GBT6181-M20-A9L

NUT

1

2011-11_

2

GBT5781-M8X30-A2L

BOLT

3

2011-11_

21

GBT93-16-A0P

SPRING WASHER

4

2011-11_

22

GBT6170-M16-A2L

NUT

4

2011-11_

23

TD800.55D.1

LIFTER ASSEMBLY

1

2011-11_

24

GBT899-GM16-M16X50-8.8-A3L

8.8-A3L STUD

8

2011-11_








TD800.55D-1 55.1-提升器装置总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

25

TA700.55.4

DIPSTICK ASSEMBLY

1

2011-11_

25.1

2011.10.15

DIPSTICK ASSEMBLY

1

2011-11_

26

TD800.55B.2

OIL FILLING PIPE WELDMENT

1

2011-11_

3

GBT93-8-A0P

WASHER

4

2011-11_

4

Q67516

A-TYPE WORM TRANSMISSION HOSE CLAMP

4

2011-11_

5

TD800.55B.3-01

CONNECTING RUBBER PIPE

2

2011-11_

6

GBT5783-M8X16-A2L

BOLT

1

2011-11_

7

GBT97.1-8-A0P

WASHER

1

2011-11_

8

TD800.55B.3



1

2011-11_

8.1

FT700.55D.136

RESPIRATOR COVER

1

2011-11_

8.1

FT700.55D.136

RESPIRATOR COVER

1

2011-11_

8.2

GBT893.1-26

SNAP RING

1

2011-11_

8.3

FT650.40.167

SEAT PLATE

2

2011-11_

8.4

FT700.55D.109

BREATH FILTER ELEMENT

1

2011-11_

8.5

TD800.55B.3.1

BREATHER BODY WELDMENT

1

2011-11_

9

GBT3452.1-34.5X2.65G

O-SEAL RING

1

2011-11_
