TD800.412G-2 41.2.2-动力输出齿轮总成-2 PTO GEAR ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.41.139

PTO TRANSMISSION SHAFT LOCKNUT

1

2011-11_

10

TD800.412G-02

PTO HIGH GEAR DRIVEN GEAR

1

2011-11_

11

FT800A.41.142

REAR CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

12

GBT899-AM14-M14X1.5X65-A3L

8.8-A3L STUD

4

2011-11_

12

GBT899-AM14-M14X1.5X65-A3L

8.8-A3L STUD

4

2011-11_

13

GBT93-14-A0P

SPRING WASHER

4

2011-11_

13

GBT93-14-A0P

SPRING WASHER

4

2011-11_

14

GBT6176-M14X1.5-A3L

HEXAGON NUT, TYPE-2

4

2011-11_

15

GBT297-30212

BEARING

2

2011-11_

16

FT800A.41.124

REAR BEARING SEAT OF PTO TRANSMISSION SHAFT

1

2011-11_

17

FT800A.41.152

ADJUSTING WASHER

9999

2011-11_

18

FT800A.41.153

RETAINER RING

1

2004-01_

19

GBT9877.1-FB70X90X10D

O RING

2

2011-11_

2

FT800A.41.140

FRONT CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

20

FT800A.41.125

REAR OIL SEAL SEAT OF PTO TRANSMISSION SHAFT

1

2011-11_

21

FT800A.41.108

PTO TRANSMISSION SHAFT

1

2011-11_

3

GBT276-6210

BEARING

1

2011-11_

4

FT800A.41.141

MIDDLE CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

4

FT800A.41.141

MIDDLE CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

5

TD800.412F-03

PTO LOW GEAR DRIVEN GEAR

1

2011-11_

6

QLWZB120-K68X78X34

ROLLING BEARING

2

2011-11_

7

FT800A.41.113

PTO HIGH GEAR SLIDING SLEEVE

2

2011-11_

8

FT800.37.118

Ⅲ-Ⅳ SHIFT COLLAR

1

2011-11_

9

FT800.37.119

Ⅲ-Ⅳ ENGAGING GEAR SEAT

1

2011-11_








TD800.412A-2 41.2.2-动力输出齿轮总成-2 PTO GEAR ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.41.139

PTO TRANSMISSION SHAFT LOCKNUT

1

2011-11_

10

FT800A.41.102

PTO HIGH GEAR DRIVEN GEAR

1

2011-11_

11

FT800A.41.142

REAR CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

12

GBT899-AM14-M14X1.5X65-A3L

8.8-A3L STUD

4

2011-11_

12

GBT899-AM14-M14X1.5X65-A3L

8.8-A3L STUD

4

2011-11_

13

GBT93-14-A0P

SPRING WASHER

4

2011-11_

13

GBT93-14-A0P

SPRING WASHER

4

2011-11_

14

GBT6176-M14X1.5-A3L

HEXAGON NUT, TYPE-2

4

2011-11_

15

GBT297-30212

BEARING

2

2011-11_

16

FT800A.41.124

REAR BEARING SEAT OF PTO TRANSMISSION SHAFT

1

2011-11_

17

FT800A.41.152

ADJUSTING WASHER

999

2011-11_

18

FT800A.41.153

RETAINER RING

1

2004-01_

19

GBT9877.1-FB70X90X10D

O RING

2

2011-11_

2

FT800A.41.140

FRONT CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

20

FT800A.41.125

REAR OIL SEAL SEAT OF PTO TRANSMISSION SHAFT

1

2011-11_

21

FT800A.41.108

PTO TRANSMISSION SHAFT

1

2011-11_

3

GBT276-6210

BEARING

1

2011-11_

4

FT800A.41.141

MIDDLE CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

4

FT800A.41.141

MIDDLE CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

5

FT800A.41A.104

PTO LOW GEAR DRIVEN GEAR

1

2011-11_

6

QSFZB019-K68X78X34

ROLLING BEARING

2

2011-11_

7

FT800A.41.113

PTO HIGH GEAR SLIDING SLEEVE

2

2011-11_

8

FT800.37.118

Ⅲ-Ⅳ SHIFT COLLAR

1

2011-11_

9

FT800.37.119

Ⅲ-Ⅳ ENGAGING GEAR SEAT

1

2011-11_

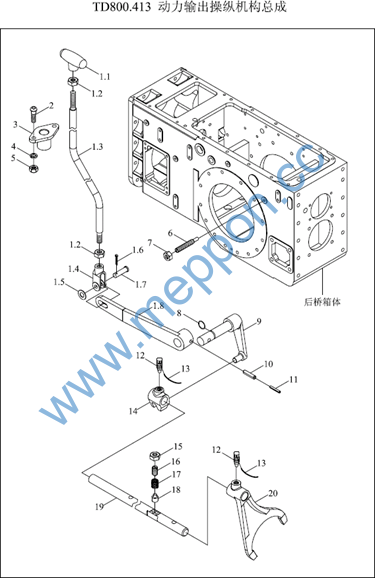

TD800.413 41.3-动力输出操纵机构总成 41.3-PTO CONTROL MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.41.147

PTO CONTROL ROD

1

2011-11_

1.1

FT800A.41.013

PTO CONTROL ROD ASSEMBLY

1

2011-11_

1.2

GBT6170-M10-A2L

NUT

2

2004-01_

1.3

FT65.38.051

PULL/PRESS HANDLE

1

2011-11_

1.4

FT804.42.150

PULL ROD FRONT FORK

1

2011-11_

1.5

GBT97.1-8-A0P

WASHER

1

2004-01_

1.6

GBT91-3X20-A0P

PIN

1

2013-07_

1.7

GBT882-B8X26-A2L

PIN

1

2004-01_

1.8

FT800A.41.146

PTO ROCKER

1

2013-07_

10

GBT879.1-8X35

PIN

1



11

GBT879.1-5X35

PIN

1

2011-11_

12

FT800.37.194

LOCKING SCREW

2

2011-11_

13

FT800A.41.241

ZINC-COATED STEEL WIRE

2

2011-11_

14

FT800.41.240

FORK HEAD

1

2011-11_

15

GBT6172.1-M16-A3L

NUT

1

2011-11_

16

TD800.41-03

TAPER LOCKING SCREW

1

2011-11_

17

FT800.41.246

LOCKING PIN SPRING

1

2011-11_

17

FT800.41.246

LOCKING PIN SPRING

1

2011-11_

18

FT800.41.245

LOCKING PIN

1

2011-11_

19

FT800.41.106a

FORK SHAFT

1

2010-05_

19

FT800.41.106

FORK SHAFT

1



2

GBT818-M6X16-A2L

SCREW

2

2004-01_

20

FT800A.41.114

PTO HIGH AND LOW GEAR FORK

1

2011-11_

3

FT800A.41.173

SEAL LINER SEAT

1

2011-11_

4

GBT93-6-A0P

SPRING WASHER

2

2004-01_








TD800.413 41.3-动力输出操纵机构总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

GBT6170-M6-A2L TD800.41-04 GBT6170-M12-A3L GBT3452.1-17X1.8G FT800.41.011

NUT

LOCKING SCREW NUT

O-SEAL RING

PTO CONTROL INNER ROCKER ASSEMBLY

2

1

1

1

1

2004-01_

2011-11_





2011-11_








TD800.414B 41.4-动力输出防护罩总成 41.4-PTO BONNET INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

TD800.411A-02 GBT97.1-5-A0P GBT93-5-A0P GBT65-M5X12-A2L FT800A.41.016

PTO SHAFT HOOD SHIELD WASHER

WASHER SCREW

SHIELD WELDMENT

1

2

2

2

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_








FT804A.42.001-1 42.1-分动箱总成-1 TRANSFER CASE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT93-10

WASHER 10

6

2011-11_

10

FT804.42.125a

MIDDLE TRANSMISSION SHAFT

1



10

FT804.42.125b

MIDDLE TRANSMISSION SHAFT

1

2008-12_

3

FT804A.42.016

OUTER SLEEVE WELDMENT (2)

1

2011-11_

4

GBT894.1-38

SNAP RING

4

2011-11_

5

FT804.42.131

SPACER BUSH

1

2011-11_

6

FT804.42.123a

SPLINE BUSH

1



6

FT804.42.123b

SPLINE BUSH

1

2008-12_

7

FT804A.42.130a

FRONT TRANSMISSION SHAFT

1

2008-12_

7

FT804A.42.130

FRONT TRANSMISSION SHAFT

1



8

GBT3452.1-45X3.55G

O-SEAL RING

2

2011-11_

9

FT804.42.015

INNER SLEEVE WELDMENT (2)

1

2011-11_








FT804A.42.001-2 42.2-分动箱总成-2 TRANSFER CASE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT1152-M10X1

OIL CUP

1

2011-11_

10

GBT5783-M10X25-A3L

BOLT

4

2011-11_

11

GBT93-10-AOP

WASHER

12

2011-11_

12

GBT5781-M10X30-A3L

BOLT

8

2011-11_

13

FT804.42.014

INNER SLEEVE WELDMENT (1)

1

2011-11_

14

GBT3452.1-45X3.55G

O-SEAL RING

2

2011-11_

15

FT804.42.011

OUTER SLEEVE WELDMENT (1)

1

2011-11_

15

FT804.42.011

OUTER SLEEVE WELDMENT (1)

1

2011-11_

16

GBT894.1-30

RETAINER RING

2

2011-11_

17

FT804.42.123a

SPLINE BUSH

1



17

FT804.42.123b

SPLINE BUSH

1

2008-12_

18

FT804.42.120

FRONT COVER

1

2011-11_

19

GBT276-6306

BEARING

1

2011-11_

2

FT804A.42.129

SUPPORTING SEAT

1

2011-11_

3

FT804A.42.016

OUTER SLEEVE WELDMENT (2)

2

2011-11_

4

GBT93-16-A0P

SPRING WASHER

2

2011-11_

5

GBT6176-M16X1.5

HEXAGON NUT, TYPE-2

2

2011-11_

6

GBT9877.1-FB30X52X7D

O RING

4

2011-11_

7

FT804.42.128

RUBBER RING

1

2011-11_

8

GBT276-6006

BEARING

1

2011-11_

9

FT804.42.127

SUPPORT SEAT COVER

1

2011-11_

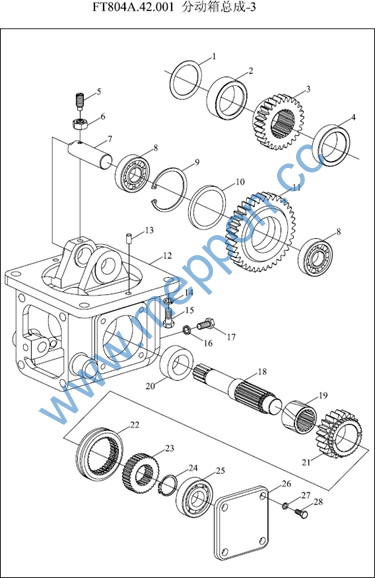

FT804A.42.001-3 42.3-分动箱总成-3 42TRANSFER CASE ASSEMBLY -3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT804.42.109

ADJUSTING WASHER

999

2011-11_

10

FT804.42B.161a

WASHER

1

2011-11_

11

FT804.42.103a

MIDDLE GEAR

1

2011-11_

12

FT804.42.105a

TRANSFER CASE BODY

1

2011-11_

13

GBT119.1-8h8X15

PIN

2

2011-11_

14

GBT93-14

WASHER

4

2011-11_

14

GBT93-14

WASHER

4

2011-11_

15

GBT5781-M14X35-A3L

BOLT

4

2011-11_

16

JBT982-18

COMBINED SEAL GASKET

2

2011-11_

16

JBT982-18

COMBINED SEAL GASKET

2

2011-11_

17

FT804.42.110

SCREW PLUG

1

2011-11_

18

FT804.42.118a

TRANSFER CASE GEAR SHAFT

1

2011-11_

19

FT804.42.117c

GEAR BUSH

1

2011-11_

2

FT804.42.101

SPACER BUSH

1

2011-11_

20

FT804.42.119a

SPACER BUSH

1

2011-11_

21

FT804.42.116a

DRIVEN GEAR

1

2011-11_

22

FT804.42.114

SHIFT COLLAR

1

2011-11_

23

FT804.42.115

MESH GEAR SEAT

1

2011-11_

24

GBT894.1-38

SNAP RING

1

2011-11_

25

GBT276-6306

BEARING

1

2011-11_

26

FT804.42.112

COVER REAR

1

2011-11_

27

GBT93-10-AOP

WASHER

4

2011-11_

28

GBT5781-M10X25-A3L

BOLT

4

2011-11_

3

FT804.42.102a

DRIVING GEAR

1

2011-11_

4

FT804.42.111

SPACER BUSH

1

2011-11_
