TD800.311-3 前桥总成-3 31FRONT AXLE ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M16X35-8.8-A2L

六角头螺栓

BOLT

4

2011-11_

10

FT800A.31.013

转向节总成

STEERING BURL ASSEMBLY

2

2011-11_

11

FT800A.31.111

垫环

PAD RING

2

2011-11_

12

FT800A.31.112a

前轮毂

FRONT HUB

2

2011-11_

13

GBT1153-45M10X1

油杯

OIL CUP

3

2011-11_

13

GBT1153-45M10X1

油杯

OIL CUP

3

2011-11_

14

FT800.31.113a

前轮螺栓

FRONT WHEEL BOLT

12

2011-11_

15

GBT6176-M16X1.5-10-A2L

2型六角螺母

HEXAGON NUT, TYPE-2

12

2011-11_

16

GBT297-32209

圆锥滚子轴承

BEARING

2

2011-11_

16

GBT297-32209

圆锥滚子轴承

BEARING

2

2011-11_

17

GBT297-32307

圆锥滚子轴承

BEARING

2

2011-11_

18

FT800A.31.232

螺母

NUT

999

2011-11_

19

FT800A.31.116

垫片

WASHER

2

2011-11_

2

GBT93-16-A2L

标准型弹簧垫圈

WASHER

6

2011-11_

21

GBT91-5X45-A2L

开口销

PIN

2

2011-11_

22

FT800A.31.117

轴承盖

BEARING COVER

2

2011-11_

23

GBT93-8-A2L

标准型弹簧垫圈

WASHER

6

2011-11_

24

GBT5783-M8X20-A2L

螺栓

BOLT

6

2011-11_

3

FT800A.31.106

立轴防尘罩

VERTICAL SHAFT DUSTPROOF COVER

2

2011-11_

4

GBT9877.1-B50X68X8

内包骨架旋转轴唇形密封

O RING

2

2011-11_

5

FT800A.31.104

压紧螺栓

PRESSURE BOLT

2

2011-11_

6

GBT6170-M16-A2L

螺母

NUT

2

2011-11_

7

GB1152-M10X1

油杯

OIL CUP

2

2011-11_

8

GBT301-51210

推力球轴承

HANDSPIKE BALL BEARING

2

2011-11_

9

GBT9877.1-B65X90X10

内包骨架旋转轴唇形密封

O RING

8

2011-11_

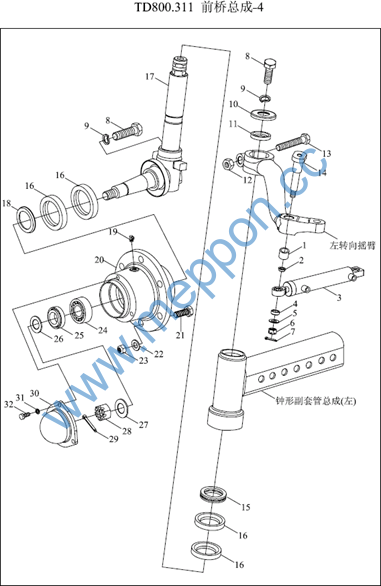

TD800.311-4 前桥总成-4 31FRONT AXLE ASSEMBLY-4



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.31.109

大隔套

BIG SPACER BUSH

1

2011-11_

10

FT800A.31.106

立轴防尘罩

VERTICAL SHAFT DUSTPROOF COVER

2

2011-11_

11

GBT9877.1-B50X68X8

内包骨架旋转轴唇形密封

O RING

2

2011-11_

12

GBT6170-M16-A2L

螺母

NUT

2

2011-11_

13

FT800A.31.104

压紧螺栓

PRESSURE BOLT

2

2011-11_

14

FT800A.31.102

销轴（连接左摇臂）

PIN SHAFT (CONNECTING LEFT ROCKER)

1

2011-11_

15

GBT301-51210

推力球轴承

HANDSPIKE BALL BEARING

2

2011-11_

16

GBT9877.1-B65X90X10

内包骨架旋转轴唇形密封

O RING

8

2011-11_

17

FT800A.31.013

转向节总成

STEERING BURL ASSEMBLY

1



17

FT800A.31.013a

左转向节总成

LEFT STEERING BURL ASSEMBLY

1

2009-03_

18

FT800A.31.111

垫环

PAD RING

2

2011-11_

19

GBT1153-45M10X1

油杯

OIL CUP

3

2011-11_

19

GBT1153-45M10X1

油杯

OIL CUP

3

2011-11_

2

FT800A.31.123

油缸上端隔套

OIL CYLINDER UPPER SPACER BUSH

2

2011-11_

20

FT800A.31.112a

前轮毂

FRONT HUB

2

2011-11_

21

FT800.31.113a

前轮螺栓

FRONT WHEEL BOLT

12

2011-11_

22

FT654.32.104

垫圈

WASHER

12

2011-11_

22

FT654.32.104

垫圈

WASHER

12

2011-11_

23

GBT6176-M16X1.5-10-A2L

2型六角螺母

HEXAGON NUT, TYPE-2

12

2011-11_

24

GBT297-32209

圆锥滚子轴承

BEARING

2

2011-11_

24

GBT297-32209

圆锥滚子轴承

BEARING

2

2011-11_

25

GBT297-32307

圆锥滚子轴承

BEARING

2

2011-11_

26

FT800A.31.232

螺母

NUT

999

2011-11_

27

FT800A.31.116

垫片

WASHER

2

2011-11_

29

GBT91-5X45-A2L

开口销

PIN

2

2011-11_
