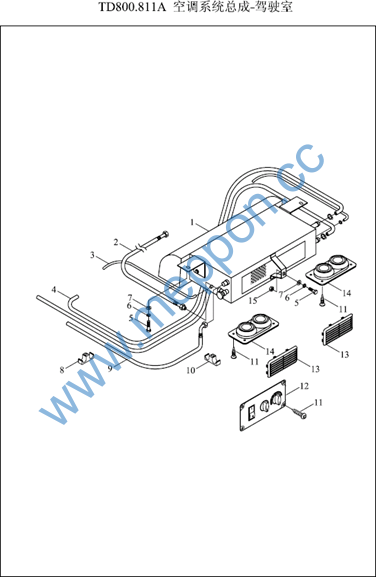

TD800.811A 81.1-空调系统总成-驾驶室 81.1-AIR CONDITION SYSTEM ASSEMBLY-DRIVER’S CAB



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.45.085

蒸发器总成

EVAPORATOR ASSEMBLY

1

2004-01_

1

FT800.45.085a

蒸发器总成

EVAPORATOR ASSEMBLY

1

2011-02_

10

TD800.811-16

双孔管夹

DOUBLE-HOLE PIPE CLIP

4

2011-11_

11

GBT845-ST3.5X16

十字槽盘头自攻螺钉

SCREW

12

2011-11_

11

GBT845-ST3.5X16

十字槽盘头自攻螺钉

SCREW

12

2011-11_

12

FT800.45.084

控制面板

CONTROL PANEL

1

2011-11_

12

FT800.45.084

控制面板

CONTROL PANEL

1

2011-11_

13

FT800.45.086

回风口

WIND RETURN MOUTH

2

2011-11_

14

FT800.45.087

出风口

WIND OUTPUT GATE

2

2011-11_

15

GBT6170-M8-A2L

螺母

NUT

1

2011-11_

2

TD800.811A-01

压缩机吸气管一

COMPRESSOR AIR INLET PIPE 1

1

2004-01_

2

TD800.811A-01a

压缩机吸气管一

COMPRESSOR AIR INLET PIPE 1

1

2011-02_

3

TD800.811-07

排水管

DRAIN PIPE

2

2011-11_

4

FT800.45.997

空调暖风进水管

AIR CONDITION WATER INLET PIPE

1

2013-01_

4

FT800.45.995

空调暖风出水管

AIR CONDITION WATER OUTPUT PIPE

1



5

GBT5783-M8X20-A2L

螺栓

BOLT

3

2011-11_

6

GBT93-8-AOP

弹簧垫圈

SPRING WASHER

3

2011-11_

7

GBT97.1-8-A0P

平垫圈

WASHER

3



8

TD800.811-10

管夹3

PIPE CLAMP 3

2

2011-11_

9

TD800.811A-02

干燥瓶-蒸发器高压软管一

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1




HOSE (1)



9

TD800.811A-02

干燥瓶-蒸发器高压软管一



1



9

TD800.811A-02a

干燥瓶-蒸发器高压软管一

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1

2011-02_


HOSE (1)




DRYING BOTTLE-EVAPORATOR HIGH PRESSURE




HOSE (1)

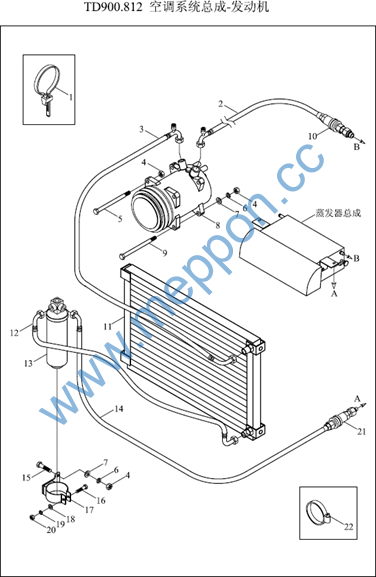

TD900.812 81.2-空调系统总成-发动机 81.2-AIR CONDITION SYSTEM ASSEMBLY-ENGINE



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q67407200

塑料紧箍带

PLASTIC FASTEN STRIP

5

2011-11_

1

TD800.812A-01

压缩机吸气管二

COMPRESSOR AIR INLET PIPE 2

1

2004-01_

10

TG1204.81-14

空调低压快换接头

AIR CONDITION LOW VOLTAGE QUICK

1

2011-11_

11

TD900.812.1a

冷凝器总成

CHANGING JOINT

1

2011-11_

11

TD900.812.1

冷凝器总成

CONDENSER ASSEMBLY

1

2011-11_


CONDENSER ASSEMBLY



12

TD800.811-03a

冷凝器-储液罐高压管



1

2011-02_

12

TD800.811-03

冷凝器-储液罐高压管

CONDENSER-LIQUID TANK HIGH PRESSURE

1

2004-01_

13

FT800.45.082a

干燥瓶总成

HOSE

1

2011-02_

13

FT800.45.082

干燥瓶总成

CONDENSER-LIQUID TANK HIGH PRESSURE

1

2004-01_

14

TD900.812-02

干燥瓶-蒸发器高压软管

HOSE

1

2004-01_


DRYING BOTTLE ASSEMBLY



14

TD900.812-02a

干燥瓶-蒸发器高压软管

DRYING BOTTLE ASSEMBLY

1

2011-02_

14

TD900.812-02

干燥瓶-蒸发器高压软管

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1

2004-01_

15

GBT5783-M8X20-A2L

螺栓

HOSE

5

2011-11_

16

GBT5783-M6X30-A2L

螺栓



1

2011-11_

17

FT800.45.081

储液罐支架焊合件

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1

2011-11_


HOSE



18

GBT97.1-6-A0P

平垫圈

DRYING BOTTLE-EVAPORATOR HIGH PRESSURE

1

2011-11_

19

GBT93-6-A0P

弹簧垫圈

HOSE

1

2011-11_

2

TD800.812A-01a

压缩机吸气管二

BOLT

1

2011-02_

20

GBT6170-M6-A2L

螺母

BOLT

1

2011-11_

21

TG1204.81-13

空调高压快换接头

STORAGE TANK BRACKET WELDMENT

1

2011-11_

22

Q676B25

C型蜗杆传动式软管环箍

WASHER

2

2011-11_

22

Q676B25

C型蜗杆传动式软管环箍

SPRING WASHER

2

2011-11_

3

TD900.812-01a

冷凝器-压缩机高压软管

COMPRESSOR AIR INLET PIPE 2

1

2011-02_

3

TD900.812-01

冷凝器-压缩机高压软管

NUT

1

2004-01_

4

GBT6170-M8-A2L

螺母

AIR CONDITION HIGH VOLTAGE QUICK

6

2011-11_








TD900.812 81.2-空调系统总成-发动机(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

8

8

8



9

GBT5783-M8X40-A2L GBT93-8-A0P FT800.45.088 FT800.45.088a FT800.45.088a



TD800.811-20

六角头螺栓垫圈

压缩机总成压缩机总成压缩机总成



螺栓

BOLT WASHER

COMPRESSOR ASSEMBLY COMPRESSOR ASSEMBLY COMPRESSOR ASSEMBLY



BOLT

1

6

1

1

1



1

2011-11_

2011-11_

2004-01_

2011-02_

2011-02_



2011-11_

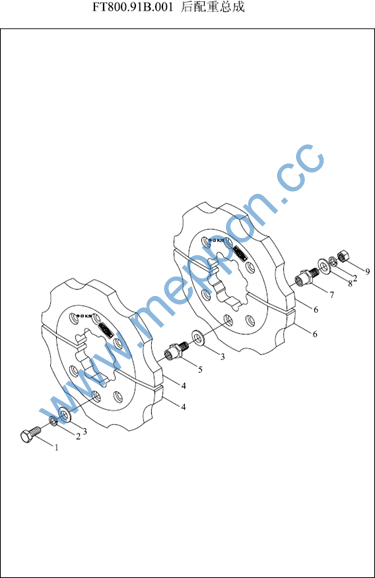

FT800.91B.001 91-后配重总成 91-REAR BALLAST ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M16X40-A3L

六角头螺栓

BOLT

6

2011-11_

2

GBT93-16-AOP

垫圈

WASHER

12

2004-01_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

12

2012-09_

3

FT800.34.108

平垫圈

WASHER

12

2011-11_

4

FT804.91.105

后配重

REAR BALLAST

2

2011-11_

5

FT804.91.102

配重螺钉Ⅱ

BALLAST SCREW II

6

2011-11_

6

FT800.91B.103

后配重Ⅱ

REAR BALLAST II

2

2011-11_

7

FT804.91.101

配重螺钉Ⅰ

BALLAST SCREW I

6

2011-11_

8

GBT97.1-16-AOP

垫圈

WASHER

6

2004-01_

9

GBT6170-M16-A3L

螺母M16-A3L

NUT M16-A3L

6

2011-11_

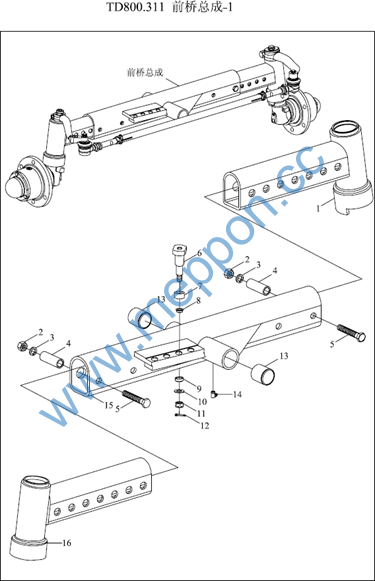

TD800.311-1 前桥总成-1 31FRONT AXLE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.31.012

钟形副套管总成(右)

BELL ASSISTANT SLEEVE ASSEMBLY (RIGHT)

1

2011-11_

10

GBT95-18-A0P

平垫圈

WASHER

1

2011-11_

11

GBT9549-M18X1.5

六角开槽薄螺母-细牙

HEXAGON SLOTTED THIN NUT-FINE PITCH

1

2011-11_

12

GBT91-4X28-A2L

开口销

THREAD

1

2011-11_

13

FT800A.31.208

衬套

PIN

2

2011-11_


SLEEVE



14

GBT1153-45M10X1

油杯



2

2011-11_

14

GBT1153-45M10X1

油杯

OIL CUP

2

2011-11_

15

FT800A.31.014

钟形套管总成

OIL CUP

1

2011-11_

15

FT800A.31.014

钟形套管总成

BELL SLEEVE ASSEMBLY

1

2011-11_

16

FT800A.31.017

钟形副套管总成(左)

BELL SLEEVE ASSEMBLY

1

2011-11_


BELL ASSISTANT SLEEVE ASSEMBLY (LEFT)



2

GBT6170-M20-8-A3L

1型六角螺母



4

2011-11_

3

GBT93-20-A2L

标准型弹簧垫圈

NUT

4

2011-11_

4

FT800A.31.119

前轴臂螺栓隔套

WASHER

4

2011-11_

5

GBT5782-M20X130-A2L

六角头螺栓

FRONT SHAFT ARM BOLT SPACER BUSH

4

2011-11_

6

FT800A.31.108

销轴（连接油缸连接板）

BOLT

1

2011-11_


PIN SHAFT (CONNECTING CYLINDER CONNECT



7

FT800A.31.105

小隔套

PLATE)

1

2011-11_

8

FT800A.31.123

油缸上端隔套



1

2011-11_

9

FT800A.31.121

油缸下端隔套

SMALL SPACER BUSH

2

2011-11_


OIL CYLINDER UPPER SPACER BUSH




OIL CYLINDER LOWER SPACER BUSH

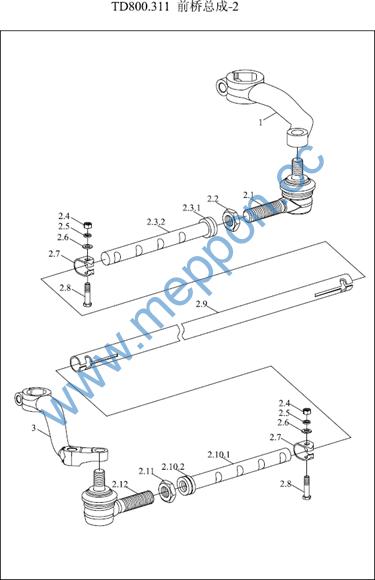

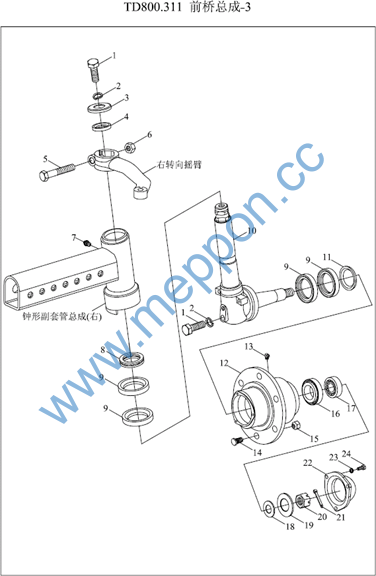

TD800.311-2 前桥总成-2 31FRONT AXLE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.31.110

右转向摇臂

RIGHT STEERING ROCKER

1

2011-11_

2

FT800A.31.015

横拉杆总成

CROSS PULL ROD ASSEMBLY

1

2011-11_

2.1

FT650.31.020

右球铰接头总成

RIGHT BALL HINGE JOINT ASSEMBLY

1

2011-11_

2.10

FT800A.31.024

左横接杆总成

LEFT CROSS CONNECTING ROD ASSEMBLY

1

2011-11_

2.101

FT800A.31.131

横接杆

CROSS CONNECTING ROD

1

2011-11_

2.102

FT800A.31.132

六角加强套

HEXAGON REINFORCED SLEEVE

1

2011-11_

2.12

FT650.31.022

左球铰接头总成

LEFT BALL HINGE JOINT ASSEMBLY

1

2011-11_

2.2

GBT6173-M20X1-A2L

六角薄螺母

NUT

1

2011-11_

2.3

FT800A.31.025

右横接杆总成

RIGHT CROSS CONNECTING ROD ASSEMBLY

1

2011-11_

2.5

GBT93-12-Zn.D

标准型弹簧垫圈

WASHER

2

2011-11_

2.6

GBT97.1-12-140HV-A2L

垫圈

WASHER

2

2011-11_

2.7

FT650.31.153

横拉杆夹子

CROSS PULL ROD CLAMP

2

2011-11_

2.8

FT650.31.122

横拉杆夹紧螺栓

CROSS PULL ROD FASTENING BOLT

2

2011-11_

2.9

FT800A.31.133

横外拉杆

EXTERNAL CROSS PULL ROD

1

2011-11_

3

FT800A.31.101

左转向摇臂

LEFT STEERING ROCKER

1

2011-11_
