LOVOL TD1SA904-013K Tractor Parts Catalogue 36
TS06812010000 AIR CONDITION ASSEMBLY-ENGINE
TS06812010000 AIR CONDITION ASSEMBLY-ENGINE
|
No. |
Part No. |
Description |
Version |
QTY. |
Remark |
|
TS06812010000 |
AIR CONDITION ASSEMBLY-ENGINE |
1 |
|||
|
1 |
Q67407200 |
PLASTIC FASTENING STRIP |
1 |
||
|
2 |
TS06812010005 |
GLUEPIECE |
1 |
||
|
3 |
TS06812010004 |
PROTECTION RUBBER STRIP |
1 |
||
|
4 |
TS06812010002 |
CONDENSER-COMPRESSOR HIGH PRESSURE HOSE |
1 |
||
|
5 |
TD800.811A-04 |
PIPE CLAMP BELT |
1 |
||
|
6 |
TS06812010001 |
CONDENSER |
1 |
||
|
7 |
GBT5783-M6X25-8.8-A2L |
HEXAGON BOLT |
1 |
||
|
8 |
GBT93-6-A0P |
STANDARD SPRING WASHER |
1 |
||
|
9 |
GBT97.1-6-A0P |
FLAT WASHER |
1 |
||
|
10 |
GBT5783-M8X16-8.8-A2L |
HEXAGON BOLT |
4 |
||
|
11 |
GBT93-8-A0P |
STANDARD SPRING WASHER |
4 |
||
|
12 |
GBT97.1-8-A3L |
FLAT WASHER |
4 |
||
|
13 |
GBT6170-M10-8-A3L |
HEXAGON NUT, TYPE-1 |
2 |
||
|
14 |
GBT93-10-A0P |
STANDARD SPRING WASHER |
3 |
||
|
15 |
GBT97.1-10-A3L |
FLAT WASHER |
3 |
||
|
16 |
TS06812010003 |
COMPRESSOR |
1 |
||
|
17 |
TD800.811-20 |
BOLT |
1 |
||
|
18 |
GBT5783-M10X40-8.8-A3L |
HEXAGON BOLT |
1 |
||
|
19 |
GBT5786-M10X1.25X35-8.8-A2L |
HEXAGON BOLT |
1 |

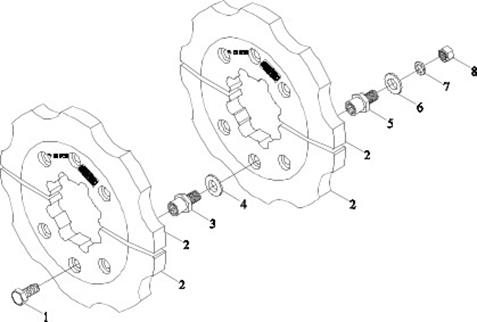

FT804.91.001 REAR BALLAST ASSEMBLY
FT804.91.001 REAR BALLAST ASSEMBLY
|
No. |
Part No. |
Description |
Version |
QTY. |
Remark |
|
FT804.91.001 |
REAR BALLAST ASSEMBLY |
1 |
|||
|
1 |
GBT5783-M16X40-8.8-A3L |
HEXAGON BOLT |
6 |
||
|
2 |
FT804.91.105 |
REAR BALLAST |
4 |
||
|
3 |
FT804.91.102 |
BALLAST SCREW II |
6 |
||
|
4 |
FT800.34.108 |
FLAT WASHER |
12 |
||
|
5 |
FT804.91.101 |
BALLAST SCREW I |
6 |
||
|
6 |
GBT97.1-16-A0P |
FLAT WASHER |
6 |
||
|
7 |
GBT93-16-A0P |
WASHER |
6 |
||
|
8 |
GBT6170-M16-8-A3L |
HEXAGON NUT, TYPE-1 |
6 |
