LOVOL TC5A904-090K Tractor Parts Catalogue 09

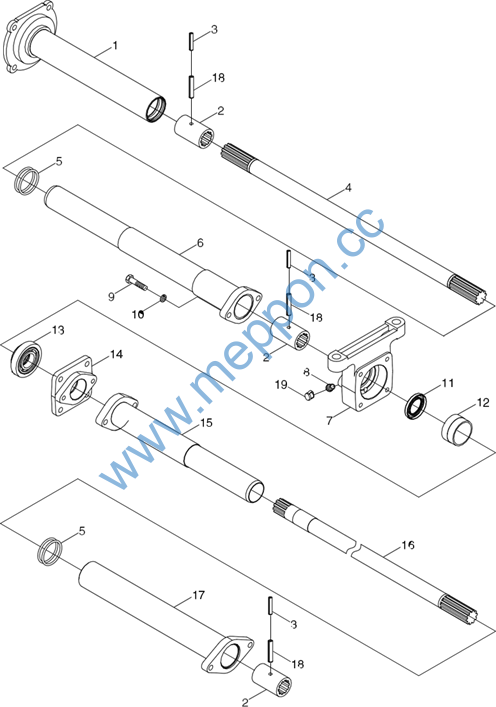

TD904.422 Transfer Case Transmission Shaft & Bonnet Assembly-1

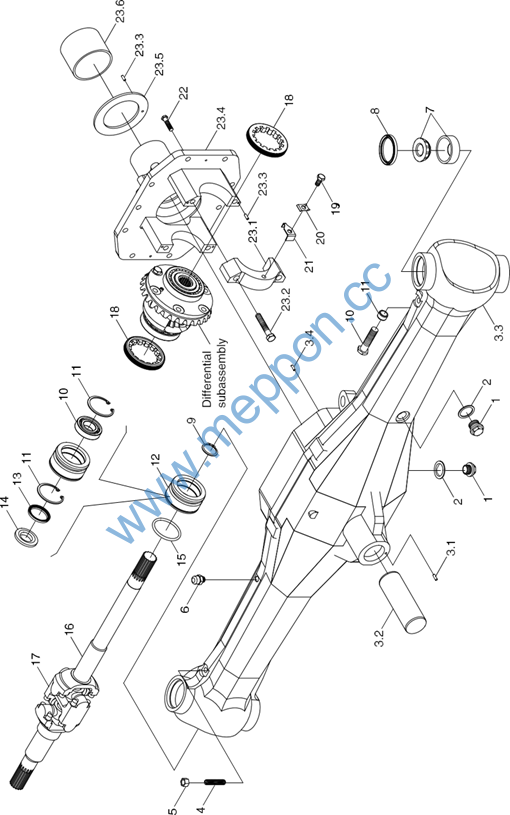

No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.422 |
Transfer Case Transmission Shaft & Bonnet Assembly |
1 |
||
1 |
GBT 5783-M10X30-8.8-A3L |
Hexagon Head Bolt |
2 |
|
2 |
TD904.422.1 |
Transfer Case Transmission Shaft & Bonnet Assembling |
1 |
|
3 |
GBT 93-10-A0P |
Standard Spring Washer |
6 |
|
4 |
GBT 5783-M10X25-8.8-A3L |
Hexagon Head Bolt |
4 |
|
5 |
GBT 899-AM16-M16X1.5X50-8.8-A3L |
Double-Headed Stud |
2 |
|
6 |
GBT 93-16-A0P |
Standard Spring Washer |
2 |
|
7 |
GBT 6176-M16X1.5-10 |
Hexagon Nut, Style 2 |
2 |
89
Lovol TC5A904-090K Wheeled Tractor
TD904.422 Transfer Case Transmission Shaft & Bonnet Assembly-2
90
Lovol TC5A904-090K Wheeled Tractor
TD904.422 Transfer Case Transmission Shaft & Bonnet Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.422 |
Transfer Case Transmission Shaft & Bonnet Assembly |
1 |
||
TD904.422.1 |
Transfer Case Transmission Shaft & Bonnet Installation |
1 |
||
1 |
FT804.42.016 |
Outer Sleeve Weldment (2) |
1 |
|
2 |
FT804.42.123b |
Spline Sleeve |
3 |
|
3 |
GBT 879.1-3.5X40 |
Pin |
3 |
|
4 |
FT804.42.130b |
Front Transmission Shaft |
1 |
|
5 |
GBT 3452.1-46.2X3.55G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
4 |
|
6 |
FT804.42.015 |
Inner Sleeve Weldment (2) |
1 |
|
7 |
FT804A.42.129 |
Bracket |
1 |
|
8 |
JBT7940.1-M10X1 |
Straight Hydraulic Grease Nozzle |
1 |
|
9 |
GBT 5783-M10X30-A3L |
Bolt |
8 |
|
10 |
GBT 93-10-A0P |
Washer |
8 |
|
11 |
GBT 9877.1-FB30X52X7D |
Oil Seal |
2 |
|
12 |
FT804.42.128 |
Rubber Ring |
1 |
|
13 |
GBT 276-6006 |
Bearing |
1 |
|
14 |
FT804.42.127 |
Bracket Cover |
1 |
|
15 |
FT804.42.014 |
Outer Sleeve Weldment (1) |
1 |
|
16 |
FT804.42.125b |
Middle Transmission Shaft |
1 |
|
17 |
FT804.42.011 |
Outer Sleeve Weldment (1) |
1 |
|
18 |
GBT 879.1-6X40 |
Pin |
3 |
|
19 |
TD800.311C.1-01 |
Oil Cup Dust Cap |
1 |
91
Lovol TC5A904-090K Wheeled Tractor

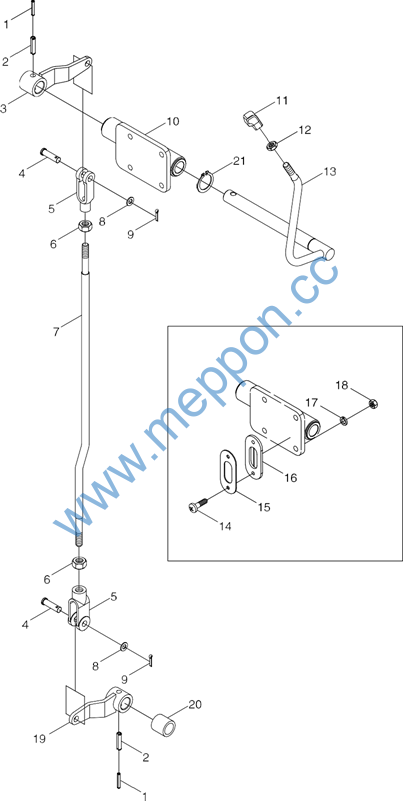

TS06423010000 Transfer Case Control Assembly
92
Lovol TC5A904-090K Wheeled Tractor
TS06423010000 Transfer Case Control Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06423010000 |
Transfer Case Control Assembly |
1 |
||
1 |
GBT 879.1-5X32 |
Spring-Type Cylindrical Pin |
2 |
|
2 |
GBT 879.1-8X32 |
Spring-Type Cylindrical Pin |
2 |
|
3 |
TS06423010012 |
Transfer Case Rocker Arm Weldment |
1 |
|
4 |
GBT 882-B10X28 |
Pivot |
2 |
|
5 |
FT300.43.108 |
Pull Rod Front Fork |
2 |
|
6 |
GBT 6170-M10-8-A3L |
Hexagon Nut, Style 1 |
1 |
|
7 |
TS06423010007 |
Connecting Pull Rod |
1 |
|
8 |
GBT 97.1-10-A0P |
Plain Washer |
2 |
|
9 |
GBT 91-3.2X20-A0P |
Split Pin |
2 |
|
10 |
TS06423010008 |
Rotary Shaft Trestle Assembly |
1 |
|
11 |
TS04423010001 |
Transfer Case Control Lever |
1 |
|
12 |
GBT 6172.1-M10-04-A3L |
Hexagon Thin Nut |
1 |
|
13 |
TS06423010001 |
Transfer Case Control Lever Weldment |
1 |
|
14 |
GBT 823-M6X12-4.8-A2L |
Cross Recessed Small Pan Head Screw |
2 |
|
15 |
TS04423010013 |
Press Plate |
1 |
|
16 |
TS04423010012 |
Seal Gasket |
1 |
|
17 |
GBT 93-8-A0P |
Standard Spring Washer |
4 |
|
18 |
GBT 6170-M8-8-A2L |
Hexagon Nut, Style 1 |
4 |
|
19 |
TS06423010005 |
Rocker Arm Weldment |
1 |
|
20 |
FT804.42B.160 |
Spacing Sleeve |
1 |
|
21 |
GBT 894.1-20 |
Circlip For Shaft |
1 |
93
Lovol TC5A904-090K Wheeled Tractor

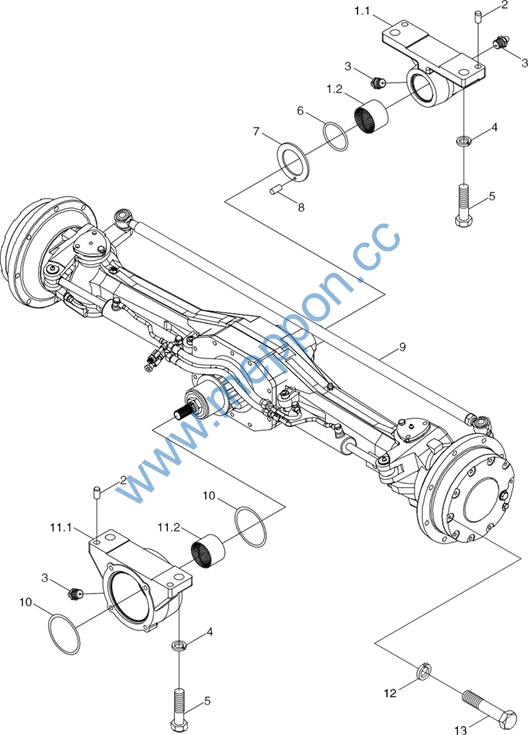

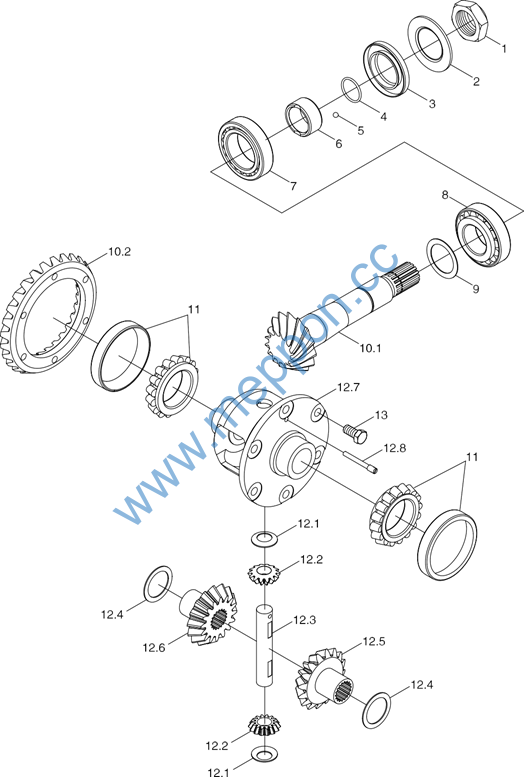

TD904.311 Front Axle Assembly-1
