LOVOL TC5A824-007K Tractor Parts Catalogue 24
TA600.62ZC 62-安全带 62-SAFETY BELT
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TA600.62 |
安全带总成 |
SAFETY BELT ASSEMBLY |
1 |
2012-01_ |

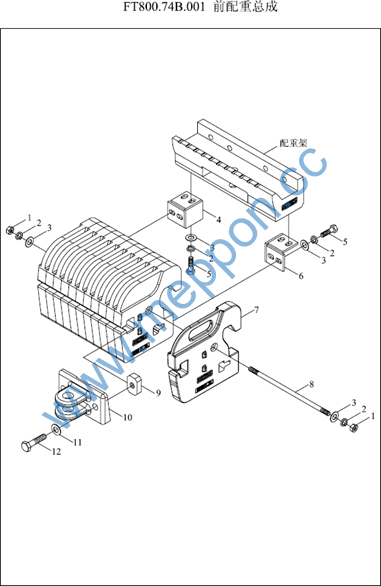

FT800.74B.001 74-前配重总成 74-FRONT BALLAST ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT6170-M16-8-A3L |
1型六角螺母 |
NUT |
2 |
2011-11_ |
|
10 |
FT650.74.107 |
牵引耳 |
TOWING LUG |
1 |
2011-11_ |
|
11 |
GBT97.1-20-A0P |
垫圈 |
WASHER |
2 |
2011-11_ |
|
11 |
GBT97.1-20-A0P |
垫圈 |
WASHER |
2 |
2011-11_ |
|
12 |
GBT5785-M20X1.5X80-A3L |
螺栓 |
2 |
2011-11_ |
|
|
2 |
GBT93-16-A0P |
弹簧垫圈 |
SPRING WASHER |
10 |
2011-11_ |
|
3 |
GBT97.1-16-A0P |
垫圈 |
WASHER |
10 |
2011-11_ |
|
4 |
FT700.74B.010 |
右固定块焊接总成 |
RIGHT FIXING BLOCK WELDMENT ASSEMBLY |
1 |
2011-11_ |
|
5 |
GBT5783-M16X35-A3L |
六角头螺栓 |
BOLT |
8 |
2011-11_ |
|
6 |
FT700.74B.011 |
左固定块焊接总成 |
LEFT FIXING BLOCK WELDMENT ASSEMBLY |
1 |
2011-11_ |
|
7 |
FT800.74B.106a |
配重块 |
BALLAST |
11 |
2011-11_ |
|
8 |
F700.74B.107 |
联接螺栓 |
CONNECTING BOLT |
1 |
2011-11_ |
|
9 |
FT650.74.108 |
牵引螺母 |
TOWING NUT |
2 |
2004-01_ |
|
9 |
TA700.741-02 |
牵引板 |
TOWING PLATE |
2 |
2009-12_ |

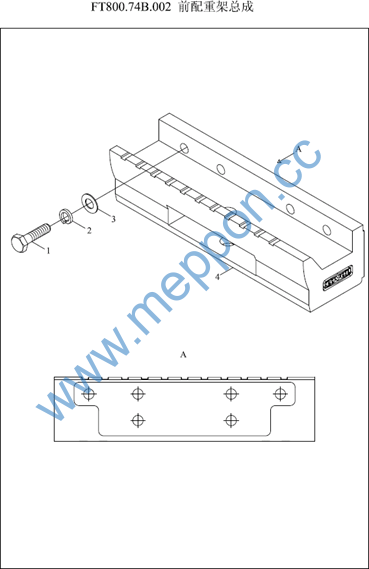

FT800.74B.002 74-前配重架总成 74-FRONT BALLAST BRACKET ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 2 3 4 4 |
GBT5785-M18X1.5X70-10.9-A3L GBT93-18-AOP GBT97.1-18-A0P FT800.74B.105a FT800.74B.105 |
六角头螺栓弹簧垫圈 平垫圈 配重架配重架 |
BOLT SPRING WASHER WASHER BALLAST BRACKET BALLAST BRACKET |
6 6 6 1 1 |
2004-01_ 2004-01_ 2004-01_ 2009-08_ 2008-03_ |

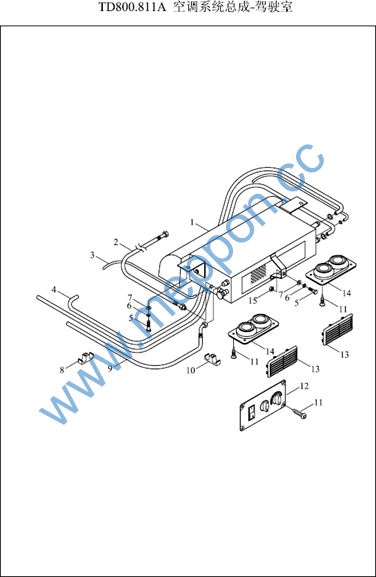

TD800.811A 81.1-空调系统总成-驾驶室 81.1-AIR CONDITION SYSTEM ASSEMBLY-DRIVER’S CAB
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT800.45.085 |
蒸发器总成 |
EVAPORATOR ASSEMBLY |
1 |
2004-01_ |
|
1 |
FT800.45.085a |
蒸发器总成 |
EVAPORATOR ASSEMBLY |
1 |
2011-02_ |
|
10 |
TD800.811-16 |
双孔管夹 |
DOUBLE-HOLE PIPE CLIP |
4 |
2011-11_ |
|
11 |
GBT845-ST3.5X16 |
十字槽盘头自攻螺钉 |
SCREW |
12 |
2011-11_ |
|
11 |
GBT845-ST3.5X16 |
十字槽盘头自攻螺钉 |
SCREW |
12 |
2011-11_ |
|
12 |
FT800.45.084 |
控制面板 |
CONTROL PANEL |
1 |
2011-11_ |
|
12 |
FT800.45.084 |
控制面板 |
CONTROL PANEL |
1 |
2011-11_ |
|
13 |
FT800.45.086 |
回风口 |
WIND RETURN MOUTH |
2 |
2011-11_ |
|
14 |
FT800.45.087 |
出风口 |
WIND OUTPUT GATE |
2 |
2011-11_ |
|
15 |
GBT6170-M8-A2L |
螺母 |
NUT |
1 |
2011-11_ |
|
2 |
TD800.811A-01 |
压缩机吸气管一 |
COMPRESSOR AIR INLET PIPE 1 |
1 |
2004-01_ |
|
2 |
TD800.811A-01a |
压缩机吸气管一 |
COMPRESSOR AIR INLET PIPE 1 |
1 |
2011-02_ |
|
3 |
TD800.811-07 |
排水管 |
DRAIN PIPE |
2 |
2011-11_ |
|
4 |
FT800.45.997 |
空调暖风进水管 |
AIR CONDITION WATER INLET PIPE |
1 |
2013-01_ |
|
4 |
FT800.45.995 |
空调暖风出水管 |
AIR CONDITION WATER OUTPUT PIPE |
1 |
|
|
5 |
GBT5783-M8X20-A2L |
螺栓 |
3 |
2011-11_ |
|
|
6 |
GBT93-8-AOP |
垫圈 |
WASHER |
3 |
2011-11_ |
|
7 |
GBT97.1-8-A0P |
平垫圈 |
WASHER |
3 |
|
|
8 |
TD800.811-10 |
管夹3 |
PIPE CLAMP 3 |
2 |
2011-11_ |
|
9 |
TD800.811A-02 |
干燥瓶-蒸发器高压软管一 |
DRYING BOTTLE-EVAPORATOR HIGH PRESSURE |
1 |
|
|
HOSE (1) |
|||||
|
9 |
TD800.811A-02 |
干燥瓶-蒸发器高压软管一 |
1 |
||
|
9 |
TD800.811A-02a |
干燥瓶-蒸发器高压软管一 |
DRYING BOTTLE-EVAPORATOR HIGH PRESSURE |
1 |
2011-02_ |
|
HOSE (1) |
|||||
|
DRYING BOTTLE-EVAPORATOR HIGH PRESSURE |
|||||
|
HOSE (1) |
|||||

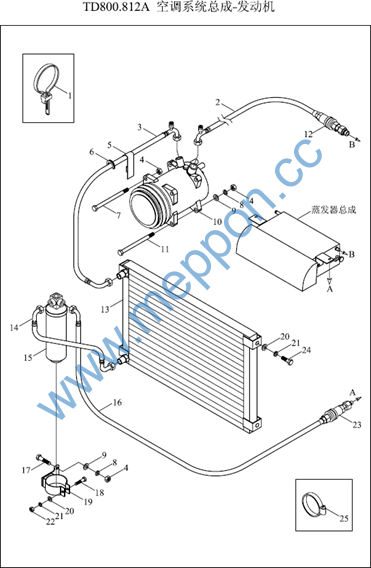

TD800.812A 81.2-空调系统总成-发动机 81.2-AIR CONDITION SYSTEM ASSEMBLY-ENGINE
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
Q67407200 |
塑料紧箍带 |
PLASTIC FASTEN STRIP |
5 |
2011-11_ |
|
10 |
FT800.45.088 |
压缩机总成 |
COMPRESSOR ASSEMBLY |
1 |
|
|
10 |
FT800.45.088a |
压缩机总成 |
COMPRESSOR ASSEMBLY |
1 |
2011-02_ |
|
10 |
FT800.45.088a |
压缩机总成 |
COMPRESSOR ASSEMBLY |
1 |
2011-02_ |
|
11 |
TD800.811-20 |
螺栓 |
1 |
2011-11_ |
|
|
12 |
TG1204.81-14 |
空调低压快换接头 |
AIR CONDITION LOW VOLTAGE QUICK |
1 |
2011-11_ |
|
13 |
TG1204.81.2 |
冷凝器总成 |
CHANGING JOINT |
1 |
|
|
13 |
TG1204.81.2a |
冷凝器总成 |
CONDENSER ASSEMBLY |
1 |
2011-02_ |
|
13 |
TG1204.81.2 |
冷凝器总成 |
CONDENSER ASSEMBLY |
1 |
|
|
14 |
TD800.81-03a |
冷凝器-储液罐高压管 |
CONDENSER ASSEMBLY |
1 |
2011-02_ |
|
CONDENSER-LIQUID TANK HIGH PRESSURE |
|||||
|
14 |
TD800.81-03 |
冷凝器-储液罐高压管 |
HOSE |
1 |
|
|
15 |
FT800.45.082 |
干燥瓶总成 |
1 |
2004-01_ |
|
|
15 |
FT800.45.082a |
干燥瓶总成 |
CONDENSER-LIQUID TANK HIGH PRESSURE |
1 |
2011-02_ |
|
16 |
TD800.812A-02a |
干燥瓶-蒸发器高压软管二 |
HOSE |
1 |
2011-02_ |
|
16 |
TD800.812A-02 |
干燥瓶-蒸发器高压软管二 |
DRYING BOTTLE ASSEMBLY |
1 |
|
|
DRYING BOTTLE ASSEMBLY |
|||||
|
17 |
GBT5783-M8X20-A2L |
螺栓 |
DRYING BOTTLE-EVAPORATOR HIGH PRESSURE |
5 |
2011-11_ |
|
18 |
GBT5783-M6X30-A2L |
螺栓 |
HOSE (2) |
1 |
2011-11_ |
|
19 |
FT800.45.081 |
储液罐支架焊合件 |
DRYING BOTTLE-EVAPORATOR HIGH PRESSURE |
1 |
2011-11_ |
|
2 |
TD800.812A-01a |
压缩机吸气管二 |
HOSE (2) |
1 |
2011-02_ |
|
2 |
TD800.812A-01 |
压缩机吸气管二 |
1 |
||
|
20 |
GBT97.1-6-A0P |
平垫圈 |
5 |
||
|
21 |
GBT93-6-A0P |
垫圈 |
STORAGE TANK BRACKET WELDMENT |
5 |
|
|
22 |
GBT6170-M6-A2L |
螺母 |
COMPRESSOR AIR INLET PIPE 2 |
1 |
2011-11_ |
|
23 |
TG1204.81-13 |
空调高压快换接头 |
COMPRESSOR AIR INLET PIPE 2 |
1 |
2011-11_ |
|
24 |
GBT5783-M6x16-A2L |
螺栓 |
4 |
2011-11_ |
|
TD800.812A 81.2-空调系统总成-发动机(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
25 |
Q676B25 |
C型蜗杆传动式软管环箍 |
C-TYPE WORM TRANSMISSION HOSE CLAMP |
4 |
2011-11_ |
|
25 |
Q676B25 |
C型蜗杆传动式软管环箍 |
C-TYPE WORM TRANSMISSION HOSE CLAMP |
4 |
2011-11_ |
|
3 |
TD800.811-01 |
压缩机-冷凝器高压管 |
COMPRESSOR – CONDENSER HIGH PRESSURE |
1 |
2011-11_ |
|
3 |
TD800.81-01a |
压缩机-冷凝高压管 |
PIPE |
1 |
2011-02_ |
|
3 |
TD800.81-01 |
压缩机-冷凝器高压管 |
PIPE |
1 |
|
|
COMPRESSOR – CONDENSER HIGH PRESSURE |
|||||
|
4 |
GBT6170-M8-A2L |
螺母 |
PIPE |
5 |
2011-11_ |
|
5 |
TD800.811-24 |
管夹1 |
1 |
2011-11_ |
|
|
6 |
TD800.81-02 |
胶皮 |
NUT |
1 |
2011-11_ |
|
7 |
GBT5783-M8X40-A2L |
六角头螺栓 |
PIPE CLAMP 1 |
1 |
2011-11_ |
|
8 |
GBT93-8-AOP |
垫圈 |
RUBBER |
6 |
2011-11_ |
|
BOLT |
|||||
|
9 |
GBT97.1-8-A0P |
平垫圈 |
WASHER |
6 |
|
|
WASHER |
|||||

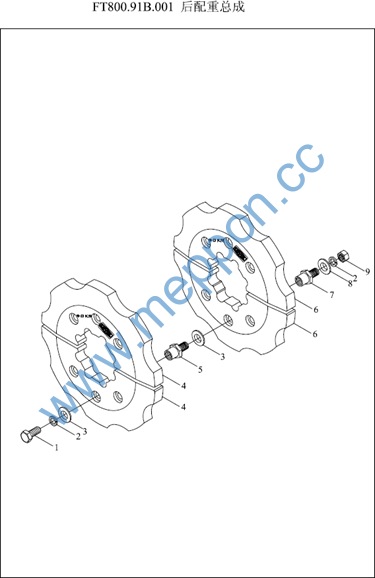

FT800.91B.001 91-后配重总成 91-REAR BALLAST ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT5783-M16X40-A3L |
六角头螺栓 |
BOLT |
6 |
2011-11_ |
|
2 |
GBT93-16-AOP |
垫圈 |
WASHER |
12 |
2004-01_ |
|
2 |
GBT93-16-A0P |
弹簧垫圈 |
SPRING WASHER |
12 |
2012-09_ |
|
3 |
FT800.34.108 |
平垫圈 |
WASHER |
12 |
2011-11_ |
|
4 |
FT804.91.105 |
后配重 |
REAR BALLAST |
2 |
2011-11_ |
|
5 |
FT804.91.102 |
配重螺钉Ⅱ |
BALLAST SCREW II |
6 |
2011-11_ |
|
6 |
FT800.91B.103 |
后配重Ⅱ |
REAR BALLAST II |
2 |
2011-11_ |
|
7 |
FT804.91.101 |
配重螺钉Ⅰ |
BALLAST SCREW I |
6 |
2011-11_ |
|
8 |
GBT97.1-16-AOP |
垫圈 |
WASHER |
6 |
2004-01_ |
|
9 |
GBT6170-M16-A3L |
螺母 M16-A3L |
NUT |
6 |
2011-11_ |
