TD800.55-1 55.1-提升器总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

22.2

TD800.55.2.1a

摇臂焊合

ROCKER WELDMENT

1

2009-11_

22.2

TD800.55.2.1

摇臂焊合

ROCKER WELDMENT

1



22.3

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

22.4

GBT91-3.2X16-A0P

开口销



1

2004-01_

22.5

GBT97.1-8

垫圈

WASHER

2

2011-11_

22.6

GBT882-B8X30-A3L

销轴

PIN

2

2011-11_

22.7

TD800.55.2.2

调节拉杆总成

ADJUSTING PULL ROD ASSEMBLY

1

2011-11_

22.71

TD800.55.2.2-01

右旋拉杆叉

RIGHT REVOLVING PULL ROD FORK

1

2011-11_

22.73

TD800.55.2.2-02

调节杆

ADJUSTING ROD

1

2011-11_

22.75

TD800.55.2.2-03

左旋拉杆叉

LEFT REVOLVING PULL ROD FORK

1

2011-11_

22.75

TD800.55.2.2-03

左旋拉杆叉

LEFT REVOLVING PULL ROD FORK

1

2011-11_

23

FT800.55A.015

提升器壳体压装总成

LIFTER HOUSING ASSEMBLY

1

2011-11_

3

TD800.55.7

管夹

PIPE CLAMP

2

2011-11_

3

TD800.55.7

管夹

PIPE CLAMP

2

2011-11_

4

GBT93-6-A0P

垫圈

WASHER

1

2011-11_

5

GBT97.1-6-A0P

平垫圈

WASHER

1

2011-11_

6

GBT6170-M6-A2L

螺母

NUT

1

2011-11_

7

Q67522

C型蜗杆传动式软管环箍

C-TYPE WORM TRANSMISSION HOSE CLAMP

4

2011-09_

7

Q67512

软管环箍

HOSE RING HOOP

4

2004-01_

8

TF1004.55-07

连接胶管

CONNECTING RUBBER PIPE

1

2011-11_

9

TF1004.55.7

3通

TEE

1

2011-11_

9

TF1004.55.7

3通

TEE

1

2011-11_

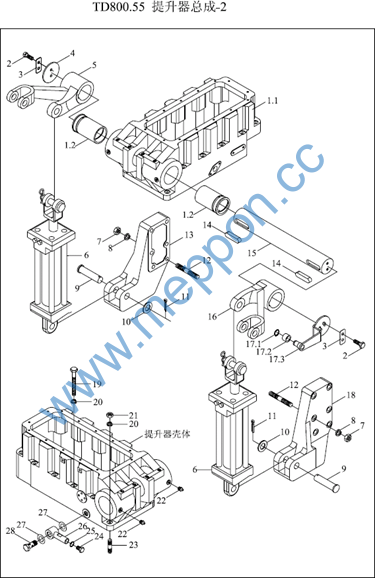

TD800.55-2 55.2-提升器总成-2 LIFTER ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.55A.015

提升器壳体压装总成

LIFTER HOUSING ASSEMBLY

1

2011-11_

1.1

FT800.55A.103

提升器壳体

LIFTER HOUSING

1

2011-11_

1.2

FT800.55A.111

铜轴套

COPPER SHAFT SLEEVE

2

2011-11_

10

FT800.55A.105

垫圈

WASHER

2

2011-11_

11

GBT91-6X40-A0P

开口销



2

2011-11_

11

GBT91-6X40-A0P

开口销



2

2011-11_

13

FT800.55A.104c

左油缸支架

LEFT OIL CYLINDER BRACKET

1

2011-11_

13

FT800.55A.104

左油缸支架

LEFT OIL CYLINDER BRACKET

1

2004-01_

13.1

FT800.55A.104b

左油缸支架

LEFT OIL CYLINDER BRACKET

1

2011-11_

14

GBT1096-20X80

平键

FLAT KEY

2

2011-11_

14

GBT1096-20X80

平键

FLAT KEY

2

2011-11_

15

FT800.55A.107

提升轴

LIFTING SHAFT

1

2011-11_

16

TD800.55.5

右提升臂

RIGHT LIFTING ARM

1

2011-11_

17

TD800.55.1

反馈臂总成

FEEDBACK ARM ASSEMBLY

1

2011-11_

17.1

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

17.2

TD800.55.1-01

滚轮



1

2011-11_

17.3

TD800.55.1.1

反馈臂焊合

FEEDBACK ARM WELDMENT

1

2011-11_

18

FT800.55A.114c

右油缸支架

RIGHT OIL CYLINDER BRACKET

1

2011-11_

18.1

FT800.55A.114b

右油缸支架

RIGHT OIL CYLINDER BRACKET

1

2011-11_

19

GBT5782-M12X140-A3L

六角头螺栓

BOLT

10

2011-11_

2

GBT5783-M10X20-A3L

螺栓



4

2011-11_

20

GBT93-12-AOP

垫圈

WASHER

13

2011-11_

21

GBT6170-M12-A3L

螺母

NUT

3

2011-11_

22

JBT7940.1-M10X1

直通式压注油杯

STRAIGHT PRESSURE FILLING OIL CUP

2

2011-11_

23

GBT899-GM12-M12X45-8.8-A3L

双头螺柱

8.8-A3L STUD

3

2011-11_








TD800.55-2 55.2-提升器总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

24

JBZQ4451-M18X1.5

螺塞

SCREW PLUG

1

2011-11_

24

JBZQ4451-M18X1.5

螺塞

SCREW PLUG

1

2011-11_

25

JBZQ4454-18X22

密封垫

SEAL GASKET

1

2011-11_

26

FT800.55A.016

铰接头总成

HINGE JOINT ASSEMBLY

1

2011-11_

27

JBT982-24

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

28

FT800.55A.118

空心螺栓

HOLLOW BOLT

1

2011-11_

3

FT800.55A.112

止动垫

THRUST WASHER

2

2011-11_

4

FT800.55A.115

提升臂压板

LIFTING ARM PRESSURE PLATE

1

2011-11_

5

TD800.55.4

左提升臂

LEFT LIFTING ARM

1

2011-11_

6

FT800.55A.012

提升油缸总成

LIFTING CYLINDER ASSEMBLY

2

2011-11_

7

GBT6170-M16-A3L

螺母 M16-A3L

NUT

12

2011-11_

8

GBT899-GM16-M16X80-8.8-A3L

双头螺柱

8.8-A3L STUD

12

2004-01_

9

FT800.55A.116

销轴

PIN

2

2011-11_

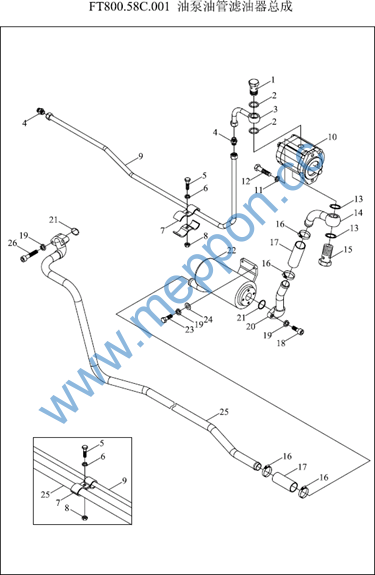

FT800.58C.001 58-油泵油管滤油器总成 58-OIL PUMP/PIPE/FILTER ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT750.58A.101

空心螺栓-1

HOLLOW BOLT -1

1

2011-11_

10

FT800.58C.012

齿轮泵

GEAR PUMP

1

2011-11_

11

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

12

GBT5783-M10X30-A3L

螺栓



2

2011-11_

13

JBT982-33

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

14

FT750.58A.050

吸油短管焊合2

OIL SUCTION SHORT PIPE WELDMENT 2

1

2011-11_

15

FT750.58A.102

空心螺栓-2

HOLLOW BOLT -2

1

2011-11_

16

JBT8870-d40

喉箍

HOOP

4

2011-11_

17

FT650.58.105

胶管

RUBBER HOSE

2

2011-11_

18

GBT70.1-M8X25-A2L

内六角圆柱头螺钉

SCREW

2

2011-11_

19

GBT93-8-A0P

垫圈

WASHER

6

2011-11_

2

JBT982-27

组合密封垫圈

COMBINED SEAL GASKET

8

2011-11_

2

JBT982-27

组合密封垫圈

COMBINED SEAL GASKET

8

2011-11_

20

FT750.58.040

吸油短管焊合-1

OIL SUCTION SHORT PIPE WELDMENT-1

1

2011-11_

21

GB3452.1-25X2.65G

O形圈

O-RING

1

2004-01_

22

FT750.58A.080

滤油器总成

OIL FILTER ASSEMBLY

1

2011-11_

22.1

TA600.96-01

吸油滤油器滤芯

OIL SUCTION FILTER ELEMENT

1

2011-11_

23

GBT5783-M8X25-A2L

螺栓



2

2011-11_

24

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

25

FT750.58C.011

吸油管焊合总成

OIL SUCTION PIPE WELDMENT ASSEMBLY

1

2004-01_

25

FT750.58C.011

吸油管焊合总成

OIL SUCTION PIPE WELDMENT ASSEMBLY

1

2004-01_

25

FT750.58A.031

吸油管焊合总成

OIL SUCTION PIPE WELDMENT ASSEMBLY

1

2008-11_

26

GBT70.1-M8X50-A2L

内六角圆柱头螺钉

SCREW

2

2011-11_

3

FT750.58A.034

液压阀进油管总成3

HYDRAULIC VALVE OIL INLET PIPE ASSEMBLY

1



3

FT750.58A.034a

液压阀进油管总成3

3

1

2011-09_








FT800.58C.001 58-油泵油管滤油器总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

FT800.58A.101

卡套式直通接头体

JOINT

2

2011-11_

5

GBT5783-M6X30-A2L

螺栓



3

2011-11_

6

GBT93-6-A0P

垫圈

WASHER

3

2011-11_

7

FT650.58.060

油管夹与胶垫胶合

OIL PIPE CLAMP AND RUBBER WASHER

6

2011-11_

8

GBT6170-M6-A2L

螺母

NUT

3

2011-11_

9

FT800.58C.010

液压阀进油管总成2

HYDRAULIC VALVE OIL INLET PIPE ASSEMBLY

1



9

FT800.58C.010a

高压油管总成

2

1

2011-09_


HIGH PRESSURE OIL PIPE ASSEMBLY

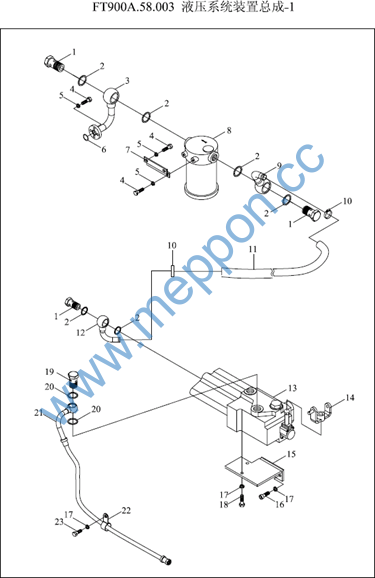

FT900A.58.003-1 58.1-液压系统装置总成-1 HYDRAULIC SYSTEM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.55.139

空心螺栓

HOLLOW BOLT

3

2011-11_

10

JBT8870-d40

喉箍

HOOP

2

2011-11_

11

FT904A.58.890

回油胶管

OIL RETURN RUBBER HOSE

1

2011-11_

12

FT900A.58.070

回油短管焊合

OIL RETURN SHORT PIPE WELDMENT

1

2011-11_

13

FT800.58A.010

单阀分配器

FP-L 15E SINGLE VALVE DISTRIBUTOR

1

2011-11_

14

FT904A.58.080

连接套焊合

CONNECTING SLEEVE WELDMENT

1

2004-01_

14

FT904A.58.080a

连接套焊合

CONNECTING SLEEVE WELDMENT

1

2009-04_

15

FT904A.58.030

分配器支架焊合

DISTRIBUTOR BRACKET WELDMENT

1

2011-11_

16

GBT70.1-M10X25-A2L

内六角圆柱头螺钉

SCREW

2

2011-11_

17

GBT93-10-A0P

标准型弹簧垫圈

WASHER

5

2011-11_

18

GBT5783-M10X25-A2L

六角头螺栓

BOLT

3

2011-11_

19

FT704.58J.112

空心螺栓

HOLLOW BOLT

1

2011-11_

2

JBT982-27

组合密封垫圈

COMBINED SEAL GASKET

6

2011-11_

2

JBT982-27

组合密封垫圈

COMBINED SEAL GASKET

6

2011-11_

20

JBT982-24

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

21

FT900A.58.060

分配器进油管总成

DISTRIBUTOR OIL INLET PIPE ASSEMBLY

1

2011-11_

22

FT900A.58.901

固定夹

LOCKING CLAMP

1

2011-11_

3

FT800.58A.038

回油滤油器出油管总成

OIL RETURN FILTER OUTPUT PIPE ASSEMBLY

1

2011-11_

4

GBT5783-M8X25-A2L

螺栓



6

2011-11_

5

GBT93-8-A0P

垫圈

WASHER

12

2011-11_

6

GBT3452.1-19X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

7

FT800.58A.105

回油滤油器支架

OIL RETURN FILTER BRACKET

1

2011-11_

8

FT800.58A.040a

回油滤油器总成

OIL RETURN FILTER ASSEMBLY

1

2011-11_

9

FT800.58A.037

回油滤油器进油管总成

OIL RETURN FILTER INLET PIPE ASSEMBLY

1

2011-11_

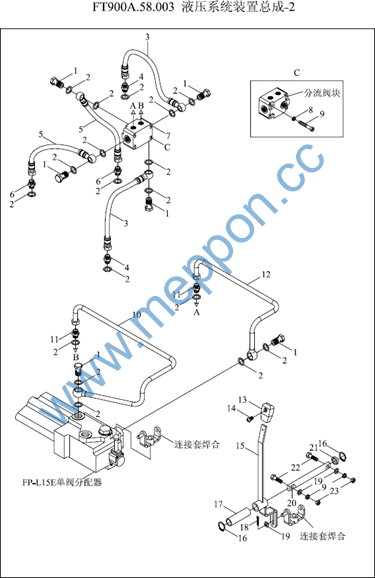

FT900A.58.003-2 58.2-液压系统装置总成-2 HYDRAULIC SYSTEM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT650.40.102

空心螺栓M20X1.5

HOLLOW BOLT M20X1.5

6

2011-11_

10

FT904A.58.060

分配器输出油管总成2

DISTRIBUTOR OIL OUTLET PIPE ASSEMBLY 2

1

2011-11_

11

FT800.58A.106

卡套式端直通接头体

STRAIGHT PIPE JOINT BODY

2

2011-11_

12

FT904A.58.070

分配器输出油管总成1

DISTRIBUTOR OIL OUTLET PIPE ASSEMBLY 1

1

2011-11_

13

FT904A.58.891

手柄头

HANDLE HEAD

1

2004-01_

13

TB504.552-04

手柄头总成

HANDLE HEAD ASSEMBLY

1

2010-10_

14

GBT818-M6X8-A2L

十字槽盘头螺钉

SCREW

1

2011-11_

15

FT904A.58.050

分配器操纵手柄焊合

DISTRIBUTOR CONTROL HANDLE WELDMENT

1

2004-01_

15

FT904A.58.050a

分配器操纵手柄焊合

DISTRIBUTOR CONTROL HANDLE WELDMENT

1

2009-04_

16

GBT894.1-20

挡圈20

BLCOKING RING

2

2011-11_

17

FT800A.57.123

隔套

SPACER BUSH

1

2011-11_

18

GBT91-3X20

开口销



1

2011-11_

19

GBT97.1-8-A0P

平垫圈

WASHER

3

2011-11_

2

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

18

2011-11_

20

FT800A.57.102

固定轴

FIXING SHAFT

1

2011-11_

21

FT800A.57.103

限位套1

LIMITING SLEEVE I

1

2011-11_

22

GBT5783-M8X30-A2L

螺栓



2

2011-11_

3

FT800.58A.039

油缸进油管总成-1

OIL CYLINDER INLET PIPE ASSEMBLY-1

2

2011-11_

4

FT700.58D.034

缓降阀总成

GRADUALLY RELIEVE VALVE ASSEMBLY

2

2011-11_

5

FT800.58A.041

油缸进油管总成-2

OIL CYLINDER INLET PIPE ASSEMBLY-2

2

2011-11_

6

FT700.58D.105

油缸接头

OIL CYLINDER JOINT

2

2011-11_

7

FT800.58A.107

分流阀块

DIVERTER VALVE BLOCK

1

2011-11_

8

GBT70.1-M8X65-A2L

内六角圆柱头螺钉

SCREW

4

2011-11_

9

GBT93-8-A0P

垫圈

WASHER

12

2011-11_
