TD904.421B-3 42.1.3-分动箱总成-3 TRANSFER CASE ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TD904.421A.1

分动箱箱体总成

TRANSFER CASE HOUSING ASSEMBLY

1

2011-11_

1

GBT75-M10X30-A3L

开槽长圆柱端紧定螺钉

SCREW

4

2011-11_

10

FT804.42.107

分离拨叉

RELEASE SHIFT FORK

1

2011-11_

11

FT804.42.108

拨叉轴

FORK SHAFT

1

2011-11_

12

GBT308-10-G100-b

钢球



1

2011-11_

13

FT804.42.151

弹簧

SPRING

1

2011-11_

14

FT804.42.010

转轴焊合

ROTARY SHAFT WELDMENT

1

2011-11_

15

GBT3452.1-17.0X1.80G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

16

FT804.42.106

侧盖

SIDE COVER

1

2011-11_

2

GBT93-10

垫圈10

WASHER 10

8

2011-11_

3

FT804.42.120

前盖

FRONT COVER

1

2011-11_

4

GBT9877.1-FB30X52X7D

内包骨架旋转轴唇形密封

O RING

2

2011-11_

5

GBT276-6306

深沟球轴承

BEARING

1

2011-11_

6

TD904.421.2-04

锁紧钢丝

LOCKING STEEL WIRE

1

2011-11_

7

FT800.37.194

紧定螺钉

LOCKING SCREW

1

2011-11_

8

FT804.42.110

螺堵

SCREW PLUG

1

2011-11_

9

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

9

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_








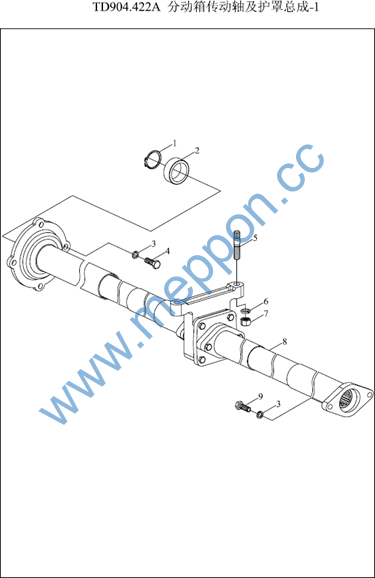

TD904.422A-1 42.2.1-分动箱传动轴及护罩总成-1 TRANSFER CASE COVER ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT894.1-30

挡圈



2

2011-11_

2

FT804.42.131

隔套

SPACER BUSH

1

2004-01_

2

FT804.42.131a

隔套

SPACER BUSH

1

2008-12_

2

FT804.42.131a

隔套

SPACER BUSH

1

2008-12_

3

GBT93-10-A0P

标准型弹簧垫圈

WASHER

6

2011-11_

4

GBT5783-M10X25-A3L

螺栓



4

2011-11_

5

GBT899-AM16-M16X1.5X50-A3L

双头螺柱

8.8-A3L STUD

2

2011-11_

6

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

2

2011-11_

7

GBT6176-M16X1.5

2型六角螺母

HEXAGON NUT, TYPE-2

2

2011-11_

8

TD904.422A.1

分动箱传动轴及护罩装配

TRANSFER CASE TRANSMISSION SHAFT AND

1

2011-11_


BONNET INSTALLATI



9

GBT5783-M10X30-A3L

螺栓



2

2011-11_








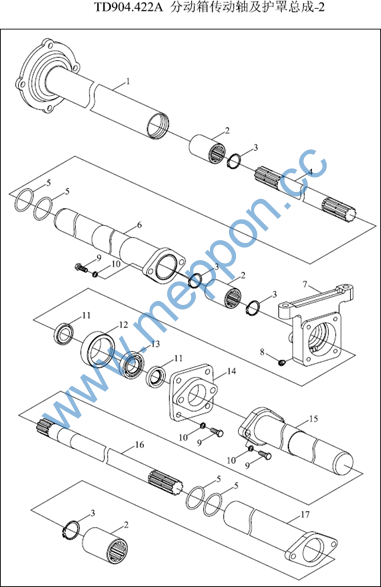

TD904.422A-2 42.2.2-分动箱传动轴及护罩总成-2 TRANSFER CASE COVER ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TD904.422A.1

分动箱传动轴及护罩装配

TRANSFER CASE TRANSMISSION SHAFT AND

1

2011-11_

1

FT804A.42.016

外护套焊合（二）

BONNET INSTALLATI

1

2011-11_

10

GBT93-10-A0P

标准型弹簧垫圈

OUTER SLEEVE WELDMENT (2)

8

2011-11_

11

GBT9877.1-FB30X52X7D

内包骨架旋转轴唇形密封

WASHER

2

2011-11_

12

FT804.42.128

橡胶圈

O RING

1

2011-11_


RUBBER RING



13

GBT276-6006

轴承



1

2011-11_

14

FT804.42.127

支承座盖

BEARING

1

2011-11_

15

FT804.42.014

内护套焊合（一）

SUPPORT SEAT COVER

1

2011-11_

16

FT804.42.125b

中间传动轴

INNER SLEEVE WELDMENT (1)

1

2008-12_

16

FT804.42.125a

中间传动轴

MIDDLE TRANSMISSION SHAFT

1




MIDDLE TRANSMISSION SHAFT



17

FT804.42.011

外护套焊合（一）



1

2011-11_

17

FT804.42.011

外护套焊合（一）

OUTER SLEEVE WELDMENT (1)

1

2011-11_

2

FT804.42.123a

花键套

OUTER SLEEVE WELDMENT (1)

3



2

FT804.42.123b

花键套

SPLINE BUSH

3

2008-12_

3

GBT894.1-30

挡圈

SPLINE BUSH

4

2011-11_

4

FT804A.42.130a

前传动轴



1

2008-12_

4

FT804A.42.130

前传动轴

FRONT TRANSMISSION SHAFT

1



5

GBT3452.1-45.0X3.55G

液压气动用O形橡胶密封圈

FRONT TRANSMISSION SHAFT

4



5

GBT3452.1-46.2X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

4

2012-11_

6

FT804.42.015

内护套焊合（二）

O-SEAL RING

1

2011-11_


INNER SLEEVE WELDMENT (2)



7

FT804A.42.129

支承座



1

2011-11_

8

JBT7940.1-M10X1

直通式压注油杯

SUPPORTING SEAT

1

2011-11_

9

GBT5783-M10X30-A3L

螺栓

STRAIGHT PRESSURE FILLING OIL CUP

8

2011-11_








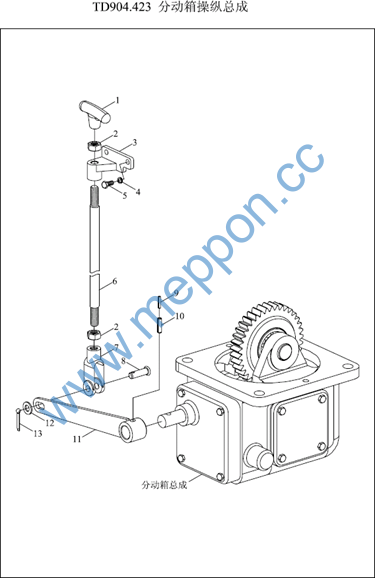

TD904.423 42.3-分动箱操纵总成 42.3-TRANSFER CASE CONTROL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.38.051

拉压手柄

PULL/PRESS HANDLE

1

2011-11_

10

GBT879.1-8X30

弹性圆柱销

PIN

1

2011-11_

11

FT804A.42.012

摇臂焊合

ROCKER WELDMENT

1

2011-11_

12

GBT97.1-8-A0P

平垫圈

WASHER

1

2011-11_

13

GBT91-3.2X20-A0P

开口销



1

2011-11_

13

GBT91-3.2X20-A0P

开口销



1

2011-11_

2

GBT6170-M10-A3L

螺母

NUT

2

2011-11_

3

FT804A.42.121

导向管

GUIDE PIPE

1

2011-11_

3

FT804A.42.121

导向管

GUIDE PIPE

1

2011-11_

4

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

5

GBT5781-M10X25-A3L

六角头螺栓

BOLT

2

2011-11_

6

FT804A.42.122

操纵杆

CONTROL ROD

1

2011-11_

7

FT804.42.150

拉杆前叉

PULL ROD FRONT FORK

1

2011-11_

8

GBT882-B8X26

销轴

PIN

1

2011-11_

9

GBT879.2-5X30

弹性圆柱销

PIN

1

2011-11_










FT800A.43C.001 43-制动系总成 43-BRAKE SYSTEM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.43C.001-1

43.1-制动系总成-1

43BRAKING SYSTEM ASSEMBLY-1

0

2011-11_

0

FT800A.43C.001-2

43.2-制动系总成-2

43BRAKING SYSTEM ASSEMBLY-2

0

2011-11_

0

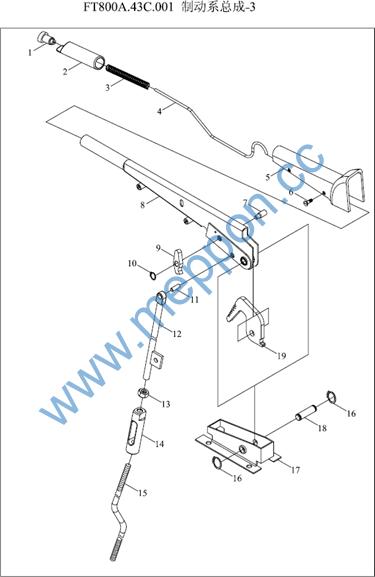

FT800A.43C.001-3

43.3-制动系总成-3

43BRAKING SYSTEM ASSEMBLY-3

0

2011-11_

0

FT800A.43C.001-5

43.5-制动系总成-5

43BRAKING SYSTEM ASSEMBLY-5

0

2011-11_

0

FT800A.43C.001-6

43.6-制动系总成-6

43BRAKING SYSTEM ASSEMBLY-6

0

2011-11_

0

FT800A.43C.001-7

43.7-制动系总成-7

BREAKE SYSTEM ASSEMBLY-7

0

2011-11_

0

FT800A.43C.001-4

43.4-制动系总成-4

43BRAKING SYSTEM ASSEMBLY-4

0

2011-11_

11

GBT6170-M8-A2L

螺母

NUT

1

2011-11_

9

GBT882-B10X30

销轴

PIN

1

2011-11_








FT800A.43C.001-1 43.1-制动系总成-1 43BRAKING SYSTEM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.43.014

手制动总成

HANDLE BRAKE ASSEMBLY

1

2011-11_

1

FT800A.43.051

手制动操纵把手总成

HAND BRAKE CONTROLLING HANDLE

1

2011-11_

10

FT800.43.132

盖座

ASSEMBLY

1

2011-11_

11

GBT882-B10X30

销轴

COVER SEAT

1

2011-11_

12

GBT97.1-10-AOP

垫圈

PIN

1

2011-11_


WASHER



13

GBT5781-M10X30-A3L

六角头螺栓



4

2004-01_

14

FT800A.43.321

转柄

BOLT

1

2011-11_

15

GBT879.1-8X30

弹性圆柱销

ROTARY HANDLE

1

2011-11_

16

GBT879.1-5X30

弹性圆柱销

PIN

1

2011-11_

17

GBT93-10

垫圈10

PIN

4

2011-11_


WASHER 10



18

GBT5783-M10X30-A3L

螺栓



4

2011-11_

2

GBT5783-M8X20-A2L

螺栓



4

2011-11_

3

GBT93-8

垫圈8



4

2011-11_

4

GBT6170-M8-A2L

螺母

WASHER 8

4

2011-11_

5

GBT6171-M10X1-A2L

螺母

NUT

1

2011-11_


NUT



6

FT800.21.240

拉杆前叉



1

2011-11_

7

FT800.43.169

制动凸轮轴

PULL ROD FRONT FORK

1

2011-11_

8

GBT3452.1-15.0X2.65

液压气动用O形橡胶密封圈

BRAKE CAMSHAFT

2

2011-11_

9

GBT882-B10×30

销轴

O-SEAL RING

1

2011-11_


PIN










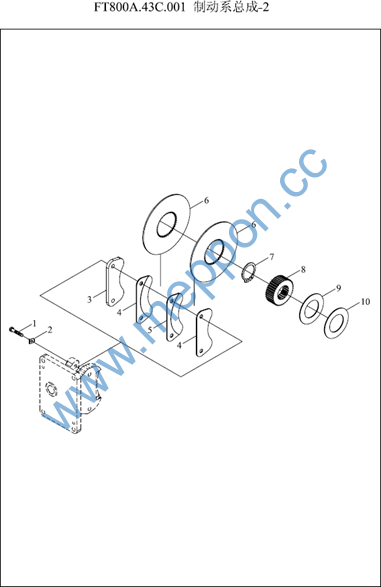

FT800A.43C.001-2 43.2-制动系总成-2 43BRAKING SYSTEM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.43.014

手制动总成

HANDLE BRAKE ASSEMBLY

1

2011-11_

1

FT800.43.194

螺栓



2

2011-11_

10

FT800.43.145

调整垫片

ADJUSTING WASHER

999

2011-11_

2

GBT854-10

单耳制动垫圈

WASHER

2

2011-11_

2

GBT854-10

单耳制动垫圈

WASHER

2

2011-11_

3

FT800.43.131

压板

PRESSURE PLATE

1

2011-11_

4

FT800.43.023

磨擦片合件

FRICTION PLATE UNIT

2

2011-11_

5

FT800.43.024

中间磨擦片合件

MIDDLE FRICTION PLATE UNIT

1

2011-11_

6

FT800.43.141

钢片

STEEL PIECE

2

2011-11_

7

GBT894.1-48

挡圈



1

2011-11_

8

FT800.43.136

花键套轮

SPLINE BUSH WHEEL

1

2011-11_

9

FT800.43.142

调整垫片

ADJUSTING WASHER

999

2011-11_
