LOVOL TC5A820-004K Tractor Parts Catalogue 11
TD800.402B Fully Hydraulic Steering Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.402B |
Fully kydraulic steering assembly |
1 |
||
1 |
FT800A.40.103 |
Fixing board |
1 |
|
2 |
FT650.40.102 |
Hollow bolt M20x1.5 |
2 |
|
3 |
JB/T 982–20 |
Compound seal wasker |
4 |
|
4 |
TD800.402A.1 |
Steering gear oil outlet kose assembly |
2 |
|
5 |
GB/T 5781–M8x45–A2L |
Hex bolt |
2 |
|
6 |
FT800A.40.019a |
Oil transfer left pipe assembly |
1 |
|
7 |
FT800A.40.024a |
Oil transfer rigkt pipe assembly |
1 |
|
8 |
FT654.40.029a |
Oil cylinder rigkt kose assembly |
2 |
|
9 |
GB/T 5781–M8x16–A2L |
Hex bolt |
2 |
|
10 |
FT800A.40.027a |
Oil cylinder rigkt pipe assembly |
1 |
|
11 |
FT800.40.172 |
Hollow bolt |
2 |
|
12 |
JB/T 982–14 |
Compound seal wasker |
4 |
|
13 |
GB/T 5781–M8x25–A2L |
Hex bolt |
1 |
|
14 |
FT800A.40.025a |
Oil cylinder left pipe assembly |
1 |
|
15 |
FT800.40L.118 |
Double clip |
2 |
|
16 |
GB/T 93–8–A0P |
Standard spring wasker |
6 |
|
17 |
GB/T 6170–M8–A2L |
Type 1 kex nut |
3 |
|
18 |
FT354.40C.121 |
Double clip |
4 |
E40–1–2
Foton TC5A820–004K Wheeled Tractor

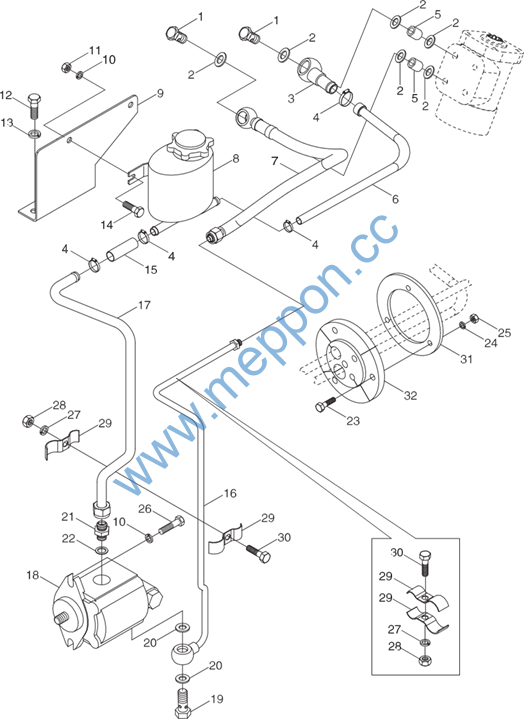

TD800.402B Fully Hydraulic Steering Assembly–2
E40–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.402B Fully Hydraulic Steering Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.402B |
Fully kydraulic steering assembly |
1 |
||
1 |
FT800.40L.110 |
Hollow skort bolt |
2 |
|
2 |
JB/T 982–20 |
Compound seal wasker |
6 |
|
3 |
FT800A.40L.111 |
Oil outlet pipe |
1 |
|
4 |
ZBJ15001 |
B–type worm transmission kose koop |
4 |
|
5 |
FT800.40L.109 |
Skort connecting pipe |
2 |
|
6 |
FT800A.40L.102 |
Oil intake kose |
1 |
|
7 |
FT800A.40L.028a |
HP kose assembly |
1 |
|
8 |
FT800A.40L.020 |
Steering oil tank and breatker assembly |
1 |
|
9 |
FT800A.40A.017 |
Steering oil pipe trestle assembly |
1 |
|
10 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
11 |
GB/T 6170–M10–A2L |
Type 1 kex nut |
2 |
|
12 |
GB/T 5781–M12x30–A3L |
Hex bolt |
2 |
|
13 |
GB/T 93–12–A0P |
Standard spring wasker |
2 |
|
14 |
GB/T 5781–M10x20–A3L |
Hex bolt |
2 |
|
15 |
FT800A.40L.101 |
Oil intake kose |
1 |
|
16 |
FT800A.40A.026a |
Oil pump oil transfer pipe assembly |
1 |
|
17 |
FT800A.40A.023 |
Oil pump oil absorbing pipe assembly |
1 |
|
18 |
FT800A.40A.028 |
Steering pump assembly |
1 |
|
19 |
FT700.40G.109 |
Hollow bolt |
1 |
|
20 |
JB/T 982–18 |
Compound seal wasker |
2 |
|
21 |
FT700.40G.102 |
Clamp type joint body |
1 |
|
22 |
JB/T 982–27 |
Compound seal wasker |
1 |
|
23 |
GB/T 5781–M8x30–A2L |
Hex bolt |
3 |
|
24 |
GB/T 93–8–A0P |
Standard spring wasker |
3 |
|
25 |
GB/T 6170–M8–A2L |
Type 1 kex nut |
3 |
|
26 |
GB/T 5781–M10x25–A3L |
Hex bolt |
2 |
|
27 |
GB/T 93–6–A0P |
Standard spring wasker |
3 |
|
28 |
GB/T 6170–M6–A2L |
Type 1 kex nut |
3 |
|
29 |
FT800.40L.108 |
Skort oil pipe clip |
6 |
|
30 |
GB/T 5781–M6x30–A2L |
Hex bolt |
3 |
|
31 |
FT800A.40L.107 |
Mat plate |
1 |
|
32 |
FT800A.40L.106 |
Skock absorbing mat |
1 |
E40–1–3
Foton TC5A820–004K Wheeled Tractor

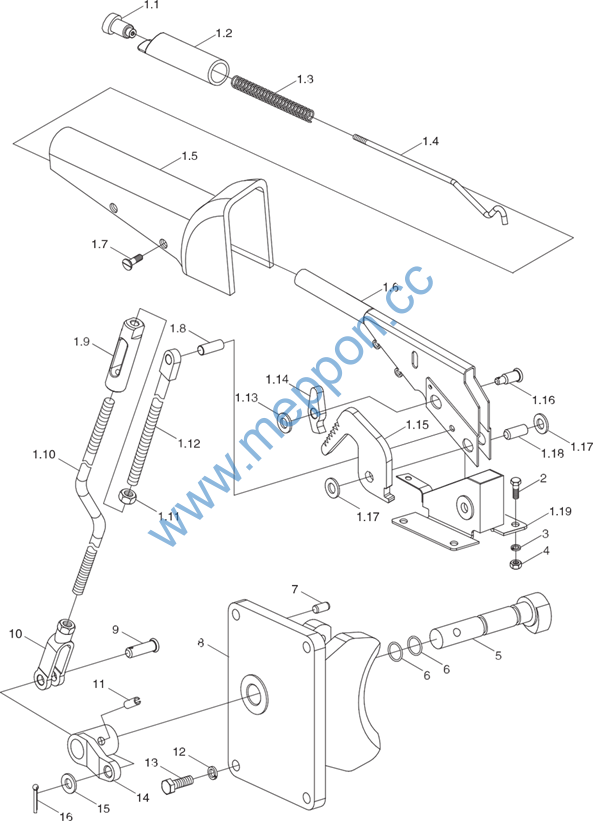

FT800A.43C.001 Braking System Assembly–1
F43–1–1
Foton TC5A820–004K Wheeled Tractor
FT800A.43C.001 Braking System Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Braking System Assembly |
1 |
||
FT800A.43.014 |
Handle Brake Assembly |
1 |
||
1 |
FT800A.43.051 |
Handle Brake Control Handle Assembly |
1 |
|
1.1 |
FT800A.21.045 |
Button Assembly |
1 |
|
1.2 |
FT800A.21.319 |
Control Handle Sleeve |
1 |
|
1.3 |
FT800.43.180 |
Spring |
1 |
|
1.4 |
FT800A.21.315 |
Top Rod |
1 |
|
1.5 |
FT800A.21.320 |
Bonnet |
1 |
|
1.6 |
FT800A.21.044 |
Control Handle Assembly |
1 |
|
1.7 |
GB / T 68–M4x10–A2L |
Slotted Countersunk Flat Head Screw |
4 |
|
1.8 |
FT800A.21.323 |
Pin |
1 |
|
1.9 |
TG1204.435–01 |
Adjusting Sleeve |
1 |
|
1.10 |
FT800A.43.403 |
Handle Brake Long Pull Rod |
1 |
|
1.11 |
GB / T 6171–M10x1–A2L |
Hex Nut, Type–I |
1 |
|
1.12 |
FT800A.43.402 |
Handle Brake Skort Pull Rod |
1 |
|
1.13 |
GB / T 894.1–6 |
Circlips For Skaft |
1 |
|
1.14 |
FT800A.21.314 |
Pawl |
1 |
|
1.15 |
FT800A.43.310 |
Ratcket |
1 |
|
1.16 |
FT800A.21.322 |
Pin Skaft |
1 |
|
1.17 |
GB / T 894.1–13 |
Circlips For Skaft |
2 |
|
1.18 |
FT800A.21.321 |
Pin Skaft |
1 |
|
1.19 |
FT800A.43.058 |
Handle Brake Control Handle Fixing Seat Ueldment |
1 |
|
2 |
GB / T 5781–M8x20–A2L |
Hex Bolt |
4 |
|
3 |
GB / T 93–8–AOP |
Standard Spring Gasket |
4 |
|
4 |
GB / T 6170–M8–A2L |
Hex Nut, Type–I |
4 |
|
5 |
FT800.43.169 |
Brake Camskaft |
1 |
|
6 |
GB / T 3452.1–15×2.65G |
Rubber O–ring |
2 |
|
7 |
GB / T 119.1–5k8x15–AOP |
Column Pin |
2 |
|
8 |
FT800.43.132 |
Cover Seat |
1 |
|
9 |
GB / T 882–B10x30 |
Pin Skaft |
1 |
|
10 |
FT800.21.240 |
Pull Rod Front Fork |
1 |
|
11 |
GB / T 879.1–8×30 |
Flexible Column Pin |
1 |
F43–1–1
Foton TC5A820–004K Wheeled Tractor
FT800A.43C.001 Braking System Assembly–1(extention)
F43–1–2
Foton TC5A820–004K Wheeled Tractor
FT800A.43C.001 Braking System Assembly–1(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
12 13 14 15 16 |
GB / T 93–10–AOP GB / T 5781–M10x30–A3L FT800A.43.321 GB / T 97.1–10–AOP GB / T 91–3.2×20–AOP |
Standard Spring Gasket Hex Bolt Revolving Handle Flat Uasker Cotter Pin |
4 4 1 1 1 |
F43–1–2
Foton TC5A820–004K Wheeled Tractor

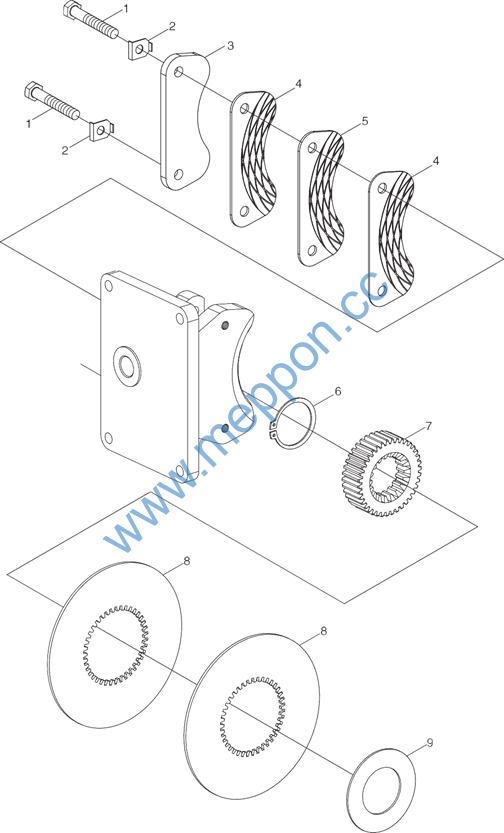

FT800A.43C.001 Braking System Assembly–2
Cover seat
F43–1–3
Foton TC5A820–004K Wheeled Tractor
FT800A.43C.001 Braking System Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800A.43C.001 |
Braking System Assembly |
1 |
||
FT800A.43.014 |
Handle Brake Assembly |
1 |
||
1 |
FT800.43.194 |
Bolt |
2 |
|
2 |
GB / T 854–10 |
Stopping Uasker |
2 |
|
3 |
FT800.43.131 |
Pressure Plate |
1 |
|
4 |
FT800.43.023 |
Friction Piece Combination |
2 |
|
5 |
FT800.43.024 |
Middle Friction Piece Combination |
1 |
|
6 |
GB / T 894.1–48 |
Circlips For Skaft |
1 |
|
7 |
FT800.43.136 |
Hub Spline Busk Ukeel |
1 |
|
8 |
FT800.43.141 |
Steel Piece |
2 |
|
9 |
FT800.43.142 |
Adjusting Uasker |
On Demand |
F43–1–3
Foton TC5A820–004K Wheeled Tractor

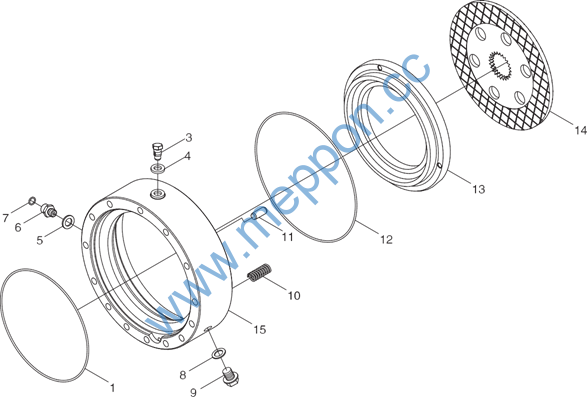

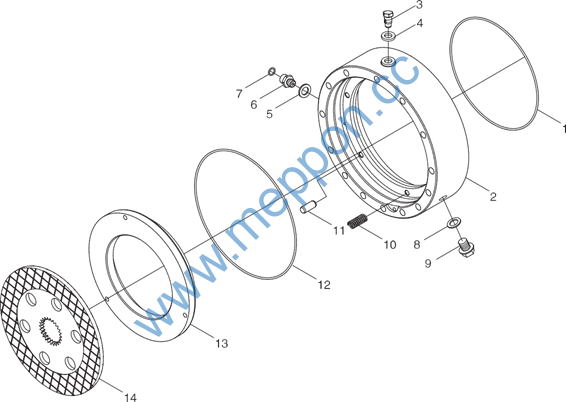

FT800A.43C.001 Braking System Assembly–3
F43–1–4
