LOVOL TC2A704-001K Tractor Parts Catalogue 02
TB500.13B Cooling System Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500.13B |
Cooling system assembly |
1 |
||
1 |
GB/T 5783-M6×20-8.8-A2L |
Hex bolt |
2 |
|
2 |
GB/T 97.1-6-A0P |
Flat washer |
2 |
|
3 |
TB400.13C.4 |
Auxiliary water tank assembly |
1 |
|
4 |
Q676B16 |
Type-C worm drive hose clamp |
3 |
|
5 |
TG1204.13A-09 |
Breathing hose |
1 |
|
6 |
TG1204.13A-08 |
Connecting hose |
1 |
|
7 |
GB/T 6170-M8-8-A2L |
Type 1 hex nut |
2 |
|
8 |
GB/T 93-8-A0P |
Standard spring gasket |
8 |
|
9 |
GB/T 96.1-8-A0P |
Big washer |
2 |
|
10 |
GB/T 5783-M8×20-8.8-A2L |
Hex bolt |
6 |
|
11 |
TB500.13B.3 |
Pull rod unit |
2 |
|
11.1 |
TB500.13B.3-01 |
Pull rod |
2 |
|
11.2 |
FB300.13.132 |
Rubber gasket |
2 |
|
12 |
TB500.13B.1 |
Radiator assembly |
1 |
|
13 |
GB/T 96.1-6-A0P |
Big washer |
2 |
|
14 |
GB/T 93-6-A0P |
Standard spring gasket |
2 |
|
15 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
2 |
|
16 |
Q67650 |
Type-B worm drive hose clamp |
4 |
|
17 |
TB500.13-01 |
Water inlet hose |
1 |
|
18 |
FT450.13.102 |
Water outlet hose |
1 |
|
19 |
TA700.131-01 |
Rubber pad block |
2 |
|
20 |
GB/T 5783-M10×20-8.8-A3L |
Hex bolt |
2 |
|
21 |
GB/T 93-10-A0P |
Standard spring gasket |
2 |
|
22 |
GB/T 97.1-10-A0P |
Flat washer |
2 |
|
23 |
GB/T 97.1-8-A0P |
Flat washer |
6 |
|
24 |
TB500.13B.2 |
Water tank pad plate weldment |
1 |
|
25 |
FT650.13.116 |
Gasket |
2 |
|
26 |
GB/T 6178-M10-8-A3L |
Slotted nut |
2 |
|
27 |
GB/T 91-2.5×28-A0P |
Cotter pin |
2 |
|
28 |
TA700.131-02 |
Sleeve |
2 |
|
29 |
TD800.131-11 |
Rubber pad |
2 |
5
Foton TC2A400-004K Wheeled Tractor

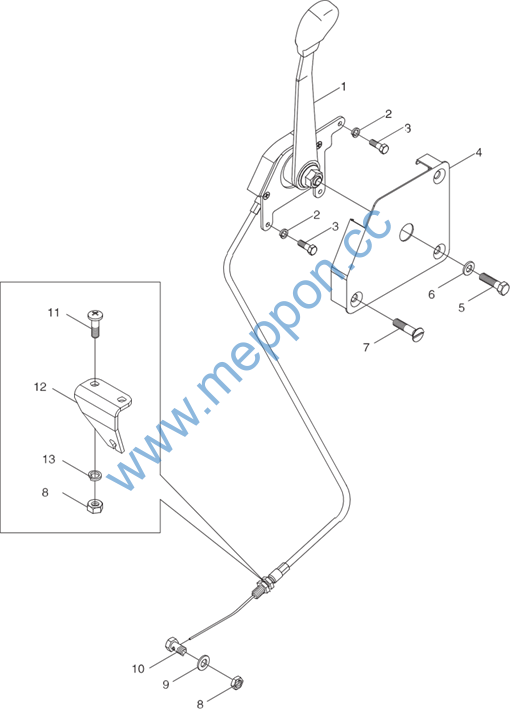

TB400.201F Handle Throttle Assembly
6
Foton TC2A400-004K Wheeled Tractor
TB400.201F Handle Throttle Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.201F |
Handle throttle assembly |
1 |
||
1 |
TA700.201-01 |
Handle throttle assembly |
1 |
|
2 |
GB/T 93-6-A0P |
Washer |
3 |
|
3 |
GB/T 5781-M6×16-A2L |
Bolt |
3 |
|
4 |
FT700.20.324 |
Handle throttle cover |
1 |
|
5 |
GB/T 5780-M10×45-A3L |
Bolt |
1 |
|
6 |
GB/T 96-10-A0P |
Washer |
1 |
|
7 |
GB/T 68-M8×30-A2L |
Screw |
3 |
|
8 |
GB/T 6170-M8-A2L |
Nut |
3 |
|
9 |
GB/T 97.1-8-A0P |
Washer |
1 |
|
10 |
FT650.20.133 |
Locking screw |
1 |
|
11 |
GB/T 818-M8×20-A2L |
Screw |
2 |
|
12 |
FT300.20.105 |
Handle throttle wire trestle |
1 |
|
13 |
GB/T 93-8-A0P |
Washer |
2 |
7
Foton TC2A400-004K Wheeled Tractor

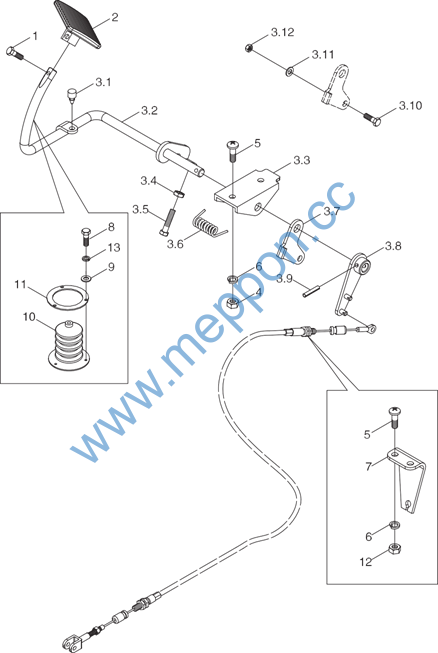

TB400.202B Foot throttle assy
8
Foton TC2A400-004K Wheeled Tractor
TB400.202B Foot throttle assy
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.202B |
Foot throttle assy |
1 |
||
1 |
GB/T 5783-M6×20-8.8-A2L |
Hex head bolt |
1 |
|
2 |
TB300.202-01 |
Foot pedal |
1 |
|
3 |
TB400.202E.1 |
Foot throttle control sub-assembly |
1 |
|
3.1 |
FT650.20.107 |
Rubber plug |
1 |
|
3.2 |
TB300.202.1 |
Foot pedal rocker arm weldment |
1 |
|
3.3 |
FT650.20.108 |
Throttle support |
1 |
|
3.4 |
GB/T 6172.1-M8-04-A2L |
Hexagon thin nut |
1 |
|
3.5 |
GB/T 5781-M8×45-4.8-A2L |
Hex head bolt |
1 |
|
3.6 |
FT650.20.104 |
Torsion spring |
1 |
|
3.7 |
FT650.20.114 |
Hand throttle rocker arm |
1 |
|
3.8 |
FT300.20.011 |
Foot throttle rocker arm weldment |
1 |
|
3.9 |
GB/T 879.1-5×20 |
Elastic cylindrical pin |
1 |
|
3.10 |
FT650.20.133 |
Tightening screw |
1 |
|
3.11 |
GB/T 97.1-8-A0P |
Flat washer |
1 |
|
3.12 |
GB/T 6170-M8-8-A2L |
Hexagon nut, Style 1 |
1 |
|
4 |
GB/T 6172.1-M8-04-A2L |
Hexagon thin nut |
2 |
|
5 |
GB/T 818-M8×20-4.8-A2L |
Cross recessed pan head screw |
4 |
|
6 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
7 |
FT300.20.016 |
Foot throttle cable bracket weldment |
1 |
|
8 |
GB/T 5783-M5×12-8.8-A2L |
Hex head bolt |
3 |
|
9 |
GB/T 97.1-5-A0P |
Flat washer |
3 |
|
10 |
FT65.45.393 |
Throttle pedal sealing gland |
1 |
|
11 |
FT65.45.394 |
Accelerator pedal gland plate |
1 |
|
12 |
GB/T 6170-M8-8-A2L |
Hexagon nut, Style 1 |
2 |
|
13 |
GB/T 93-5-A0P |
Standard spring washer |
3 |
9
Foton TC2A400-004K Wheeled Tractor

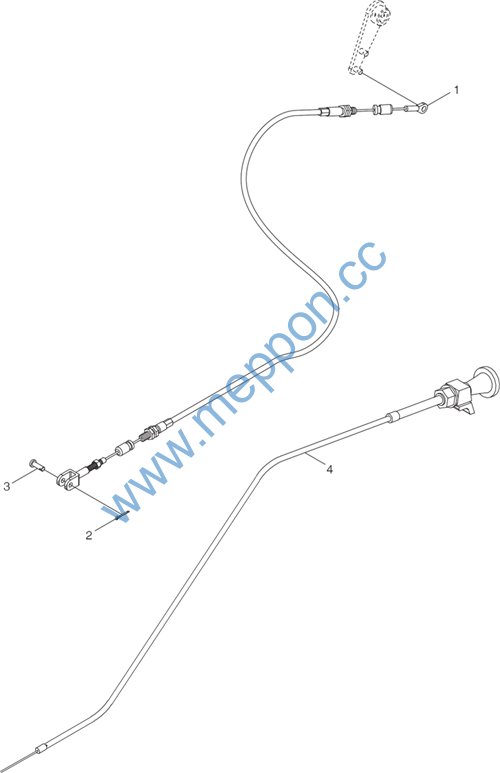

TB400.203B Throttle Wire Assembly
10
Foton TC2A400-004K Wheeled Tractor
TB400.203B Throttle Wire Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
TB400.203B FT650.20.014 GB/T 91-2×12-A0P GB/T 882-B5×20-A0P FT400.20.018 |
Throttle wire assembly Foot throttle pull wire assembly Pin Pin shaft Flameout pull wire assembly |
1 1 1 1 1 |
11
Foton TC2A400-004K Wheeled Tractor

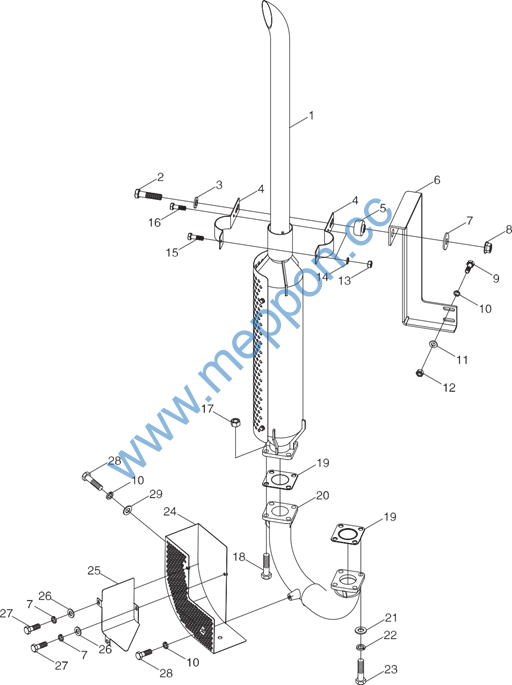

TC02220020000K Exhaust System Assembly
12
Foton TC2A400-004K Wheeled Tractor
TC02220020000K Exhaust System Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02220020000K |
Exhaust system assembly |
1 |
||
1 |
TC02220020001K |
Muffler assembly |
1 |
|
2 |
GB/T 5782-M12×50-8.8-A3L |
Hexagon head bolt |
1 |
|
3 |
GB/T 97.1-12-A0P |
Plain washer |
1 |
|
4 |
TC02220020003K |
Fixing frame |
2 |
|
5 |
TD900.22B-03 |
Upper rubber pad |
1 |
|
6 |
TC02220020002K |
Support bracket |
1 |
|
7 |
GB/T 96.1-12-A0P |
Large washer |
1 |
|
8 |
SPL6177.1-M12-F3 |
Hexagon flange nut |
1 |
|
9 |
GB/T 5783-M8×25-10.9-A2L |
Hexagon head bolt |
2 |
|
10 |
GB/T 93-8-A0P |
Standard spring washer |
5 |
|
11 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
|
12 |
GB/T 6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
13 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
14 |
GB/T 93-6-A0P |
Standard spring washer |
5 |
|
15 |
GB/T 5783-M6×20-8.8-A2L |
Hexagon head bolt |
1 |
|
16 |
GB/T 5783-M6×16-8.8-A2L |
Hexagon head bolt |
1 |
|
17 |
SPL6175PT-M10×1.5-8F3 |
Spiralock hexagon self-lock nut, style 2 |
4 |
|
18 |
GB/T 5783-M10×35-8.8-A3L |
Hexagon head bolt |
4 |
|
19 |
FT300.22.030 |
Sealing gasket combination |
2 |
|
20 |
TB550.22C-01 |
Exhaust elbow |
1 |
|
21 |
GB/T 95-10-A0P |
Plain washer |
4 |
|
22 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
23 |
GB/T 5783-M10×30-8.8-A3L |
Hexagon head bolt |
4 |
|
24 |
TB550.22C.1 |
Lower shield mesh weldment |
1 |
|
25 |
TB550.22C-02 |
Upper shield mesh |
1 |
|
26 |
GB/T 97.1-6-A0P |
Plain washer |
3 |
|
27 |
GB/T 5783-M6×12-8.8-A2L |
Hexagon head bolt |
3 |
|
28 |
GB/T 5783-M8×16-8.8-A2L |
Hexagon head bolt |
3 |
|
29 |
GB/T 97.1-10-A0P |
Plain washer |
1 |
13
Foton TC2A400-004K Wheeled Tractor

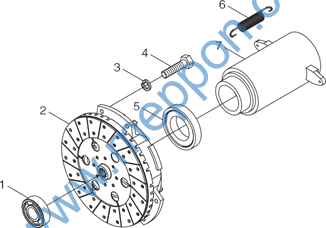

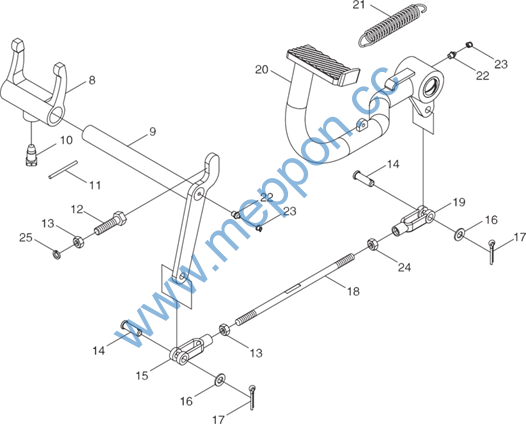

TB500.21 Clutch assembly
