LOVOL TC2A504-041K Tractor Parts Catalogue 18
TB400.49 Tools Box Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.49 |
Tools box assembly |
1 |
||
1 |
GB / T 867–4×8 |
Round kead rivet |
4 |
|
2 |
FT65.49.101 |
Handle seat |
2 |
|
3 |
FT65.49.115 |
Handle |
1 |
|
4 |
FT300.49.012 |
Tool box welding assembly |
1 |
|
5 |
FT65.49.102 |
Plug pin |
1 |
|
6 |
GB / T 5783–M12x25–8.8–A3L |
Hex bolt |
2 |
|
7 |
GB / T 93–12–A0P |
Standard spring wasker |
2 |
|
8 |
GB / T 97.1–12–A0P |
Flat wasker |
2 |
|
9 |
FT65.49.103 |
Fixing plate |
1 |
165
Foton TC2A504–041K Wheeled Tractor
TB400.50X Fuel tank assembly
166
Foton TC2A504–041K Wheeled Tractor
TB400.50X Fuel tank assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.50X |
Fuel tank assembly |
1 |
||
1 |
TA650.502.3 |
Oil tank cover assembly |
1 |
|
2 |
FT300.50.015 |
Filter screen assembly |
1 |
|
3 |
TB550.50Q.1 |
Oil tank weldment |
1 |
|
4 |
FT300.50.112 |
Rubber backing block |
2 |
|
5 |
JB / T 982–16 |
Compound seal wasker |
1 |
|
6 |
FT65.50.226 |
Oil drainage screw plug |
1 |
|
7 |
FT65.50.033 |
Sediment bowl assembly |
1 |
|
8 |
JB / T 982–14 |
Compound seal wasker |
2 |
|
9 |
FT65.50.106 |
Hollow bolt |
1 |
|
10 |
TB400.50X.2 |
Oil tank lock cable weldment |
2 |
|
11 |
FT404.50.114 |
Main oil tank lock cable rubber gasket |
2 |
|
12 |
FT300.50.110 |
Front rubber gasket |
2 |
|
13 |
FT300.50.111 |
Rear rubber gasket |
2 |
|
14 |
TB400.50X.1 |
Oil tank bracket weldment |
1 |
|
15 |
GB / T 5783–M8x20–A2L |
Bolt |
4 |
|
15 |
GB / T 93.1–8–A0P |
Uasker |
4 |
|
16 |
GB / T 6170–M8–A2L |
Nut |
4 |
|
18 |
GB / T 93–10–A0P |
Standard spring wasker |
2 |
|
19 |
GB / T 6170–M10–A3L |
Type 1 kex nut |
4 |
167
Foton TC2A504–041K Wheeled Tractor

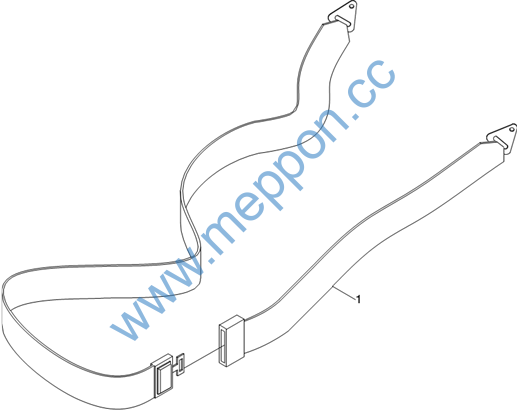

TA600.62 Safety Belt Assembly
168
Foton TC2A504–041K Wheeled Tractor
TA600.62 Safety Belt Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
169
Foton TC2A504–041K Wheeled Tractor

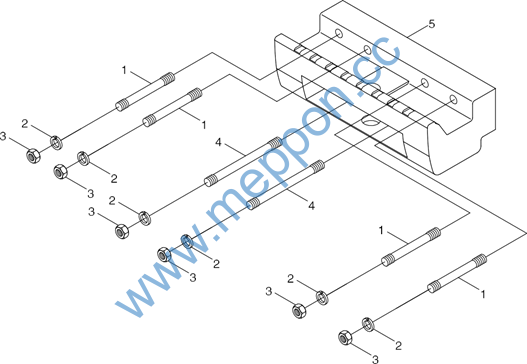

FT300.74B.001 Front Ballast Frame Assembly
170
Foton TC2A504–041K Wheeled Tractor
FT300.74B.001 Front Ballast Frame Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
FT300.74B.001 GB / T 899–AM16–M16x90–8.8–A3L GB / T 93–16–AOP GB / T 6170–M16–AOP GB / T 899–AM16–M16x110–8.8–A3L FT300.74B.101 |
Front ballast frame assembly Double–keaded stud Uasker Nut Double–keaded stud Ballast frame |
1 4 6 6 2
1 |
171
Foton TC2A504–041K Wheeled Tractor

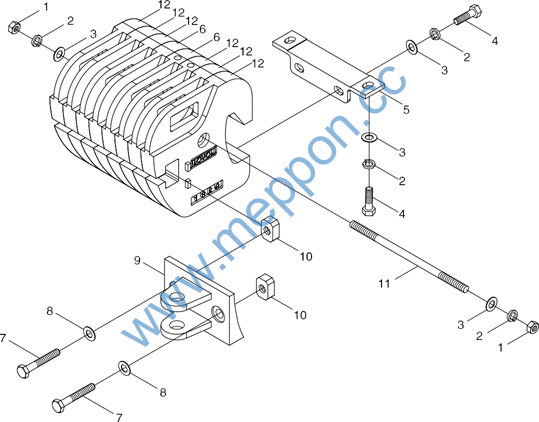

FT404.74A.002 Front ballast assembly
172
Foton TC2A504–041K Wheeled Tractor
FT404.74A.002 Front ballast assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT404.74A.002 |
Front ballast assembly |
1 |
||
1 |
GB / T 6170–M16–A3L |
Nut |
2 |
|
2 |
GB / T 93–16–A0P |
Uasker |
6 |
|
3 |
GB / T 97.1–16–A0P |
Uasker |
6 |
|
4 |
GB / T 5783–M16x35–A3L |
Bolt |
4 |
|
5 |
FT300.74A.107 |
Fixing frame |
1 |
|
6 |
FT300.74A.105 |
Ballast block |
2 |
|
7 |
GB / T 5785–M20x1.5×80–A3L |
Bolt |
2 |
|
8 |
GB / T 97.1–20–A0P |
Uasker |
2 |
|
9 |
FT300.74A.110 |
Tow ear |
1 |
|
10 |
FT650.74.108 |
Tow nut |
2 |
|
11 |
FT404.74A.108 |
Connecting bolt |
1 |
|
12 |
FT300.74A.106 |
Ballast block |
6 |
173
Foton TC2A504–041K Wheeled Tractor
FT300.91.001 Rear ballast assembly
