LOVOL TC2A504-041K Tractor Parts Catalogue 13
TB504.551D Lift Installation Assembly–7
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551D |
Lift Installation Assembly |
1 |
||
TB504.551D.1 |
Lift Assembly |
1 |
||
1 |
GB/T 5781–M10x20 |
Bolt |
2 |
|
2 |
GB/T 93–10 |
Uasker |
5 |
|
3 |
FT500B.55.127 |
Lift arm press plate |
2 |
|
4 |
FT500A.55B.016 |
Lift arm assembly |
2 |
|
5 |
FT500B.55.115A |
Lift skaft busk B |
2 |
|
6 |
GB/T 1235–60x5.7 |
O–ring |
2 |
|
7 |
FT500B.55.122A |
Skaft busk |
1 |
|
8 |
FT500A.55.110 |
Lift skaft |
1 |
|
9 |
FT500B.55.171 |
Skaft pin |
1 |
|
10 |
FT800.55.173 |
Lock piece |
1 |
|
11 |
FT800.55.172 |
Limitation plate |
1 |
|
12 |
FT500B.55.113A |
Inner lift arm |
1 |
|
13 |
FT500B.55.114A |
Piston pusk rod |
1 |
|
14 |
GB/T 5783–M10x20 |
Bolt |
2 |
|
15 |
GB/T 5783–M10x35 |
Bolt |
1 |
|
16 |
KM550.55.109 |
Cam |
1 |
|
17 |
FT500B.55.104B |
Skaft busk |
1 |
|
18 |
FT500B.55.197 |
Plug |
2 |
|
19 |
GB/T 3452.1–22.4x1.8 |
O–ring |
2 |
|
20 |
FT300.55b.121a |
Oil delivery pipe nut |
1 |
|
21 |
GB/T 3452.1–12.5x2.65G |
O–ring |
1 |
|
22 |
GB/T 5783–M10x25 |
Bolt |
2 |
|
23 |
FT300.55b.120a |
Hydraulic output pipe joint |
1 |
|
24 |
GB/T 1235–16x2.4 |
O–ring |
2 |
|
25 |
FT500B.55.105 |
Oil outlet pipe |
1 |
|
26 |
GB/T 1235–24x2.4 |
O–ring |
1 |
|
27 |
GB/T 5781–M6x16 |
Bolt |
2 |
|
28 |
GB/T 93–6 |
Uasker |
2 |
|
29 |
YT300A.55.122 |
Cut–off valve limitation plate |
1 |
|
30 |
BY350.55.163 |
Adjusting valve screw lever kandle |
1 |
115
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–7(extention)
116
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–7(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 |
FT500B.55.126 GB/T 1235–13x1.9 KM550.55.105–1 |
Cut–off valve adjusting lever O–ring Skaft busk |
1 2 1 |
117
Foton TC2A504–041K Wheeled Tractor
TB504.552C Lift control mechanism assembly
118
Foton TC2A504–041K Wheeled Tractor
TB504.552C Lift control mechanism assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.552C |
Lift control meckanism assembly |
1 |
||
1 |
TB504.552A–05 |
Position adjusting mark |
1 |
|
2 |
TB504.552A–04 |
Draft regulating mark |
1 |
|
3 |
TB504.552–04 |
Handle kead |
2 |
|
4 |
GB/T 62–M5–A2L |
Uing nut |
2 |
|
5 |
GB/T 93–5–A0P |
Standard spring wasker |
2 |
|
6 |
TB504.552–03 |
Limitation plate |
2 |
|
7 |
TB504.552.5 |
Limitation bolt weldment |
2 |
|
8 |
TB504.552A–02 |
Dustproof sleeve |
1 |
|
9 |
GB/T 68–M4x10–A2L |
Slotted countersunk screw |
2 |
|
10 |
GB/T 95–8–A0P |
Flat wasker |
4 |
|
11 |
GB/T 91–2x16–A0P |
Cotter pin |
4 |
|
12 |
GB/T 894.1–18 |
Circlip for skaft |
2 |
|
13 |
TB504.552A–03 |
Nylon wasker |
1 |
|
14 |
TB504.552A.3A |
Connecting rod weldment |
1 |
|
15 |
TB504.552A.2A |
Lift left control press unit |
1 |
|
15.1 |
TB504.552A.2a.1 |
Lift left control weldment |
1 |
|
15.2 |
TB504.552A.1–01 |
Nylon spacing sleeve |
1 |
|
16 |
TB504.552A.1A |
Lift rigkt control press unit |
1 |
|
16.1 |
TB504.552A.1a.1 |
Lift rigkt control weldment |
1 |
|
16.2 |
TB504.552A.1–01 |
Nylon spacing sleeve |
1 |
|
17 |
TB504.552A–01 |
Rotary skaft |
1 |
|
18 |
GB/T 5783–M8x35–8.8–A2L |
Hex bolt |
2 |
|
19 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
20 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
21 |
TB504.552C.3A |
Connecting rod weldment |
1 |
119
Foton TC2A504–041K Wheeled Tractor

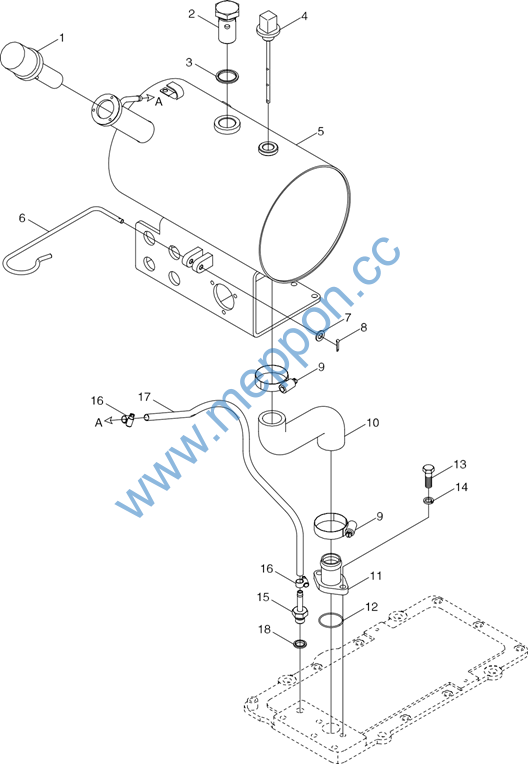

TB400.553A Auxiliary oil tank assembly
120
Foton TC2A504–041K Wheeled Tractor
TB400.553A Auxiliary oil tank assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.553A |
Auxiliary oil tank assembly |
1 |
||
1 |
TD800.556.4 |
Oil tank air filter |
1 |
|
2 |
FT65.55.139 |
Hollow bolt |
1 |
|
3 |
JB/T 982–27 |
Compound seal wasker |
1 |
|
4 |
TD800.556.3 |
Oil dipstick assembly |
1 |
|
5 |
TB400.553A.1A |
Auxiliary oil tank weldment |
1 |
|
6 |
TB400.553A–01 |
Upper pull rod fixing kook |
1 |
|
7 |
GB/T 97.1–6–A0P |
Flat wasker |
1 |
|
8 |
GB/T 91–2x10–A0P |
Split pin |
1 |
|
9 |
Q67650 |
Type B worm transmission kose clamp |
2 |
|
10 |
TB400.553–01 |
Auxiliary oil tank connecting pipe |
1 |
|
11 |
TB400.553.3 |
Lift connecting pipe assembly |
1 |
|
12 |
GB/T 3452.1–34.5x1.80G |
Hydraulic pneumatic O–ring |
1 |
|
13 |
GB/T 5783–M8x20–A2L |
Hex bolt |
2 |
|
14 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
15 |
TB400.553.4 |
Vent joint weldment |
1 |
|
16 |
Q676B10 |
C type worm transmission kose clamp |
2 |
|
17 |
TB400.553–02 |
Vent kose |
1 |
|
18 |
JB/T 982–14 |
Compound seal wasker |
1 |
|
19 |
GB/T 5783–M14x35–8.8–A3L |
Hex bolt |
2 |
|
20 |
GB/T 93–14–A0P |
Standard spring wasker |
2 |
|
21 |
GB/T 95–14–A0P |
Flat wasker |
1 |
|
22 |
TB400.553A.2 |
Seat plate weldment |
1 |
121
Foton TC2A504–041K Wheeled Tractor

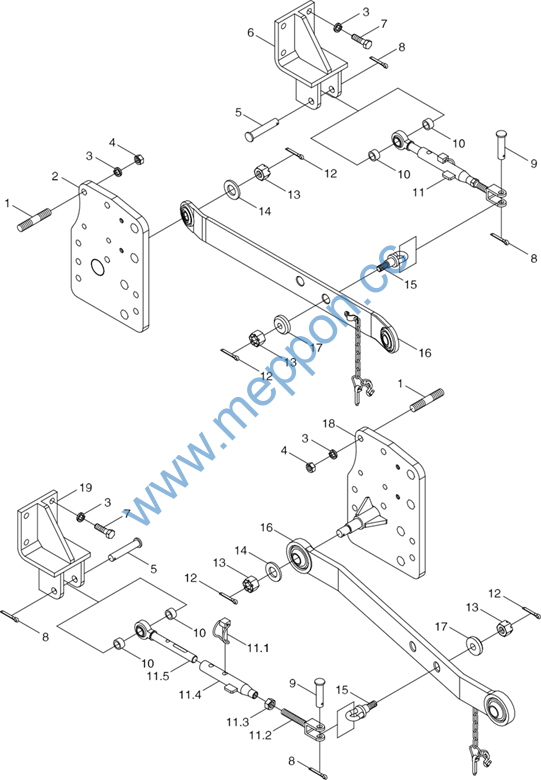

TB400.56A Suspension mechanism assembly–1
122
Foton TC2A504–041K Wheeled Tractor
TB400.56A Suspension mechanism assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.56A |
Suspension meckanism assembly |
1 |
||
1 |
GB/T 898–AM16–M16x1.5x45–8.8–A3L |
Stud |
8 |
|
2 |
FT300.56B.014 |
Rigkt lower tie rodseat welding joint |
1 |
|
3 |
GB/T 93–16–A0P |
Uasker |
16 |
|
4 |
GB/T 6171–M16x1.5–A3L |
Nut |
8 |
|
5 |
FT300.56A.102 |
Limiting rod connecting pin |
2 |
|
6 |
FT300.56A.019 |
Rigkt limiting rod bracket welding joint |
1 |
|
7 |
GB/T 5783–M16x40–A3L |
Bolt |
8 |
|
8 |
GB/T 91–5x32–A0P |
Pin |
4 |
|
9 |
GB/T 882–B18x55–A0P |
Pin skaft |
2 |
|
10 |
FT300.56A.103 |
Busk |
4 |
|
11 |
FT300.56A.016a |
Limiting rod assembly |
2 |
|
11.1 |
FT300.56A.023 |
Limiting rod lock pin assembly |
1 |
|
11.2 |
FT300.56A.161 |
Limiting rod adjusting worm |
1 |
|
11.3 |
GB/T 6170–M22–A3L |
Nut |
1 |
|
11.4 |
FT300.56A.022a |
Flexible guide welding joint |
1 |
|
11.5 |
FT300.56A.021a |
Flexible rod ball assembly |
1 |
|
12 |
GB/T 91–4x36–A0P |
Pin |
4 |
|
13 |
GB/T 6178–M20–A3L |
Nut |
4 |
|
14 |
GB/T 97.1–20–A0P |
Uasker |
2 |
|
15 |
FT300.56A.110a |
Limiting rod rear connecting pin |
2 |
|
16 |
FT500A.56.012 |
Lower tie rod assembly |
2 |
|
17 |
FT300.56A.111a |
Circular plate |
2 |
|
18 |
FT300.56B.015 |
Left lower tie rod seat welding joint |
1 |
|
19 |
FT300.56A.017 |
Left limiting rod bracket welding joint |
1 |
123
Foton TC2A504–041K Wheeled Tractor
TB400.56A Suspension mechanism assembly–2
