LOVOL TC2A504-041K Tractor Parts Catalogue 12
TB504.551D Lift Installation Assembly–3(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
30 31 32 |
GB/T 3452.1–90x5.3 FT500B.55.106 GB/T 3452.1–17x2.65 |
O–ring Cylinder body O–ring |
1 1 4 |
105
Foton TC2A504–041K Wheeled Tractor

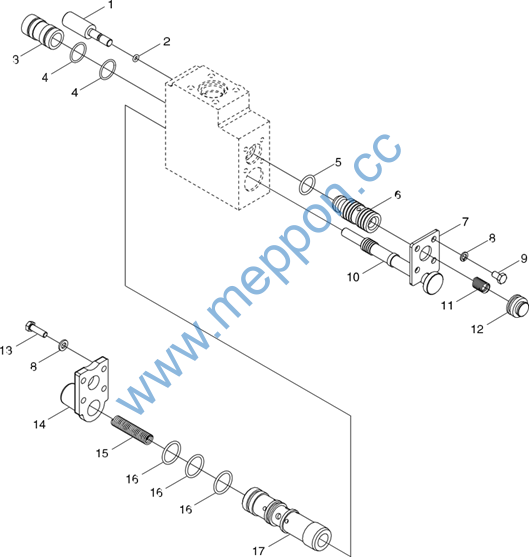

TB504.551D Lift Installation Assembly–4
106
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551D |
Lift Installation Assembly |
1 |
||
TB504.551D.1 |
Lift assembly |
1 |
||
FT500B.55.013E |
Distributor and bracket assembly |
1 |
||
1 |
TS300B.55.187 |
Adjusting valve |
1 |
|
2 |
GB/T 1235–8x1.9 |
O–ring |
1 |
|
3 |
KR130.55.105 |
Seal sleeve |
1 |
|
4 |
GB/T 3452.1–19x1.8 |
O–ring |
2 |
|
5 |
GB/T 1235–22x2.4 |
O–ring |
1 |
|
6 |
KR130.55.103 |
Oil return valve body |
1 |
|
7 |
25.55.180 |
Limitation board |
1 |
|
8 |
GB/T 93–6 |
Uasker |
8 |
|
9 |
GB/T 5783–M6x10 |
Bolt |
4 |
|
10 |
TS300.55.172 |
Main control valve |
1 |
|
11 |
25.55.184 |
Oil return valve spring |
1 |
|
12 |
25.55.176 |
Oil return valve rear plug |
1 |
|
13 |
GB/T 5783–M6x20 |
Bolt |
4 |
|
14 |
KR130.55.183 |
Valve front cover |
1 |
|
15 |
25.55.181 |
Main control valve spring |
1 |
|
16 |
GB/T 1235–26x2.4 |
O–ring |
3 |
|
17 |
TS300.55.217 |
Main control valve sleeve |
1 |
107
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–5
108
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551D |
Lift Installation Assembly |
1 |
||
TB504.551D.1 |
Lift Assembly |
1 |
||
1 |
GB/T 879–4x20 |
Pin |
1 |
|
2 |
E300.55.140A |
Speed reducing valve kandwkeel |
1 |
|
3 |
GB/T 3452.1–11.2x2.65 |
O–ring |
2 |
|
4 |
YT300A.55.116 |
Dropping speed adjusting lever |
1 |
|
5 |
GB/T 91–4x20 |
Pin |
1 |
|
6 |
JB/T 982–22 |
Compound seal wasker |
1 |
|
7 |
GB/T 5786–M22x1.5x20 |
Bolt |
1 |
|
8 |
TB400.551A.1–01 |
Lift kousing |
1 |
|
9 |
FT500A.55.103 |
Upper cover gasket |
1 |
|
10 |
TB400.551A.1–02 |
Lift upper cover |
1 |
|
11 |
GB/T 93–8 |
Uasker |
11 |
|
12 |
GB/T 5781–M8x20 |
Bolt |
7 |
|
13 |
GB/T 5781–M8x35 |
Bolt |
4 |
|
14 |
25.55.146L |
Pusk lever sleeve |
1 |
|
15 |
25.55.145L |
Draft adjusting seal sleeve |
1 |
|
16 |
GB/T 1235–11x1.9 |
O–ring |
1 |
|
17 |
GB/T 3452.1–16x1.8 |
O–ring |
1 |
|
18 |
25.55.158 |
Spring lever |
1 |
|
19 |
25.55.159 |
Spring seat |
1 |
|
20 |
25.55.157 |
Draft adjusting spring |
1 |
|
21 |
25.55.160 |
Spring press plate |
1 |
|
22 |
25.55.161 |
Nut |
1 |
|
23 |
GB/T 119–C4x14 |
Pin |
1 |
|
24 |
25.55.162 |
Dustproof cover |
1 |
|
25 |
GB/T 119–B3x40 |
Pin |
1 |
|
26 |
YT300A.55.121 |
Upper pull rod connecting kead |
1 |
|
27 |
GB/T 91–5x36 |
Pin |
2 |
|
28 |
GB/T 97.1–22 |
Uasker |
1 |
|
29 |
25.56.030 |
Lock pin and lock pin ring assembly |
1 |
|
30 |
GB/T 97.1–20 |
Uasker |
1 |
109
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–5(extention)
110
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–5(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 34 35 |
FT500A.55.128 450.55.167 FT500A.55B.182 FT500A.55.106 FT500B.55.130A |
Upper kanging point rocker arm bracket Rocker arm connecting pin Rocker arm front connecting pin Rocker arm upper connecting pin Upper kanging point rocker arm |
1 1 1 1 1 |
111
Foton TC2A504–041K Wheeled Tractor

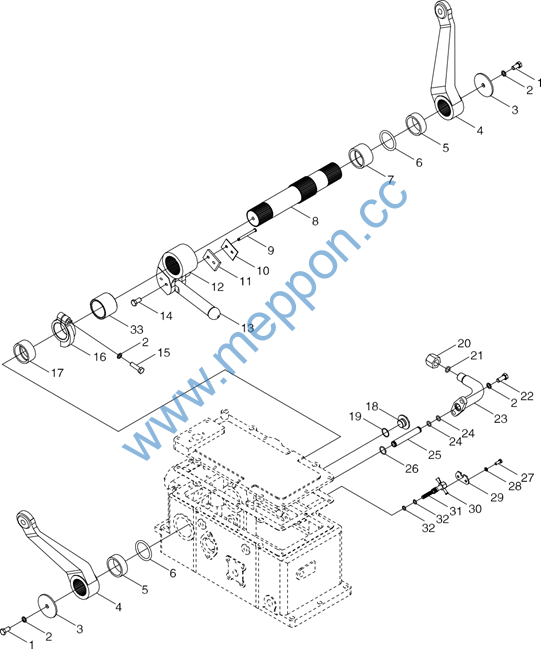

TB504.551D Lift Installation Assembly–6
112
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551D |
Lift Installation Assembly |
1 |
||
TB504.551D.1 |
Lift Assembly |
1 |
||
1 |
300.55.130 |
Plug |
1 |
|
2 |
GB/T 3452.1–15x2.65 |
O–ring |
1 |
|
3 |
300.55.131–132 |
Adjusting gasket |
On demand |
|
4 |
300.55.133 |
Oil cylinder safety valve spring |
1 |
|
5 |
300.55.134 |
Oil cylinder safety valve body |
1 |
|
6 |
FT500B.55.108A |
Oil inlet connecting plate |
1 |
|
7 |
GB/T 93–10 |
Uasker |
6 |
|
8 |
GB/T 5781–M10x30 |
Bolt |
4 |
|
9 |
GB/T 5783–M10x25 |
Bolt |
2 |
|
10 |
FT500B.55.102 |
Oil inlet connecting plate gasket |
1 |
|
11 |
GB/T 3452.1–15x1.8 |
O–ring |
2 |
|
12 |
FT500B.55.103 |
Oil inlet pipe |
1 |
|
13 |
GB/T 3452.1–22.4x1.8 |
O–ring |
1 |
|
14 |
FT500B.55.197 |
Plug |
1 |
|
15 |
GB/T 1235–24x2.4 |
O–ring |
1 |
|
16 |
TS300B.55.110 |
Spring kook |
1 |
|
17 |
GB/T 898–AM16x40 |
Stud |
2 |
|
18 |
FT500B.55.118 |
Lock disc |
1 |
|
19 |
GB/T 6170–M16 |
Nut |
2 |
|
20 |
FT500B.55.120 |
Gasket |
1 |
|
21 |
FT500B.55.121 |
Lock disc |
1 |
|
22 |
FT500B.55.125 |
Cylinder bolt |
2 |
113
Foton TC2A504–041K Wheeled Tractor
TB504.551D Lift Installation Assembly–7
114
