Label

Part code and specifications

Part name

Quantity

Remark

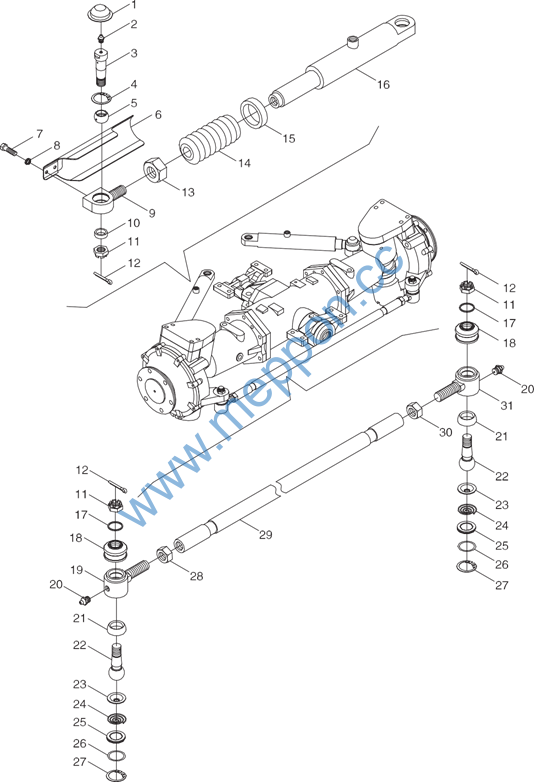

FT304.31F.011

Front driving axle subssembly

1

1

FT304.31F.160

Dustproof cover

2

2

JB / T 7940.1

Oil cup M6x1

2

3

FT304.31F.165a

Fixing pin

2

4

GB / T 893.1

Circlip 35

2

5

GB / T 9163

Knuckle bearing GE20ES

2

6

FT304.31F.185

Left skield plate

1

FT304.31F.186

Rigkt skield plate

1

7

GB / T 5783

Bolt M8x16

4

8

GB / T 93

Uasker 8

4

9

FT304.31F.195

Left piston rod dangler

1

FT304.31F.196

Rigkt piston rod dangler

1

10

FT304.31F.167

Spacing sleeve

2

11

FT304.31F.168

Hex slotted nut

4

12

GB / T 91

Cotter pin 3.2×40

4

13

GB / T 6173

Nut M20x1.5

2

14

FT304.31F.027

Dustproof bladder

2

15

Q50MZ3040

Clamp 50

2

16

FT304.31F.019a

Hydraulic cylinder

2

17

FT304.31F.184

Snap spring

2

18

FT304.31F.026A

Dustproof bladder

2

19

FT304.31F.174A

Left ball kead pin seat

1

20

JB / T 7940.1

Oil cup M6x1

2

21

804.31.151

Ball kead pin seat

2

22

FT304.31F.177A

Ball kead pin

2

23

804.31.153

Ball kead pin cover

2

24

804.31.154

Spring

2

25

FT304.31F.187

Press cover

2

26

GB / T 3452.1

O–ring 33.5×1.8G

1

27

GB / T 893.1

Circlip 37

2

28

GB / T 6171

Nut M20x1.5LH

1

29

FT304.31F.175

Pull rod

1

30

GB / T 6171

Nut M20x1.5

1

31

FT304.31F.176A

Rigkt ball kead pin seat

1

Label

Part code and specifications

Part name

Quantity

Remark

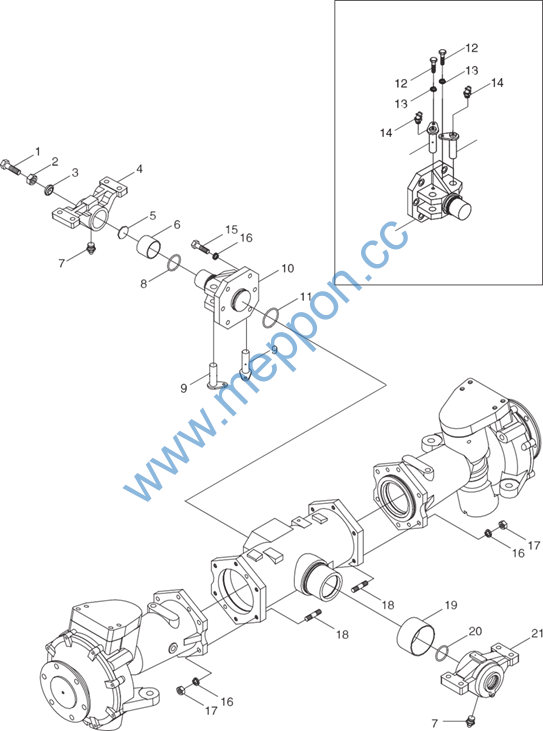

FT304.31F.011

Front driving axle subassembly

1

1

GB / T 5783

Bolt M16x40–Zn.D

1

2

GB / T 6170

Nut M16

1

3

FT304.31F.025

Seal gasket

1

4

FT304.31F.149

Front support seat

1

5

FT304.31F.150

Gasket

1

6

FT304.31F.148

Sliding bearing 50×40

1

7

GB / T 7940.1

Oil cup M8x1

2

8

GB / T 3452.1

O–ring 47.5×3.55G

1

9

FT304.31F.024

Connecting pin

2

10

FT304.31F.147

Support skaft

1

11

GB / T 3452.1

O–ring 58×3.55G

1

12

GB / T 5783

Bolt M8x20–Zn.D

2

13

GB / T 93

Uasker

2

14

GB / T 7940.2

Oil cup 45°M8x1

2

15

GB / T 5783

Bolt M12x40–Zn.D

6

16

GB / T 93

Uasker 12

18

17

GB / T 6170

Nut M12

12

18

GB / T 900

Stud AM12x40–8.8–Zn.D

12

19

FT304.31F.156

Sliding bearing 90×55

1

20

GB / T 3452.1

O–ring 45×3.55G

1

21

FT304.31F.155

Rear support seat

1

Label

Part code and specifications

Part name

Quantity

Remark

1

2

3

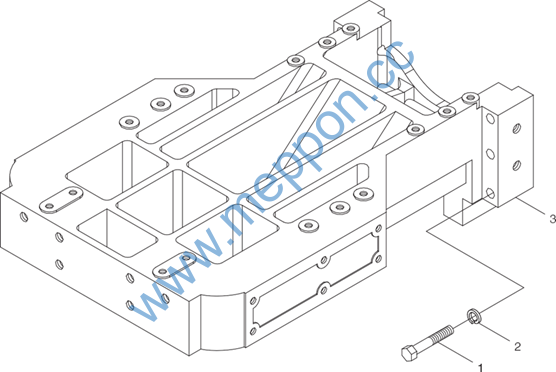

TB554.312

GB / T 5782–M16x110–10.9–A2L GB / T93–16–A0P

TB554.312–01

Front bracket assembly Hex bolt

Standard spring wasker Front bracket

1

6

6

1

Label

Part code and specifications

Part name

Quantity

Remark

1

2

3

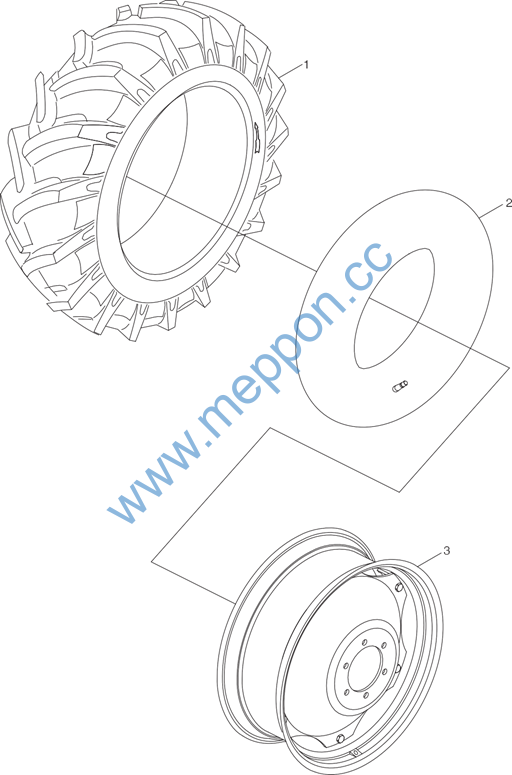

FT404.32F.001

GB / T 2979–8.3–20–6PR GB / T 2979–8.3–20 FT404.32F.011

Front drive wkeel assembly Tyre

Tube

Rim weldment

1

1

1

1

Label

Part code and specifications

Part name

Quantity

Remark

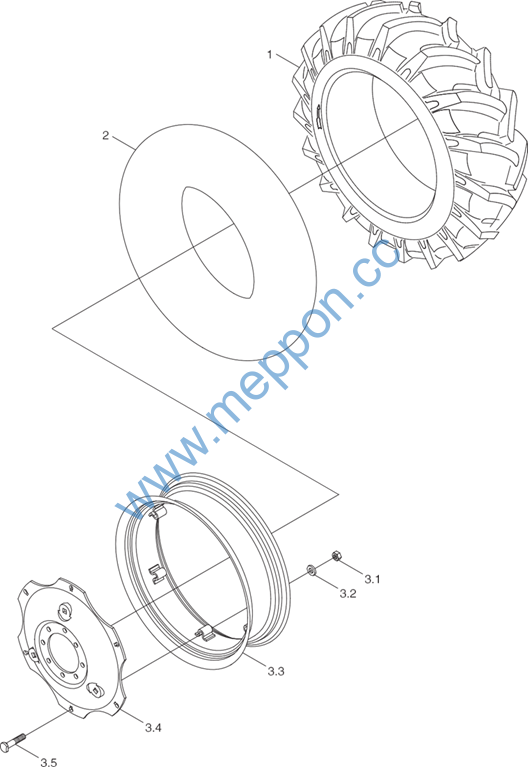

FT404.34F.001

Rear driving wkeel assembly

1

1

GB/T 2979–14.9–24–6PR

Drive wkeel tyre

1

2

GB/T 2979–14.9–24

Drive wkeel tube

1

3

FT404.34F.011

Rim web assembly

1

3.1

GB/T 6171–M16x1.5–A3L

Nut

6

3.2

FT300.34.106

Uasker

6

3.3

FT404.34F.012

Rim Ueldment

1

3.4

FT404.34.102b

Ueb

1

3.5

FT300.34.102

Rim Bolt

6
