TB504.401B 40.1-转向器及转向管柱总成 40.1-REDIRECTOR OR STEERING COLUMN ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT354.40C.016a

转向管柱总成

STEERING PIPE COLUMN ASSEMBLY

1



1

FT354.40C.016a

转向管柱总成

STEERING PIPE COLUMN ASSEMBLY

1



1.1

GBT6173-M16X1.5-A3L

六角薄螺母

NUT

1

2011-11_

1.2

FT650.40.172

轴承挡圈

BEARING RETAINER RING

1

2011-11_

1.3

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

1.4

GBT276-61804-2LS

轴承

BEARING

1

2011-11_

1.5

FT650.40.173

轴承挡圈2

BEARING RETAINER RING 2

1

2011-11_

1.6

GBT893.1-32

档圈

RETAINER RING

1

2011-11_

1.7

FT354.40C.130a

转向杆

STEERING ROD

1

2009-12_

1.8

FT354.40C.030

转向套管焊合

STEERING SLEEVE WELDMENT

1

2011-11_

2

FT400.40.016

转向盘总成

STEERING WHEEL ASSEMBLY

1

2011-11_

3

TB504.401-01

转向杆防护套

STEERING ROD SHIELD SLEEVE

1

2011-11_

3

TB504.401-01

转向杆防护套

STEERING ROD SHIELD SLEEVE

1

2011-11_

4

GBT5783-M10X30-8.8-A3L

六角头螺栓

BOLT

4

2011-11_

5

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

6

FT354.40C.015

液压转向器总成

HYDRAULIC STEERING MECHANISM ASSEMBLY

1

2011-11_

6

FT354.40C.015

液压转向器总成

HYDRAULIC STEERING MECHANISM ASSEMBLY

1

2011-11_

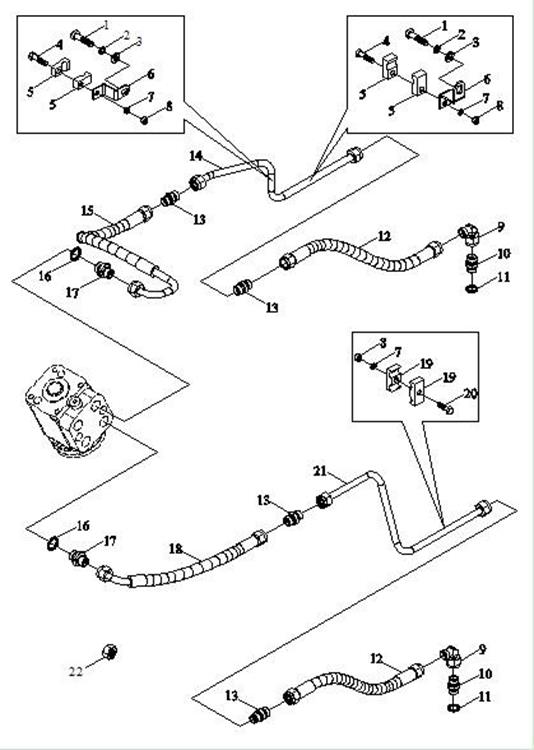

TB504.402B-2 40.2-全液压转向管路总成-2 FULL HYDRAULIC STEERING PIPE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2



1

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2



10

TB504.402B.10

卡套式组合直角管接头

JOINT

2



11

JBT982-16

组合密封垫圈

COMBINED SEAL GASKET

2



12

TB504.402B.5

输油胶管总成

OIL CONVEYING HOSE ASSEMBLY

2



13

GBT3737.2-G12

直通接头体

STRAIGHT THREAD JOINT

4



14

TB504.402B.2

输油钢管总成

OIL CONVEYING PIPE ASSEMBLY

1



14

TB504.402B.2a

输油钢管总成2

OIL CONVEYING PIPE ASSEMBLY 2

1

2012-12_

15

TB504.402B.6

输油胶管总成

OIL CONVEYING HOSE ASSEMBLY

1



16

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

2



17

TH354.402-11

管接头

PIPE JOINT

2



18

TB504.402B.9

输油胶管总成

OIL CONVEYING HOSE ASSEMBLY

1



19

TG1204.402E-03

双孔管夹

DOUBLE-HOLE PIPE CLIP

2



2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2



20

GBT5783-M8X35-8.8-A2L

六角头螺栓

BOLT

1



21

TB504.402B.1a

输油钢管总成1

OIL CONVEYING PIPE ASSEMBLY 1

1

2012-12_

21

TB504.402B.1

输油钢管总成

OIL CONVEYING PIPE ASSEMBLY

1



22

GBT6170-M8-8-A2L

Ⅰ型六角螺母

I-TYPE HEXAGON NUT

1



3

GBT97.1-10-A0P

平垫圈

WASHER

2



4

GBT5782-M8X40-8.8-A2L

六角头螺栓

BOLT

2



5

TG1654.402-07

单孔管夹

SINGLE HOLE PIPE CLAMP

4



6

TB504.402-10

油管支架Ⅲ

OIL PIPE BRACKET 3

2



7

GBT93-8-A0P

垫圈

WASHER

3



8

GBT6170-M8-A2L

螺母

NUT

3



9

GBT3733.2-G12

卡套式端直通接头体

STRAIGHT PIPE JOINT BODY

2

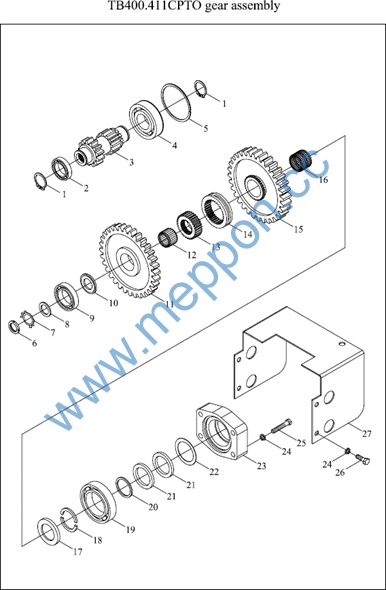

TB400.411C 41.1-动力输出齿轮总成 41.1-PTO GEAR ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT894.1-40

挡圈



2

2011-11_

10

FT300.41C.118

输出轴前挡环

OUTPUT SHAFT FRONT RETAINER RING

1

2011-11_

11

FT300.41G.105

动力输出被动小齿轮

PTO DRIVEN SMALL GEAR

1

2011-11_

12

JBT7918-K35X40X27

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

13

FT300.41C.117

动力输出啮合座

PTO MESHING SEAT

1

2011-11_

13

FT300.41C.117

动力输出啮合座

PTO MESHING SEAT

1

2011-11_

14

FT300.41C.116

动力输出啮合套

PTO SHIFT COLLAR

1

2011-11_

15

FT300.41E.103

动力输出被动大齿轮

PTO DRIVEN BIG GEAR

1

2011-11_

16

QLWZB120-K40X46X34ZW

滚针轴承

NEEDLE BEARINGS

1

2004-01_

17

FT300.41E.114

后挡环

REAR RETAINER RING

1

2011-11_

18

FT300.41E.119

输出轴半挡环

OUTPUT SHAFT HALF RETAINER RING

2

2011-11_

19

GBT276-6309

深沟球轴承

BEARING

1

2011-11_

2

GBT276-6208

深沟球轴承

BEARING

1

2011-11_

20

FT300.41E.113

输出轴轴承垫圈

OUTPUT SHAFT BEARING WASHER

1

2011-11_

21

GBT9877.1-FB50X72X8D

内包骨架旋转轴唇形密封

O RING

2

2011-11_

22

FT300.41E.115

油封挡圈

OIL SEAL RETAINER RING

1

2011-11_

23

FT300.41E.101

后端盖Ⅰ

REAR END COVER I

1

2011-11_

24

GBT93-12-A0P

垫圈

WASHER

8

2011-11_

25

GBT5782-M12X55

六角头螺栓

BOLT

4

2011-11_

26

GBT5781-M12X25-A3L

六角头螺栓

BOLT

4

2011-11_

27

FT300.41.131a

安全防护罩

SAFTY BONNET

1

2011-11_

3

FT300.41G.106

动力输出低档主动齿轮

PTO LOW GEAR DRIVING GEAR

1

2011-11_

4

GBT276-6308N

深沟球轴承

BEARING

1

2011-11_

5

GBT305-90/96.5

止动环

THRUST RING

1

2011-11_

6

GBT812-M25X1.5

圆螺母

ROUND NUT

1

2011-11_








TB400.411C 41.1-动力输出齿轮总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

7

8

9

GBT858-25 FT300.41.122 GBT276-6306

止退垫圈垫圈

深沟球轴承

WASHER LOCK WASHER BEARING

1

1

1

2011-11_

2011-11_

2011-11_

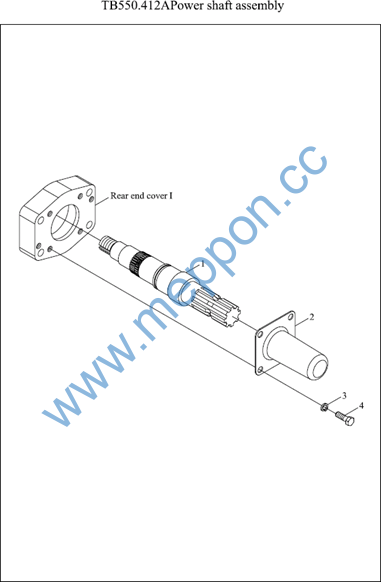

TB550.412A 41.2-动力输出轴总成 41.2-PTO SHAFT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

2

2

3



4

TB550.412A-01 TB550.412A-01 TE250.411C-02 FT300.41E.102 GBT93-10



GBT5783-10X20-A3L

Ⅰ35型动力输出轴 Ⅰ35型动力输出轴动力输出轴护罩 动力输出轴盖

垫圈10



六角头螺栓

TYPE-I 35 PTO SHAFT TYPE-I 35 PTO SHAFT PTO SHAFT HOOD PTO SHAFT COVER WASHER 10



BOLT

1

1

1

1

4



4

2011-11_

2011-11_

2008-11_

2004-01_

2011-11_



2011-11_

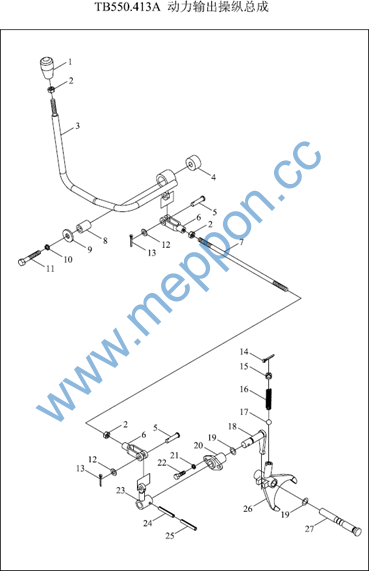

TB550.413A 41.3-动力输出操纵总成 41.3-PTO CONTROL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.41.015

动力输出操纵手柄总成

PTO CONTROL HANDLE ASSEMBLY

1

2011-11_

10

GBT93-12

垫圈

WASHER

5

2011-11_

11

TB550.413-02

螺栓



1

2011-11_

12

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

13

GBT91-3.2X16-A0P

开口销



2

2011-11_

14

GBT91-2.5X32-A0P

开口销



1

2011-11_

15

TB550.413-03

螺钉



1

2011-11_

16

FT704.42B.163

拨叉轴定位弹簧

FORK SHAFT LOCATING SPRING

1

2011-11_

17

GBT308-9.5-G100-b

钢球



1

2011-11_

18

FT300.41E.011

指形拨杆焊合件

FINGER LEVER WELDMENT

1

2011-11_

19

GBT3452.1-16.0X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1



19

GBT3452.1-11.2X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1



2

GBT6170-M10-A3L

螺母

NUT

2

2011-11_

20

FT300.41E.109

拨杆轴套

LEVER SHAFT SLEEVE

1

2011-11_

21

GBT93-8-AOP

垫圈

WASHER

2

2011-11_

22

GBT5783-M8X20-A2L

螺栓



2

2011-11_

23

FT300.41.012

动力输出变速杆焊合件

PTO GEARSHIFT LEVER WELDMENT

1

2011-11_

24

GBT879.1-6X26

弹性圆柱销

PIN

1

2011-11_

25

GBT879.1-3.5X26

弹性圆柱销

PIN

1

2011-11_

26

TB550.413-01a

动力输出变速拨叉

PTO GEARSHIFT FORK

1

2011-11_

27

FT300.41C.107a

动力输出拨叉轴

PTO FORK SHAFT

1

2011-11_

3

TB550.413A.1

动力输出操纵杆总成

PTO CONTROL ROD ASSEMBLY

1

2011-11_

4

FT300.41.128

隔套

SPACER BUSH

1

2011-11_

5

GBT882-B10X30

销轴

PIN

2

2011-11_

6

FT300.43.108

拉杆前叉

PULL ROD FRONT FORK

2

2011-11_
