LOVOL TC2A454-027K Tractor Parts Catalogue 17
TC02484110000K Rear Lamp Harness Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02484110000K |
Rear lamp harness assembly |
1 |
||
1 |
FT300.48C.211 |
Brake switch installation plate |
1 |
|
2 |
TB550.484.2 |
Brake lamp switch |
2 |
|
3 |
FT800A.48L.106 |
Harness clip |
1 |
|
4 |
TC02484100002K |
Rear lamp harness assembly |
1 |
|
5 |
TA600.486-01 |
Harness fastener |
2 |
|
6 |
FT65.48.093 |
Wire through ring (1) |
2 |
|
7 |
TC02484020003 |
Rear work lamp assembly |
2 |
|
8 |
TB550.484.4 |
Rear taillamp assembly |
2 |
|
9 |
GBT6170-M5-8-A2L |
Hexagon nut, style 1 |
3 |
|
10 |
GBT93-5-A0P |
Standard spring washer |
3 |
|
11 |
GBT97.1-5-A0P |
Plain washer |
3 |
|
12 |
TD900.484.2 |
Rear trailer socket |
1 |
|
13 |
GBT818-M5X35-4.8-A1L |
Cross recessed pan head screw |
3 |
|
14 |
FT65.48.094 |
Wire through ring (2) |
2 |
|
15 |
TC02484060001K |
Air pressure alarm |
1 |
155
Foton TC2A454-027K Wheeled Tractor

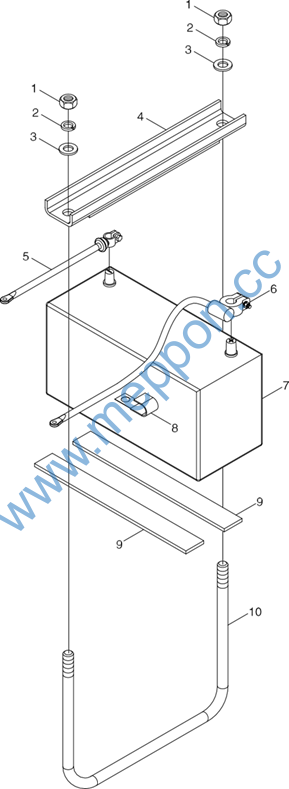

TB450.485A Battery Installation Assembly
156
Foton TC2A454-027K Wheeled Tractor
TB450.485A Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170-M8-8-A2L |
Hex nut, style 1 |
2 |
|
2 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
3 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
4 |
TG1204.485-02 |
Battery press plate |
1 |
|
5 |
TB400.485A.2 |
Battery bonding |
1 |
|
6 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
7 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
8 |
TB450.485.2 |
Harness fixing clamp |
1 |
|
9 |
TB450.485.1 |
Battery shock absorbing mat |
2 |
|
10 |
TG1204.485-01 |
Battery U-shape pull rod |
1 |
|
11 |
Q67405200 |
Plastic hoop belt |
1 |
157
Foton TC2A454-027K Wheeled Tractor
TL01487040000K Compound Instrument Assembly
158
Foton TC2A454-027K Wheeled Tractor
TL01487040000K Compound Instrument Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TL01487040000K |
Compound instrument assembly |
1 |
||
1 |
GB/T 818-M5×25-4.8-A2L |
Cross recessed pan head screw |
3 |
|
2 |
TL01487040001K |
Compound instrument assembly |
1 |
|
3 |
GB/T 95-5-A0P |
Plain washer |
3 |
|
4 |
GB/T 93-5-A0P |
Standard spring washer |
3 |
|
5 |
GB/T 6170-M5-8-A2L |
Hexagon nut, style 1 |
3 |
|
6 |
TB550.487.1 |
Transit harness assembly |
1 |
159
