LOVOL TC2A454-027K Tractor Parts Catalogue 16
FT404.74A.002 Front Ballast Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT404.74A.002 |
Front ballast assembly |
1 |
||
1 |
GB/T 5783-M16×35-8.8-A3L |
Hexagon head bolt |
4 |
|
2 |
GB/T 93-16-A0P |
Standard spring washer |
4 |
|
3 |
GB/T 97.1-16-A0P |
Flat washer |
4 |
|
4 |
FT300.74A.107 |
Fixing frame |
1 |
|
5 |
FT404.74A.010 |
Front ballast subassembly |
1 |
|
5.1 |
GB/T 6170-M16-8-A3L |
Hexagon nut, style 1 |
2 |
|
5.2 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
5.3 |
GB/T 97.1-16-A0P |
Flat washer |
2 |
|
5.4 |
FT300.74A.108 |
Connecting bolt |
1 |
|
5.5 |
FT300.74A.105 |
Ballast block |
2 |
|
5.6 |
FT300.74A.106 |
Ballast block |
4 |
|
6 |
FT650.74.108 |
Traction nut |
2 |
|
7 |
GB/T 5785-M20×1.5×80-8.8-A3L |
Hexagon head bolt |
2 |
|
8 |
GB/T 97.1-20-A0P |
Flat washer |
2 |
|
9 |
FT300.74A.100 |
Traction lug |
1 |
145
Foton TC2A454-027K Wheeled Tractor
TB400.91 Rear Ballast Assembly
146
Foton TC2A454-027K Wheeled Tractor
TB400.91 Rear Ballast Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.91 |
Rear ballast assembly |
1 |
||
1 |
GB/T 6171-M16×1.5-A3L |
Nut |
3 |
|
2 |
GB/T 93-16-A0P |
Washer |
6 |
|
3 |
TB400.91-02 |
Rear ballast screw Ⅰ |
3 |
|
4 |
TB400.91-01 |
Rear ballast |
6 |
|
5 |
TB400.91-04 |
Washer |
18 |
|
6 |
TB400.91-03 |
Rear ballast screw Ⅱ |
15 |
|
7 |
TB400.91-05 |
Bolt |
3 |
147
Foton TC2A454-027K Wheeled Tractor

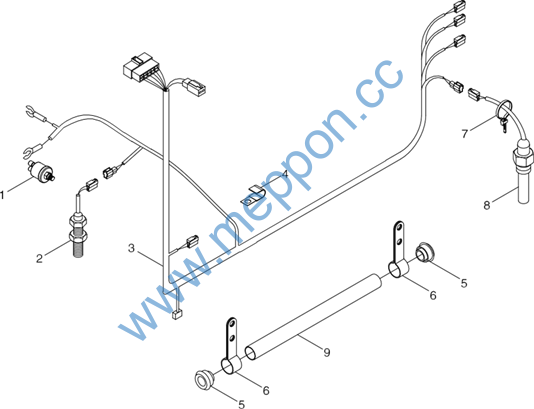

TC02481200000K Harness Installation Assembly, Engine
148
Foton TC2A454-027K Wheeled Tractor
TC02481200000K Harness Installation Assembly, Engine
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02481200000K |
Harness installation assembly, engine |
1 |
||
1 |
FT300.48.073a |
Oil pressure alarm |
1 |
|
2 |
TS10481010002 |
Rotating speed sensor |
1 |
|
3 |
TC02481200001K |
Engine harness assembly |
1 |
|
4 |
FT304.48L.203 |
Harness fastener |
2 |
|
5 |
FT800.48L.107 |
Grommet |
2 |
|
6 |
FT800.48L.108a |
Fastener |
2 |
|
7 |
Q67405100 |
Plastic fastening belt |
2 |
|
8 |
FT65.48.072 |
Water temperature sensor |
1 |
|
9 |
FT300.48P.102 |
Sleeve |
1 |
149
Foton TC2A454-027K Wheeled Tractor

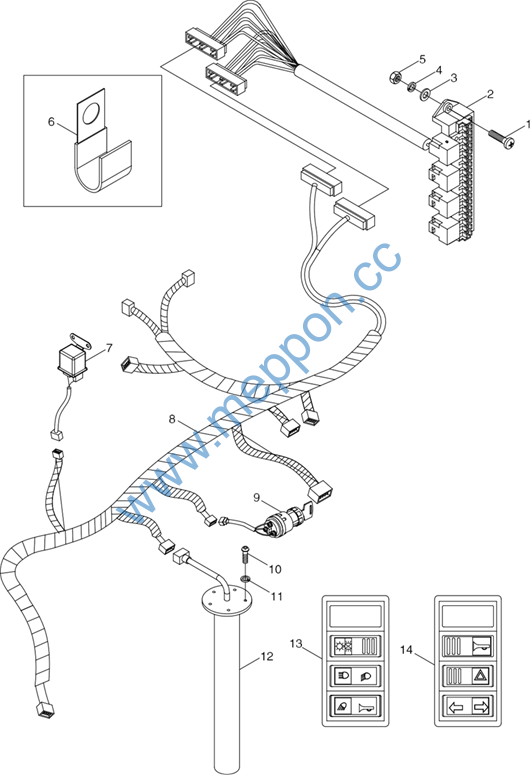

TC02482220000K Harness Installation Assembly, Body
150
Foton TC2A454-027K Wheeled Tractor
TC02482220000K Harness Installation Assembly, Body
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02482220000K |
Harness installation assembly, body |
1 |
||
1 |
GB/T 818-M6×25-4.8-A2L |
Cross recessed pan head screw |
2 |
|
2 |
TC02482220002K |
Central electric box assembly |
1 |
|
FT300.48.512 |
Master power source relay |
1 |
||
FT300.48.513 |
Electronic flasher |
1 |
||
FT300.48D.2.2.2 |
Preheating relay |
1 |
||
TC02482010003K |
Warning type fuse (10A) |
7 |
||
TC02482010004K |
Warning type fuse (15A) |
6 |
||
TC02482010005K |
Warning type fuse (20A) |
2 |
||
TC02482010006K |
Warning type fuse (30A) |
2 |
||
TC02482010007K |
Warning type fuse (7.5A) |
2 |
||
3 |
GB/T 97.1-6-A0P |
Plain washer |
2 |
|
4 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
6 |
FT65.48.095 |
Harness fastener (1) |
1 |
|
7 |
TB450.482.2 |
Starting relay |
1 |
|
8 |
TC02482220001K |
Body harness assembly |
1 |
|
9 |
TB550.482.3 |
Ignition lock |
1 |
|
10 |
GB/T 818-M4×10-4.8-A2L |
Cross recessed pan head screw |
5 |
|
11 |
GB/T 93-4-A0P |
Standard spring washer |
5 |
|
12 |
TB450.482.6 |
Oil amount sensor |
1 |
|
13 |
TB450.482.4 |
Left rocker switch |
1 |
|
14 |
TB450.482N.4 |
Right rocker switch assembly |
1 |
151
Foton TC2A454-027K Wheeled Tractor

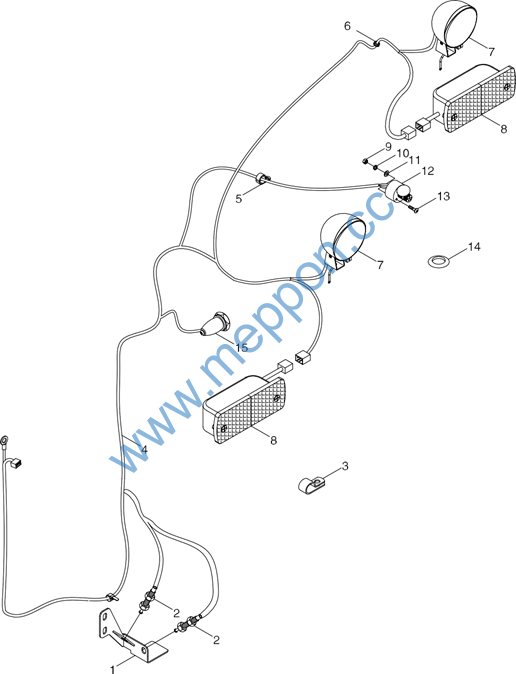

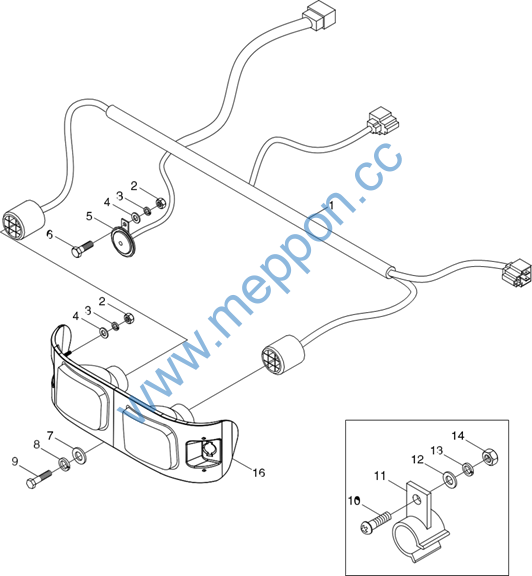

TB550.483 Harness Installation Assembly, Front Lamp
152
Foton TC2A454-027K Wheeled Tractor
TB550.483 Harness Installation Assembly, Front Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.483 |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TB550.483.1 |
Front lamp harness assembly |
1 |
|
2 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
3 |
|
3 |
GB/T 93-6-A0P |
Standard spring washer |
3 |
|
4 |
GB/T 97.1-6-A0P |
Flat washer |
3 |
|
5 |
FT65.48.340 |
Horn assembly |
1 |
|
6 |
GB/T 5783-M6×16-8.8-A2L |
Hex bolt |
1 |
|
7 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
8 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
9 |
GB/T 5783-M8×16-8.8-A2L |
Hex bolt |
2 |
|
10 |
GB/T 818-M5×14-4.8-A2L |
Cross recessed pan head screw |
1 |
|
11 |
TB400.483-01 |
Harness buckle |
1 |
|
12 |
GB/T 97.1-5-A0P |
Flat washer |
1 |
|
13 |
GB/T 93-5-A0P |
Standard spring washer |
1 |
|
14 |
GB/T 6170-M5-8-A2L |
Type 1 hex nut |
1 |
|
15 |
FT65.48.097 |
Harness fixing clip (2) |
6 |
|
16 |
TB550.483.2 |
1 |
153
Foton TC2A454-027K Wheeled Tractor
TC02484110000K Rear Lamp Harness Assembly
