LOVOL TC2A454-027K Tractor Parts Catalogue 07
TB554.421C Transfer Case Body Assembly(extention)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
2 |
GB/T 3452.1-132×3.55G |
O-ring |
1 |
|
3 |
GB/T 93-10-A0P |
Washer |
4 |
|
4 |
GB/T 5783-M10×30-8.8-A3L |
Bolt |
4 |
|
5 |
GB/T 119.1-10m6×20-A0P |
Pin |
2 |
55
Foton TC2A454-027K Wheeled Tractor

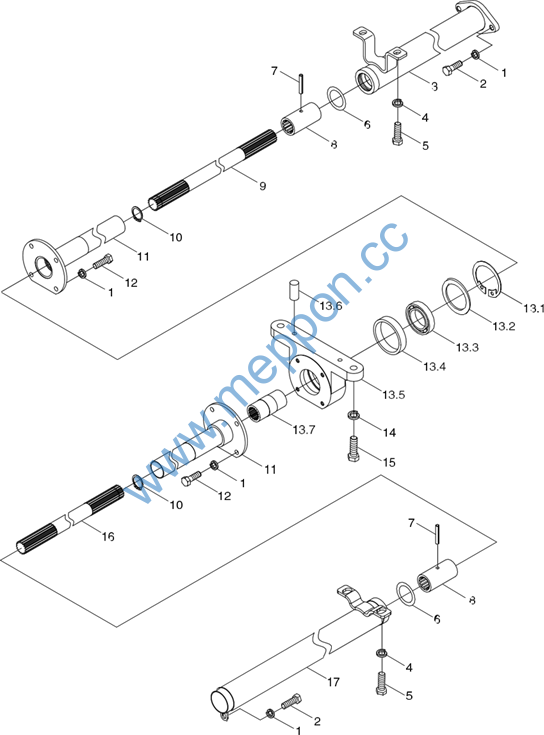

TB454.422 Transfer Case Transmission Assembly
56
Foton TC2A454-027K Wheeled Tractor
TB454.422 Transfer Case Transmission Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB454.422 |
Transfer case transmission assembly |
1 |
||
1 |
GB/T 93-8-AOP |
Washer |
11 |
|
2 |
GB/T 5783-M8×16-A2L |
Bolt |
3 |
|
3 |
FT304.42F.015 |
Shield (1) weldment |
1 |
|
4 |
GB/T 93-10-A0P |
Washer |
4 |
|
5 |
GB/T 5783-M10×20-A3L |
Bolt |
4 |
|
6 |
GB/T 3452.1-34.5×3.55G |
O-ring |
2 |
|
7 |
GB/T 879.1-6×35 |
Pin |
2 |
|
8 |
FT304.42.107a |
Spline sleeve |
2 |
|
9 |
FT404.42.128 |
Rear transmission shaft |
1 |
|
10 |
GB/T 894.1-26 |
Circlip |
2 |
|
11 |
FT304.42X.017 |
Shield (2) weldment |
2 |
|
12 |
GB/T 5783-M8×20-A2L |
Bolt |
8 |
|
13 |
TB554.422.1 |
Middle bearing seat assembly |
1 |
|
13.1 |
GB/T 893.2-72 |
Circlip |
1 |
|
13.2 |
FT304.42X.136 |
Spacing ring |
1 |
|
13.3 |
GB/T 276-6007-2RZ |
Bearing |
1 |
|
13.4 |
FT304.42X.137 |
Rubber ring |
1 |
|
13.5 |
FT304.42X.138 |
Middle bearing seat |
1 |
|
13.6 |
GB/T 119.1-8m6×20-AOP |
Pin |
2 |
|
13.7 |
FT304.42X.135 |
Middle spline sleeve |
1 |
|
14 |
GB/T 93-12-AOP |
Washer |
2 |
|
15 |
GB/T 5783-M12×40-A3L |
Bolt |
2 |
|
16 |
FT404.42.139 |
Front transmission shaft |
1 |
|
17 |
FT404.42.016 |
Shield (3) weldment |
1 |
57
Foton TC2A454-027K Wheeled Tractor

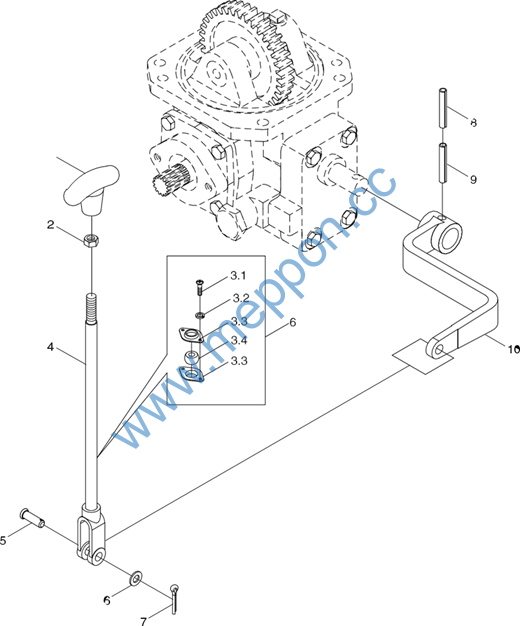

TB554.423C Transfer Case Control Assembly
58
Foton TC2A454-027K Wheeled Tractor
TB554.423C Transfer Case Control Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.423C |
Transfer case control assembly |
1 |
||
1 |
FT65.38.051 |
Pull and press handle |
1 |
|
2 |
GB/T 6170-M10-8-A3L |
Hex nut, style 1 |
1 |
|
3 |
TG1204.435.4 |
Seal lining seat assembly |
1 |
|
3.1 |
GBT818-M6X14-4.8-A2L |
Screw |
1 |
|
3.2 |
GBT93-6 |
Standard spring washer |
1 |
|
3.3 |
TG1204.435.2-01 |
Spherical shaft lining seat |
1 |
|
3.4 |
TG1204.435.2-02 |
Spherical shaft lining |
1 |
|
4 |
TB554.423B.3 |
Control lever unit |
1 |
|
5 |
GB/T 882-B10×30 |
Shaft pin |
1 |
|
6 |
GB/T 97.1-10-A0P |
Flat washer |
1 |
|
7 |
GB/T 91-3.2×16-A0P |
Cotter pin |
1 |
|
8 |
GB/T 879.1-5×32 |
Elastic cylindrical pin |
1 |
|
9 |
GB/T 879.1-8×32 |
Elastic cylindrical pin |
1 |
|
10 |
TB554.423C-01 |
Rocker arm |
1 |
59
Foton TC2A454-027K Wheeled Tractor

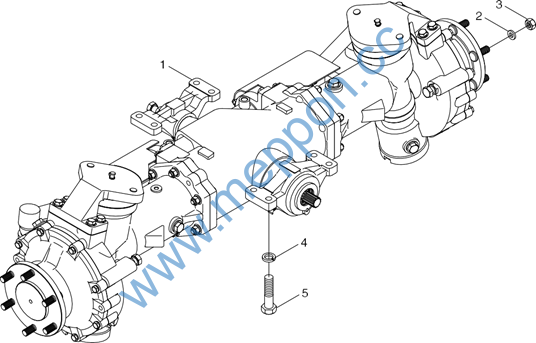

TC02311060000 Front Driving Axle Assembly-1
60
Foton TC2A454-027K Wheeled Tractor
TC02311060000 Front Driving Axle Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311060000 |
Front driving axle assembly |
1 |
||
1 |
TC02311060001 |
Front driving axle subassembly |
1 |
|
2 |
FT400.31B.103 |
Washer |
12 |
|
3 |
GB/T6176-M14×1.5-10-A3L |
Hexagon nut, style 2 |
12 |
|
4 |
GB/T 93-14-A0P |
Standard spring washer |
8 |
|
5 |
GB/T 5783-M14×45-10.9-A3L |
Hexagon head bolt |
8 |
61
Foton TC2A454-027K Wheeled Tractor

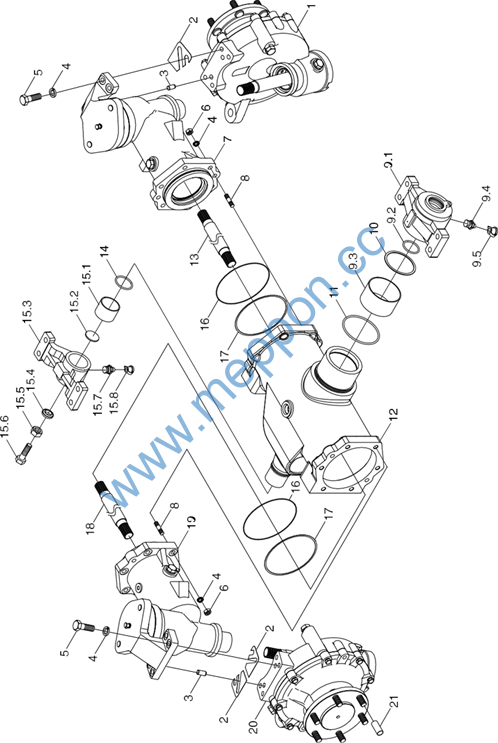

TC02311060000 Front Driving Axle Assembly-2
62
Foton TC2A454-027K Wheeled Tractor
TC02311060000 Front Driving Axle Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311060000 |
Front driving axle assembly |
1 |
||
TC02311060001 |
Front driving axle subassembly |
1 |
||
1 |
TC02311060006 |
Right side final transmission assembly |
1 |
|
2 |
TC02311010012 |
Adjusting gasket |
On demand |
|
3 |
GB/T 119.1-12m6×22-A0P |
Column pin |
8 |
|
4 |
GB/T 93-12-A0P |
Standard spring washer |
20 |
|
5 |
GB/T 5783-M12×40-10.9-A3L |
Hexagon head bolt |
8 |
|
6 |
GB/T 6170-M12-10-A3L |
Hexagon nut, style 1 |
12 |
|
7 |
TC02311060004 |
Right transmission assembly |
1 |
|
8 |
GB/T 899-GM12-M12×40-10.9-A3L |
Double-ended stud |
12 |
|
9 |
TC02311010009 |
Rear support frame assembly |
1 |
|
9.1 |
TC02311010071 |
Rear support frame |
1 |
|
9.2 |
GB/T 3452.1-45×3.55G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
9.3 |
TC02311010072 |
Sliding bearing |
1 |
|
9.4 |
JB/T 7940.1-M10×1 |
Straight hydraulic grease nozzle |
1 |
|
9.5 |
TD800.311C.1-01 |
Oil cup dustproof cap |
1 |
|
10 |
TC02311010017 |
Copper pad |
1 |
|
11 |
GB/T 3452.1-97.5×3.55G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
12 |
TC02311010002 |
Main reducer assembly |
1 |
|
13 |
TC02311020010 |
Right half axle |
1 |
|
14 |
GB/T 3452.1-48.7×3.55G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
15 |
TC02311010008 |
Front support frame assembly |
1 |
|
15.1 |
TC02311010066 |
Sliding bearing |
1 |
|
15.2 |
TC02311010067 |
Gasket |
1 |
|
15.3 |
TC02311010065 |
Front support frame |
1 |
|
15.4 |
TC02311010068 |
Seal gasket |
1 |
|
15.5 |
GB/T 6170-M16-8-A3L |
Hexagon nut, style 1 |
1 |
|
15.6 |
GB/T 5783-M16×50-8.8-A3L |
Hexagon head bolt |
1 |
|
15.7 |
JB/T 7940.1-M10×1 |
Straight hydraulic grease nozzle |
1 |
|
15.8 |
TD800.311C.1-01 |
Oil cup dustproof cap |
1 |
|
16 |
GB/T 3452.1-136×3.55G |
O-ring sealant used for hydraulic or pneumatic parts |
2 |
|
17 |
TC02311010081 |
Adjusting gasket |
On demand |
63
Foton TC2A454-027K Wheeled Tractor
TC02311060000 Front Driving Axle Assembly-2(extention)
