LOVOL TC2A454-027K Tractor Parts Catalogue 06
FT300.39.001 Final Transmission Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.39.001 |
Final transmission assembly |
1 |
||
1 |
GB/T 6176-M16×1.5-10-A3L |
Nut |
8 |
|
2 |
FT300.39.137 |
Washer |
8 |
|
3 |
FT300.39.118 |
Driving shaft |
1 |
|
4 |
FT300.39.135 |
Rear hub bolt |
8 |
|
5 |
GB/T 5783-M12×30-A2L |
Bolt |
4 |
|
6 |
GB/T 93-12-AOP |
Washer |
4 |
|
7 |
FT300.39.116 |
Oil seal seat |
1 |
|
8 |
GB/T 3452.1-115×3.55G |
O-ring |
1 |
|
9 |
GB/T 9877.1-FB70×95×10D |
Skeleton oil seal |
2 |
|
10 |
GB/T 276-6212 |
Roller bearing |
1 |
|
11 |
FT300.39.114 |
Right driving shaft housing |
1 |
|
12 |
GB/T 276-6211 |
Roller bearing |
1 |
|
13 |
FT300.39.113 |
Spacing sleeve |
1 |
|
14 |
FT300.39.121 |
Adjusting gasket |
On demand |
|
15 |
FT300.39.122 |
Adjusting gasket |
On demand |
|
16 |
FT300.39.123 |
Adjusting gasket |
On demand |
|
17 |
FT300.39.104 |
Planetary bracket |
1 |
|
18 |
FT300.39.111 |
Stop block |
1 |
|
19 |
FT300.39.112 |
Driving axle lock bolt |
1 |
|
20 |
FT300.39.110 |
Driving axle lock disc |
1 |
|
21 |
FT300.39.102 |
Right half axle |
1 |
|
22 |
FT300.39.107 |
Gear ring |
1 |
|
23 |
GB/T 879.1-5×24 |
Pin |
3 |
|
24 |
GB/T 879.1-8×24 |
Pin |
3 |
|
25 |
FT300.39.106 |
Planetary gear shaft |
3 |
|
26 |
FT300.39.109 |
Rolling needle outer spacing ring |
6 |
|
27 |
FT300.39.103 |
Planetary gear |
3 |
|
28 |
GB/T 309-P5×23.8-G2 |
Rolling needle |
132 |
|
29 |
FT300.39.105 |
Rolling needle inner spacing ring |
3 |
45
Foton TC2A454-027K Wheeled Tractor

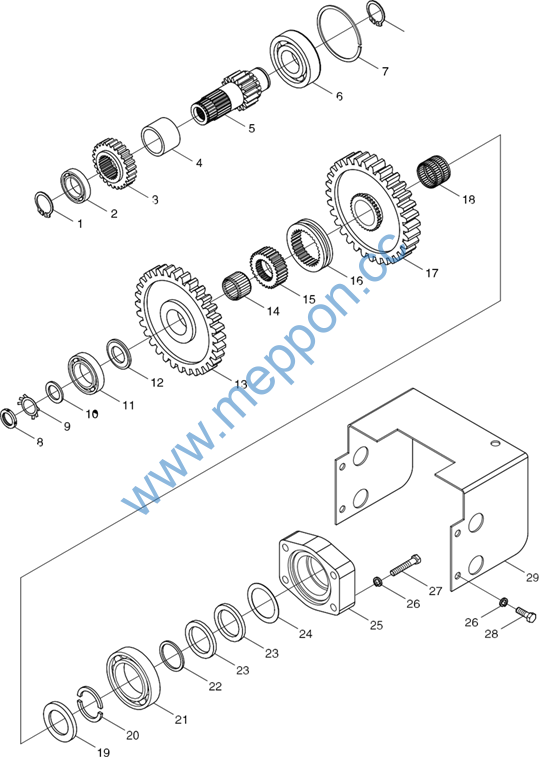

TB400.411D PTO Gear Assembly
46
Foton TC2A454-027K Wheeled Tractor
TB400.411D PTO Gear Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.411D |
PTO gear assembly |
1 |
||
1 |
GB/T 894.1-40 |
Circlip |
2 |
|
2 |
GB/T 276-6208 |
Bearing |
1 |
|
3 |
FT300.41E.120 |
PTO high-speed driving gear |
1 |
|
4 |
FT300.41E.121 |
Spacing sleeve |
1 |
|
5 |
FT300.41E.106 |
PTO low-speed driving gear |
1 |
|
6 |
GB/T 276-6308N |
Bearing |
1 |
|
7 |
GB/T 305-90-96.5 |
Thrust ring |
1 |
|
8 |
GB/T 812-M25×1.5 |
Round nut |
1 |
|
9 |
GB/T 858-25 |
Thrust ring |
1 |
|
10 |
FT300.41.122 |
Washer |
1 |
|
11 |
GB/T 276-6306 |
Bearing |
1 |
|
12 |
FT300.41C.118 |
PTO front circlip |
1 |
|
13 |
FT300.41E.105 |
PTO driven pinion |
1 |
|
14 |
JB/T 7918-K35×40×27 |
Bearing |
1 |
|
15 |
FT300.41C.117 |
PTO joggle seat |
1 |
|
16 |
FT300.41C.116 |
PTO joggle sleeve |
1 |
|
17 |
FT300.41E.103 |
PTO driven gear |
1 |
|
18 |
Q/LWZ B120-K40×46×34ZW |
Needle bearing |
1 |
|
19 |
FT300.41E.114 |
Rear circlip |
1 |
|
20 |
FT300.41E.119 |
Thrust ring |
1 |
|
21 |
GB/T 276-6309 |
Bearing |
1 |
|
22 |
FT300.41E.113 |
PTO shaft bearing washer |
1 |
|
23 |
GB/T 9877.1-FB50×72×8D |
Oil seal |
2 |
|
24 |
FT300.41E.115 |
Oil seal circlip |
1 |
|
25 |
FT300.41E.101 |
Rear end cover I |
1 |
|
26 |
GB/T 93-12-AOP |
Washer |
8 |
|
27 |
GB/T 5782-M12×55-A3L |
Bolt |
4 |
|
28 |
GB/T 5781-M12×25-A3L |
Bolt |
4 |
|
29 |
FT300.41.131a |
Safety shield |
1 |
47
Foton TC2A454-027K Wheeled Tractor

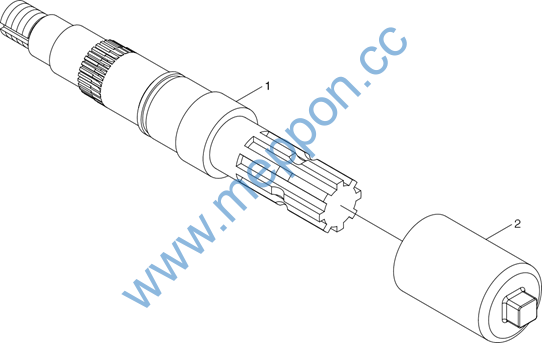

TB550.412A PTO Shaft Assembly
48
Foton TC2A454-027K Wheeled Tractor
TB550.412A PTO Shaft Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.412A |
PTO shaft assembly |
1 |
||
1 |
TB550.412A-01 |
Type I35 PTO shaft |
1 |
|
2 |
TB550.412-02 |
PTO shaft head shield |
1 |
49
Foton TC2A454-027K Wheeled Tractor

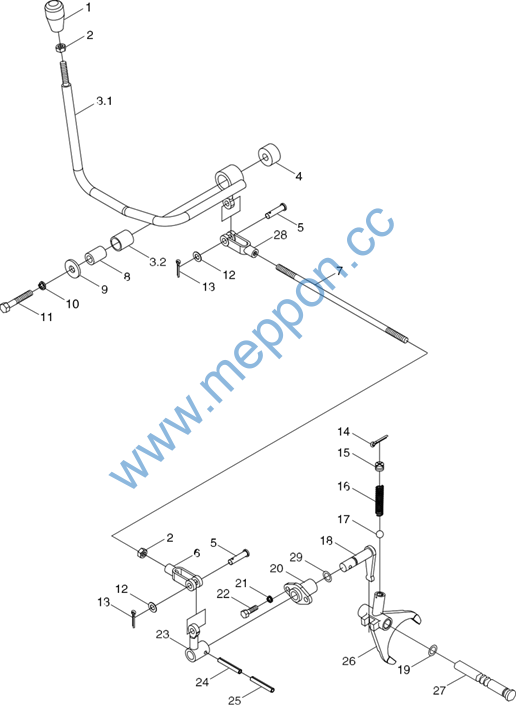

TB550.413 PTO Control Assembly
50
Foton TC2A454-027K Wheeled Tractor
TB550.413 PTO Control Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.413 |
PTO control assembly |
1 |
||
1 |
FT300.41.015 |
PTO control handle assembly |
1 |
|
2 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
2 |
|
3 |
FT300.41.013 |
Control lever assembly, PTO |
1 |
|
3.1 |
FT300.41.014 |
Control lever welded unit, PTO |
1 |
|
3.2 |
FT300.41.127 |
Bush |
1 |
|
4 |
FT300.41.128 |
Spacer bush |
1 |
|
5 |
GB/T 882-B10×30 |
Axis pin |
2 |
|
6 |
FT300.43.108 |
Front fork, pull rod |
1 |
|
7 |
FT300.41E.112 |
Control lever |
1 |
|
8 |
FT300.41.130 |
Shaft sleeve |
1 |
|
9 |
FT300.41.129 |
Washer |
1 |
|
10 |
GB/T 93-12 |
Washer |
1 |
|
11 |
TB550.413-02 |
Bolt M12×75 |
1 |
|
12 |
GB/T 97.1-10-A0P |
Washer |
2 |
|
13 |
GB/T 91-3.2×16-A0P |
Pin |
2 |
|
14 |
GB/T 91-2.5×32-A0P |
Split pin |
1 |
|
15 |
TB550.413-03 |
Screw |
1 |
|
16 |
FT704.42B.163 |
Retaining spring, fork shaft |
1 |
|
17 |
GB/T 308-9.5-G100-b |
Steel ball |
1 |
|
18 |
TB550.413-04 |
Finger-type driving lever |
1 |
|
19 |
GB/T 3452.1-11.2×2.65G |
O-ring |
1 |
|
20 |
FT300.41E.109 |
Shift lever shaft sleeve |
1 |
|
21 |
GB/T 93-8 |
Standard spring washer |
2 |
|
22 |
GB/T 5783-M8×20-8.8-A2L |
Hex head bolt |
2 |
|
23 |
FT300.41.012 |
Gear shift lever welded unit, PTO |
1 |
|
24 |
GB/T 879.1-6×26 |
Pin |
1 |
|
25 |
GB/T 879.1-3.5×26 |
Resilient pin |
1 |
|
26 |
TB550.413-01a |
Gear shift fork, PTO |
1 |
|
27 |
FT300.41C.107a |
Fork shaft, PTO |
1 |
|
28 |
FT300.43.110 |
Rear fork, pull rod |
1 |
|
29 |
GB/T 3452.1-16.0×2.65G |
Hydraulic and pneumatic O-ring |
2 |
51
Foton TC2A454-027K Wheeled Tractor

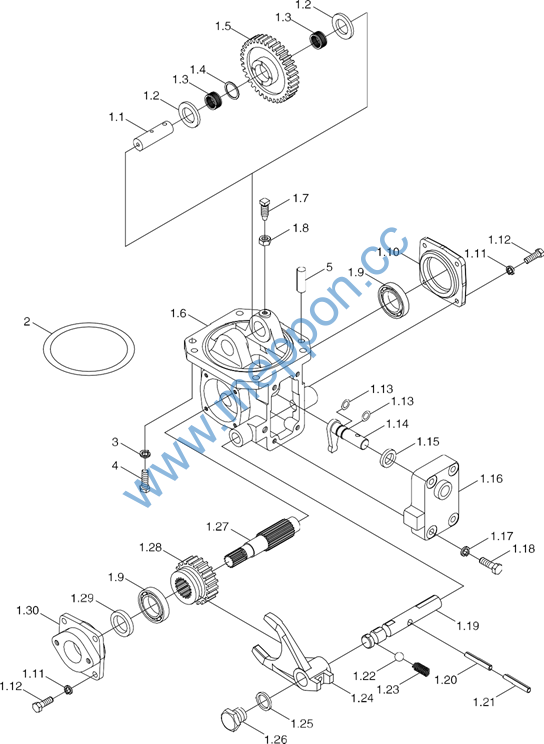

TB554.421C Transfer Case Body Assembly
52
Foton TC2A454-027K Wheeled Tractor
TB554.421C Transfer Case Body Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.421C |
Transfer Case Body Assembly |
1 |
||
1 |
TB554.421C.1 |
Transfer Case Installation Assembly |
1 |
|
1.1 |
FT304.42.102 |
Idler shaft |
1 |
|
1.2 |
FT304.42F.103 |
Thrust ring |
2 |
|
1.3 |
JB/T 7918-K25×31×20 |
Rolling needle bearing |
2 |
|
1.4 |
FT304.42.126 |
Rolling needle inner spacing sleeve |
1 |
|
1.5 |
FT304.42F.125 |
Transfer case idler |
1 |
|
1.6 |
FT304.42F.101a |
Transfer case body |
1 |
|
1.7 |
FT304.42.112 |
Thrust screw |
1 |
|
1.8 |
GB/T 6173-M10×1-A2L |
Nut |
1 |
|
1.9 |
GB/T 276-6306 |
Bearing |
2 |
|
1.10 |
FT304.42.117 |
Bearing cover |
1 |
|
1.11 |
GB/T 93-8-AOP |
Washer |
8 |
|
1.12 |
GB/T 5783-M8×20-A2L |
Bolt |
8 |
|
1.13 |
GB/T 3452.1-17.0×1.80G |
O-ring |
2 |
|
1.14 |
TB554.421E.1.1 |
Rotary shaft weldment |
1 |
|
1.15 |
TB554.423B-02 |
Rotary shaft spacing sleeve |
1 |
|
1.16 |
TB554.421E.1-05 |
Side cover |
1 |
|
1.17 |
GB/T 93-10-A0P |
Washer |
4 |
|
1.18 |
GB/T 5782-M10×45-A3L |
Bolt |
4 |
|
1.19 |
TB554.421E.1-04 |
Shift fork shaft |
1 |
|
1.20 |
GB/T 879.1-6×30 |
Cylindrical pin |
1 |
|
1.21 |
GB/T 879.1-3.5×30 |
Cylindrical pin |
1 |
|
1.22 |
GB/T 308-10-G100-b |
Steel ball |
1 |
|
1.23 |
FT804.42.151 |
Spring |
1 |
|
1.24 |
TB554.421E.1-06 |
Release shift fork |
1 |
|
1.25 |
JB/T 982-18 |
Washer |
2 |
|
1.26 |
FT804.42.110 |
Screw plug |
2 |
|
1.27 |
FT304.42F.105 |
Transfer case output shaft |
1 |
|
1.28 |
TB554.421C.1-01 |
Transfer case driven gear |
1 |
|
1.29 |
GB/T 9877.1-FB30×52×7D |
Oil seal |
1 |
|
1.30 |
FT304.42F.106 |
Bearing seat |
1 |
53
Foton TC2A454-027K Wheeled Tractor
TB554.421C Transfer Case Body Assembly(extention)
