LOVOL TC2A454-019K Tractor Parts Catalogue 16

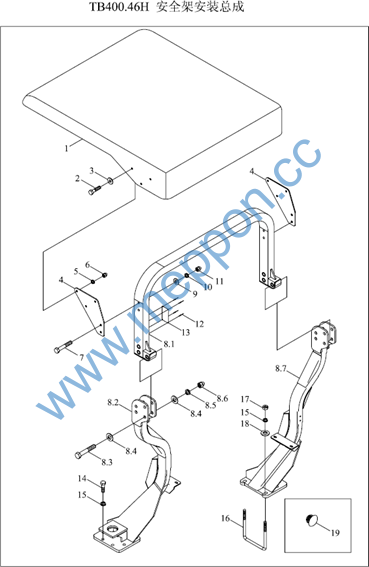

TB400.46H 46-安全架安装总成 46-SAFETY FRAME INSTALLATION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TB400.46E.2 |
遮阳棚总成 |
SHADOW ASSEMBLY |
1 |
2011-11_ |
|
10 |
GBT93-12-A0P |
弹簧垫圈 |
SPRING WASHER |
4 |
2011-11_ |
|
11 |
GBT802-M12-6 |
组合式盖形螺母 |
NUT |
4 |
2011-05_ |
|
12 |
GBT12618-3X15 |
开口型扁圆头抽芯铆钉 |
RIVET |
4 |
2011-11_ |
|
13 |
TB400.46H-01 |
OECD铭牌 |
OECD NAMEPLATE |
1 |
2011-11_ |
|
14 |
GBT5783-M14X40-8.8-A3L |
六角头螺栓 |
BOLT |
4 |
2011-11_ |
|
15 |
GBT93-14-A0P |
弹簧垫圈 |
SPRING WASHER |
12 |
2011-11_ |
|
15 |
GBT93-14-A0P |
弹簧垫圈 |
SPRING WASHER |
12 |
2011-11_ |
|
16 |
FT400.46.350 |
U型螺栓 |
U BOLT |
4 |
2011-11_ |
|
17 |
GBT6170-M14-8-A3L |
I型六角螺母 |
HEXAGON NUT |
16 |
2011-11_ |
|
18 |
GBT97.1-14-A0P |
垫圈14-A0P |
WASHER |
4 |
2011-11_ |
|
19 |
TB400.46C-01 |
堵盖 |
PLUG COVER |
8 |
2011-11_ |
|
2 |
GBT5783-M10X30-8.8-A3L |
六角头螺栓 |
BOLT |
6 |
2011-11_ |
|
3 |
FT400.46.021 |
垫圈合件 |
WASHER UNIT |
6 |
2011-11_ |
|
4 |
FT300.46.106 |
遮阳棚固定板 |
SHADOW LOCKING PLATE |
2 |
2011-11_ |
|
5 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
6 |
2011-11_ |
|
7 |
GBT5782-M12X70-8.8-A2L |
六角头螺栓 |
BOLT |
4 |
2011-11_ |
|
8 |
TB400.46D.1 |
安全架总成 |
SAFETY FRAME ASSEMBLY |
1 |
2011-11_ |
|
8.1 |
TB400.46D.1.3 |
上梁焊合 |
UPPER BEAM WELDMENT |
1 |
2011-11_ |
|
8.2 |
TB400.46D.1.1 |
左支撑焊合 |
LEFT BRACKET WELDMENT |
1 |
2011-11_ |
|
8.3 |
GBT5782-M16X90-10.9-A2L |
六角头螺栓 |
BOLT |
6 |
2011-11_ |
|
8.4 |
GBT97.1-16-A0P |
垫圈 |
WASHER |
12 |
2011-11_ |
|
8.5 |
GBT93-16-A0P |
弹簧垫圈 |
SPRING WASHER |
6 |
2011-11_ |
|
8.6 |
GBT802-M16-6 |
组合式盖形螺母 |
NUT |
6 |
2011-05_ |
|
8.7 |
TB400.46D.1.2 |
右支撑焊合 |
RIGHT SUPPORTING WELDMENT |
1 |
2011-11_ |
TB400.46H 46-安全架安装总成(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
9 |
GBT97.1-12-A0P |
平垫圈 |
WASHER |
4 |
2011-11_ |

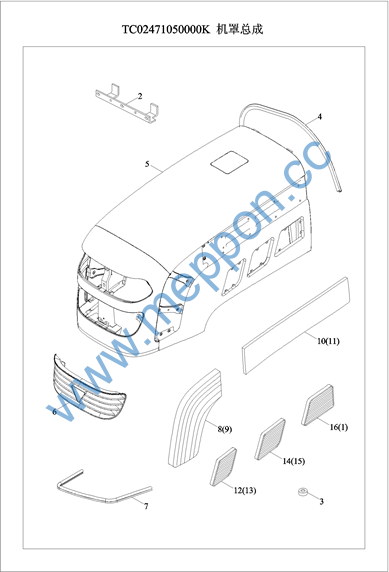

TC02471050000K 47.1-机罩总成 47.1-BONNET ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TB400B.471-11 |
右后下栅格 |
RIGHT REAR LOWER GRID |
1 |
2013-10_ |
|
10 |
TB400B.471-04 |
左后装饰件 |
LEFT REAR DECORATION |
1 |
2013-10_ |
|
11 |
TB400B.471-05 |
右后装饰件 |
RIGHT REAR DECORATION PART |
1 |
2013-10_ |
|
12 |
TB400B.471-06 |
左前下栅格 |
LEFT FRONT LOWER GRID |
1 |
2013-10_ |
|
13 |
TB400B.471-07 |
右前下栅格 |
RIGHT FRONT LOWER GRID |
1 |
2013-10_ |
|
14 |
TB400B.471-08 |
左中下栅格 |
LEFT MIDDLE LOWER GRID |
1 |
2013-10_ |
|
15 |
TB400B.471-09 |
右中下栅格 |
RIGHT MIDDLE LOWER GRID |
1 |
2013-10_ |
|
16 |
TB400B.471-10 |
左后下栅格 |
LEFT REAR LOWER GRID |
1 |
2013-10_ |
|
2 |
TB400B.471-15 |
铰链上座 |
HINGE UPPER SEAT |
2 |
2013-10_ |
|
3 |
TB400B.471-18 |
垫块 |
PAD BLOCK |
24 |
2013-10_ |
|
4 |
TB400B.471-14 |
机罩密封条 |
BONNET SEAL STRIP |
1 |
2013-10_ |
|
5 |
TB400B.471.4 |
机罩装焊总成 |
HOOD |
1 |
2013-10_ |
|
6 |
TC02471040001K |
前脸栅格 |
FRONT GRID |
1 |
2013-10_ |
|
7 |
TB400B.471-17 |
前下缓冲胶条 |
FRONT LOWER CUSHION RUBBER PIECE |
1 |
2013-10_ |
|
8 |
TB400B.471-02 |
左前栅格 |
LEFT FRONT GRID |
1 |
2013-10_ |
|
9 |
TB400B.471-03 |
右前栅格 |
RIGHT FRONT GRID |
1 |
2013-10_ |

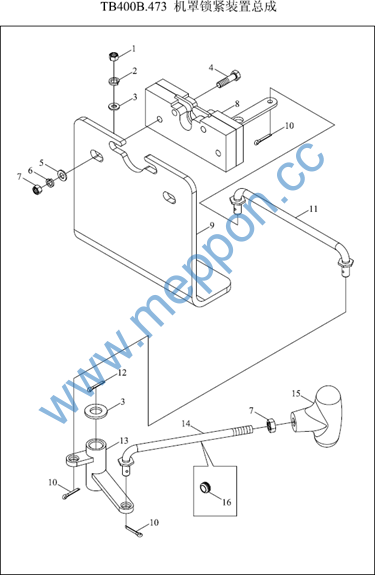

TB400B.473 47.3-机罩锁紧装置总成 47.3-BONNET LOCKING DEVICE ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
TB400B.473.4 |
拉杆焊合 |
WELDED PUSHING ROD |
1 |
2011-08_ |
|
1 |
GBT6170-M8-A2L |
螺母 |
NUT |
3 |
2011-11_ |
|
10 |
GBT91-1.6X16-A0P |
开口销 |
PIN |
3 |
2011-11_ |
|
11 |
TB400B.473.2 |
拉杆焊合 |
WELDED PUSHING ROD |
1 |
2011-08_ |
|
12 |
GBT91-2.5X25-A0P |
开口销 |
PIN |
1 |
2011-11_ |
|
13 |
TB400B.473.3 |
摇臂焊合 |
ROCKER WELDMENT |
1 |
2011-08_ |
|
14 |
FT800A.47.098 |
拉杆焊合（二） |
PULL ROD WELDMENT (2) |
1 |
2011-11_ |
|
15 |
FT800A.47.056 |
手柄总成 |
HANDLE ASSEMBLY |
1 |
2011-11_ |
|
16 |
TB450.473-02 |
胶圈 |
RUBBER RING |
1 |
2008-08_ |
|
2 |
GBT93-8-A0P |
垫圈 |
WASHER |
3 |
2011-11_ |
|
3 |
GBT97.1-8-A0P |
平垫圈 |
WASHER |
3 |
2011-11_ |
|
4 |
GBT5783-M6X35-8.8-A1L |
六角头螺栓 |
BOLT |
4 |
2004-01_ |
|
5 |
GBT97.1-6-A0P |
平垫圈 |
WASHER |
7 |
2011-11_ |
|
6 |
GBT93-6-A0P |
弹簧垫圈 |
SPRING WASHER |
4 |
2011-11_ |
|
7 |
GBT6170-M6-A2L |
螺母 |
NUT |
5 |
2011-11_ |
|
8 |
FT800.47.127 |
机罩锁总成 |
BONNET LOCK ASSEMBLY |
1 |
2004-01_ |
|
8 |
TG1204.474.4 |
机罩锁 |
BONNET LOCK |
1 |
2011-08_ |
|
9 |
TB400B.473-01 |
机罩锁板 |
BONNET LOCK PLATE |
1 |
2011-08_ |

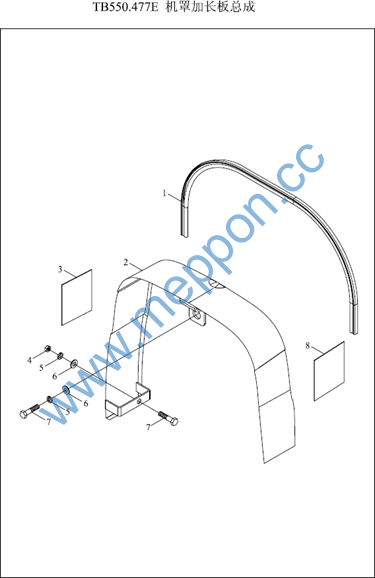

TB550.477E 47.7-机罩加长板总成 47.7-BONNET EXTENSION PLATE ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TB550.477B-03 |
加长板密封条 |
EXTENSION PLATE SEAL PIECE |
1 |
2010-05_ |
|
1 |
TB400B.471-14 |
机罩密封条 |
BONNET SEAL STRIP |
1 |
2004-01_ |
|
2 |
TB550.477E.1 |
机罩加长板焊合 |
BONNET EXTENSION PLATE WELDMENT |
1 |
2011-11_ |
|
3 |
TB550.477D-02 |
右装饰胶条 |
RIGHT DECORATION ADHESIVE STRIP |
1 |
2011-11_ |
|
4 |
GBT6170-M8-A2L |
螺母 |
NUT |
2 |
2011-11_ |
|
5 |
GBT93-8-A0P |
垫圈 |
WASHER |
3 |
2011-11_ |
|
6 |
GBT97.1-8-A0P |
平垫圈 |
WASHER |
3 |
2011-11_ |
|
7 |
GBT5781-M8X30-A2L |
六角头螺栓 |
BOLT |
3 |
2011-11_ |
|
8 |
TB550.477D-01 |
左装饰胶条 |
LEFT DECORATION ADHESIVE PIECE |
1 |
2011-11_ |

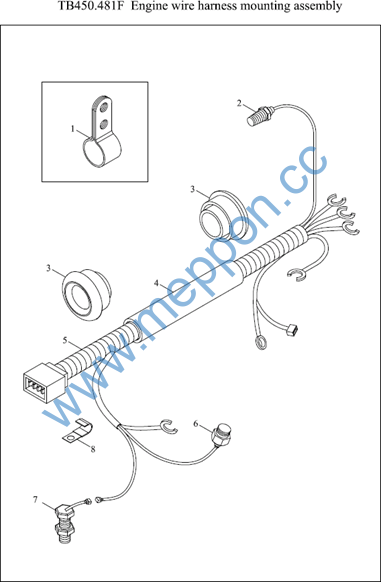

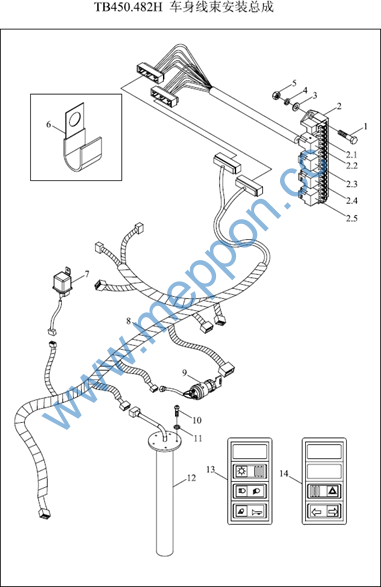

TB450.481F 48.1-发动机线束安装总成 48.1-ENGINE HARNESS INSTALLATION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT800.48L.108a |
紧固夹 |
FASTENING CLIP |
2 |
2011-11_ |
|
2 |
FT300.48.072 |
水温传感器 |
WATER TEMPERATURE SENSOR |
1 |
2011-11_ |
|
3 |
FT800.48L.107 |
护线套 |
SLEEVE |
2 |
2011-11_ |
|
4 |
FT300.48P.102 |
线束套管 |
HARNESS SLEEVE |
1 |
2011-11_ |
|
5 |
FT400.48X.025 |
发动机线束总成 |
ENGINE HARNESS ASSEMBLY |
1 |
2011-11_ |
|
6 |
FT300.48.073a |
机油压力报警器 |
OẸL PRESSURE SENSOR |
1 |
2011-11_ |
|
7 |
FT300.48.074 |
转速传感器 |
RPM SENSOR |
1 |
2011-11_ |
|
8 |
FT304.48L.203 |
线束紧固夹 |
HARNESS TIGHTEN CLIP |
2 |
2011-11_ |
