TB504.402B-1 40.1-全液压转向管路总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

27

GBT5783-M8X35-8.8-A2L

六角头螺栓

BOLT

1



28

GBT5783-M8X20-8.8-A2L

六角头螺栓

BOLT

1



29

GBT97.1-8-A0P

平垫圈

WASHER

1



3

TB450.40X-01

转向油箱支架

STEERING OIL TANK BRACKET

1



3

TB504.402B.11

转向油箱支架焊合

STEERING OIL TANK BRACKET WELDMENT

1

2012-12_

4

GBT5783-M10X25-8.8-A3L

六角头螺栓

BOLT

2



5

FT354.40C.011

转向油箱及呼吸器总成

STEERING OIL TANK AND BREATH ASSEMBLY

1



6

Q67627

软管环箍27

HOSE HOOP 27

4



7

TB504.402-04

回油软管

OIL RETURN HOSE

1



8

TB504.402B-03

吸油软管

OIL SUCTION HOSE

1

2012-12_

8

FT400.40X.104

吸油软管

OIL SUCTION HOSE

1



9

GBT5782-M8X60-8.8-A2L

六角头螺栓

BOLT

4

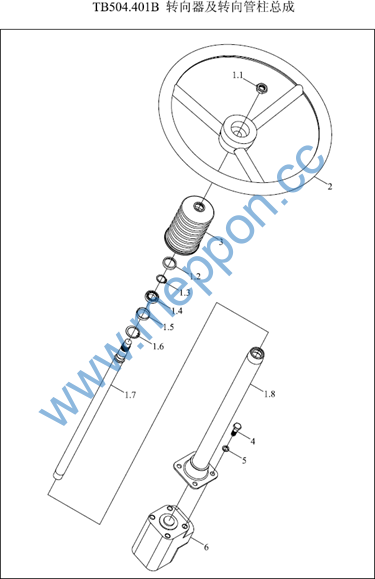

TB504.401B 40.1-转向器及转向管柱总成 40.1-REDIRECTOR OR STEERING COLUMN ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT354.40C.016a

转向管柱总成

STEERING PIPE COLUMN ASSEMBLY

1



1

FT354.40C.016a

转向管柱总成

STEERING PIPE COLUMN ASSEMBLY

1



1.1

GBT6173-M16X1.5-A3L

六角薄螺母

NUT

1

2011-11_

1.2

FT650.40.172

轴承挡圈

BEARING RETAINER RING

1

2011-11_

1.3

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

1.4

GBT276-61804-2LS

轴承

BEARING

1

2011-11_

1.5

FT650.40.173

轴承挡圈2

BEARING RETAINER RING 2

1

2011-11_

1.6

GBT893.1-32

档圈

RETAINER RING

1

2011-11_

1.7

FT354.40C.130a

转向杆

STEERING ROD

1

2009-12_

1.8

FT354.40C.030

转向套管焊合

STEERING SLEEVE WELDMENT

1

2011-11_

2

FT400.40.016

转向盘总成

STEERING WHEEL ASSEMBLY

1

2011-11_

3

TB504.401-01

转向杆防护套

STEERING ROD SHIELD SLEEVE

1

2011-11_

3

TB504.401-01

转向杆防护套

STEERING ROD SHIELD SLEEVE

1

2011-11_

4

GBT5783-M10X30-8.8-A3L

六角头螺栓

BOLT

4

2011-11_

5

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

6

FT354.40C.015

液压转向器总成

HYDRAULIC STEERING MECHANISM ASSEMBLY

1

2011-11_

6

FT354.40C.015

液压转向器总成

HYDRAULIC STEERING MECHANISM ASSEMBLY

1

2011-11_

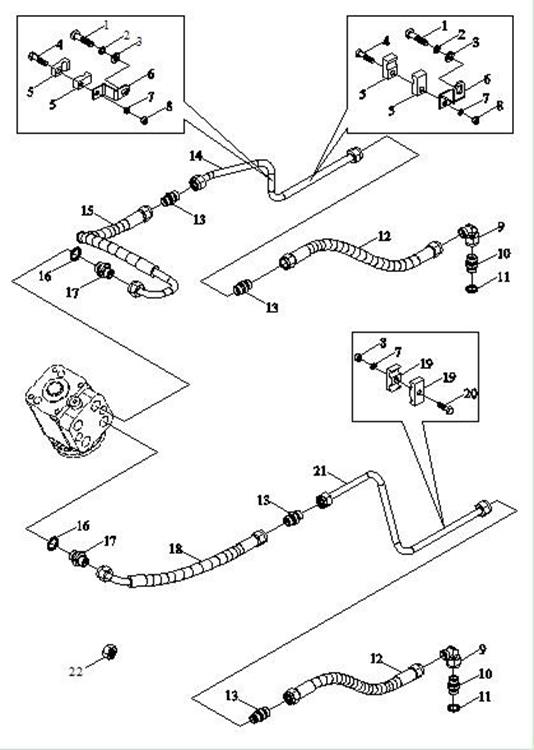

TB504.402B-2 40.2-全液压转向管路总成-2 FULL HYDRAULIC STEERING PIPE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2



1

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2



10

TB504.402B.10

卡套式组合直角管接头

JOINT

2



11

JBT982-16

组合密封垫圈

COMBINED SEAL GASKET

2



12

TB504.402B.5

输油胶管总成

OIL CONVEYING HOSE ASSEMBLY

2



13

GBT3737.2-G12

直通接头体

STRAIGHT THREAD JOINT

4



14

TB504.402B.2

输油钢管总成

OIL CONVEYING PIPE ASSEMBLY

1



14

TB504.402B.2a

输油钢管总成2

OIL CONVEYING PIPE ASSEMBLY 2

1

2012-12_

15

TB504.402B.6

输油胶管总成

OIL CONVEYING HOSE ASSEMBLY

1



16

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

2



17

TH354.402-11

管接头

PIPE JOINT

2



18

TB504.402B.9

输油胶管总成

OIL CONVEYING HOSE ASSEMBLY

1



19

TG1204.402E-03

双孔管夹

DOUBLE-HOLE PIPE CLIP

2



2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2



20

GBT5783-M8X35-8.8-A2L

六角头螺栓

BOLT

1



21

TB504.402B.1a

输油钢管总成1

OIL CONVEYING PIPE ASSEMBLY 1

1

2012-12_

21

TB504.402B.1

输油钢管总成

OIL CONVEYING PIPE ASSEMBLY

1



22

GBT6170-M8-8-A2L

Ⅰ型六角螺母

I-TYPE HEXAGON NUT

1



3

GBT97.1-10-A0P

平垫圈

WASHER

2



4

GBT5782-M8X40-8.8-A2L

六角头螺栓

BOLT

2



5

TG1654.402-07

单孔管夹

SINGLE HOLE PIPE CLAMP

4



6

TB504.402-10

油管支架Ⅲ

OIL PIPE BRACKET 3

2



7

GBT93-8-A0P

垫圈

WASHER

3



8

GBT6170-M8-A2L

螺母

NUT

3



9

GBT3733.2-G12

卡套式端直通接头体

STRAIGHT PIPE JOINT BODY

2










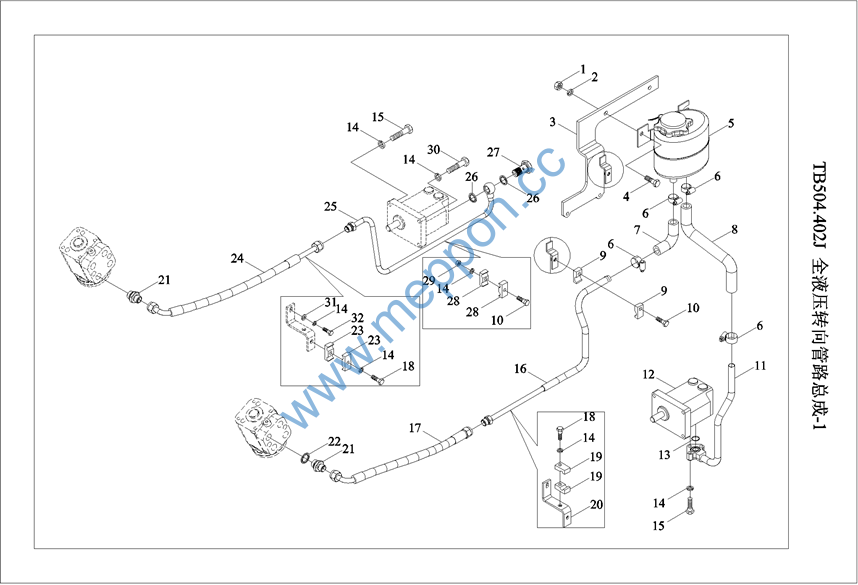

TB504.402J-1 40.21-全液压转向总成 FULLY HYDRAULIC STEERING ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M10-8-A3L

1型六角螺母

NUT

2

2014-04_

10

GBT5783-M8X35-8.8-A2L

六角头螺栓

BOLT

2

2014-04_

11

FT450.40Y.011

油泵吸油钢管焊合件

OIL PUMP INLET STEEL PIPE WELDMENT

1

2014-04_

12

FT354.40J.011

恒流溢流泵

PERMANENT OVERFLOW PUMP

1

2014-04_

13

GBT3452.1-17.0X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2014-04_

14

GBT93-8-A0P

垫圈

WASHER

10

2014-04_

15

GBT5783-M8X30-8.8-A2L

六角头螺栓

BOLT

5

2014-04_

16

TB504.402B.7a

输油钢管总成7

OIL CONVEYING PIPE ASSEMBLY 7

1

2014-04_

17

TB504.402B.13

输油胶管总成-02

HIGH PRESSURE OIL HOSE ASSEMBLY

1

2014-04_

18

GBT5783-M8X40-8.8-A2L

六角头螺栓

BOLT

2

2014-04_

19

TG1654.402-07

单孔管夹

SINGLE HOLE PIPE CLAMP

2

2014-04_

2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2

2014-04_

20

TB504.402B-01a

油管支架1

OIL PIPE BRACKET1

1

2014-04_

21

TH354.402-11

管接头

PIPE JOINT

2

2014-04_

22

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

1

2014-04_

23

TG1654.402-04

双孔管夹

DOUBLE-HOLE PIPE CLIP

2

2014-04_

24

TB504.402B.12

输油胶管总成3

OIL CONVEYING HOSE ASSEMBLY 3

1

2014-04_

25

TB504.402B.8a

输油钢管焊合8

OIL CONVEYING PIPE WELDMENT 8

1

2014-04_

26

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

2

2014-04_

26

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

2

2014-04_

27

FT650.40.105

空心螺栓

HOLLOW BOLT

1

2014-04_

28

TG1204.402E-03

双孔管夹

DOUBLE-HOLE PIPE CLIP

2

2014-04_

29

GBT6170-M8-8-A2L

Ⅰ型六角螺母

I-TYPE HEXAGON NUT

1

2014-04_

3

TB504.402B.11

转向油箱支架焊合

STEERING OIL TANK BRACKET WELDMENT

1

2014-04_

30

GBT5782-M8X60-8.8-A2L

六角头螺栓

BOLT

2

2014-04_








TB504.402J-1 40.21-全液压转向总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

31

GBT97.1-8-A0P

平垫圈

WASHER

1

2014-04_

32

GBT5783-M8X20-8.8-A2L

六角头螺栓

BOLT

1

2014-04_

4

GBT5783-M10X25-8.8-A3L

六角头螺栓

BOLT

2

2014-04_

5

FT354.40C.011

转向油箱及呼吸器总成

STEERING OIL TANK AND BREATH ASSEMBLY

1

2014-04_

6

Q67627

软管环箍27

HOSE HOOP 27

4

2014-04_

7

TB504.402B-02

胶管

RUBBER HOSE

1

2014-04_

8

TB504.402B-03

吸油软管

OIL SUCTION HOSE

1

2014-04_

9

TG1204.402-01

单孔管夹

SINGLE HOLE PIPE CLAMP

2

2014-04_

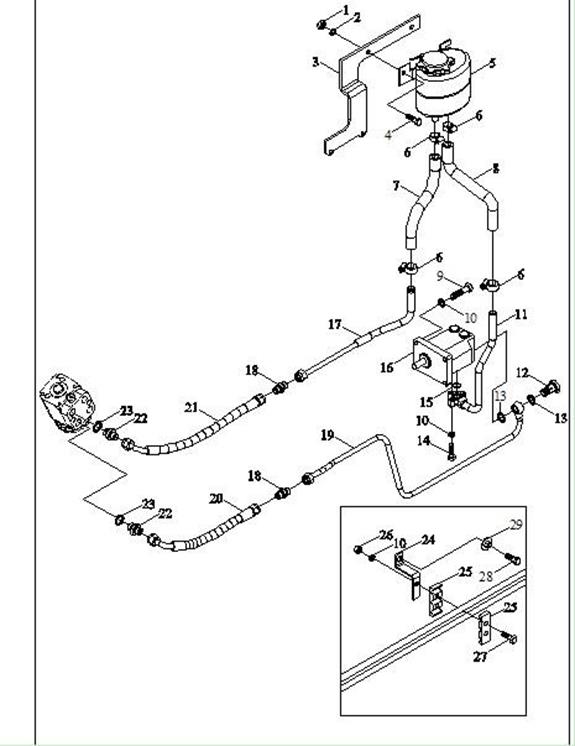

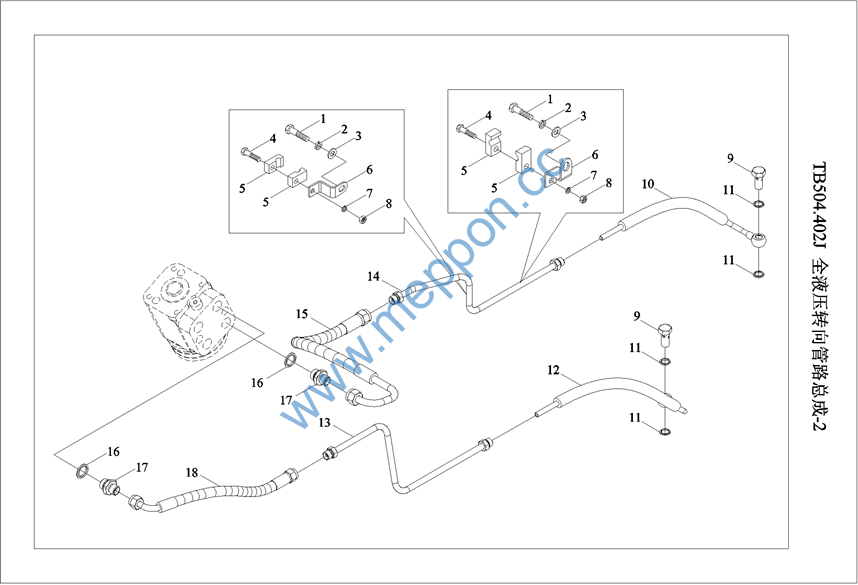

TB504.402J-2 40.22-全液压转向总成 FULLY HYDRAULIC STEERING ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2

2014-04_

1

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2

2014-04_

10

TB704.402.11

右转向输油管总成

RIGHT STEERING OIL PIPE ASSEMBLY

1

2014-04_

11

JBT982-16

组合密封垫圈

COMBINED SEAL GASKET

4

2014-04_

12

TB704.402.10

左转向输油管总成

LEFT STEERING OIL PIPE ASSEMBLY

1

2014-04_

13

TB504.402B.1a

输油钢管总成1

OIL CONVEYING PIPE ASSEMBLY 1

1

2014-04_

14

TB504.402B.2a

输油钢管总成2

OIL CONVEYING PIPE ASSEMBLY 2

1

2014-04_

15

TB504.402B.14

输油胶管总成6

OIL CONVEYING HOSE ASSEMBLY 6

1

2014-04_

16

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

1

2014-04_

17

TH354.402-11

管接头

PIPE JOINT

2

2014-04_

2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2

2014-04_

3

GBT97.1-10-A0P

平垫圈

WASHER

2

2014-04_

4

GBT5782-M8X40-8.8-A2L

六角头螺栓

BOLT

2

2014-04_

5

TG1654.402-07

单孔管夹

SINGLE HOLE PIPE CLAMP

4

2014-04_

6

TB504.402-10

油管支架Ⅲ

OIL PIPE BRACKET 3

2

2014-04_

7

GBT93-8-A0P

垫圈

WASHER

3

2014-04_

8

GBT6170-M8-8-A2L

Ⅰ型六角螺母

I-TYPE HEXAGON NUT

2

2014-04_

9

FT650.40.112

空心螺栓

HOLLOW BOLT

2

2014-04_
