FT400.34F.001 34-后驱动轮总成 34-REAR DRIVE WHEEL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT2979-12.4-28-8PR-R

拖拉机驱动轮普通断面斜交结构外胎

DRIVING WHEEL OUTER TUBE

1

2011-11_

2

GBT2979-12.4-28-R

拖拉机驱动轮内胎

DRIVING WHEEL INNER TUBE

1

2011-11_

2

GBT2979-12.4-28-R

拖拉机驱动轮内胎

DRIVING WHEEL INNER TUBE

1

2011-11_

3

FT400.34F.011

轮辋总成

RIM ASSEMBLY

1

2011-11_

3.1

GBT6171-M16X1.5-A3L

1型六角螺母

NUT

6

2011-11_

3.2

FT300.34.106

垫圈

WASHER

6

2011-11_

3.3

FT400.34F.012

轮辋焊合

WHEEL RIM WELD

1

2011-11_

3.4

FT400.34.103b

轮辐

SPOKE

1

2011-11_

3.5

FT300.34.102

轮辋螺栓

RIM BOLT

6

2011-11_

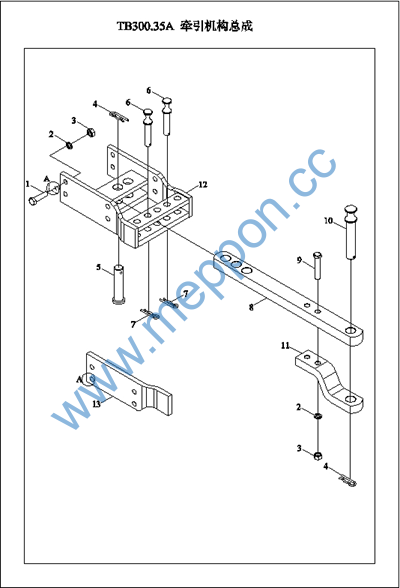

TB300.35A 35-牵引机构总成 35-TOWING MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TB300.35A-01HAA

牵引机构总成

TRACTION MECHANISM ASS

1

2011-04_

1

GBT5783-M16X60-8.8-A3L

六角头螺栓

BOLT

8

2012-05_

10

TB300.35A-04

摆销

SWING PIN

1

2012-05_

11

TB300.35A-02

连接摆杆

CONNECTING SWING ROD

1

2012-05_

12

TB300.35A.1

牵引架焊合

TRACTION FRAME

1

2012-05_

13

TB300.35A.1-02

左侧板

LEFT SIDE BOARD

1

2012-05_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

10

2012-05_

3

GBT6170-M16-8-A3L

1型六角螺母

NUT

10

2012-05_

4

FT65.53.103

弹性锁销

SPRING LOCK PIN

2

2012-05_

5

TB300.35A-05

连接销

CONNECTING PIN

1

2012-05_

6

TB300.35A-03

定位销

THIMBLE

2

2012-05_

7

FT300.35A.131

锁销

PIN

2

2012-05_

8

TB300.35A-01

摆杆

UPPER PART U-HOOK

1

2012-05_

9

GBT5782-M16X90-8.8-A2L

六角头螺栓

BOLT

2

2012-05_

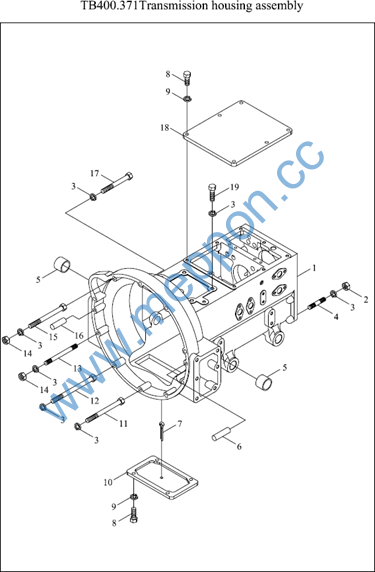

TB400.371 37.1-变速箱壳体总成 37.1-GEARBOX HOUSING ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TB400.371-01

变速箱壳体

GEAR BOX

1

2006-06_

10

TB400.371-02

下堵盖

LOWER PLUG COVER

1

2006-06_

11

GBT6170-M12-A3L

螺母

NUT

6

2012-07_

12

GBT5782-M12×110-A2L

螺栓

BOLT

2

2012-07_

13

GBT119.1-12m6X22-A0P

圆柱销

PIN

1

2012-07_

14

TB550.371-02

螺栓M12X125

BOLT

1

2012-07_

15

GBT5782-M12X100-A2L

六角头螺栓

BOLT

3

2012-07_

16

GBT5783-M12×35-A3L

螺栓

BOLT

4

2012-07_

16

GBT5783-M12×35-A3L

螺栓

BOLT

4

2012-07_

17

TB400.371E-03

下堵盖

LOWER PLUG COVER

1

2012-07_

18

TB400.371-03

变速箱盖

GEARBOX COVER

1

2006-06_

19

GBT5783-M12X35-A3L

螺栓

BOLT

4

2012-07_

19

GBT5783-M12X35-A3L

螺栓

BOLT

4

2012-07_

2

GBT6171-M12×1.5-A3L

螺母

NUT

10

2012-07_

3

GBT93-12

垫圈

WASHER

24

2012-07_

4

GBT899-AM12-M12X1.5X35-8.8-A3L

双头螺柱

8.8-A3L STUD

10

2012-07_

5

FT300.37.159

分离叉轴衬套

RELEASE FORK SHAFT BUSH

2

2012-07_

6

GBT119.1-12m6X30-A1

圆柱销

PIN

5

2012-07_

6

GBT119.1-12m6X30-A1

圆柱销

PIN

5

2012-07_

7

GBT91-5X32-A0P

开口销

PIN

1

2012-07_

8

GBT91-5×32-A0P

开口销

PIN

1

2012-07_

9

GBT93-10

垫圈10

WASHER 10

12

2012-07_

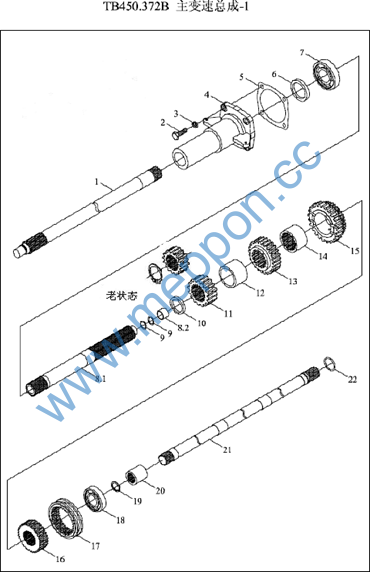

TB450.372B-1 37.2.1-主变速总成-1 MAIN TRANSMISSION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT400.37B.201

副离合器轴

AUXILIARY CLUTCH SHAFT

1

2011-11_

10

GBT894.1-40

挡圈40

WASHER 40

1

2011-11_

10

TB550.372-18

Ⅰ档齿轮隔套

I GEAR SPACER

1

2004-01_

11

FT300.37B.126

Ⅰ档主动齿轮

I DRIVING GEAR

1

2004-01_

11

FT300.37B.126a

Ⅰ档主动齿轮

I DRIVING GEAR

1

2008-08_

12

FT300.37B.127a

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2007-04_

12

FT300.37B.127

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2004-01_

12

TB550.372-19

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2004-01_

13

FT300.37.128

Ⅱ档主动齿轮

Ⅱ DRIVING GEAR

1

2011-11_

14

FT300.37.130

Ⅲ档齿轮衬套

III GEAR BUSH

1

2011-11_

15

FT300.37.131a

Ⅲ档主动齿轮

Ⅲ DRIVING GEAR

1

2011-11_

16

FT300.37.132

Ⅲ-Ⅳ档啮合齿座

Ⅲ-Ⅳ ENGAGING GEAR SEAT

1

2011-11_

17

FT300.37.134a

Ⅲ-Ⅳ档啮合套

Ⅲ-Ⅳ SHIFT COLLAR

1

2011-11_

18

GBT276-6007

轴承6007

BEARING

1

2011-11_

19

GBT893.1-21

孔用弹性挡圈

SNAP RING

1

2011-11_

2

GBT5783-M8X25-A2L

螺栓

BOLT

4

2011-11_

20

FT300.37.136

连接套

CONNECTING SLEEVE

1

2011-11_

21

FT300.37E.137

动力输出连接轴

PTO CONNECTING SHAFT

1

2011-11_

21

FT300.37E.137

动力输出连接轴

PTO CONNECTING SHAFT

1

2011-11_

22

GBT895.2-24

轴用钢丝挡圈

SNAP RING

1

2011-11_

3

GBT93-8

垫圈8

WASHER 8

4

2011-11_

4

FT300.37B.124

Ⅰ轴轴承盖

SHAFT I BEARING COVER

1

2011-11_

5

FT300.37B.125

Ⅰ轴轴承盖纸垫

SHAFT I BEARING COVER PAPER GASKET

1

2011-11_

6

GBT9877.1-FB40X62X8D

内包骨架旋转轴唇形密封

O RING

1

2011-11_

7

GBT276-6208

深沟球轴承

BEARING

1

2011-11_








TB450.372B-1 37.2.1-主变速总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

8

8

8.1

8.1



8.2

9

FT300.37B.021 FT300.37B.021a FT300.37B.021a FT300.37B.202 FT300.37B.202a



FT300.37.170 GBT3452.1-23.6X1.80G

Ⅰ轴合件 Ⅰ轴合件 Ⅰ轴合件 Ⅰ轴 Ⅰ轴



衬套

液压气动用O形橡胶密封圈

SHAFT I UNIT SHAFT I UNIT SHAFT I UNIT SHAFT I SHAFT I



SLEEVE

O-SEAL RING

1

1

1

1

1



1

2

2004-01_

2008-08_

2008-08_

2004-01_

2008-08_



2011-11_

2011-11_

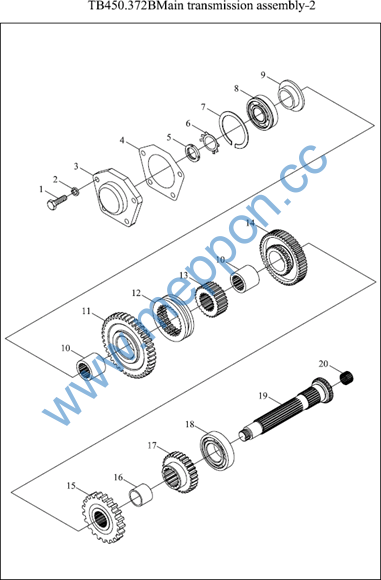

TB450.372B-2 37.2.2-主变速总成-2 MAIN TRANSMISSION ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M8X25-A2L

螺栓

BOLT

4

2011-11_

10

FT300.37.114

Ⅰ-Ⅱ档齿轮衬套

I-II GEAR BUSH

2

2011-11_

11

FT300.37.117a

Ⅰ档从动齿轮

I DRIVEN GEAR

1

2011-06_

11

FT300.37.117

Ⅰ档从动齿轮

I DRIVEN GEAR

1

2004-01_

12

FT300.37.115a

Ⅰ-Ⅱ档啮合套

I-II SHIFT COLLAR

1

2011-06_

12

FT300.37.115

Ⅰ-Ⅱ档啮合套

I-II SHIFT COLLAR

1

2004-01_

13

FT300.37.116

Ⅰ-Ⅱ档啮合齿座

I-II ENGAGING TOOTH SEAT

1

2011-11_

14

FT300.37.113

Ⅱ档从动齿轮

Ⅱ DRIVEN GEAR

1

2004-01_

14

FT300.37.113a

Ⅱ档从动齿轮

Ⅱ DRIVEN GEAR

1

2011-06_

15

FT300.37.112

Ⅲ档从动齿轮

Ⅲ DRIVEN GEAR

1

2011-11_

16

FT300.37.110

Ⅲ-Ⅳ档齿轮隔套

III-IV GEAR SPACER

1

2011-11_

17

FT300.37.108a

Ⅳ档从动齿轮

Ⅳ DRIVEN GEAR

1

2011-11_

18

GBT276-6208

深沟球轴承

BEARING

1

2011-11_

19

FT300.37.109a

Ⅱ轴

SHAFT Ⅱ

1

2011-11_

2

GBT93-8

垫圈8

WASHER 8

4

2011-11_

20

JBT7918-K20X26X20

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

3

FT300.37.120

Ⅱ轴轴承盖

SHAFT Ⅱ BEARING COVER

1

2011-11_

4

FT300.37.119

Ⅱ轴轴承盖纸垫

SHAFT Ⅱ BEARING COVER PAPER GASKET

1

2011-11_

5

GBT812-M24X1.5

圆螺母

ROUND NUT

1

2011-11_

6

GBT858-24

圆螺母用止动垫圈

THRUST RING

1

2011-11_

7

GBT305-72-78.6

止动环

THRUST RING

1

2004-01_

8

GBT276-6306N

深沟球轴承

BEARING

1

2011-11_

9

FT300.37.118

Ⅱ轴轴端挡圈

SHAFT Ⅱ END RETAINER RING

1

2011-11_








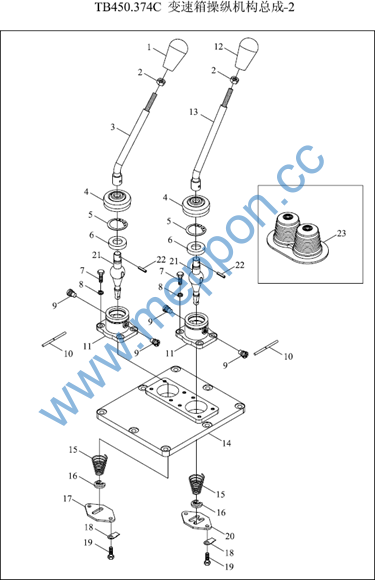

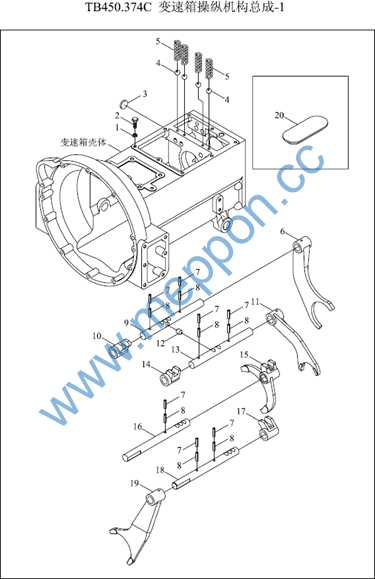

TB450.374C-1 37.4-变速箱操纵机构总成 37.4-GEARBOX CONTROL MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT93-10

垫圈10

WASHER 10

8

2011-11_

10

FT300.37.154

副变速拨头

AUXILIARY GEARSHIFT DIAL HEAD

1

2011-11_

11

FT300.37.146

倒档拨叉

REVERSE FORK

1

2011-11_

12

FT300.37.151

互锁销

MUTUAL PIN

1

2011-11_

13

FT450.37.155

倒档拨叉轴

REVERSE FORK SHAFT

1

2011-11_

14

FT300.37.153

倒档拨头

REVERSE DIAL HEAD

1

2011-11_

15

FT300.37.147

Ⅲ-Ⅳ档拨叉

Ⅲ-Ⅳ FORK

1

2011-11_

16

FT300.37.150

Ⅲ-Ⅳ档拨叉轴

Ⅲ-Ⅳ FORK SHAFT

1

2011-11_

17

FT300.37.152

Ⅰ-Ⅱ档拨头

I-II GEAR FORK HEAD

1

2011-11_

18

FT300.37.149

Ⅰ-Ⅱ档拨叉轴

I-II GEAR FORK SHAFT

1

2011-11_

19

FT300.37.148

Ⅰ-Ⅱ档拨叉

I-II GEAR FORK

1

2011-11_

2

GBT5783-M10X30-A3L

螺栓

BOLT

8

2011-11_

20

TB450.452A-01

密封盖

SEAL CAP

1

2011-11_

3

Q72141

塞片

PLUG PIECE

1

2011-11_

4

GBT308-8-G100-B

钢球

BALL

4

2011-11_

5

FT300.37.135

拨叉轴定位弹簧

FORK SHAFT LOCATING SPRING

4

2011-11_

6

FT300.37.145

副变速拨叉

AUXILIARY GEARSHIFT FORK

1

2011-11_

7

GBT879.1-3X24

弹性圆柱销

PIN

7

2011-11_

8

GBT879.1-5X24

弹性圆柱销

PIN

7

2011-11_

9

FT450.37.156

副变速拨叉轴

AUXILIARY GEARSHIFT FORK SHAFT

1

2011-11_
