LOVOL TB604-A161Y1K Tractor Parts Catalogue 09
TB554.311 Front Driving Axle Assembly-6
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.311.011 |
Front Driving Axle Subassembly |
1 |
||
1 |
GBT 5783 |
Bolt M16x40-Zn.d |
1 |
|
2 |
GBT 6170 |
Nut M16 |
1 |
|
3 |
FT304.31F.025 |
Seal Gasket |
1 |
|
4 |
TB554.311.149 |
Front Support Seat |
1 |
|
5 |
FT304.31F.150 |
Gasket |
1 |
|
6 |
FT304.31F.148 |
Sliding Bearing 50X40 |
1 |
|
7 |
GBT 7940.1 |
Oil Cup M8x1 |
2 |
|
8 |
GBT 3452.1 |
O-Ring 47.5X3.55g |
1 |
|
9 |
FT304.31F.024 |
Connecting Pin |
2 |
|
10 |
TB554.311.147 |
Support Shaft |
1 |
|
11 |
GBT 3452.1 |
O-Ring 58X3.55g |
1 |
|
12 |
GBT 5783 |
Bolt M8x20-Zn.d |
2 |
|
13 |
GBT 93 |
Washer 8 |
2 |
|
14 |
GBT 7940.2 |
Oil Cup 45° M8x1 |
2 |
|
15 |
GBT 5783 |
Bolt M12x40-Zn.d |
6 |
|
16 |
GBT 93 |
Washer 12 |
18 |
|
17 |
GBT 6170 |
Nut 12 |
12 |
|
18 |
GBT 900 |
Stud Am12x40-8.8-Zn.d |
12 |
|
19 |
FT304.31F.156 |
Sliding Bearing 90X55 |
1 |
|
20 |
GBT 3452.1 |
O-Ring 45X3.55g |
1 |
|
21 |
FT304.31F.155 |
Rear Support Seat |
1 |
75
Lovol TB604-A161Y1K Wheeled Tractor

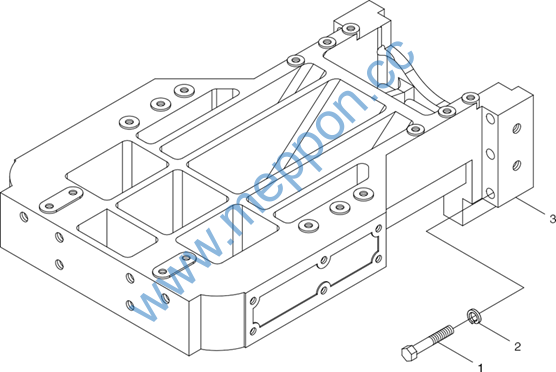

TB554.312 Front Bracket Assembly
76
Lovol TB604-A161Y1K Wheeled Tractor
TB554.312 Front Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TB554.312 GBT 5782-M16X110-10.9-A2L GBT93-16-A0P TB554.312-01 |
Front Bracket Assembly Hex Bolt Standard Spring Washer Front Bracket |
1 6 6 1 |
77
Lovol TB604-A161Y1K Wheeled Tractor

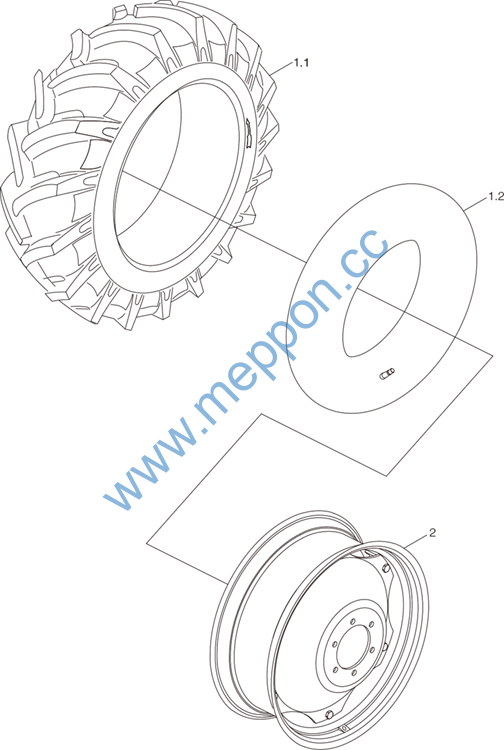

FT404.32F.001 Front Drive Wheel Assembly
78
Lovol TB604-A161Y1K Wheeled Tractor
FT404.32F.001 Front Drive Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT404.32F.001 |
Front Drive Wheel Assembly |
1 |
||
1 |
TB704.32B.2 |
Inner Tube/Tyre Assembly 8.3-20 |
1 |
|
1.1 |
GBT2979-8.3-20-6PR-R |
General Section Bias Tyre Of Tractor Drive Wheel |
1 |
|
1.2 |
GBT2979-8.3-20-R |
Inner Tube Of Tractor Drive Wheel |
1 |
|
2 |
FT404.32F.011 |
Rim Welding |
1 |
79
Lovol TB604-A161Y1K Wheeled Tractor

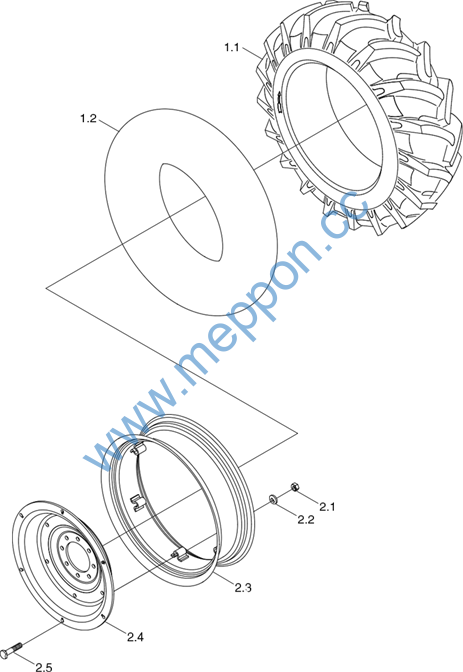

FT550.34F.001 Rear Driving Wheel Assembly
80
Lovol TB604-A161Y1K Wheeled Tractor
FT550.34F.001 Rear Driving Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT550.34F.001 |
Rear Driving Wheel Assembly |
1 |
||
1 |
TB604.34A.1.2 |
Tire And Tube Assembly 14.9-28 |
1 |
|
1.1 |
GBT 2979-14.9-28-6PR-R |
Diagonal Tire With Conventional Section, Tractor Driving Wheel |
1 |
|
1.2 |
GBT 2979-14.9-28-R |
Tube, Tractor Driving Wheel |
1 |
|
2 |
FT550.34F.011 |
Rim Disc Assembly |
1 |
|
2.1 |
GBT 6171-M16X1.5-10-A3L |
Nut |
6 |
|
2.2 |
FT654.32.104 |
Washer |
6 |
|
2.3 |
FT550.34F.012 |
Rim Weldment |
1 |
|
2.4 |
FT550.34.105b |
Spoke |
1 |
|
2.5 |
FT650.34.107 |
Rim Bolt |
6 |
81
Lovol TB604-A161Y1K Wheeled Tractor

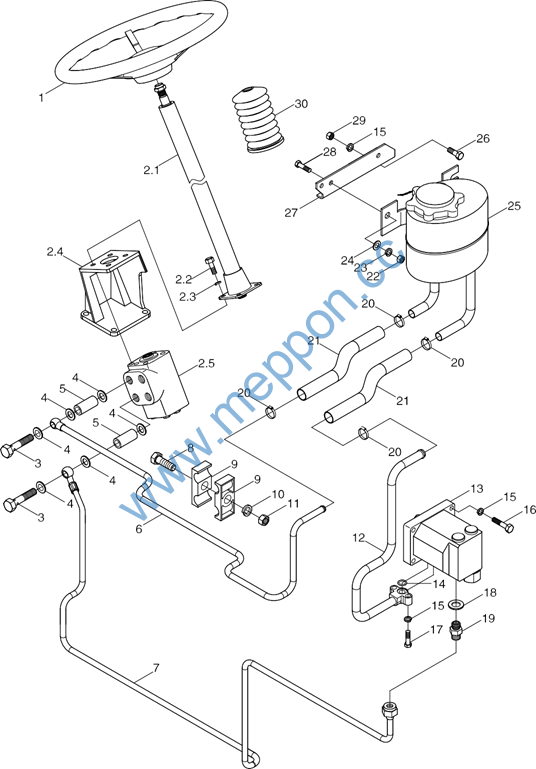

TB554.40A Full Hydraulic Steering Assembly -1
82
Lovol TB604-A161Y1K Wheeled Tractor
TB554.40A Full Hydraulic Steering Assembly -1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.40A |
Full Hydraulic Steering Assembly |
1 |
||
1 |
FT400.40.016 |
Steering Wheel Assembly |
1 |
|
2 |
FT354.40C.012 |
Steering Gear And Its Housing Assembly |
1 |
|
2.1 |
FT354.40C.016a |
Steering Column Assembly |
1 |
|
2.2 |
GBT 5783-M10X30-A3L |
Screw |
4 |
|
2.3 |
GBT 93-10-AOP |
Washer |
4 |
|
2.4 |
FT354.40C.111 |
Steering Gear Bracket |
1 |
|
2.5 |
FT354.40C.015 |
Hydraulic Steering Gear Assembly |
1 |
|
3 |
FT354.40C.102 |
Hollow Long Bolt |
2 |
|
4 |
JBT 982-20 |
Assembled Seal Washer |
6 |
|
5 |
FT354.40C.109 |
Long Connecting Pipe |
2 |
|
6 |
TB554.40A.1 |
Oil Return Outlet Pipe Weldment |
1 |
|
7 |
TB550.40A.1 |
Oil Pump Oil Outlet Steel Pipe Weldment |
1 |
|
8 |
GBT 5783-M12X45-A3L |
Bolt |
1 |
|
9 |
FT750.40.108 |
Double-Hole Pipe Clip |
2 |
|
10 |
GBT 93-12-A0P |
Washer |
1 |
|
11 |
GBT 6170-M12-A3L |
Nut |
1 |
|
12 |
TB554.40A.2a |
Oil Pump Oil Suction Steel Pipe Assembly |
1 |
|
13 |
FT304.40L.023 |
Constant Flow Overflow Pump |
1 |
|
14 |
GBT 3452.1-19.0X2.65G |
O-Seal Ring |
1 |
|
15 |
GBT 93-8-A0P |
Washer |
9 |
|
16 |
GBT 5783-M8X35-A2L |
Bolt |
4 |
|
17 |
GBT 5783-M8X30-A2L |
Bolt |
3 |
|
18 |
JBT 982-18 |
Compound Seal Washer |
1 |
|
19 |
FT404.40C.102 |
Clamp Type End Straight Joint Body |
1 |
|
20 |
Q67627 |
Hose Clamp |
4 |
|
21 |
TB554.40A-04 |
Oil Inlet Hose |
2 |
|
22 |
GBT 6170-M10-A3L |
Nut |
2 |
|
23 |
GBT 93-10-A0P |
Washer |
2 |
|
24 |
GBT 97.1-10-A0P |
Washer |
2 |
|
25 |
TB554.40Q.5 |
Steering Oil Tank And Breather Assembly |
1 |
|
26 |
GBT 5783-M8X25-A2L |
Bolt |
2 |
|
27 |
TB550.40A-03 |
Oil Tank Bracket |
1 |
|
28 |
GBT 5783-M10X35-A3L |
Bolt |
2 |
|
29 |
GBT 6170-M8-A2L |
Nut |
2 |
|
30 |
TB504.401-01 |
Steering Lever Protection Sleeve |
1 |
83
Lovol TB604-A161Y1K Wheeled Tractor

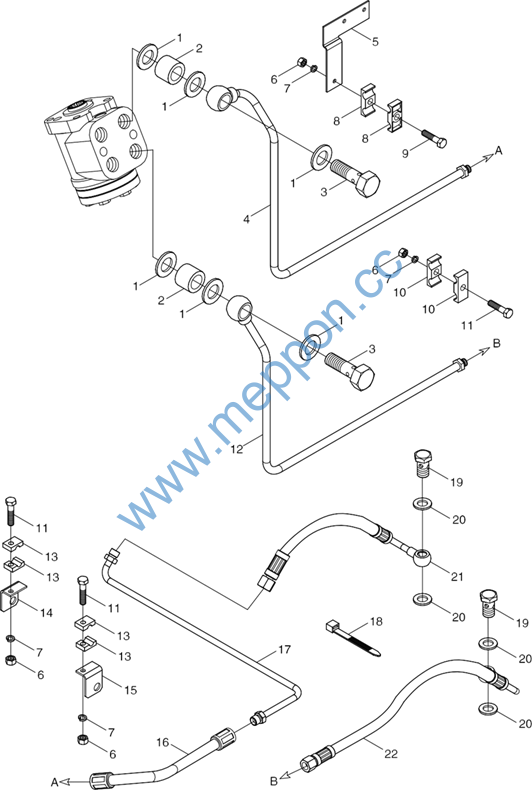

TB554.40A Full Hydraulic Steering Assembly-2
84
